ZTMI三通道高压数字功率计，带宽300KHz，PA333H-2K
$
6053.88
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
A power meter is a basic electrical parameter measurement instrument, mainly used in production line testing of industries such as photovoltaics, home appliances, power supplies, and motors. It features high precision, easy integration, and good cost performance.

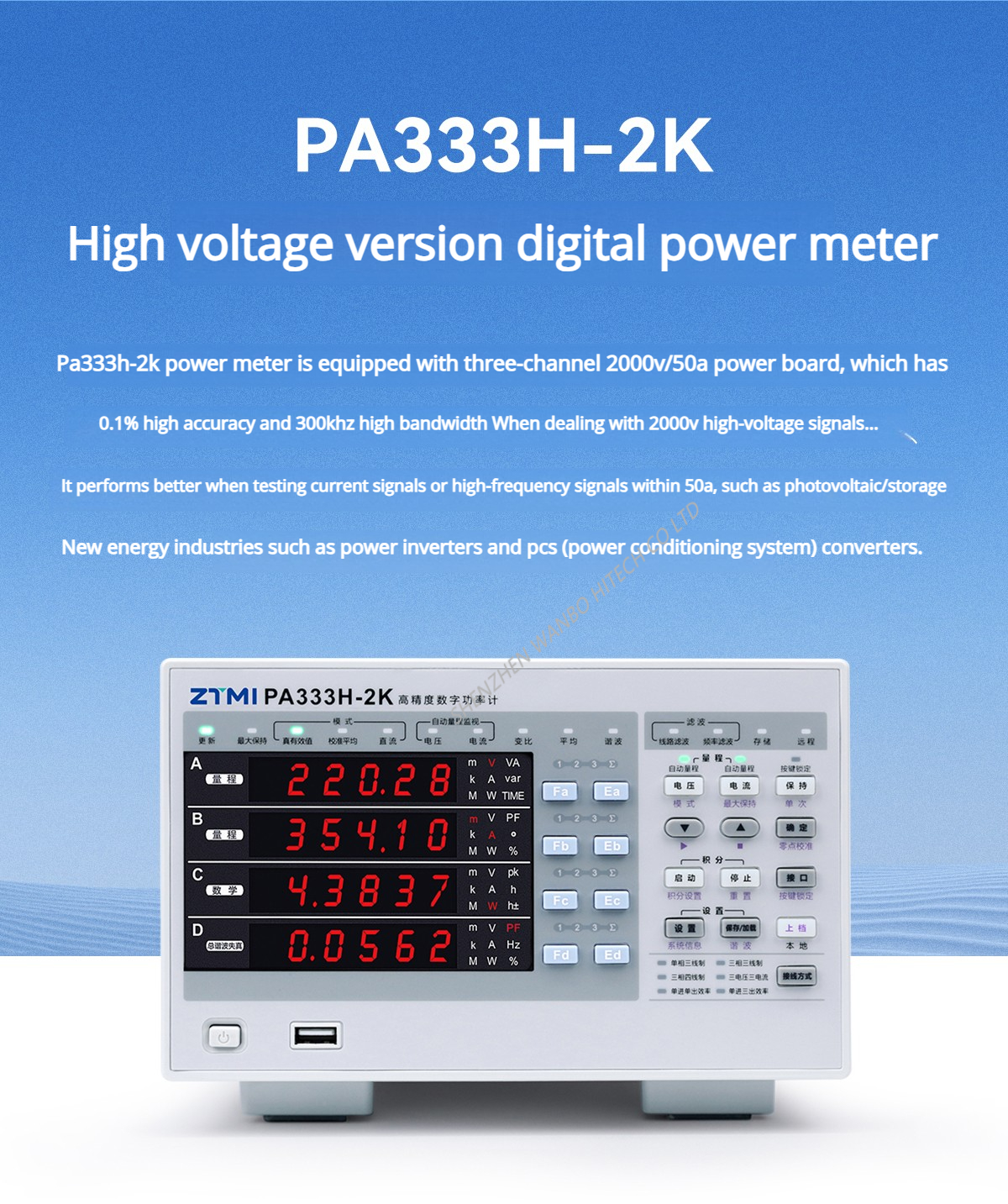

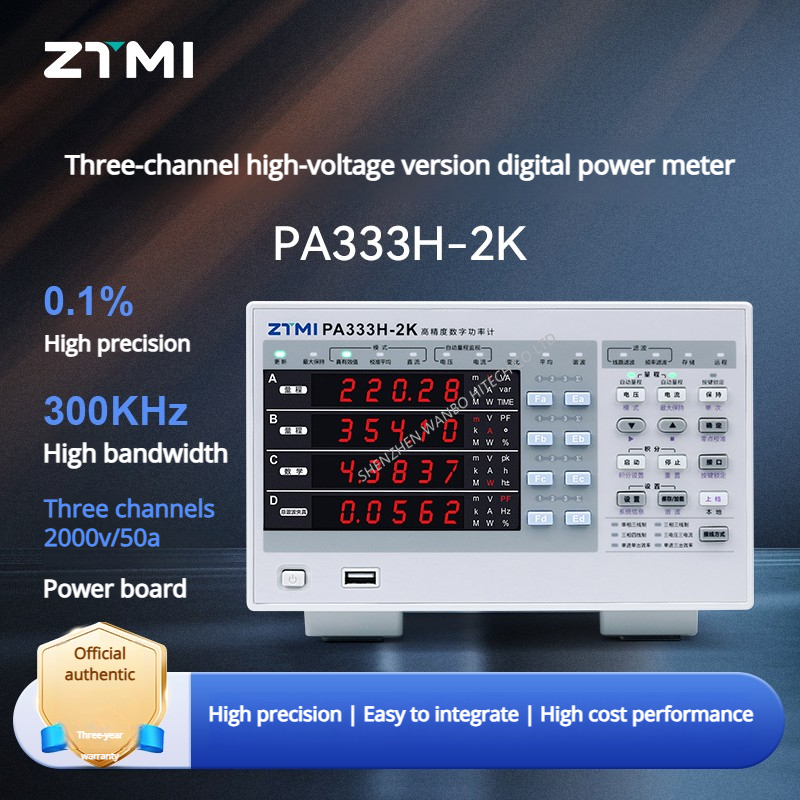

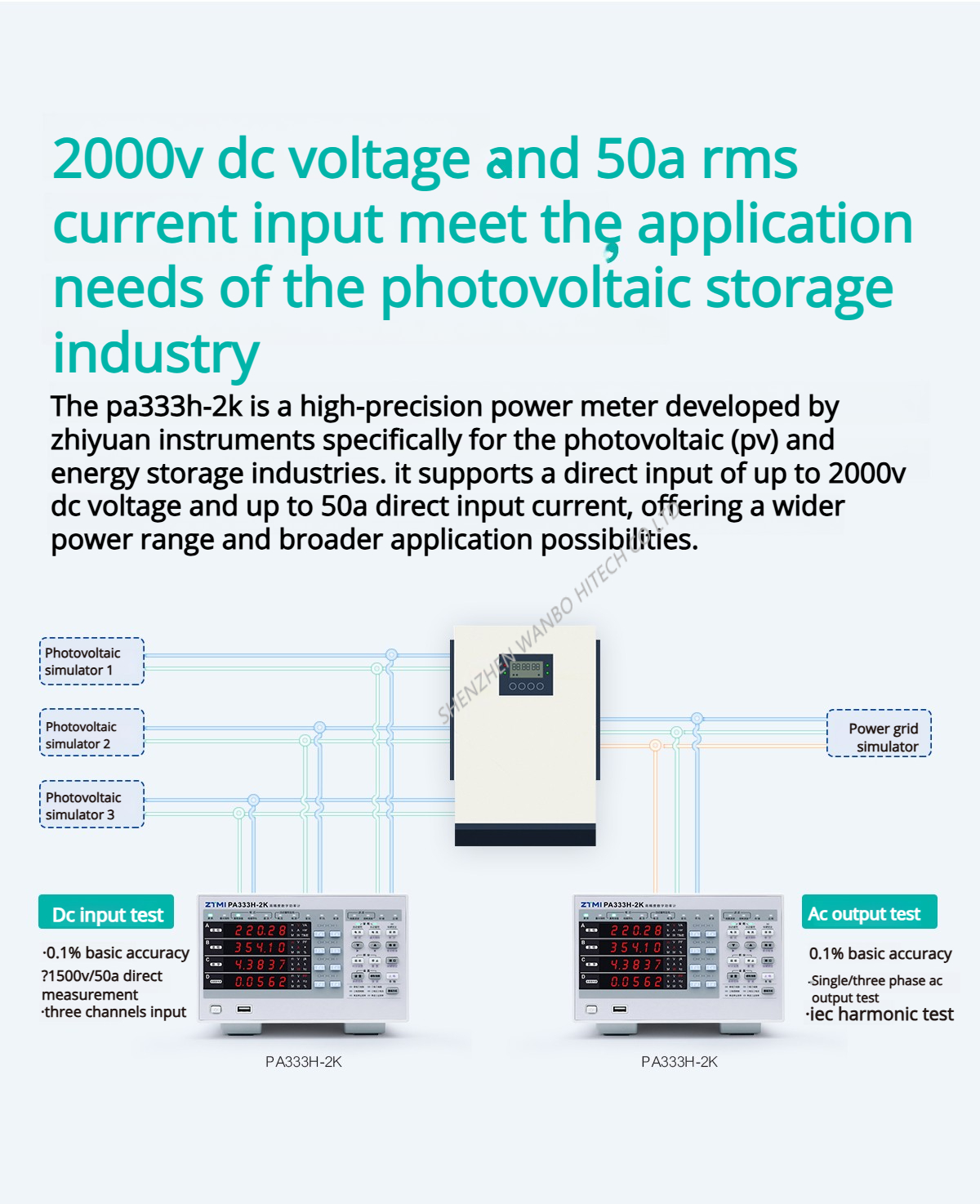

The PA333H-2K power meter is equipped with a three-channel 2000V/50A power board card, with a 0.1% high precision and 300KHz high bandwidth. It performs better when testing 2000V high-voltage signals, 50A internal current signals, or high-frequency signals, such as in the new energy industries like photovoltaic/inverter converters and PCS converters.

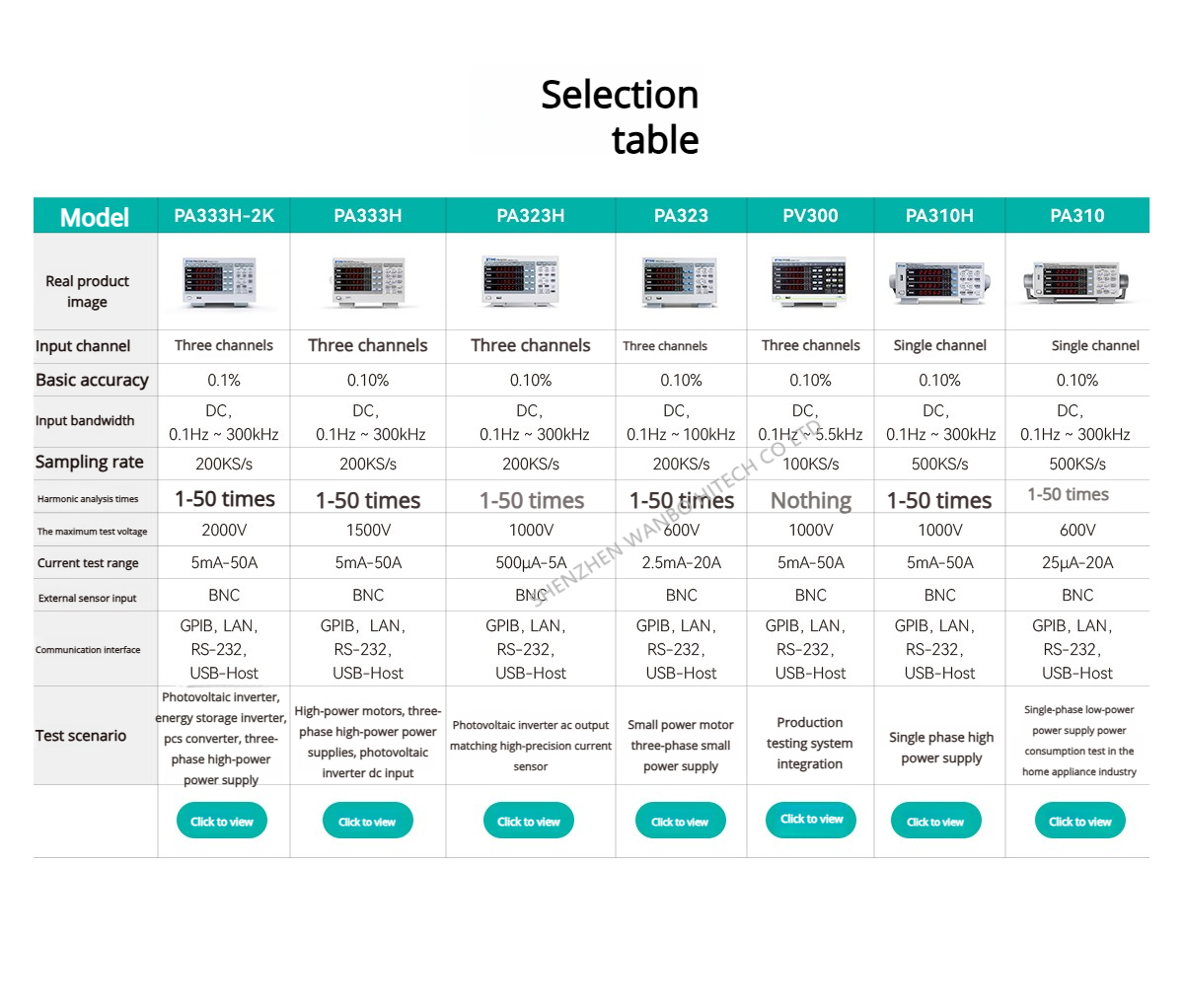

| Model | PA333H-2K |
|---|---|

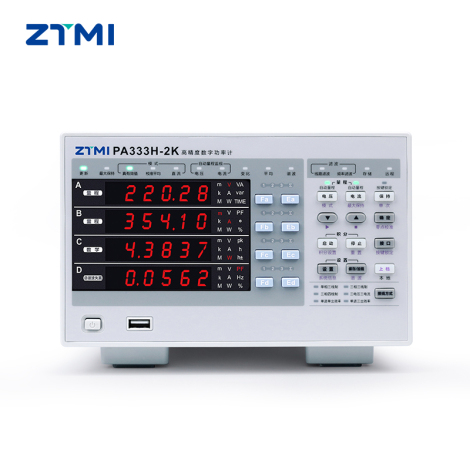

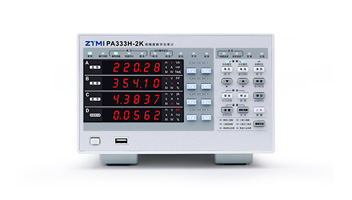

| Actual Picture |  |
| Input Channel | Three Channels |
| Basic Accuracy | 0.1% |
| Input Bandwidth | DC,0.1Hz ~ 300kHz |
| Sampling Rate | 200KS/s |

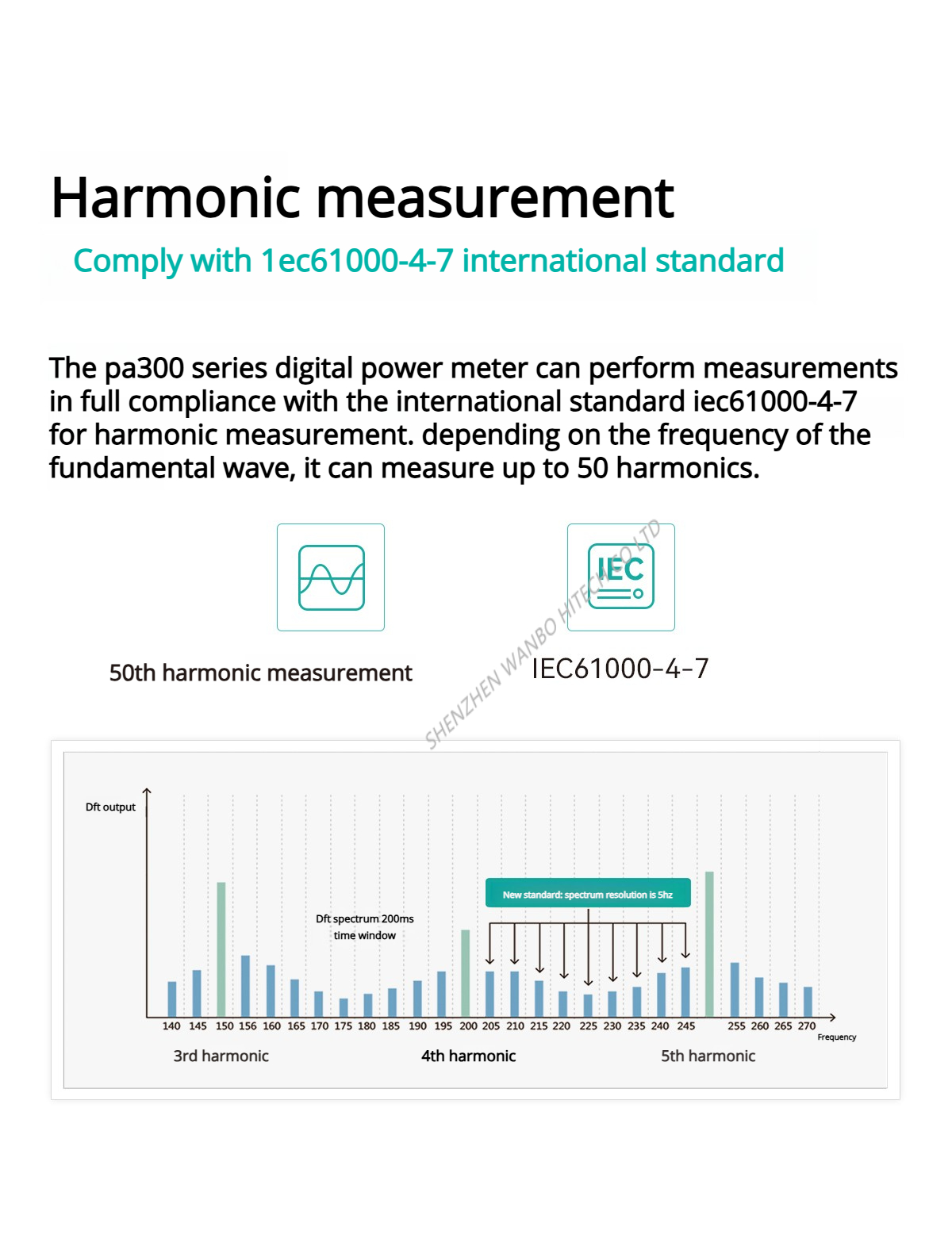

| Harmonic Analysis Frequency | 1-50Times |
| Maximum Test Voltage | 2000V |
| Current Test Range | 5mA-50A |
| External Sensor Input | BNC |

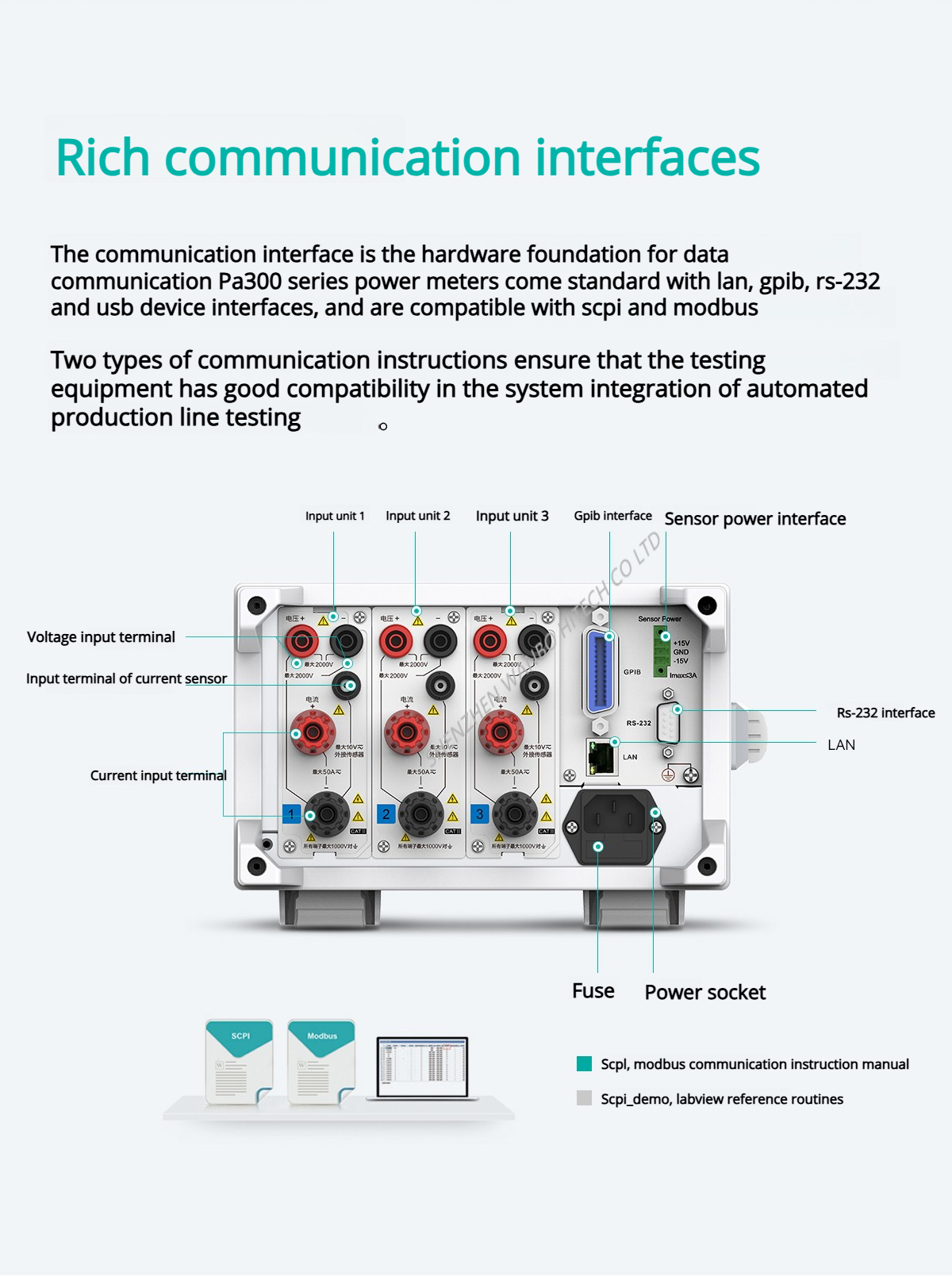

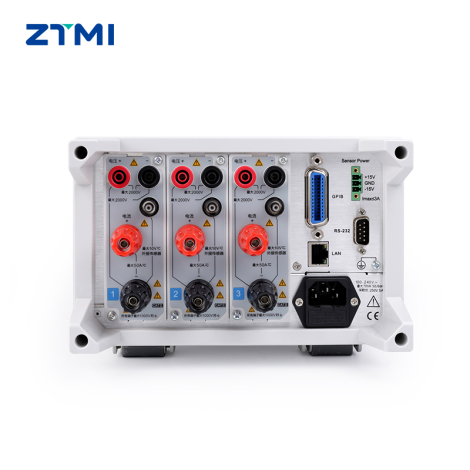

| Communication Interface | GPIB,LAN,RS-232,USB-Host |
| Test Scenario | Photovoltaic Inverter Energy Storage Inverter PCSInverter Three-Phase High-Power Power Supply |
