ZLG USBCAN-2E-U双通道CAN分析仪-USB 2.0 CANopen J1939汽车工业CAN总线监视器
Product Detail
Product Description
Core Features
Dual-Channel CAN 2.0 AnalysisSimultaneously monitor two independent ISO 11898-2 CAN 2.0A/B networks (10kbps–1Mbps) for complex automotive/industrial diagnostics.
Multi-Protocol DecodingPre-loaded support for CANopen SAE J1939 DeviceNet protocols with customizable DBC file parsing.
Hardware-Accelerated EfficiencyDual 32-bit MCUs with 2048-frame buffer per channel and programmable ID filters for precise data capture.
Industrial-Grade Robustness-40°C to +85°C operation | 2500V DC isolation (CAN-to-USB) | 15kV ESD protection | Metal housing.
Plug-and-Play USB 2.0480Mbps transfer speed with bus-powered design (no external power required).
Technical Specifications
Channels: 2 independent (ISO 11898-2 CAN 2.0A/B)
Baud Rate: 10kbps–1Mbps (per channel)
USB Interface: Type-A male (1.8m shielded cable included)
Isolation: 2500V DC (channel-to-PC)
OS Support: Windows 7/10/11 Linux (kernel 4.15+)
Dimensions: 110mm × 80mm × 28mm
Weight: 150g
Key Applications
Automotive: Parallel ECU debugging | OBD-II gateway monitoring | EV battery management
Industrial: CANopen network synchronization | Production line dual-bus diagnostics
Heavy Machinery: J1939 telematics for construction/mining equipment
R&D: Multi-node CAN system validation | Robotics communication
Package Contents
1× USBCAN-2E-U Adapter 1× Shielded USB-A Cable (1.8m) 2× DB9 Male to 5-pin Terminal Adapters 1× Quick Start Guide (EN/DE/FR/ES)
Why Choose USBCAN-2E-U?
Dual-Bus Efficiency: Monitor two CAN networks simultaneously without switching delays. Protocol Flexibility: Native CANopen/J1939/DeviceNet support with free ZCANPro software. Developer Ready: Open APIs for Python/C#/LabVIEW with sample codes.
Certifications & Support
CE FCC RoHS certified
24-month warranty | Lifetime technical support
Free Resources:Download SDK & Manualhttps://manual.zlg.cn/web/#/61?page_id=2528
Protocol templates & API documentation

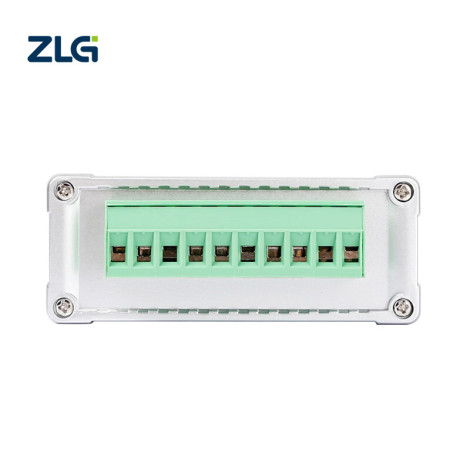

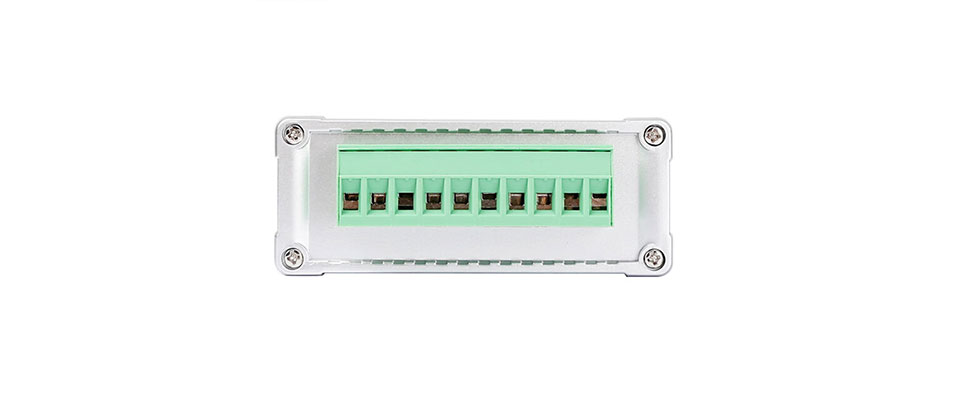

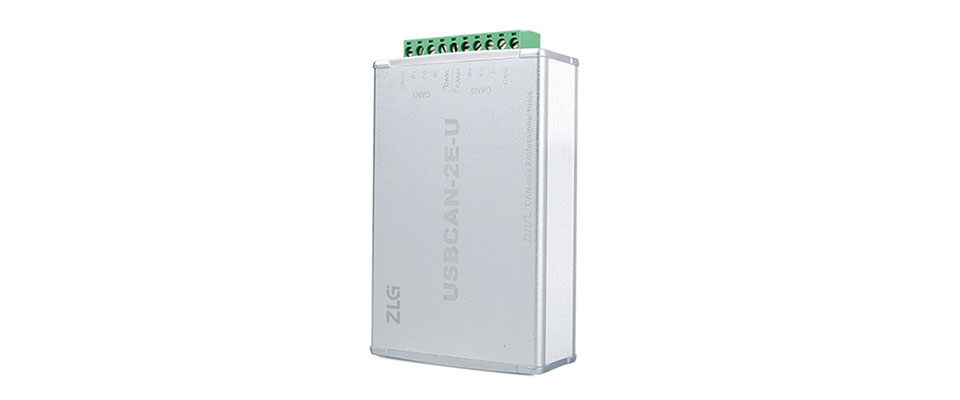

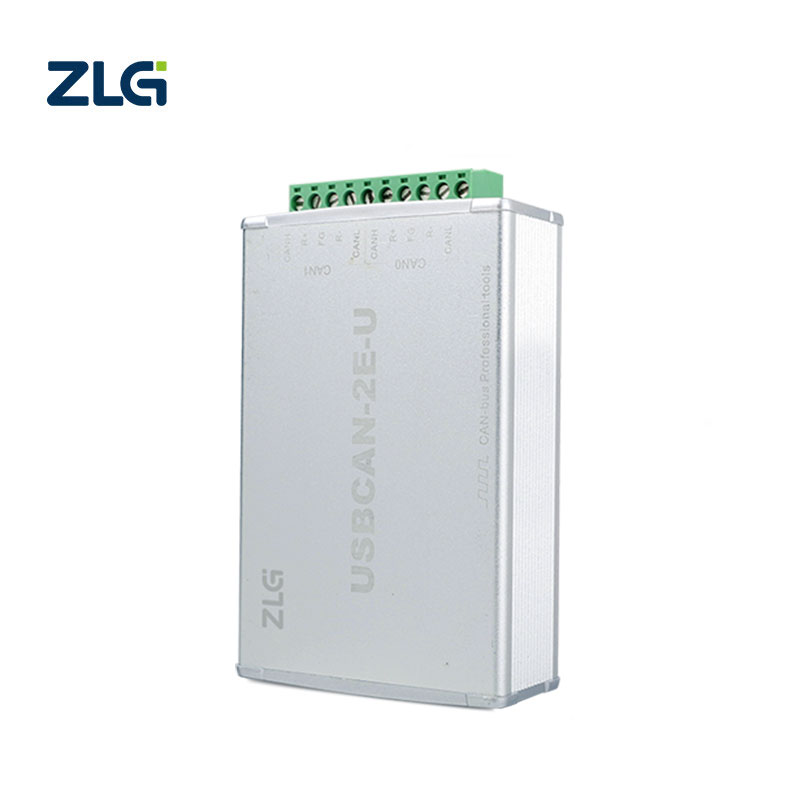

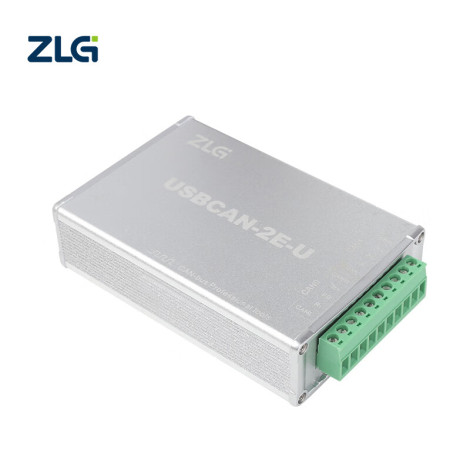

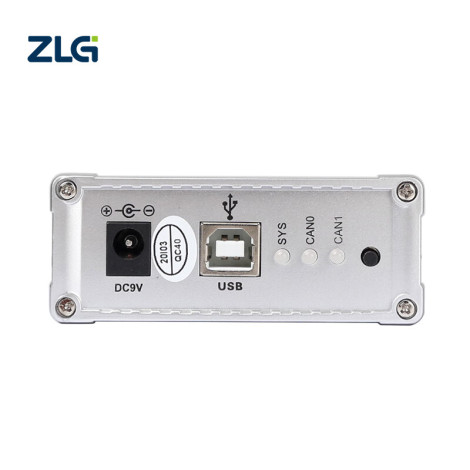

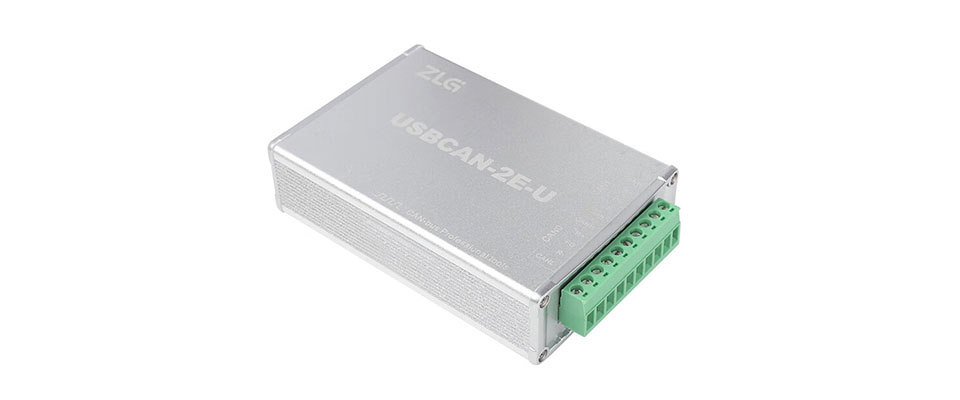

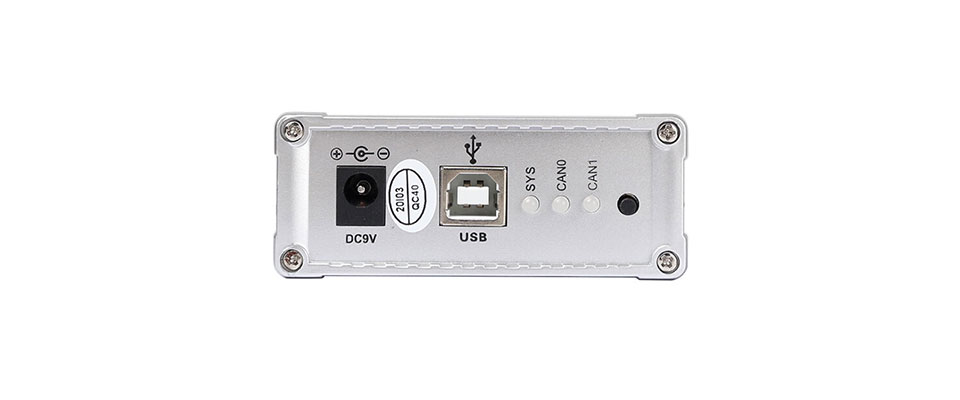

Pictures of USBCAN-2E-U
