ZLG智源电子CAN隔离CAN桥继电器容错转换板CANBridge-1054
$
34.07
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Product Overview
The CANBridge-1054 fault-tolerant CAN adapter provides transparent conversion between standard/fault-tolerant CAN transceivers compliant with the ISO/DIS11898-2/3 specification. A fault-tolerant CAN transceiver (model: TJA1054) and a standard CAN transceiver (model: PCA82C250) are integrated on the CANbridge-1054 adapter, which supports the inter-conversion of communication rates between 5Kbps and 125Kbps. The CANbridge-1054 adapter can be used for testing and conversion of fault-tolerant CAN networks.
* Transparent conversion between standard/fault-tolerant CAN transceivers
* 1 fault-tolerant CAN transceiver supporting ISO11898-3
* Compatible with PCA82C252, TJA1053 fault-tolerant network
* 1 channel supports ISO11898-2 standard CAN transceiver
* Support communication rate between 5Kbps~125Kbps
* Provide ISO11898-3 bus fault ERR indicator
* Transparent conversion between standard/fault-tolerant CAN transceivers
* 1 fault-tolerant CAN transceiver supporting ISO11898-3
* Compatible with PCA82C252, TJA1053 fault-tolerant network
* 1 channel supports ISO11898-2 standard CAN transceiver
* Support communication rate between 5Kbps~125Kbps
* Provide ISO11898-3 bus fault ERR indicator
Product Parameter

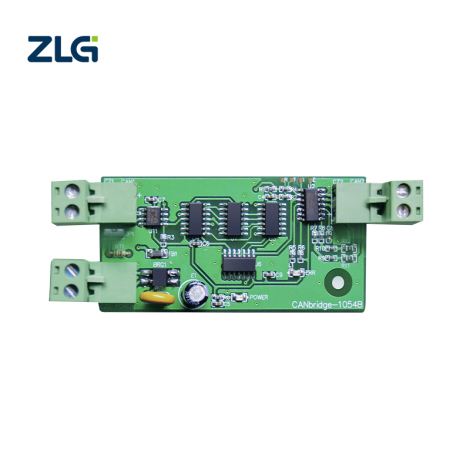

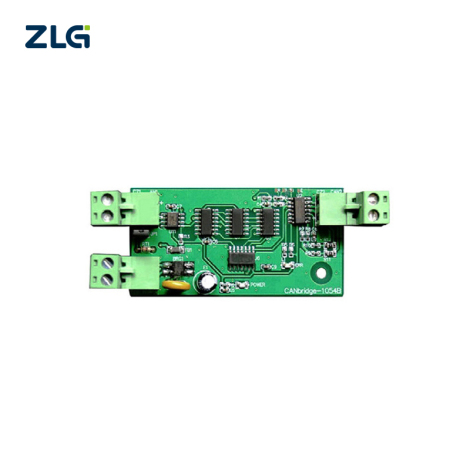

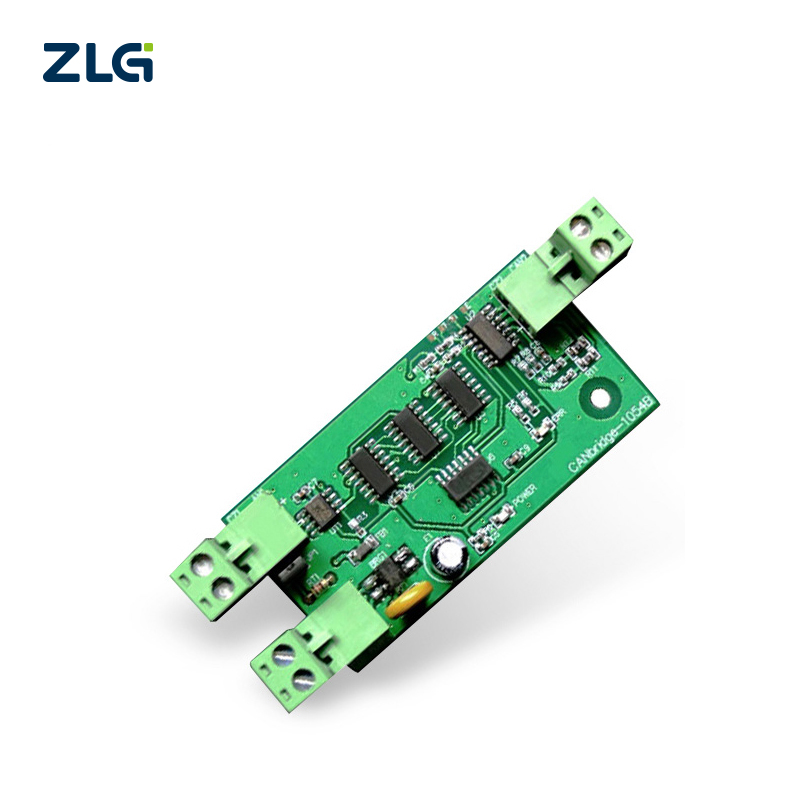

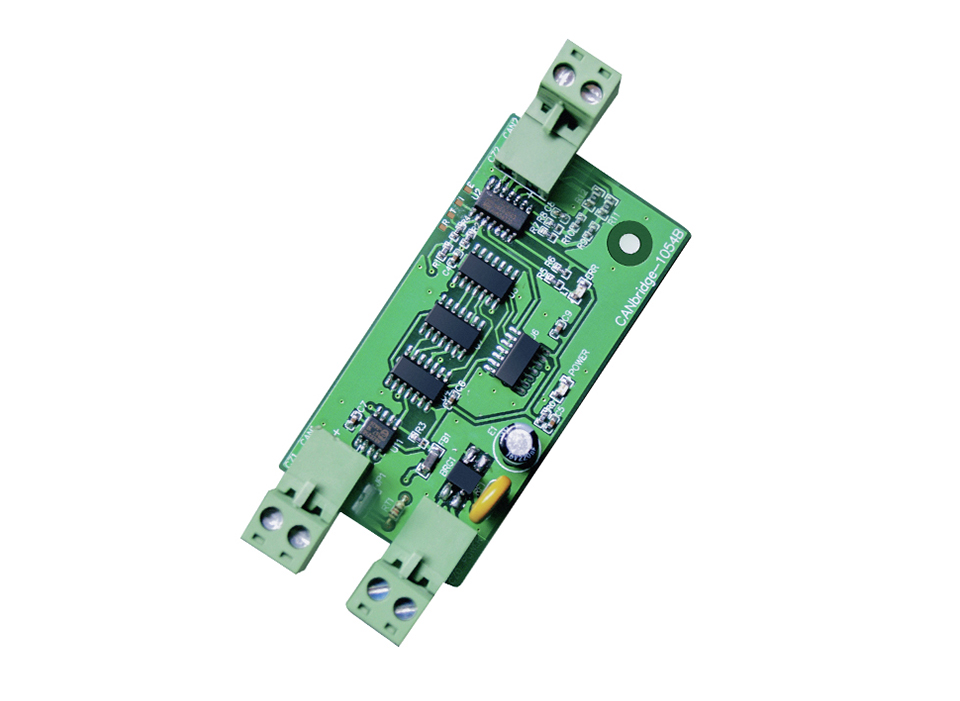

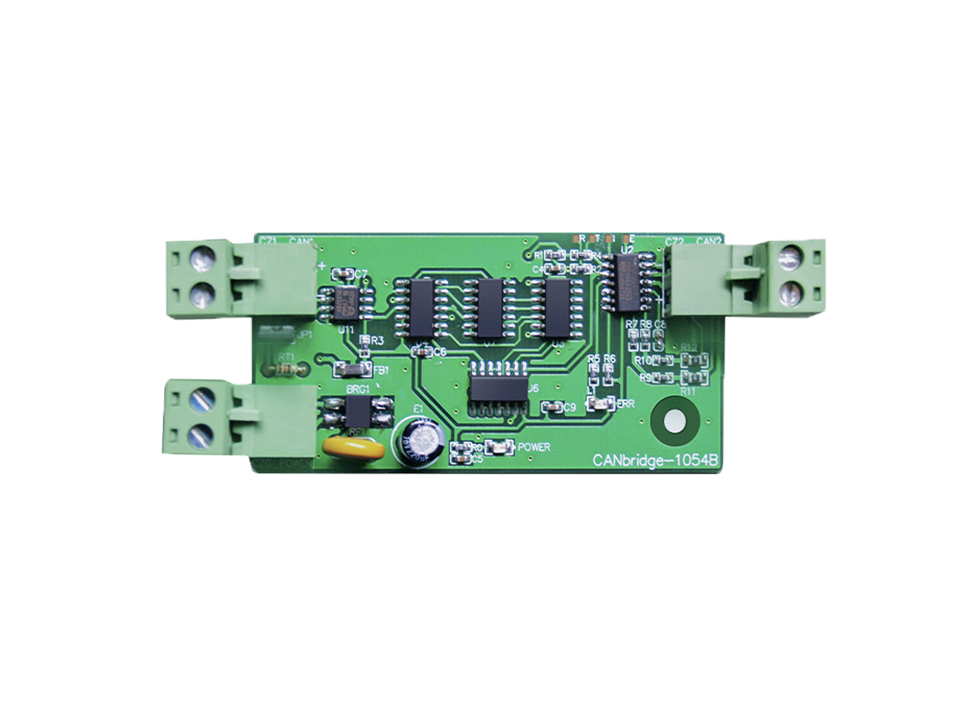

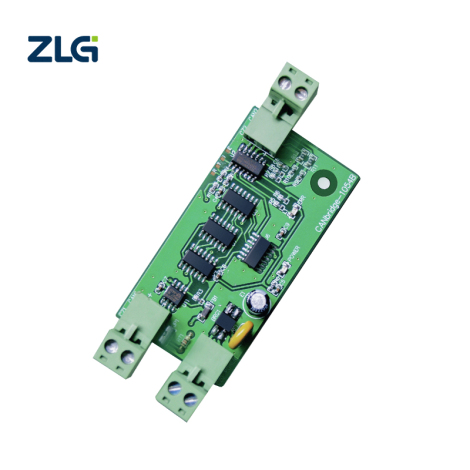

Product Picture

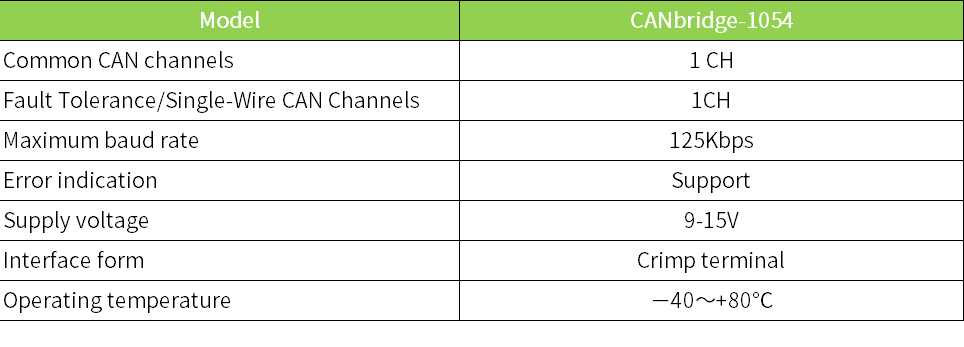

Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | ZLG |
Model Number | CANBridge-1054 |
Product name | CANBridge-1054 |
General CAN channel | 1 CH |
Fault tolerant/single line CAN channel | 1 CH |
Max. baud rate | 125 Kbps |
Fault indication | Support |
Supply voltage | 9-15V |
Interface form | Crimp type terminal |
Working temperature | -40~+80℃ |
