Keysight E36300 系列，E36312A 80W 三路输出电源，6V/5A，25V/1A，25V/1A - 享受折扣
$
2321.13
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Number of Outputs：3 Independent |
Total Power：80 or 160 W |
Ripple and Noise：<350 µVrms |
Accuracy：0.03% +5 mV |

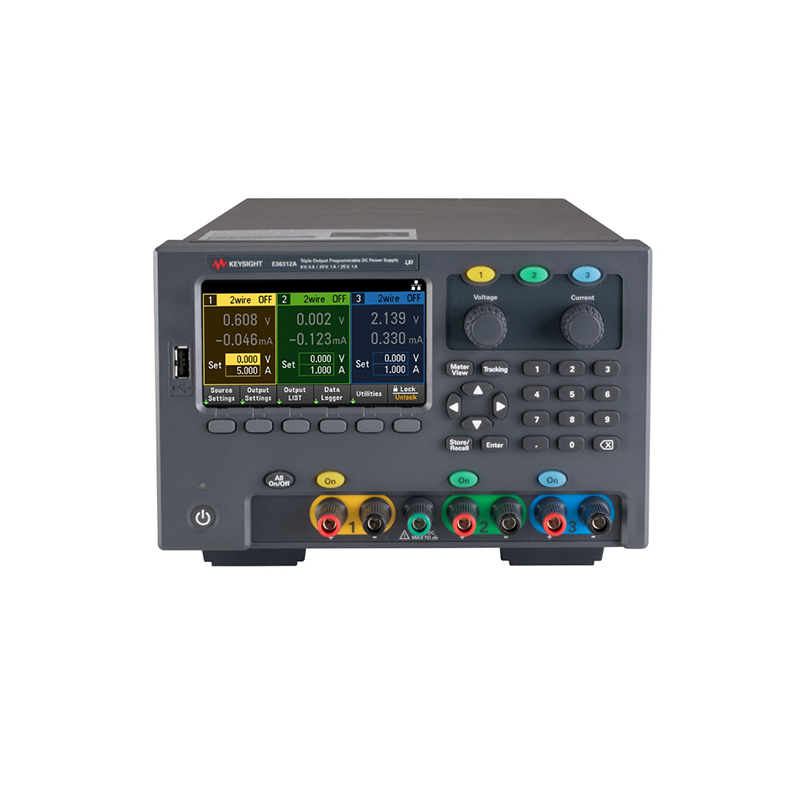

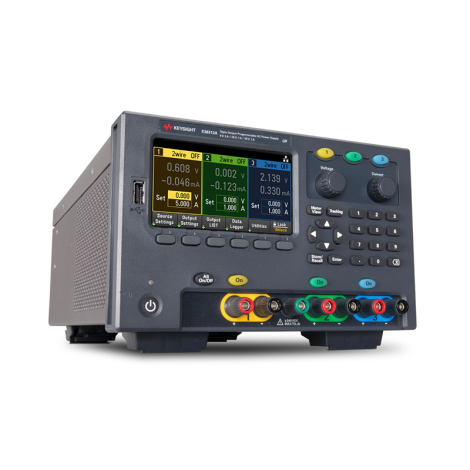

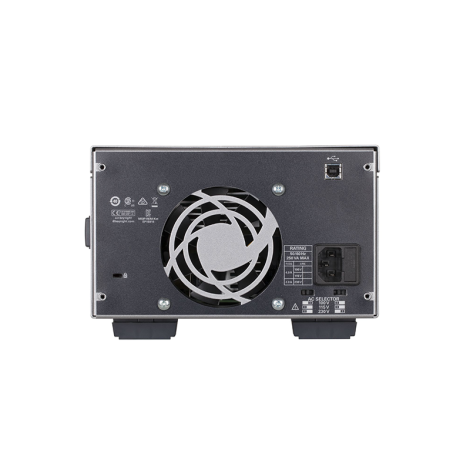

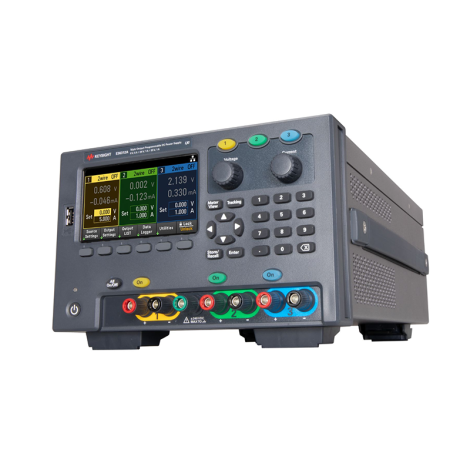

80W Triple Output Power Supply, 6V, 5A & 2X 25V, 1A
Output Rating- 80 WOutput 1: 0 to 6 V, 0 to 5 AOutput 2: 0 to 25 V, 0 to 1 AOutput 3: 0 to 25 V, 0 to 1 AProgramming Accuracy ±(% of output + offset)Voltage: 0.03% + 2 mV, 0.03% + 5 mV, 0.03% + 5 mVCurrent: 0.04% + 3 mA, 0.04% + 2 mA, 0.04% + 2 mARipple & Noise (20 Hz to 20 MHz)Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-pNormal-mode current: <2 mA rms, <1 mA rms, <500 µA rmsReadback Accuracy ±(% of output + offset)Voltage: 0.04% + 2 mV, 0.04% + 5 mV, 0.04% + 5 mVCurrent: 0.04% + 3 mA, 0.04% + 3 mA, 0.04% + 3 mALow Range Current, 20 mA: 0.25% + 80 uAThe E36312A Series triple output power supply is ready for your bench application. With low output ripple/noise and accurate voltage/current measurements, you can test with confidence. You have access to advanced features such as data logging, output sequencing, list mode, and output coupling. For higher power and similar features, see the E36313A (160 W) model. For a more economical power supply with a basic feature set, see the E36311A (80 W).
