ZLG PCIe转CANFD分析仪支持高速CAN FD总线和CAN2.0A/B数据通信2500VDC电隔离
$
339.75
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Product Overview
CAN FD (CAN Flexible Data-rate) is the latest upgrade of CAN bus, with a maximum of 64 bytes of data, and a flexible data domain baud rate of up to 5Mbps.
PCIeCANFD series is a high-performance CANFD interface card developed by Guangzhou Zhiyuan Electronics Co., Ltd. Integrate 2-4 channel CANFD interface, support ISO standard CANFD and Bosch CANFD standard. Each interface has an independent 2500VDC electrical isolation protection circuit, which can prevent the interface card from being damaged due to ground circulation and enhance the reliability of the system in harsh environments.
The PC is connected to the PCIeCANFD interface card through the PCIExpress x1 port, so that it can send and receive data with the CAN(FD) network to form a CAN(FD)-bus control node. PCIeCANFD supports Win7/Win10 and other operating systems, and provides a secondary development function library. Users can call the function library to write software. It is a powerful tool for CAN(FD)-bus product development and data analysis.
* High-speed PCIe interface, PCI Express x1 specification;
* Support CAN2.0A, B protocol, in line with ISO11898-1 specification;
* Integrated 2/4 channel CANFD interface;
* CANFD supports ISO standard and BOSCH standard;
* The baud rate of CAN communication can be freely programmable between 40Kbps~1Mbps;
* CANFD baud rate can be freely programmable between 100Kbps~5Mbps;
* The highest data flow rate sent by a single channel: 4000 frames per second (remote frame, single frame sending);
* Single-channel receiving maximum data flow: 14000 frames/second (remote frame);
* 120 ohm terminal resistance, which can be controlled by DIP switch;
* Can use PCIe bus 3.3V and 12V power supply;
* Support ZCANPRO test software (support Win7, Win10 operating system);
* Provide the secondary development interface function of the host computer;
* Working temperature: 0℃~+80℃
* Interface form (DB9 interface) DIP switch 120 ohm terminal resistance
PCIeCANFD series is a high-performance CANFD interface card developed by Guangzhou Zhiyuan Electronics Co., Ltd. Integrate 2-4 channel CANFD interface, support ISO standard CANFD and Bosch CANFD standard. Each interface has an independent 2500VDC electrical isolation protection circuit, which can prevent the interface card from being damaged due to ground circulation and enhance the reliability of the system in harsh environments.
The PC is connected to the PCIeCANFD interface card through the PCIExpress x1 port, so that it can send and receive data with the CAN(FD) network to form a CAN(FD)-bus control node. PCIeCANFD supports Win7/Win10 and other operating systems, and provides a secondary development function library. Users can call the function library to write software. It is a powerful tool for CAN(FD)-bus product development and data analysis.
* High-speed PCIe interface, PCI Express x1 specification;
* Support CAN2.0A, B protocol, in line with ISO11898-1 specification;
* Integrated 2/4 channel CANFD interface;
* CANFD supports ISO standard and BOSCH standard;
* The baud rate of CAN communication can be freely programmable between 40Kbps~1Mbps;
* CANFD baud rate can be freely programmable between 100Kbps~5Mbps;
* The highest data flow rate sent by a single channel: 4000 frames per second (remote frame, single frame sending);
* Single-channel receiving maximum data flow: 14000 frames/second (remote frame);
* 120 ohm terminal resistance, which can be controlled by DIP switch;
* Can use PCIe bus 3.3V and 12V power supply;
* Support ZCANPRO test software (support Win7, Win10 operating system);
* Provide the secondary development interface function of the host computer;
* Working temperature: 0℃~+80℃
* Interface form (DB9 interface) DIP switch 120 ohm terminal resistance

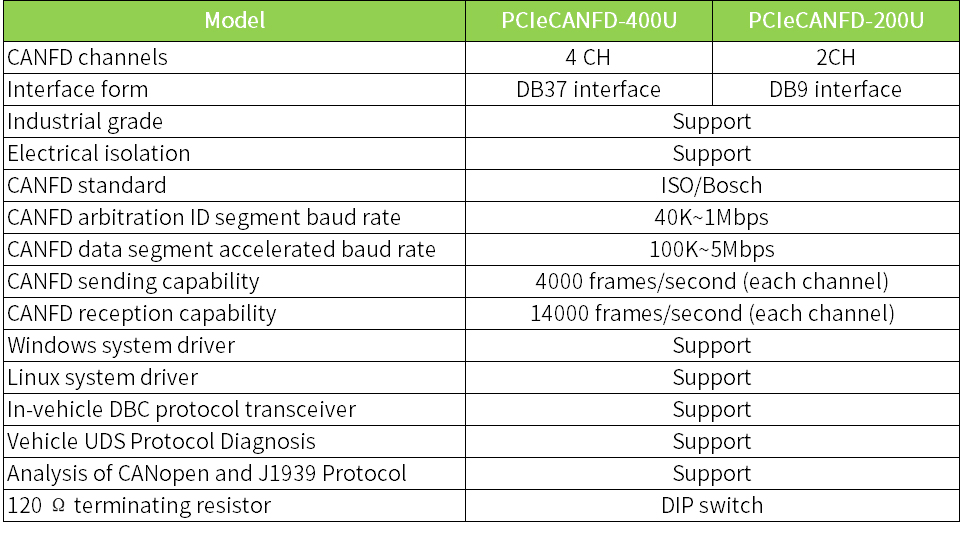

Product Parameter
Product Picture

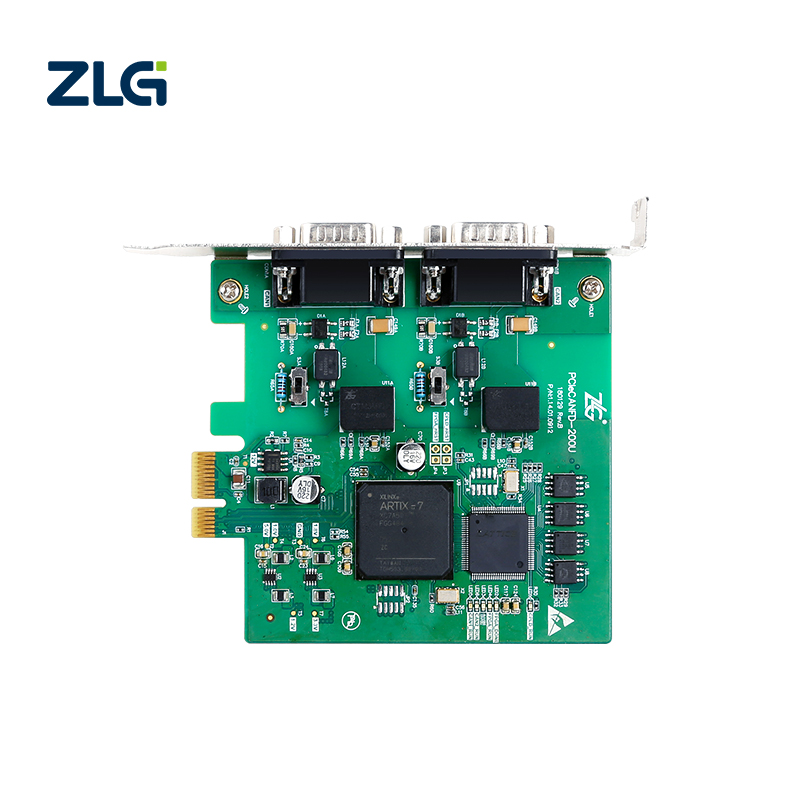

PCIeCANFD-200U

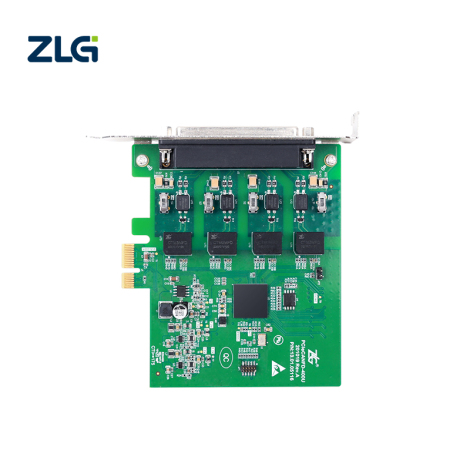

PCIeCANFD-400U
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | ZLG |
Model Number | PCIeCANFD Series |
Product name | PCIeCANFD Series |
CANFD channels | 2/4 CH |
Interface form | DB37/DB9 interface |
CANFD Standard | ISO |
Arbitration ID segment baud rate | 40K~1Mbps |
Data segment acceleration baud rate | 100K~5Mbps |
CANFD sending capability | 25700 fps (per channel) |
CANFD reception capability | 25700 fps (per channel) |
Windows System Driver | Support |
Linux System Driver | Support |
