ZLG USBCAN-E-U单通道CAN分析仪-USB 2.0 CANopen J1939汽车工业CAN总线监视器

Product Detail

Core Features

Single-Channel CAN 2.0 AnalysisMonitor ISO 11898-2 CAN 2.0A/B networks (10kbps–1Mbps) with real-time data streaming for automotive/industrial diagnostics.

Multi-Protocol DecodingPre-configured support for CANopen SAE J1939 DeviceNet protocols with DBC file import capability.

Hardware-Accelerated Efficiency32-bit MCU with 2048-frame buffer and programmable ID filtering for low-CPU-load operation.

Industrial-Grade Design-40°C to +85°C operation | 2500V DC isolation (CAN-to-USB) | 15kV ESD protection | Compact metal housing.

Plug-and-Play USB 2.0480Mbps transfer speed with bus-powered design (no external power required).

Technical Specifications

• Channels: 1 (ISO 11898-2 CAN 2.0A/B)

• Baud Rate: 10kbps–1Mbps

• USB Interface: Type-A male (1.8m shielded cable included)

• Isolation: 2500V DC

• OS Support: Windows 7/10/11

• Dimensions: 95mm × 65mm × 24mm

• Weight: 120g

Key Applications

• Automotive: OBD-II diagnostics | ECU communication | EV component monitoring

• Industrial: CANopen network debugging | Production line error tracing

• Heavy Vehicles: J1939 telematics data logging for trucks/buses

• Embedded Systems: IoT device development | Sensor network prototyping

Package Contents

1× USBCAN-E-U Adapter 1× Shielded USB-A Cable (1.8m) 1× DB9 Male to 5-pin Terminal Adapter 1× Quick Start Guide (EN/DE/FR)

Why Choose USBCAN-E-U?

Cost-Effective Solution: 30% lighter investment vs. dual-channel models for single-bus tasks. Simplified Workflow: Focus on one network without channel management complexity. Seamless Expansion: Add more units for multi-bus needs with sync cable support.

Certifications & Support

• CE FCC RoHS certified

• 24-month warranty | Lifetime technical support

• Free Resources:Download SDK & Manualhttps://manual.zlg.cn/web/#/61?page_id=2528

• Protocol templates & API examples

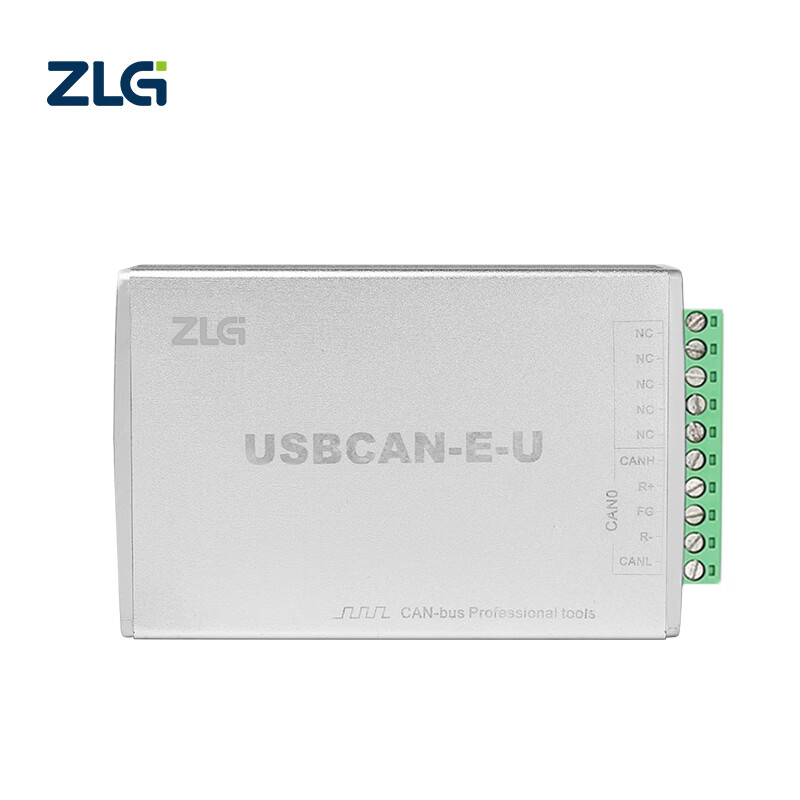

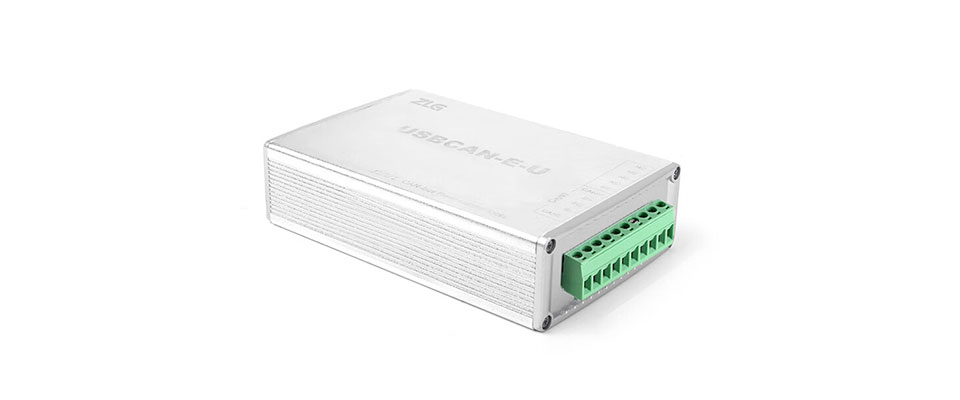

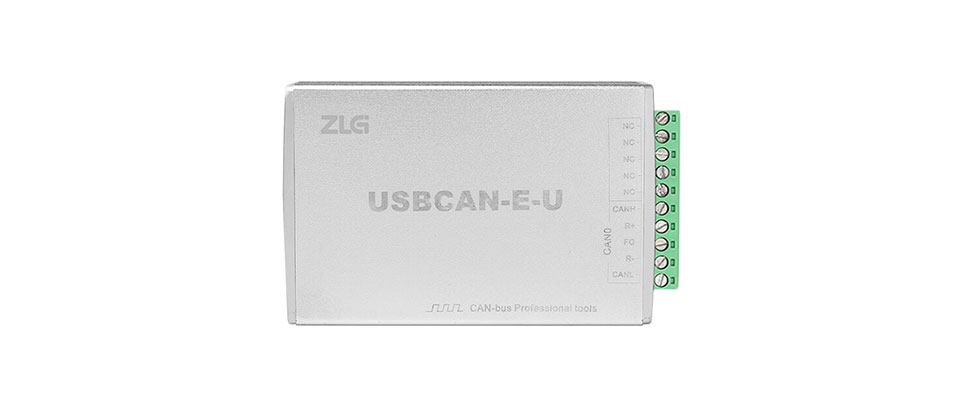

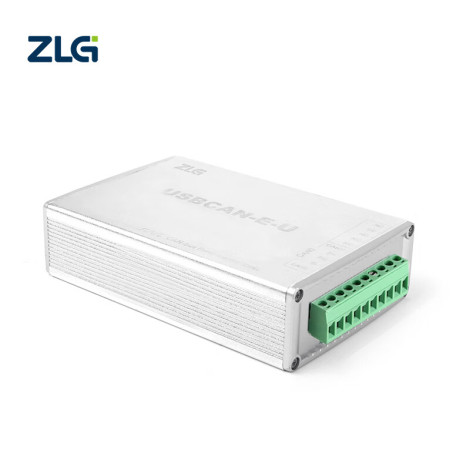

Pictures of USBCAN-E-U
