ZLG CANFDDTU-600EWGR 6通道CAN FD数据记录仪4G WiFi GPS北斗SD卡汽车和轨道交通记录仪

Product Detail

Product Description

Key Features

1. 6-Channel CAN FD Acquisition



   Equipped with 6 CAN FD channels compliant with ISO11898 arbitration baud rate 40Kbps~1Mbps data phase baud rate up to 5Mbps 4000 frames per second per channel. 120Ω terminal resistor can be enabled via software.

2. Dual Wireless Transmission & Positioning



   Built-in 4G and WiFi for real-time data upload to cloud. Integrated GPS Beidou module supports accurate positioning trajectory recording and remote location tracking.

3. Multiple Recording Modes



   Supports continuous recording conditional recording pre-trigger recording timed recording and non-recording. Trigger key allows quick marking for intermittent fault location.

4. Stable Industrial Design



   2500VDC electrical isolation wide operating temperature -40℃ to 85℃ wide voltage DC9~48V power supply metal enclosure anti-vibration and anti-interference.

5. Flexible Storage & File Format



   Standard 64GB Class10 SD card expandable up to 256GB. Data can be saved or converted to 9 formats including BLF CRF ASC CSV compatible with ZXDoc ZCANPRO and mainstream analysis software.

6. Rich Interfaces & Functions



   1 automotive Ethernet channel 4-channel digital input 2-channel digital output RTC real-time clock video recording support DBC signal analysis and data playback simulation.


Technical Specifications

• Brand: ZLG
• Model: CANFDDTU-600EWGR
• CAN FD Channels: 6
• Interface: DB37
• Baud Rate: Arbitration 40K~1Mbps Data 100K~5Mbps
• Data Throughput: 4000 frames/s per channel
• Automotive Ethernet: 1 port
• Digital Input: 4 channels
• Digital Output: 2 channels
• Storage: 64GB SD Card (max 256GB)
• Wireless: 4G WiFi
• Positioning: GPS Beidou
• RTC: Supported
• Isolation: 2500VDC
• Operating Temp: -40~85℃
• Power Supply: DC9~48V
• Housing: Metal
• Software: ZCANConfigTool CANDTU ZXDoc ZCANPRO ZWS-CAN Cloud

Applications

• Automotive road test and vehicle network debugging
• New energy vehicle CAN FD data monitoring
• Rail transit bus data recording
• Industrial equipment fault diagnosis
• Autonomous driving data acquisition
• Ship elevator and construction machinery monitoring

Advantages

• Multi-channel synchronous acquisition high throughput
• Dual wireless transmission and positioning for remote monitoring
• Multiple trigger modes improve fault location efficiency
• Industrial grade design for harsh environments
• Multiple file formats compatible with professional analysis tools
• Certified high-tech product stable and reliable

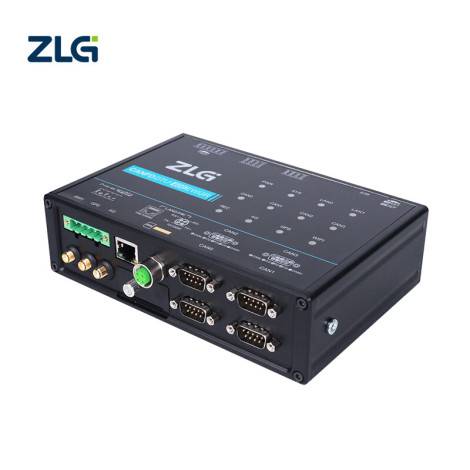

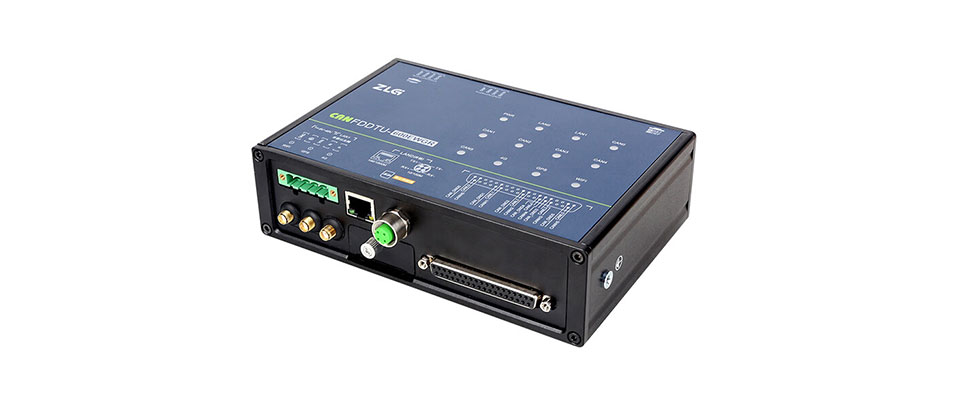

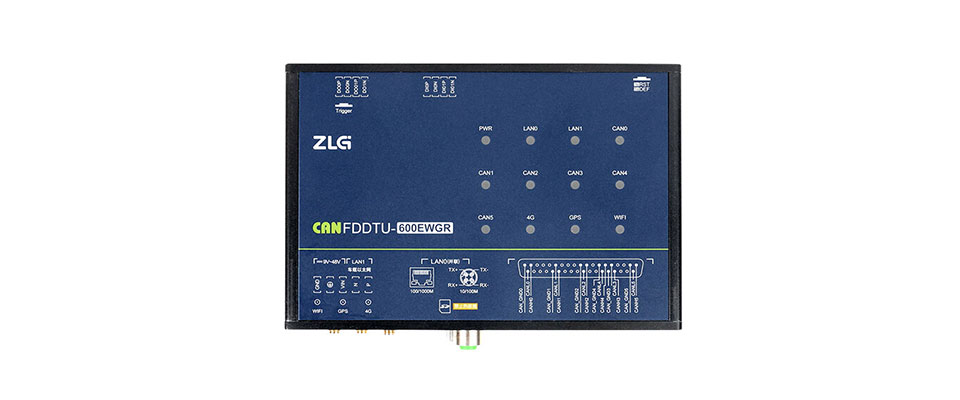

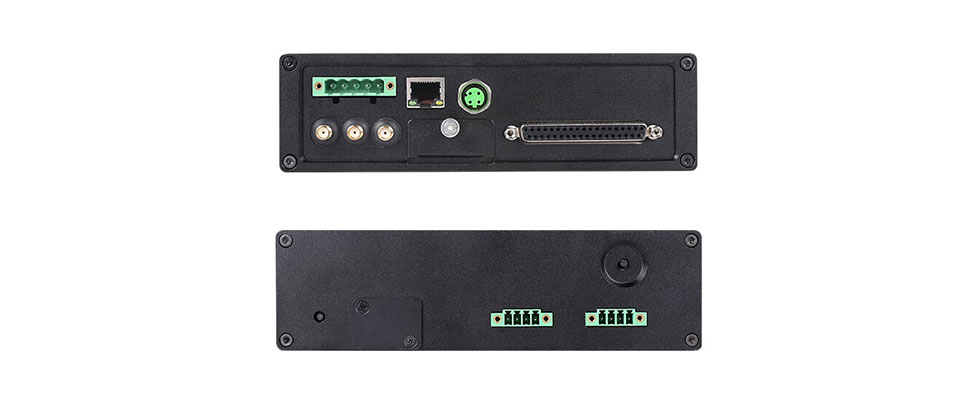

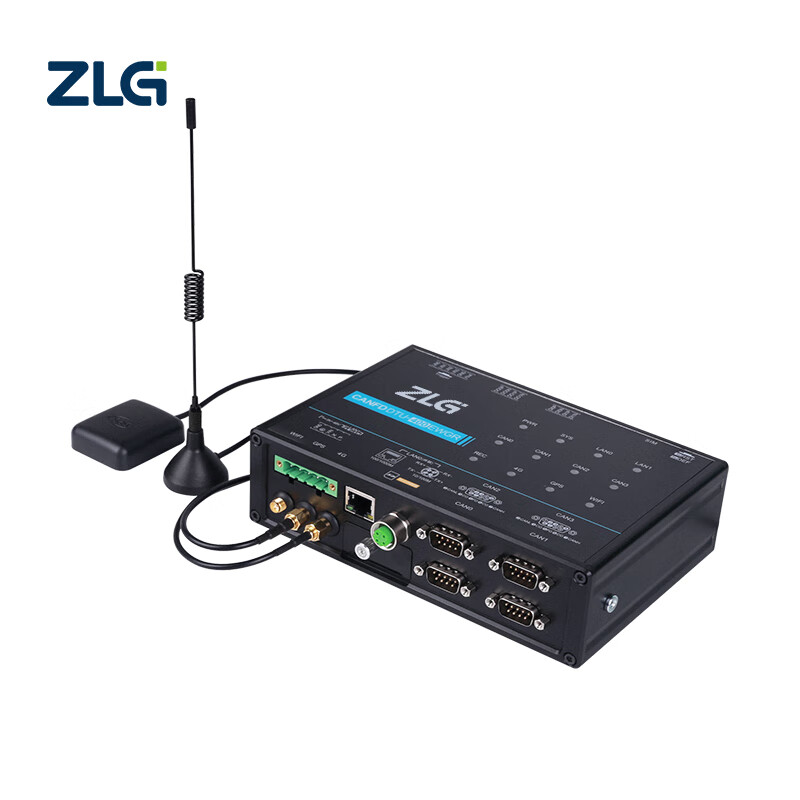

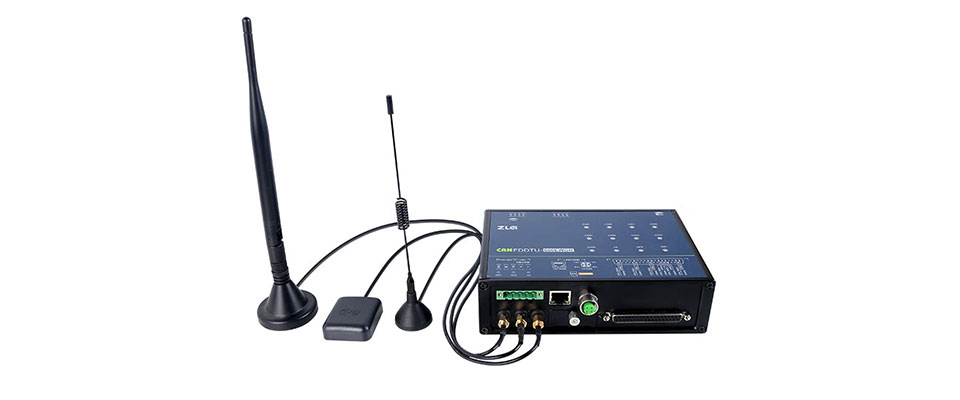

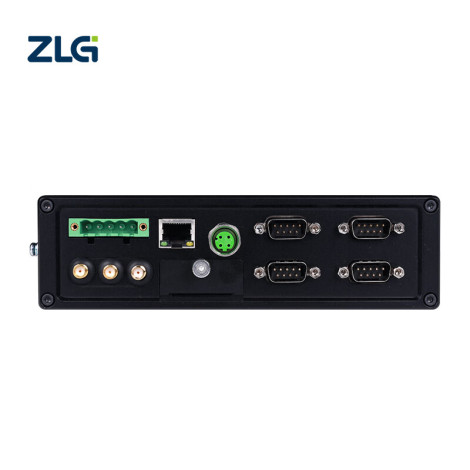

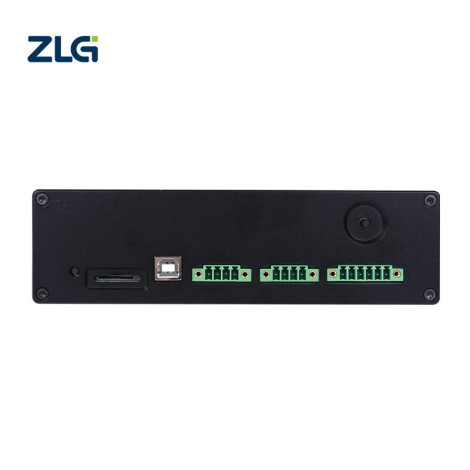

Pictures of CANFDDTU-600EWGR
