ZLG USBCANFD-100U 1通道USB转CAN FD接口卡工业级2500VDC隔离

Product Detail

Product Overview

Core Technical Parameters

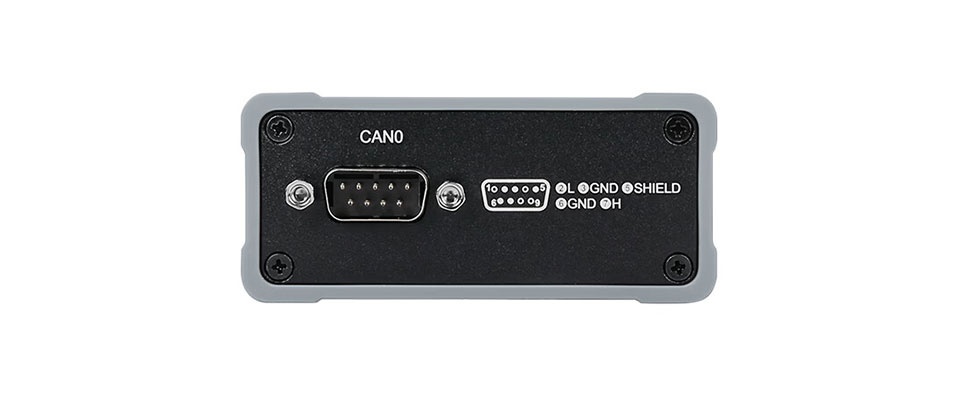

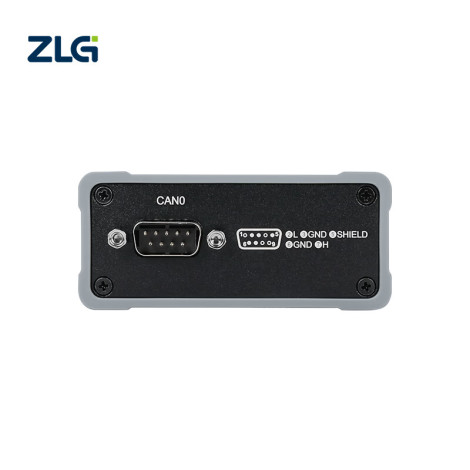

1. CAN FD & LIN Configuration: 1 independent CAN FD channel with DB9 interface, supporting ISO/Bosch CAN FD standards and compatible with CAN2.0A/B communication mode; 2 LIN bus channels to meet the testing needs of automotive electronic LIN bus.
2. Baud Rate Performance: CAN FD arbitration ID segment baud rate ranges from 40K to 1Mbps, data segment accelerated baud rate from 100K to 5Mbps, with maximum 64-byte data frame, providing 40 times higher data load than traditional CAN2.0A/B.
3. Data Transmission Capacity: Under the condition of 5Mbps and 0-byte data field for single channel, the sending capacity reaches 16500 frames per second and the receiving capacity is 27000 frames per second; 120 ohm terminal resistor on CAN FD port is software-enabled for flexible configuration.

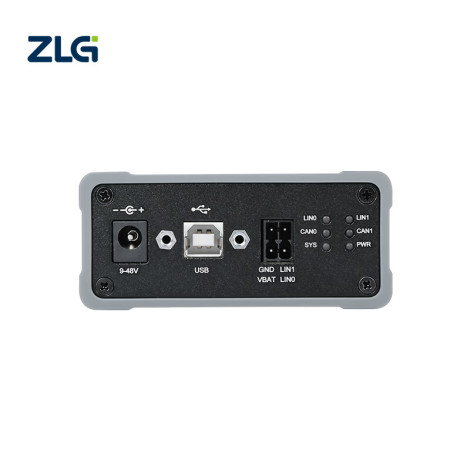

4. PC Interface & Power Supply: Adopts USB2.0 (480Mbps) high-speed interface for stable data transmission between PC and CAN FD network; supports DC 9V~48V power supply and USB port 5V power supply for dual power supply mode, meeting different application scenarios.
5. Hardware Features: Adopts domestic high-performance main control chip, with metal shell design for better anti-interference and durability; supports hardware-side timed sending and queue sending to realize efficient and automatic data transmission.

Industrial Grade Reliability & Protection

1. High Voltage Electrical Isolation: The CAN FD interface is equipped with independent 2500VDC electrical isolation protection circuit, effectively eliminating ground loop damage and avoiding device failure caused by different node ground potentials, greatly enhancing the reliability in harsh industrial environments.
2. Anti-interference & Surge Protection: With contact discharge ±4KV ESD protection and ±1KV surge protection, it can resist various electromagnetic interferences in industrial sites and ensure stable operation of the device in complex working conditions.
3. Wide Temperature Adaptation: Complies with industrial-grade standard with operating temperature range of -40~85℃, suitable for extreme working conditions such as automotive testing rail transit equipment and industrial automation control systems.
4. Anti-lost Frame Design: Built-in maximum 40000 frames hardware buffer and 130000 frames software buffer in the interface function library, which can effectively resist high bus load impact and ensure no frame loss of received CAN FD messages, realizing complete data collection and analysis.

Multi-system Compatibility & Professional Software Support

1. Operating System Compatibility: Perfectly supports Windows 7/8/10/11 and various Linux operating systems, providing professional and stable driver programs to ensure seamless connection and smooth operation with different PCs.
2. Standard Free Software: Comes with ZXDoc and ZCANPRO professional CAN bus test and analysis software, which are efficient easy to use and free of charge, providing a full set of solutions for bus development and testing.
3. Rich Software Functions: The software supports DBC sending and parsing real-time curve analysis UDS diagnosis ECU flashing XCP/CCP calibration and bus simulation; it also supports real-time bus utilization rate reporting, helping users accurately master bus load information and prevent abnormal intrusion.
4. Powerful Protocol Analysis: Supports CANopen J1939 and DeviceNet protocol parsing for free; compatible with ISO15765 standard to realize on-board UDS diagnosis, completing standard diagnostic operations such as ECU reset and diagnostic session control easily.
5. Data Analysis & Playback: Supports CAN FD message recording and playback function, and can load DBC files for variable curve analysis, which is convenient for engineers to analyze bus data and troubleshoot problems; it also supports automated testing by editing test processes to realize sending waiting verification and response verification of test data.

Strong Secondary Development Capability

1. Complete Development Library: Provides a full set of secondary development function libraries, with demo programs for mainstream development languages such as C++ C# Python and Labview, which is easy to use and can meet the customized development needs of different users.
2. Advanced Protocol Package: Carries DBC UDS and other advanced protocol packages; users can realize seamless switching of different interfaces only by modifying the device type, greatly improving development efficiency.
3. Automotive Electronics Special Protocol Library: Preloaded with UDS OBDII ISO_15765 and other special high-level protocol secondary development libraries for automotive electronics, assisting in the testing and maintenance of automotive electronic components, and supporting ECU firmware flashing and E2E security algorithm, which perfectly matches the AUTOSAR standard.

Wide Application Scenarios

• Automotive Electronics: R&D and testing of automotive components power batteries vehicle E/E architecture and autonomous driving, on-board diagnostic maintenance and LIN bus testing.
• Industrial Automation: CAN FD bus network design debugging and data analysis of industrial control systems, equipment fault diagnosis and real-time monitoring.
• Rail Transit: Data transmission and bus testing of rail transit equipment, adapting to the harsh working environment of rail transit with industrial-grade protection.
• Medical Electronics: High-speed and stable data transmission of medical electronic equipment, providing reliable bus communication support.

Product Advantages

1. High Performance & Multi-function: Integrates CAN FD and LIN bus functions, with high-speed data transmission and rich protocol support, meeting multi-scenario testing needs.
2. Industrial Grade Reliability: 2500VDC electrical isolation wide temperature adaptation and anti-interference protection, ensuring stable operation in harsh environments.
3. Flexible Power Supply: Dual power supply mode of DC 9V~48V and USB port power supply, suitable for different application sites without additional power supply equipment.
4. Domestic Core Chip: Adopts high-performance RISC-V microcontroller of HPMicro, providing strong computing power for edge computing applications and ensuring the stability and scalability of the device.
5. Cost-effective: Equipped with free professional software and complete secondary development library, reducing the development and testing cost of users while ensuring high performance.

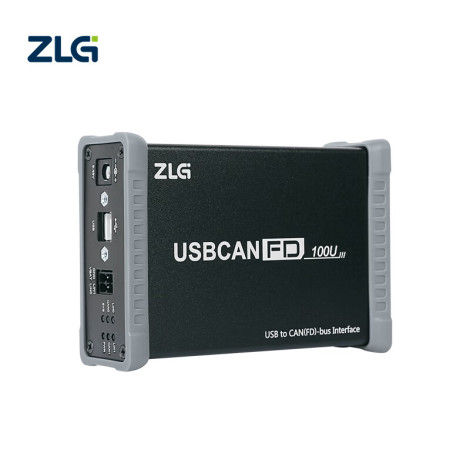

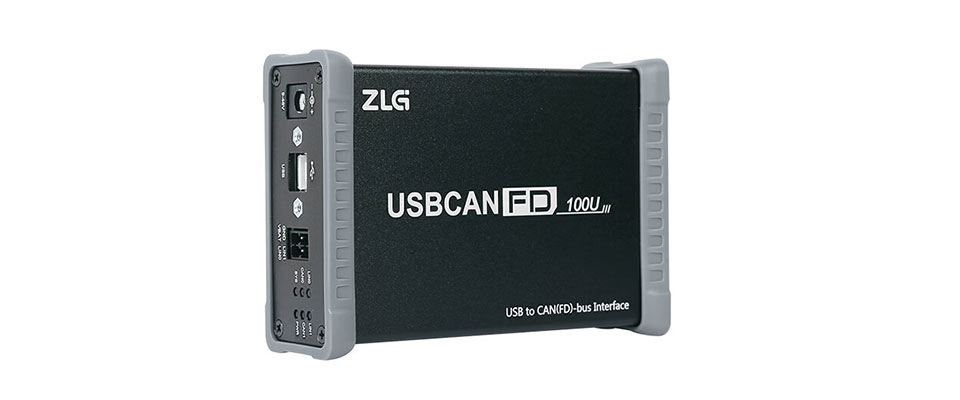

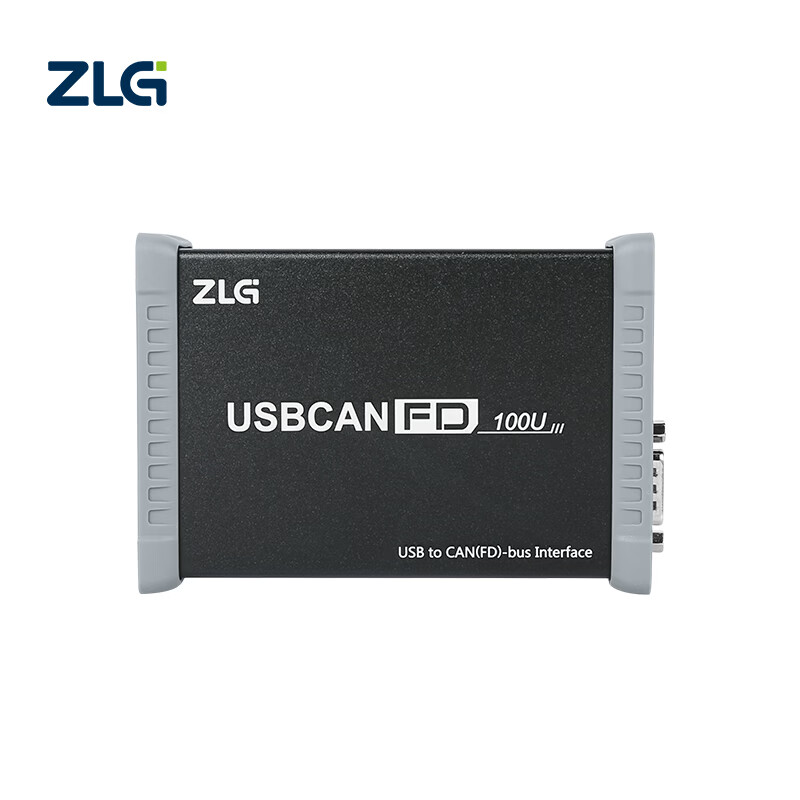

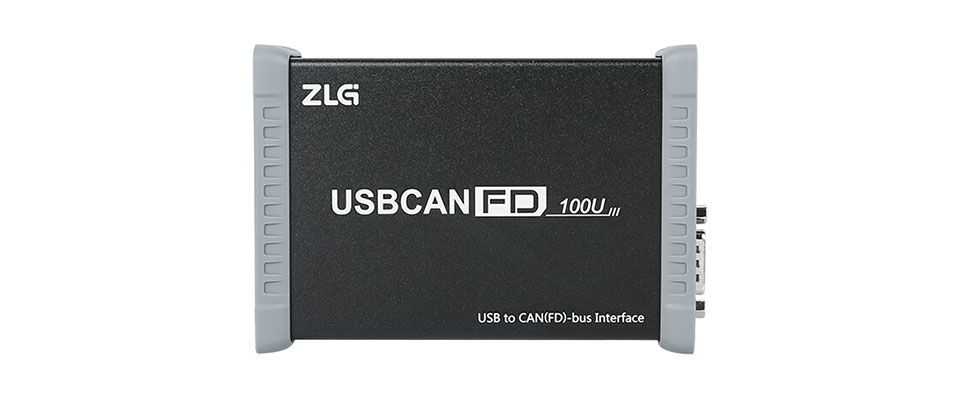

Pictures of USBCANFD-100U
