ZLG CANFDDTU-200UWGR 2通道CAN FD数据记录仪，支持4G WiFi GPS北斗LIN，支持汽车黑匣子

Product Detail

• Dual-Channel CAN FD + LIN Interface: Equipped with 2 independent, user-configurable CAN FD channels and 1 LIN channel for complete vehicle network monitoring. Supports CAN FD arbitration baud rates from 40 Kbps to 1 Mbps and data field baud rates up to 5 Mbps, with a maximum data reception rate of 4000 frames/second per channel.
• Real-Time 4G & WiFi Remote Data Transmission: Features built-in 4G cellular communication and 2.4G/5G WiFi, allowing for real-time upload of collected CAN(FD) and LIN bus data (e.g., instrument readings, oil temperature/pressure, motor speed) to designated servers. Engineers can monitor vehicle test data and issue control commands remotely from anywhere.
• Integrated GPS/BeiDou Satellite Positioning: Includes a high-precision positioning module that provides real-time vehicle location (latitude/longitude), speed, and optimized trajectory data, which is simultaneously uploaded to the cloud server alongside bus data.
• High-Capacity Storage & Flexible Recording Modes: Comes standard with a 64GB high-speed SD card (expandable up to 256GB). The ZCANConfigTool/CANDTU configuration software allows setup of various recording modes: continuous recording, conditional recording, pre-trigger recording, and timed recording.
• Robust Industrial Design & Protection: Housed in a durable metal casing with 2500VDC electrical isolation on each CAN FD channel for protection against ground loop currents and surges (up to ±1KV). Designed for harsh environments with an operating temperature range of -40°C to +85°C and a wide DC power input range of 9-48V.
• Powerful Data Analysis Compatibility: Recorded data can be saved in nine standard formats (BLF, GPX, ASC, CSV, etc.) and is fully compatible with ZLG's advanced automotive bus toolchain software ZXDoc/ZCANPRO for in-depth post-analysis, including DBC file parsing, UDS diagnostics (ISO 15765), and ECU flash programming.
• Physical Trigger Button for Fault Marking: Includes a dedicated Trigger button to mark specific bus message data in real-time during testing, enabling rapid identification and localization of intermittent faults.
• Digital I/O & RTC: Provides 1 digital input and 1 digital output channel for external signal interaction and features a built-in Real-Time Clock (RTC) with battery backup for accurate time-stamping of all recorded data.

• Model: CANFDDTU-200UWGR
• CAN FD Channels: 2 independent channels
• LIN Channel: 1 independent channel
• Interfaces: DB9 connectors
• PC Interface: High-speed USB 2.0 (480 Mbps)
• Wireless Connectivity: 4G Cellular & WiFi (2.4G/5G)
• Positioning: GPS / BeiDou
• Storage: 64GB SD Card (Class 10), supports up to 256GB
• Isolation: 2500VDC electrical isolation (per CAN FD channel)
• Power Supply: DC 9-48V
• Operating Temperature: -40°C to +85°C
• Dimensions: 157.4mm × 85.4mm × 30mm
• Housing: Metal

• Automotive Road Testing: Remote monitoring and data collection from traditional and New Energy Vehicles (NEVs) during field trials.
• Fleet Management & Diagnostics: Tracking vehicle health, diagnosing faults, and improving maintenance schedules.
• Rail Transportation: Fault detection and troubleshooting in high-speed rail and subway train control systems.
• Industrial Machinery: Monitoring CAN(FD) communication in wind turbines, elevators, and construction equipment.
• Aerospace & Marine: Equipment testing and communication fault analysis.

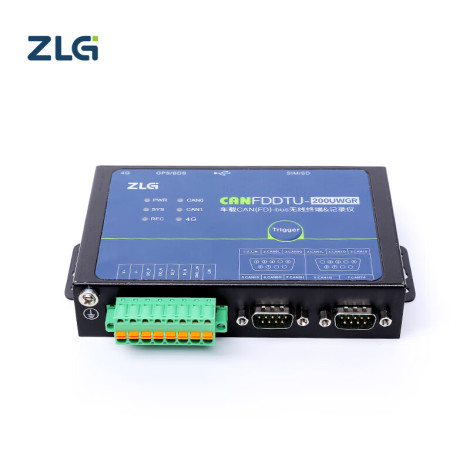

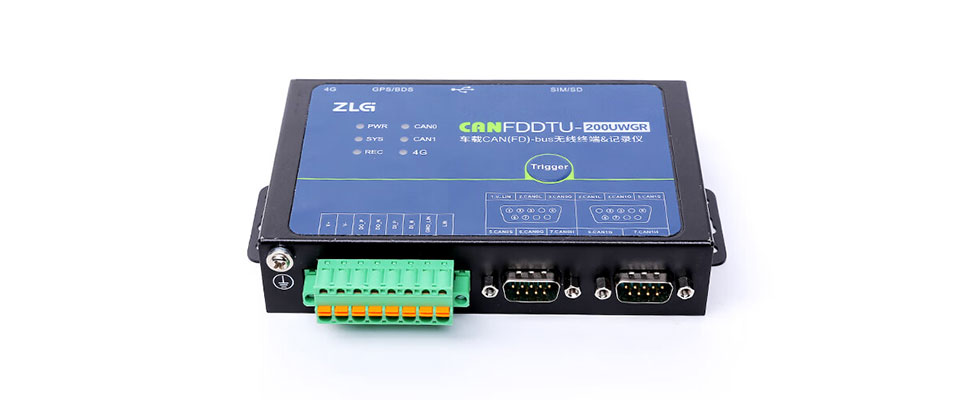

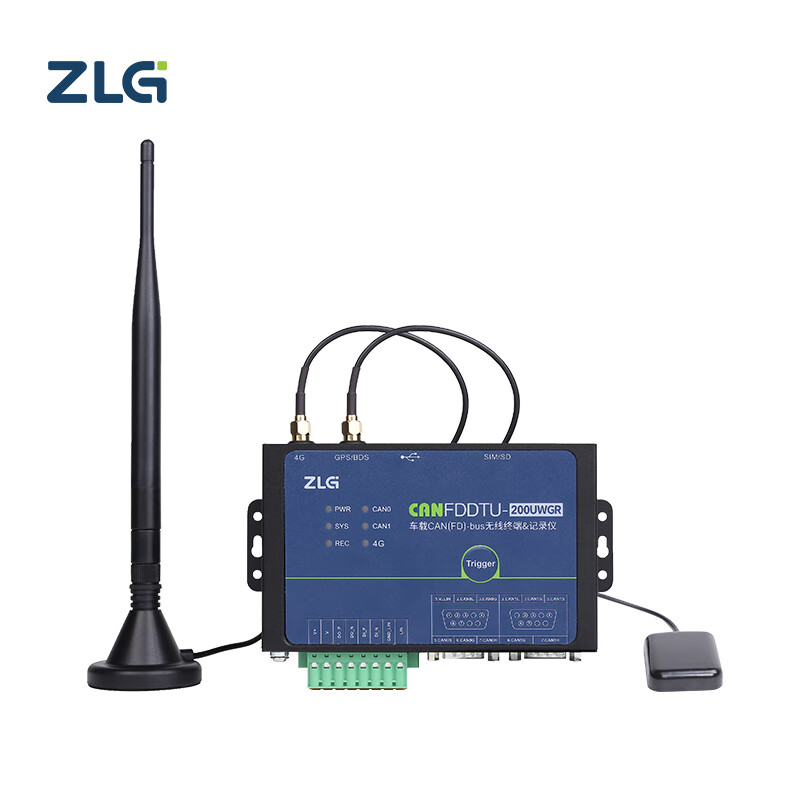

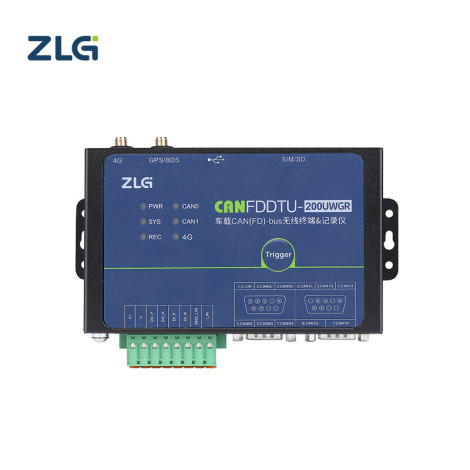

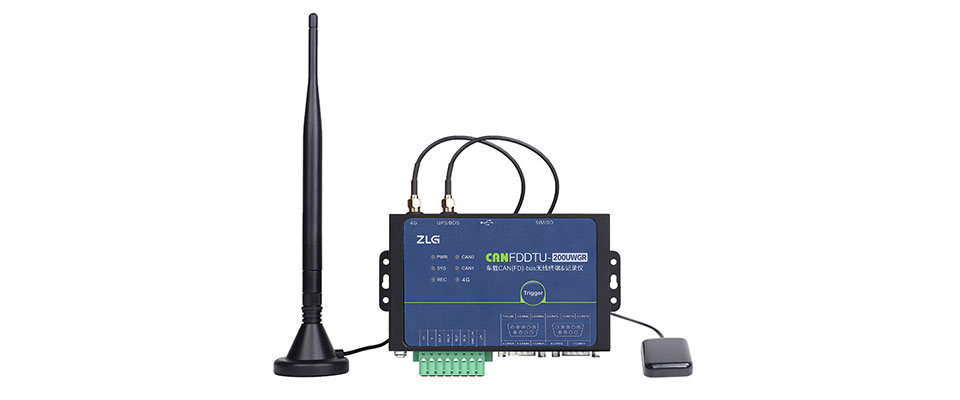

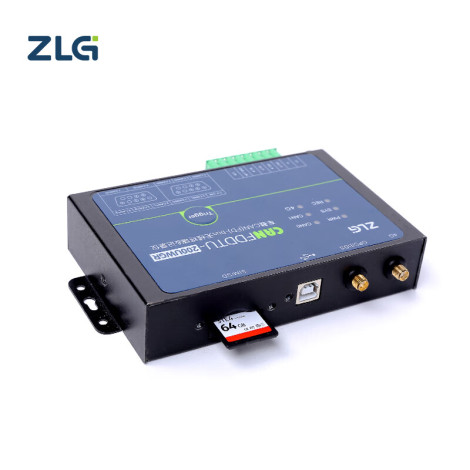

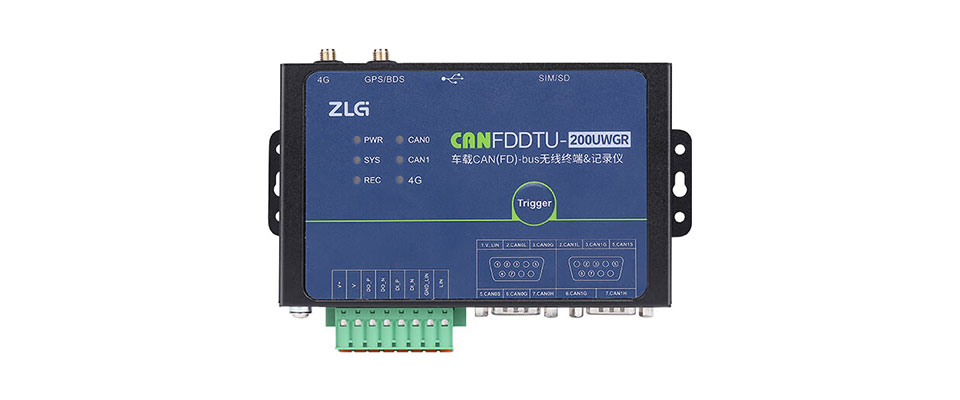

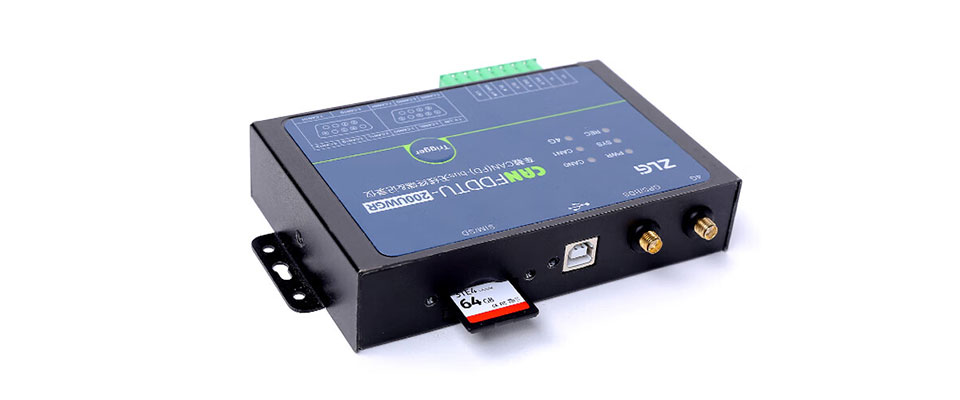

Pictures of CANFDDTU-200UWGR
