ZLG USBCAN-II双通道CAN适配器-USB 2.0 CANopen J1939汽车工业CAN总线分析仪

Product Detail

Core Features

Dual-Channel CAN 2.0 Analysis
Simultaneously monitor two independent ISO 11898-2 CAN 2.0A/B networks (10kbps–1Mbps) for complex automotive/industrial diagnostics.

Multi-Protocol Support
Pre-loaded decoding for CANopen SAE J1939 DeviceNet protocols with custom DBC file import capability.

Hardware-Accelerated Performance
Dual 32-bit MCUs with 2000-frame buffer per channel and programmable ID filtering for efficient data capture.

Industrial Robustness
-40°C to +85°C operation | 2500V DC isolation (channel-to-PC) | 15kV ESD protection | Metal casing.

Plug-and-Play USB 2.0
480Mbps transfer speed with bus-powered design (no external supply required).

Technical Specifications

• Channels: 2 (ISO 11898-2 CAN 2.0A/B)

• Baud Rate: 10kbps–1Mbps (per channel)

• USB Interface: Type-A male (1.8m shielded cable included)

• Isolation: 2500V DC (CAN-to-USB)

• OS Support: Windows 7/10/11 Linux (kernel 4.15+)

• Dimensions: 110mm × 80mm × 28mm

• Weight: 150g

Key Applications

• Automotive: ECU parallel debugging | OBD-II gateway monitoring | EV battery management

• Industrial: CANopen network synchronization | Production line dual-bus diagnostics

• Heavy Machinery: J1939 telematics for mining/construction fleets

• R&D: Multi-node CAN system stress testing

Package Contents

1× USBCAN-II Adapter
1× Shielded USB-A Cable (1.8m)
2× DB9 Male to 5-pin Terminal Adapters
1× Quick Start Guide (EN/DE/FR)

Why Choose USBCAN-II?

Dual-Bus Efficiency: Monitor two CAN networks simultaneously without channel switching delays.
Protocol Flexibility: Native CANopen/J1939/DeviceNet support with free ZCANPro analysis software.
Developer Ready: Open APIs for Python/C#/LabVIEW with sample codes.

Certifications & Support

• CE FCC RoHS certified

• 24-month warranty | Lifetime technical support

• Free Resources:
  Download SDK
  Protocol templates & API documentation

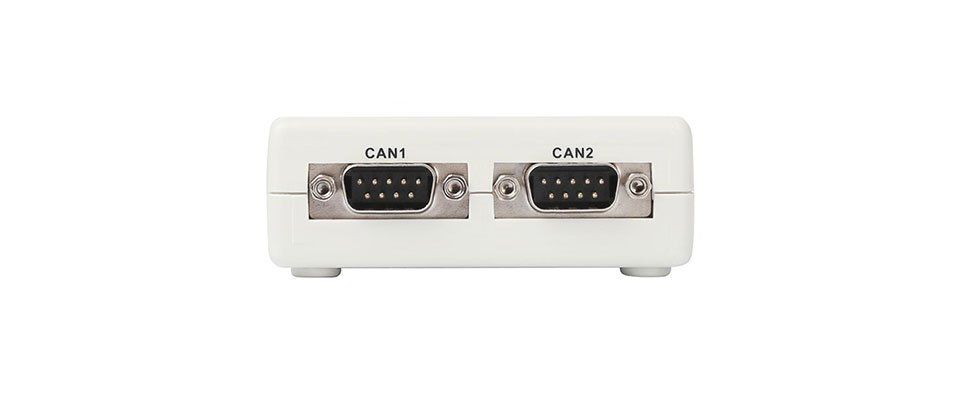

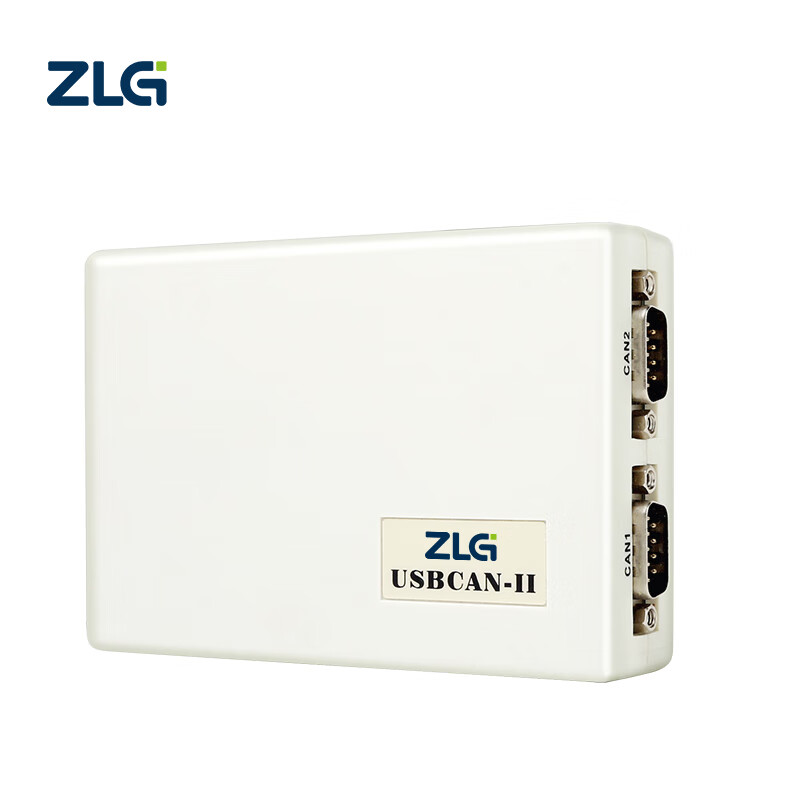

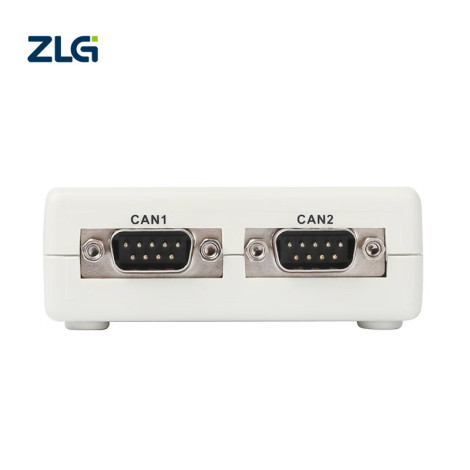

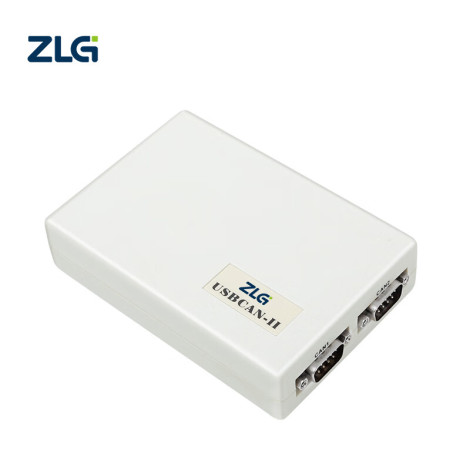

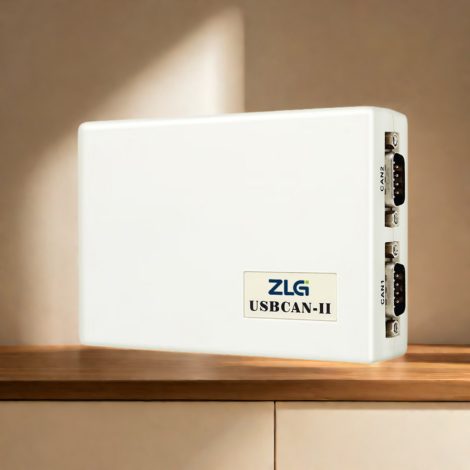

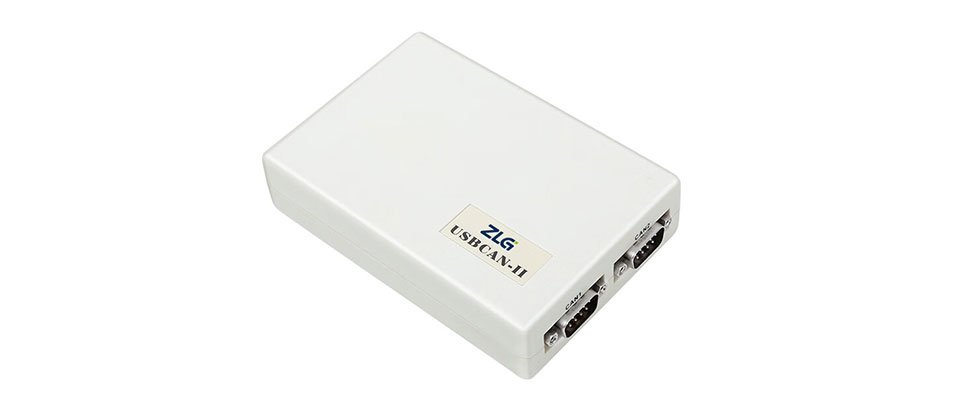

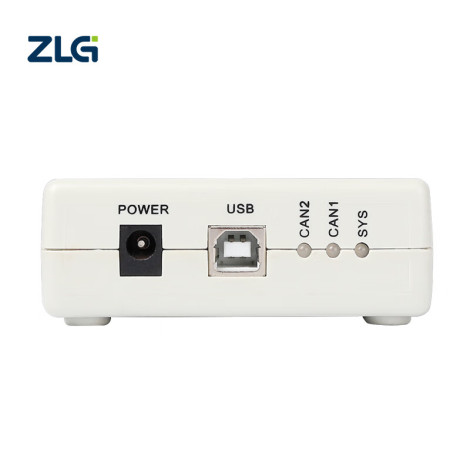

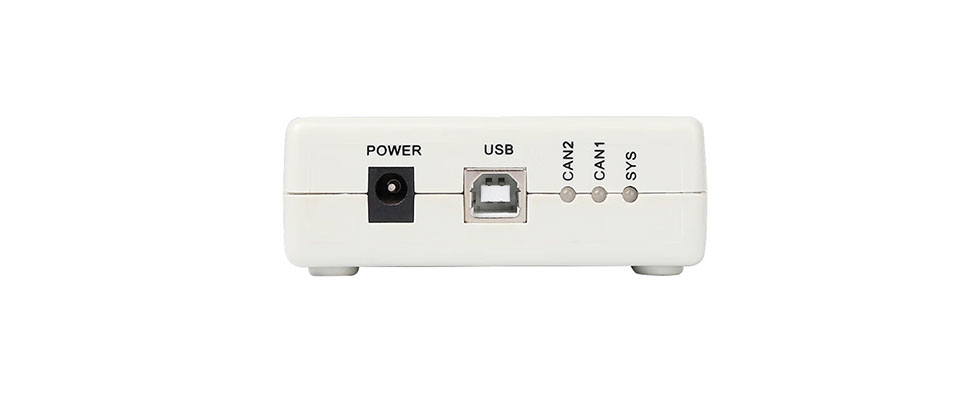

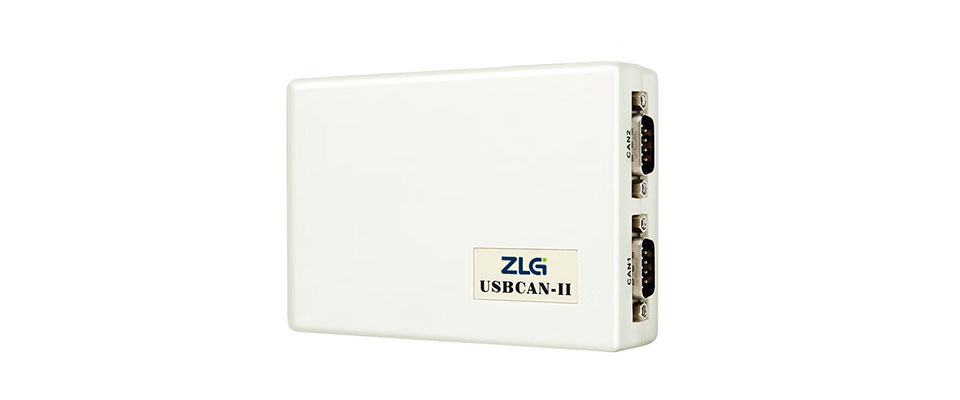

Pictures of USBCAN-II
