ZLG CANHub-AS4 4-Ch工业CAN集线器，具有2500VDC隔离和6000fps吞吐量

Product Detail

Product Description

The ZLG CANHub-AS4 is a high-performance industrial-grade CAN bus hub designed to seamlessly interconnect and manage complex multi-network systems, such as automotive production lines, smart factories, and energy infrastructure. With advanced filtering, isolation, and routing capabilities, it resolves critical challenges like network segmentation, signal interference, and protocol compatibility.

Key Features

1. Multi-Network Integration & Isolation

   • 4 Electrically Isolated CAN Channels: Each port features 2500VDC isolation to prevent ground loops and noise interference in harsh environments like mining or EV charging stations


   • Flexible Topology: Eliminates branch length limits on the main network, enabling unrestricted node distribution (e.g., PLC clusters in steel plants).

2. High-Speed Data Handling

   • 6000fps Throughput: Supports CAN 2.0A/B and ISO 11898 standards, ideal for time-critical applications like robotic assembly lines


   • Baud Rate Flexibility: Independently configurable rates (5 Kbps–1 Mbps) per channel to bridge mismatched networks (e.g., J1939 in trucks + CANopen in industrial sensors).

3. Advanced Filtering & Routing

   • Message Filtering: Block unwanted CAN frames to reduce bus load by up to 70% (e.g., filtering non-critical IDs in smart grids)


   • Selective Routing: Forward specific data between channels (e.g., route diagnostic frames from machinery to a monitoring PC).

4. Diagnostics & Configuration

   • Real-Time Monitoring: LED indicators for power, bus activity, and errors (e.g., detecting faults in wind turbine networks)

   • Windows-Based Software: Configure filters, baud rates, and routing rules via RS232 with instant-apply functionality (no reboot required)


5. Industrial Robustness

   • Wide Voltage Input: 9–24V DC with SECC metal housing for durability in extreme temperatures (-40°C to +85°C)

   • EMC/CE Compliance: Validated for industrial environments (refer to CANHub-AS4 CE Certification Report)


Applications

• Automotive: Multi-ECU communication in EV production lines.

• Industrial: Cross-protocol integration (CANopen + DeviceNet) in chemical plants.

• Energy: Distributed monitoring of solar farms or smart grids.

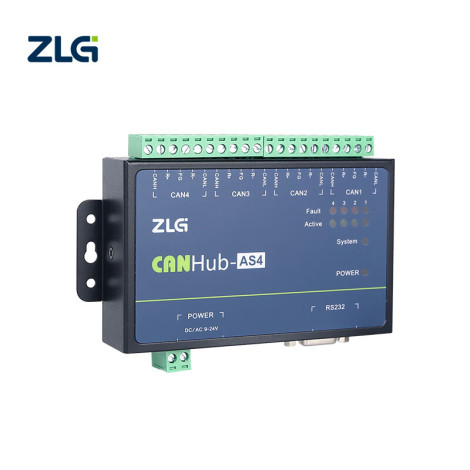

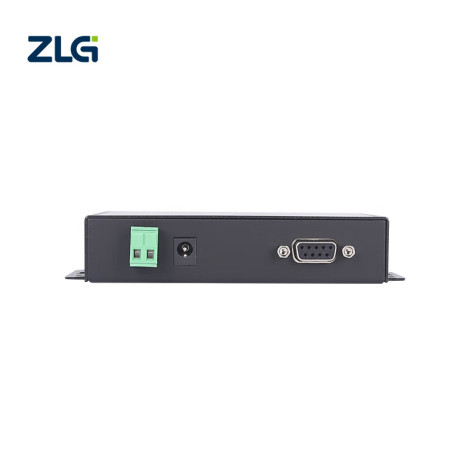

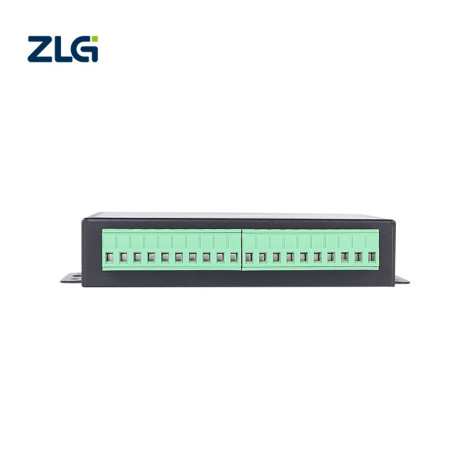

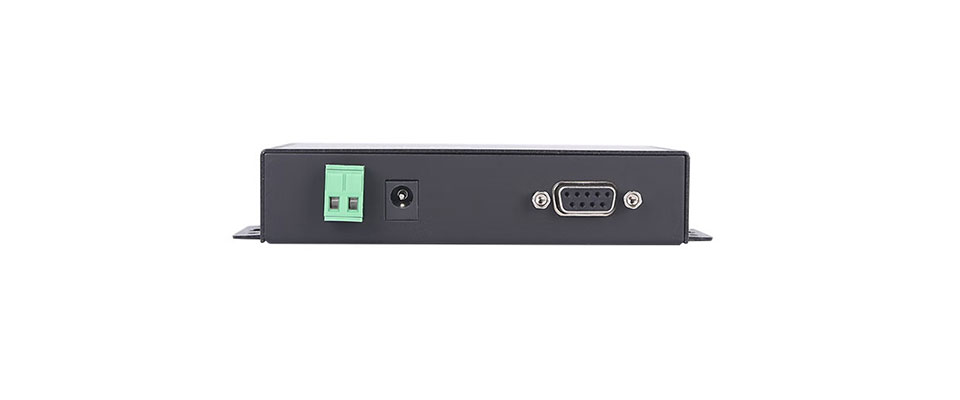

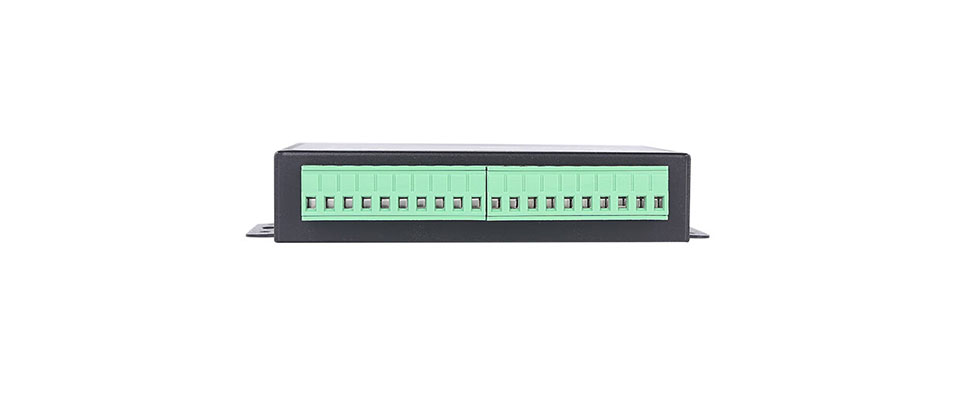

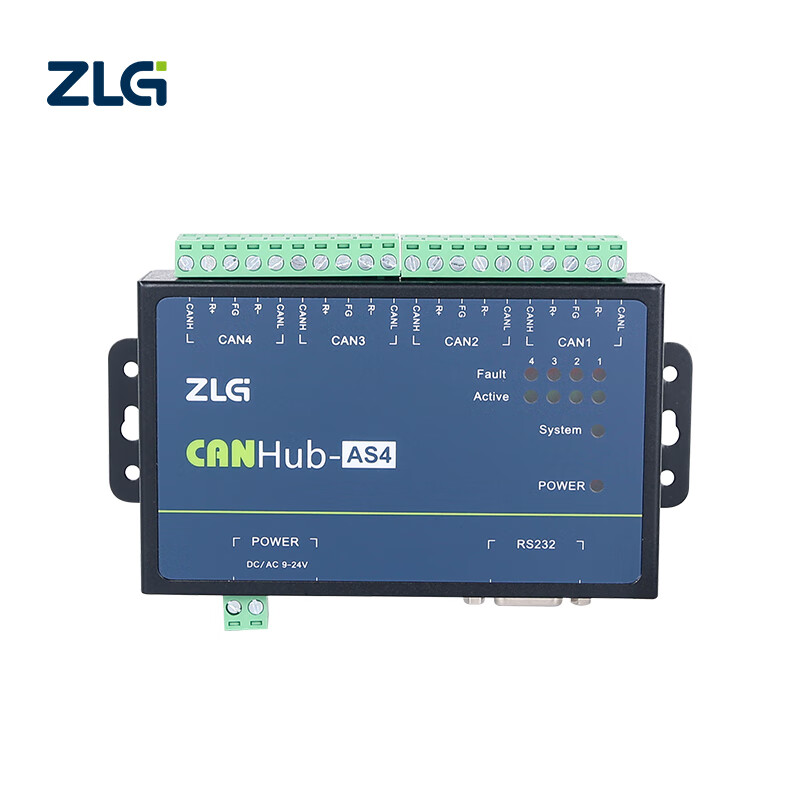

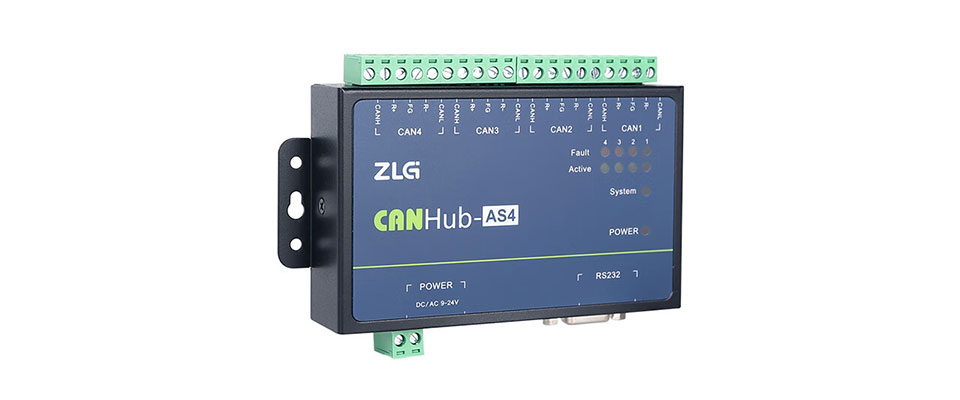

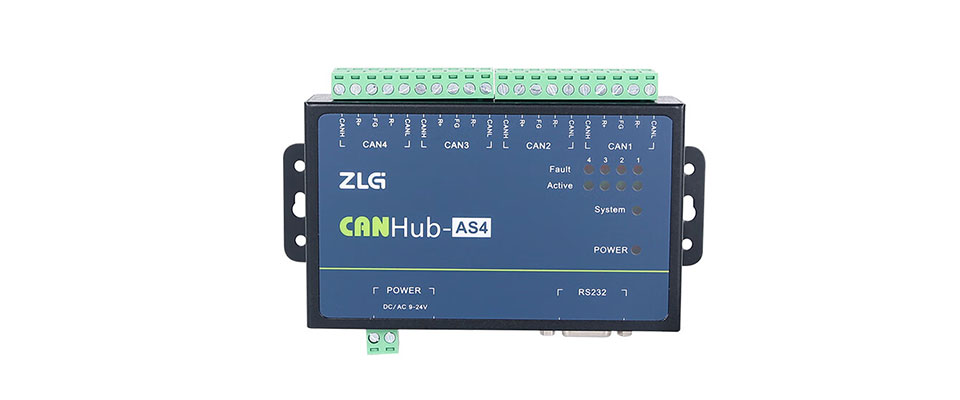

Pictures of CANHubA-S4
