ZLG CANFDHub-AS4 4通道CAN FD隔离网关中继器集线器，具有2500VDC隔离功能，支持CAN FD/CAN2.0

Product Detail

Key Features

1. Multi-Protocol Support: Compatible with CAN FD (Flexible Data-Rate) and Classic CAN2.0A/B protocols, with backward compatibility.
2. High-Speed Communication: CAN FD arbitration segment baud rate: 40K~1Mbps; data segment baud rate: 100K~5Mbps. Message forwarding capability up to 28,000 frames/sec (per channel).
3. Robust Isolation: Each CAN channel provides 2500VDC electrical isolation, effectively suppressing ground loop interference and high-voltage surges, enhancing system reliability in harsh environments.
4. Intelligent Routing & Filtering: Features powerful ID filtering, data conversion, and routing functions. Allows precise acceptance ID configuration, significantly reducing bus load and enabling selective data forwarding between different devices or subnets.
5. Flexible Configuration: The communication baud rate of each channel can be independently configured. Supports device cascading for easy network expansion and distance extension.
6. Industrial-Grade Design: Operating temperature range: -40℃ to +85℃. Wide power supply voltage (9V~48V DC). Metal housing. Supports DIN rail mounting. Built to withstand demanding industrial environments.

Technical Specifications

Typical Applications

• Automotive Electronics: In-vehicle networks (ECU communication), Battery Management Systems (BMS), EV Charging Piles (AC/DC).
• Industrial Automation: PLC control systems, industrial robots, distributed I/O, production line monitoring.
• New Energy & Power: PV inverter communication, Energy Storage Systems (communication between BMS and PCS), smart grid device interconnection.
• Rail Transportation: Train control systems, carriage status monitoring.
• Special Equipment: Construction machinery, agricultural machinery, mine safety monitoring systems.

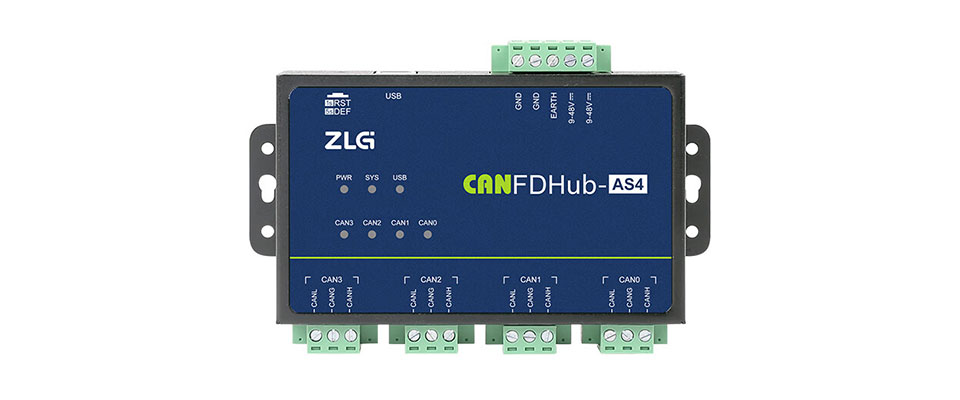

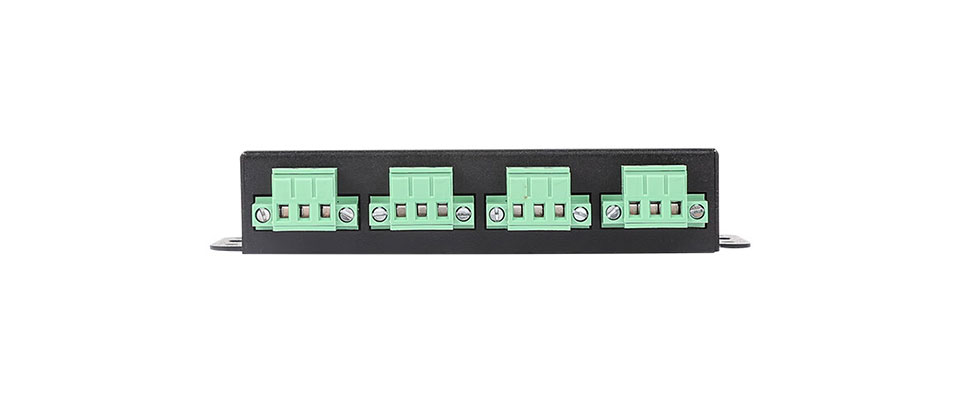

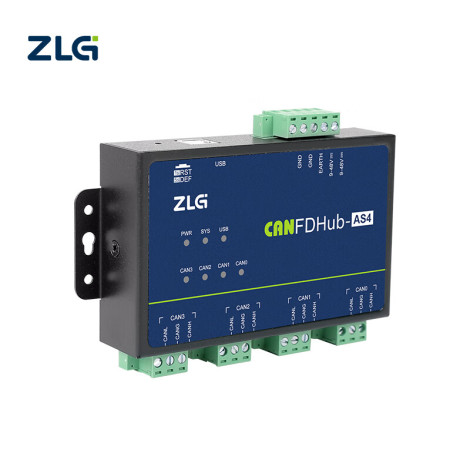

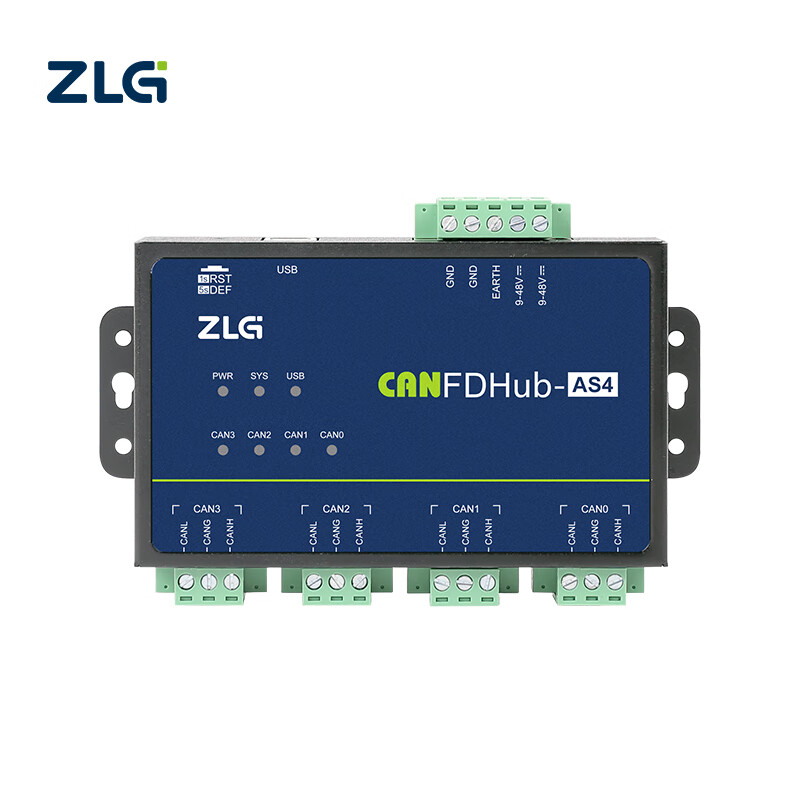

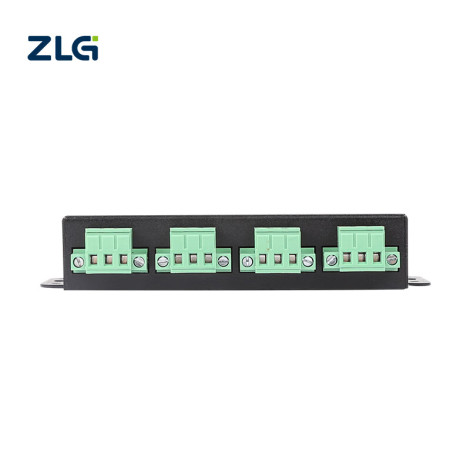

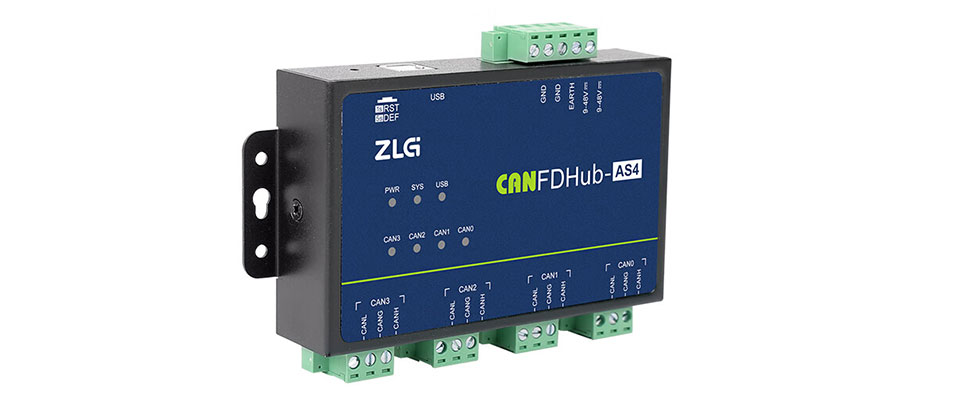

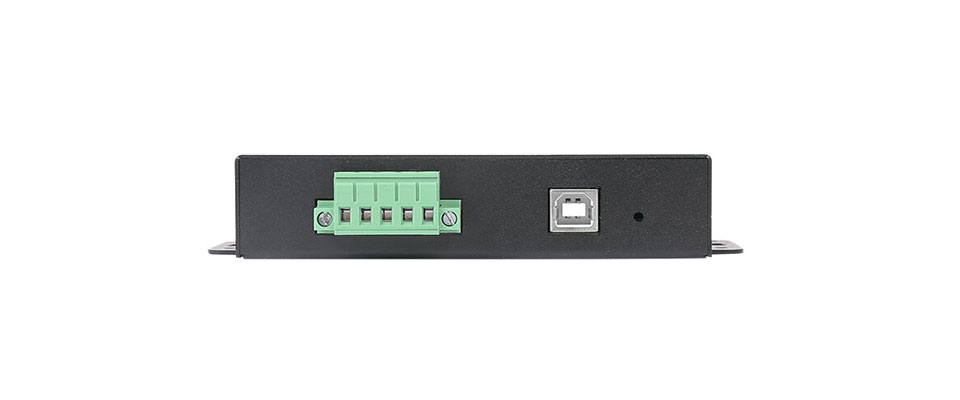

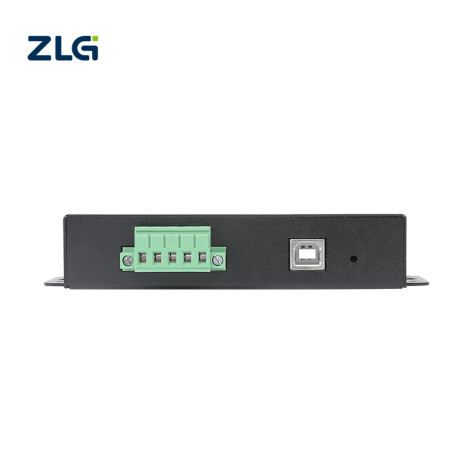

Pictures of CANFDHub-AS4
