ZLG CANDTU-200UWGR双通道CAN总线数据记录器，带4G/GPS/USB/SD记录器的CAN消息故障诊断

Product Detail

Product Description:ZLG CANDTU-200UWGR Dual Channel CAN Bus Data Logger with 4G GPS & Protocol AnalysisA professional-grade tool for real-time vehicle monitoring, remote diagnostics, and advanced CAN protocol decoding. Equipped with dual-channel logging, 4G connectivity, GPS tracking, SD card support, and CAN protocol analysis, this device is ideal for automotive fleets, industrial systems, and IoT applications.

Key Features:

• Dual Channel CAN FD/CAN 2.0 Monitoring: Capture and analyze two independent CAN networks simultaneously for comprehensive diagnostics.

• 4G Remote Data Streaming: Transmit real-time CAN data via 4G networks for off-site fleet management and remote monitoring.

• Built-in GPS Tracking: Track vehicle location, speed, and driving routes with high-precision GPS for compliance and operational insights.

• CAN Protocol Decoding: Decode CAN messages in real-time using ZLGCANPro/ZCANalyzer software (included) for fault diagnosis and system optimization.

• SD Card Support: Expandable storage via microSD card (up to 256GB) for extended data logging and flexible data retrieval.

• Direct USB Transfer: Access data instantly via USB Type-C or remove the SD card for offline analysis.

• Real-Time Alerts: Monitor driving behavior (e.g., harsh acceleration, idling) and CAN network anomalies remotely.

• Industrial Durability: Operates reliably in extreme conditions (-40°C to +85°C, vibration/dust resistant).

Package Includes:

1× CANDTU-200UWGR Dual Channel CAN Logger

1× USB Cable

1× Quick Start Guide

1× Warranty Card (24-month coverage)

Software download link provided in the manual.

Applications:

• Fleet Vehicle Tracking: Real-time CAN data + GPS location tagging for logistics optimization.

• Remote Diagnostics: Identify engine faults, sensor errors, or CAN bus failures via 4G connectivity.

• Driving Behavior Analysis: Monitor speed, braking patterns, and idling for safety compliance and insurance telematics.

• Industrial IoT Integration: Dual-channel logging, 4G connectivity, and SD card storage for predictive maintenance.

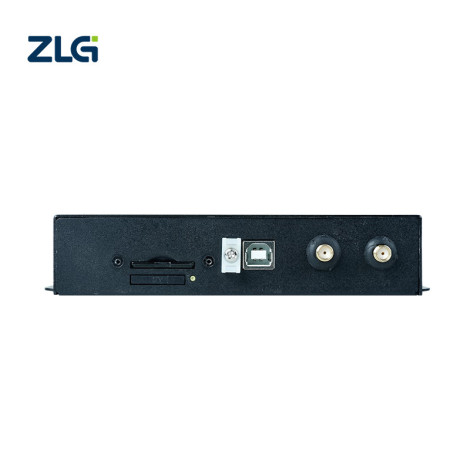

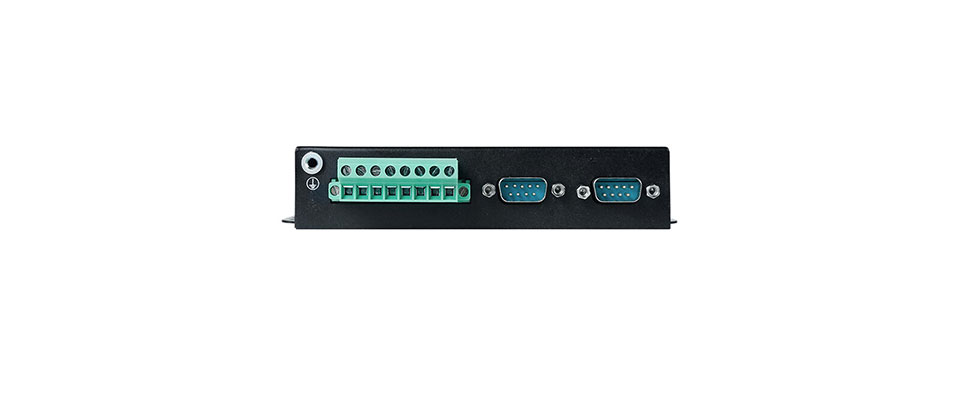

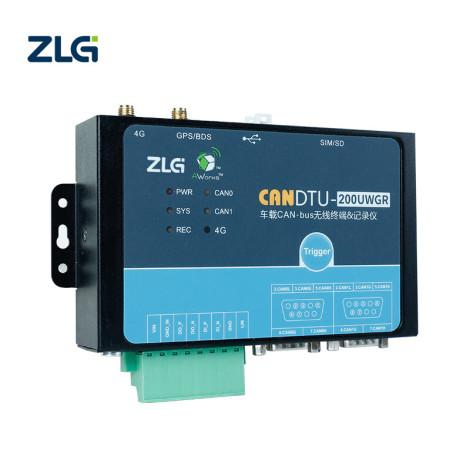

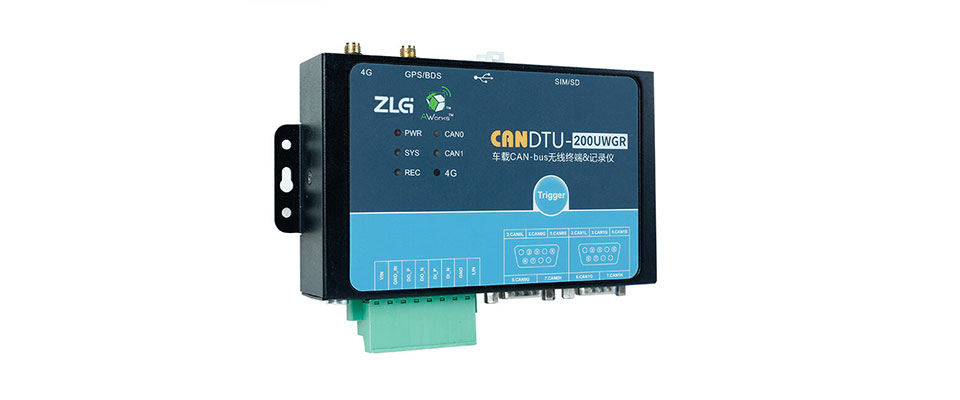

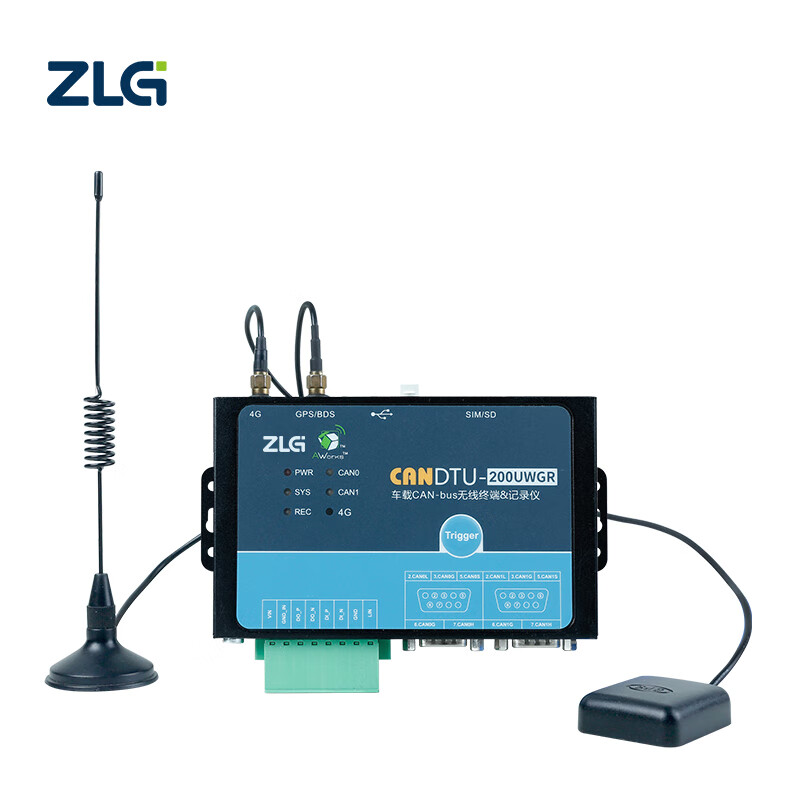

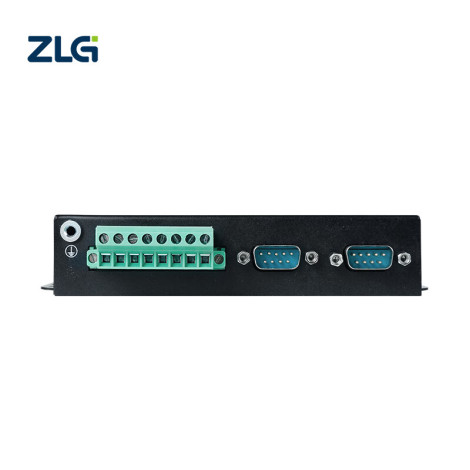

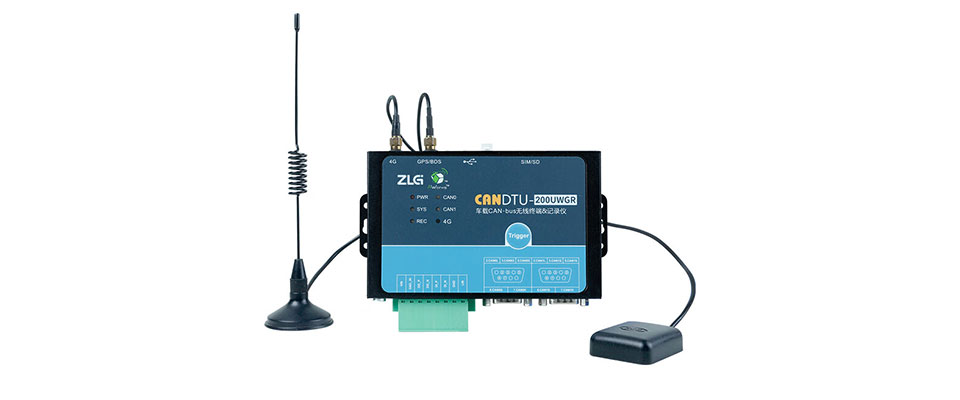

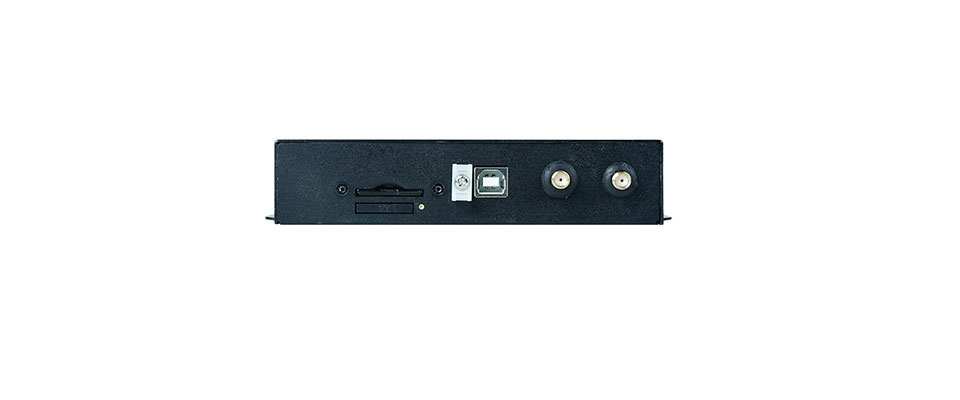

Pictures of CANDTU-200UWGR:
