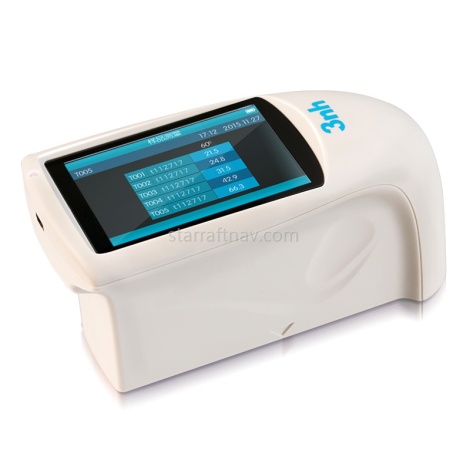

3nh 经济型光泽度计 60°测量角度 小孔径球面自动校准测试设备 0~1000gu 5% 1年

Model

NHG60M

Measure Angle

60°
Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457

Measuring Area (mm)

2*4

Measurement Range

0~1000GU

Division Value

0.1GU

Measurement Range                                 Repeatability
Reproducibility

0-10GU            10-100GU      100-1000GU
± 0.1GU           ± 0.2GU           ± 0.2%GU
± 0.2GU           ± 0.5GU           ± 0.5%GU

Measurement Standard

Conform with JJG696 first class gloss meter working requirement

Chromaticity Corresponding

Corresponding with CIE 1931(2°) under CIE C light source

Errors

±1.5 , ± 1.5%

Measuring Time

0.5s

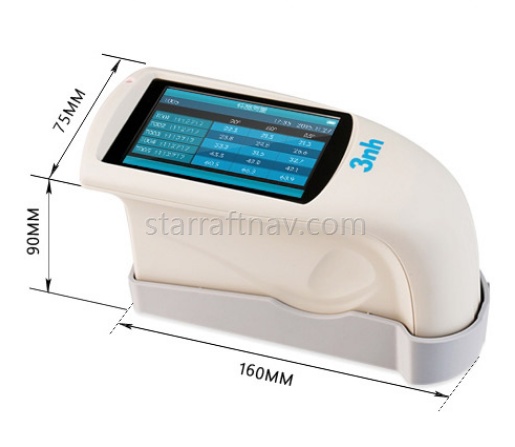

Dimension

L*W*H : 160mm*75mm*90mm

Weight

350g

Language

Chinese/English

Battery

3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours)

Viewing Screen

TFT 3.5 inch, capacitive touch screen

Interface

USB/RS-232

Data Save

Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000

Software

GQC6 Quality Control Software with QC report printing functions and more extended functions.

Operation Temperature

0~40ºC(32~104°F)

Storage Temperature

 -20~50ºC(-4~122°F)

Humidity

<85% relative humidity, no condensation

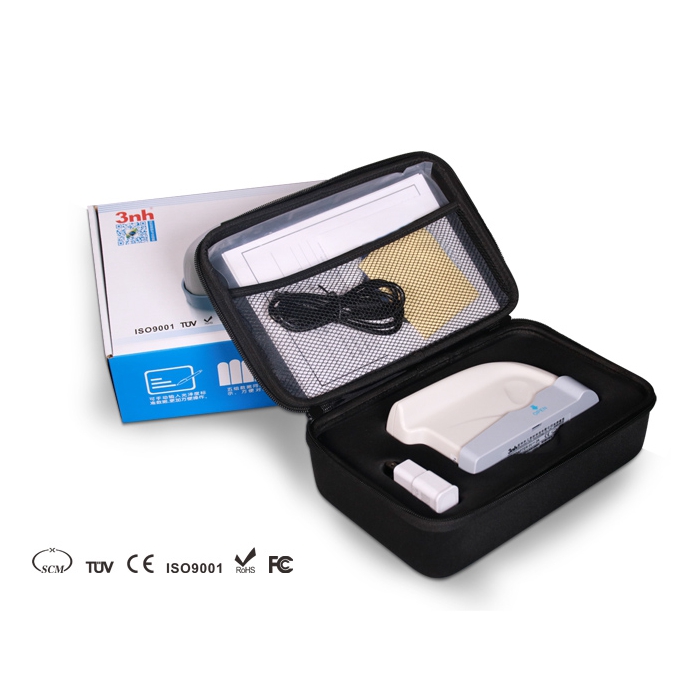

Standard Accessories

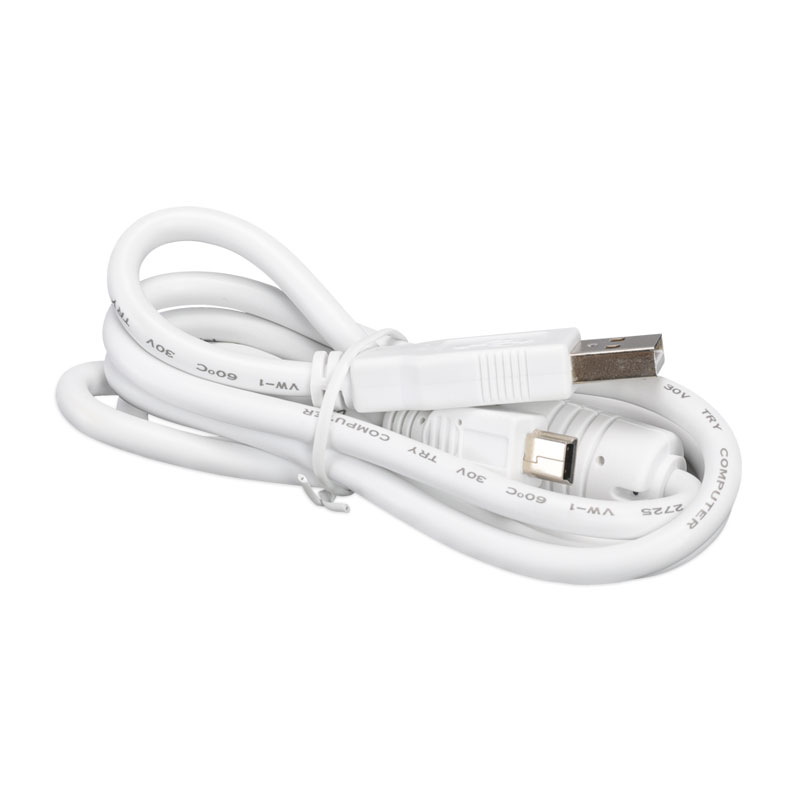

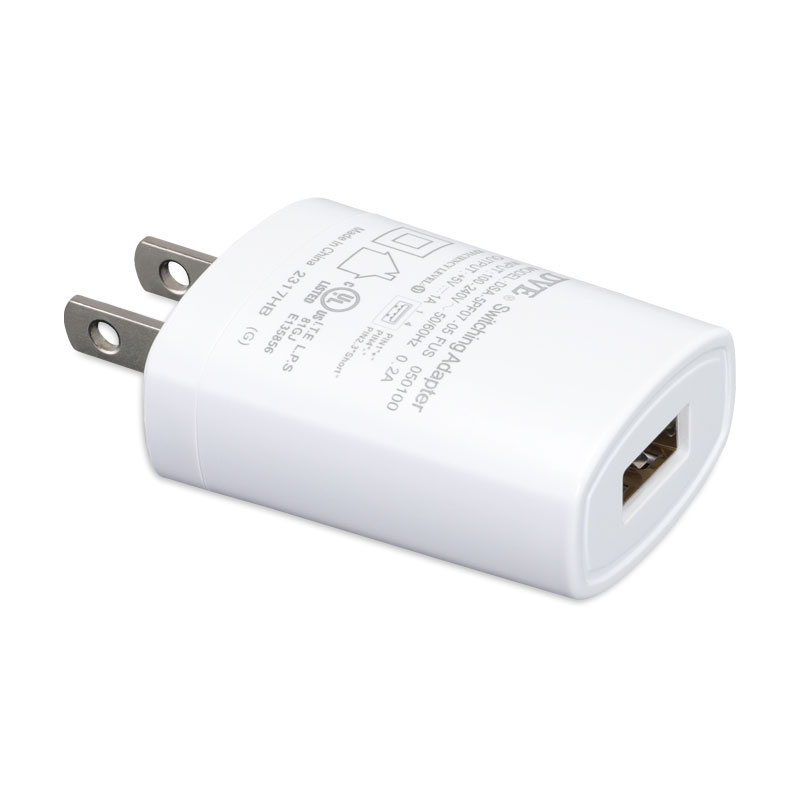

Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate

Optional Accessories

Miniature Printer

Note

The specifications are subject to change without notice.
