20/60/85 多角度光泽度计 3NH 0-2000GU 大理石瓷砖油漆测试设备，带三角度光泽度计
$
486.09
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Products Description
Introduction:

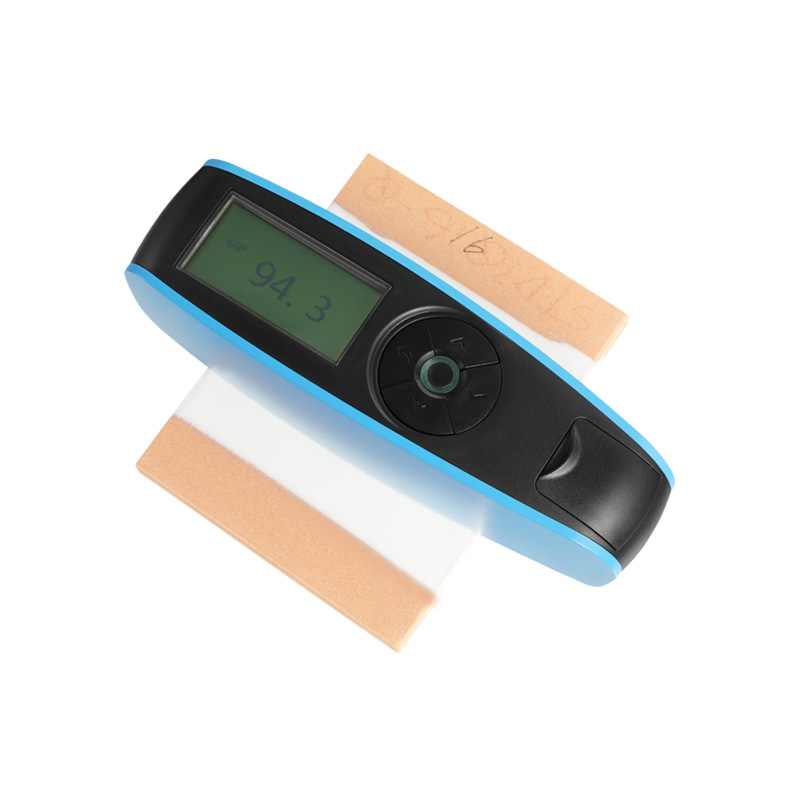

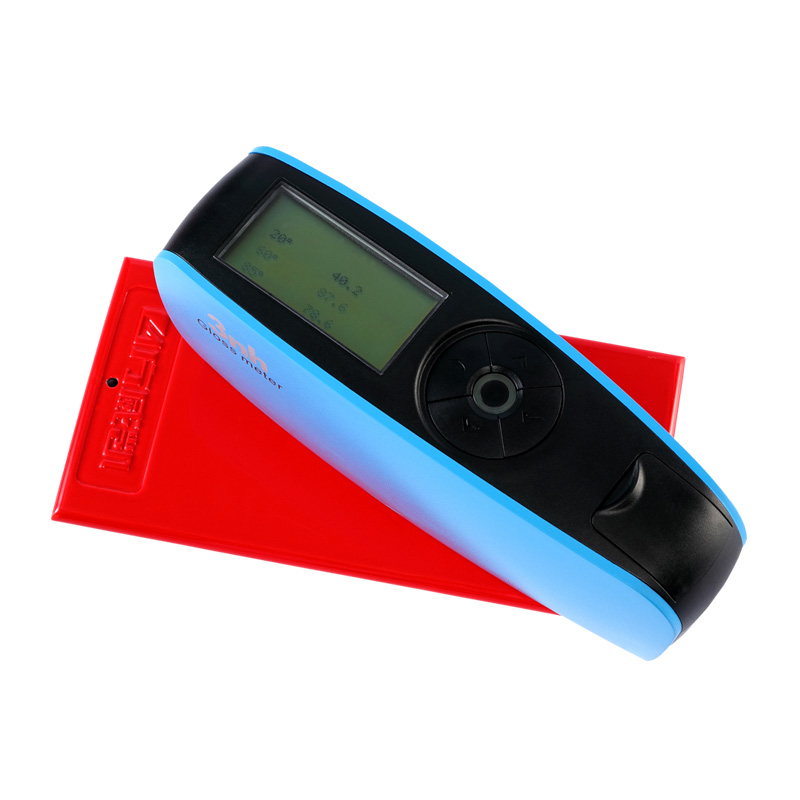

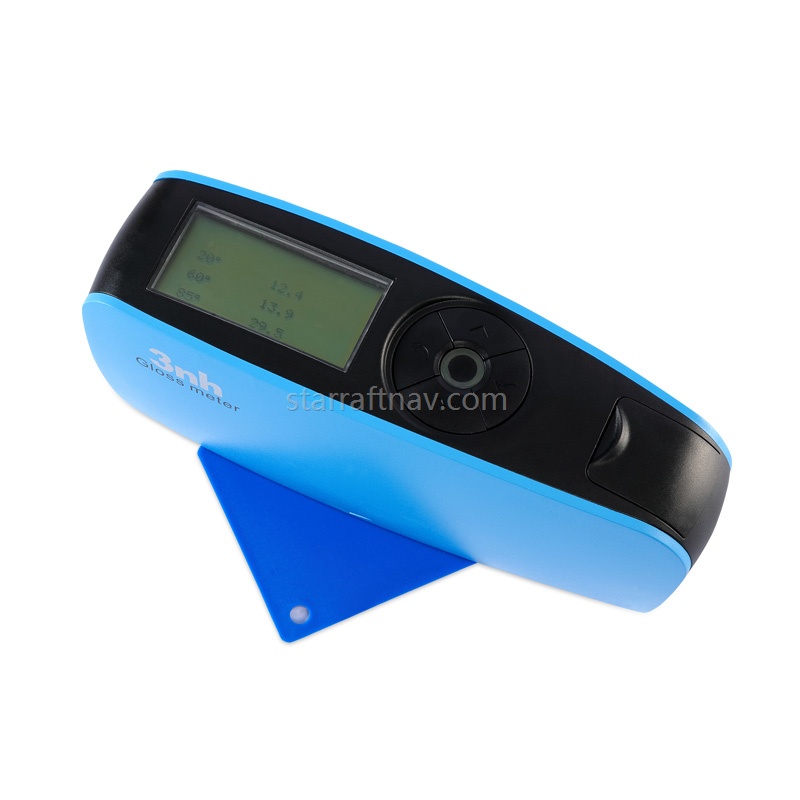

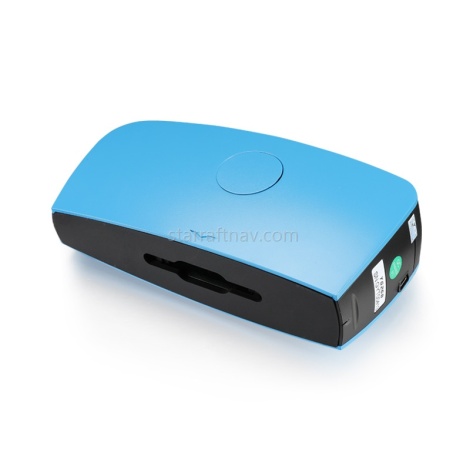

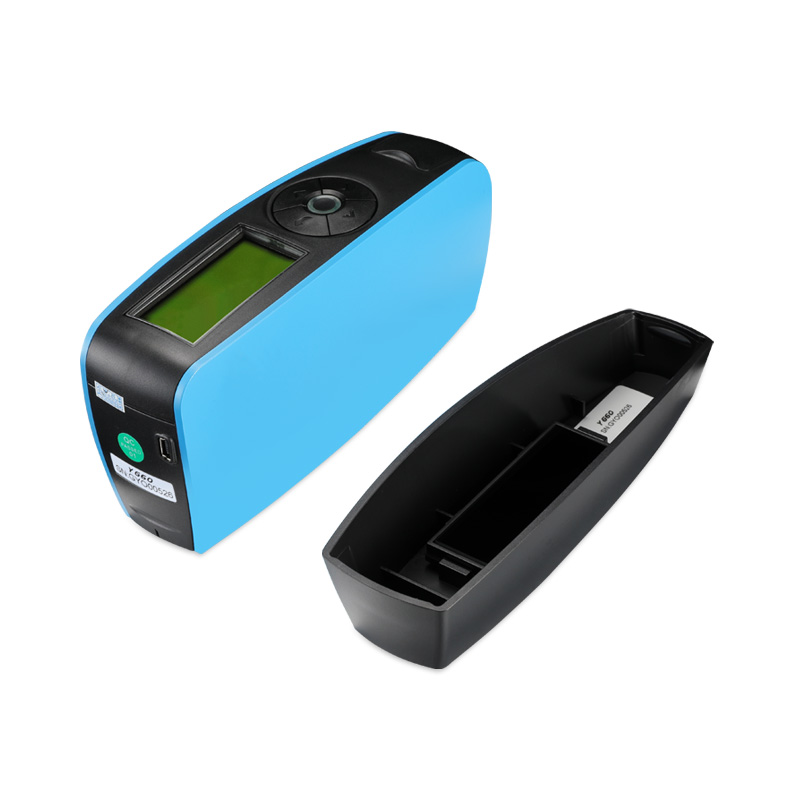

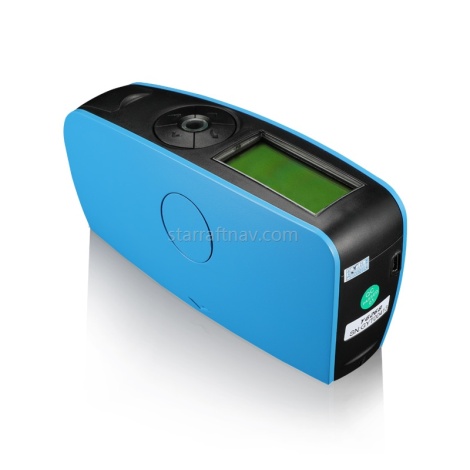

YG268 Tri-angle Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet requirements of JJG696.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
Product Paramenters
Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. Meet requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813,ASTM523, GB/T9754;
2. Meet requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813,ASTM523, GB/T9754;
Model | YG268 Tri-angle Gloss Meter | |
Measuring Angle | 20° 60°85° | |
Measurement Range | 20°: 0-2000GU 60°: 0-1000GU 85°: 0-160GU | |
Division Value | 0.1GU | |
Measuring Modes | Basic mode; Statistic mode; Continuous mode; QC mode | |
Measuring Time | 0.5S | |
Repeatability | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU | |
Accurate | Conform with JJG696 requirements of gloss meter | |
Auto Power-off Time | Within 30s-120s | |
Long-time Calibration | Automatically check and made the calibration | |
Language | Chinese & English | |
Storage | 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) | |
Display | 2.3 inch white and black screen | |
Size | 160*52*84mm | |
Weight | About 300g | |
Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge | |
Interface | USB | |
PC Software | GQC6 QC software can printing testing report and with more extended functions | |
Operation Temperature Range | 0-40℃（32-104° F） | |
Storage Temperature Range | -20-50℃（-4-122° F） | |
Humidity Range | < 85% RH, without condensation | |

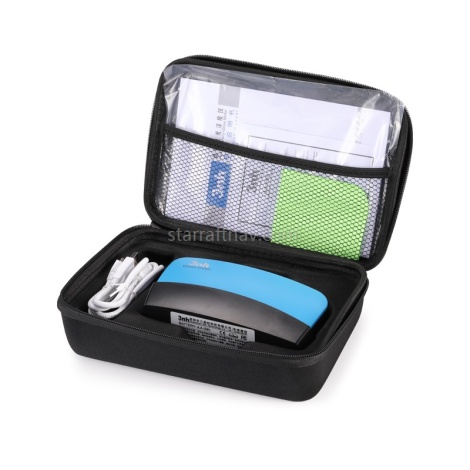

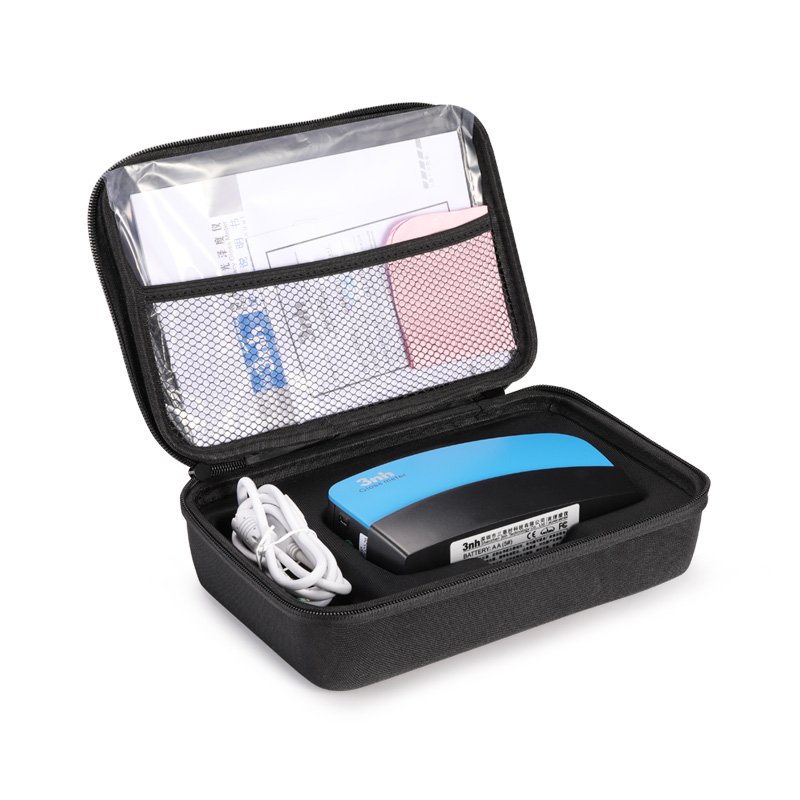

Standard Accessories | USB cable, user manual, calibration plate, QC software | |
Optional Accessories | Miniature printer,Bluetooth | |
Notification: the technical parameter is only for reference | ||
