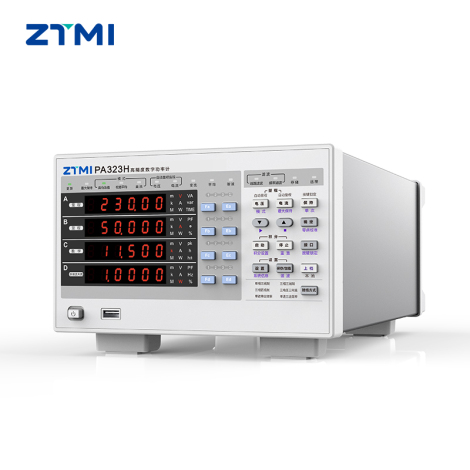

ZTMI三通道数字功率计，带宽300khz，采样率200ks/s，PA323H
$
4540.41
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail

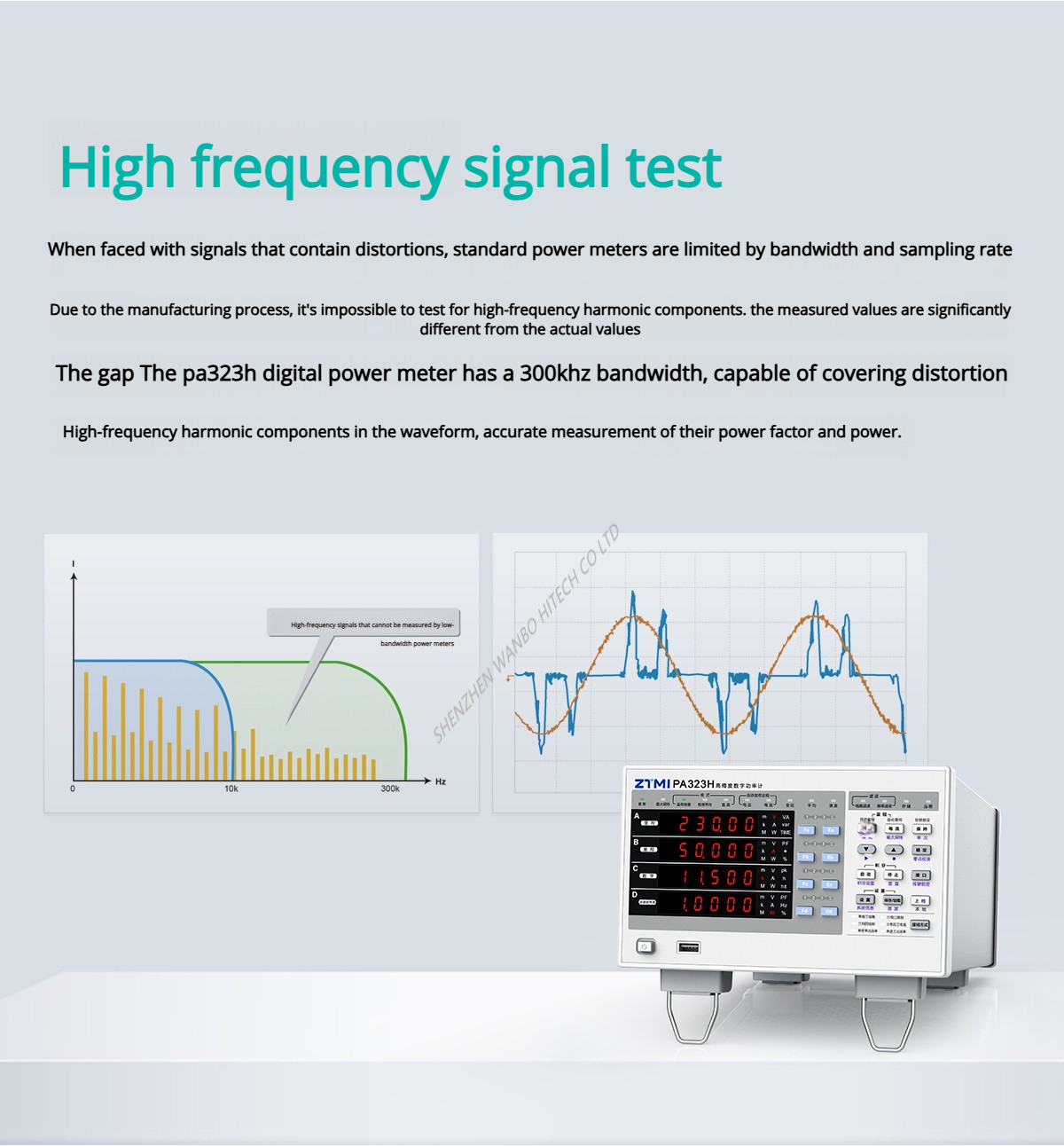

High-frequency signal testing
When dealing with distorted signals, ordinary power meters are unable to test the high-frequency harmonic components due to the limitations of their bandwidth and sampling rate, resulting in a significant deviation between the measured value and the true value. The PA323H digital power meter has a 300KHz bandwidth, which can cover the high-frequency harmonic components in distorted waveforms and accurately measure their power factor and power.
| Model | PA323H |
|---|---|
| Input Channel | Three Channels |
| Basic Accuracy | 0.1% |
| Input Bandwidth | DC,0.1Hz ~ 300kHz |
| Sampling Rate | 200KS/s |

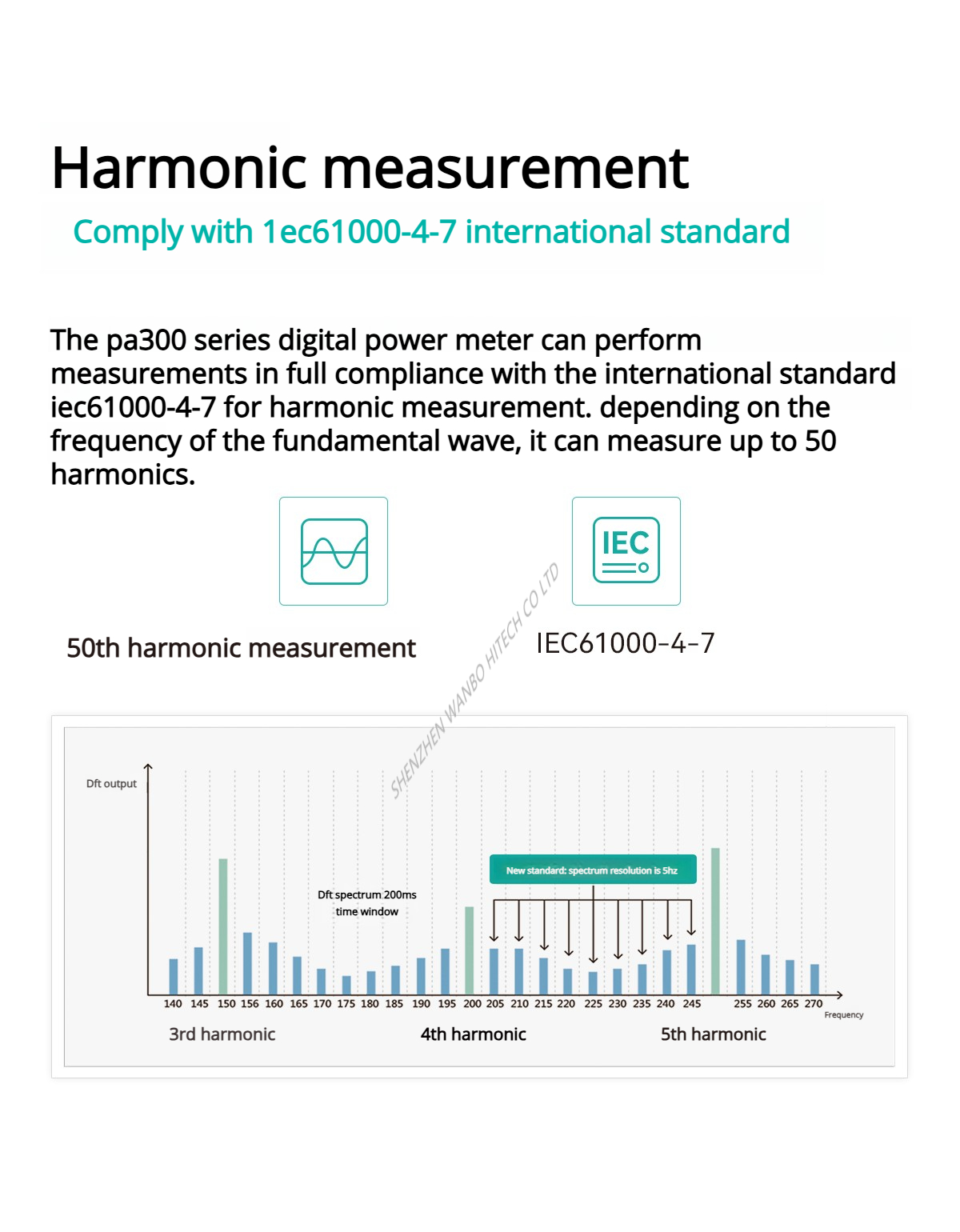

| Harmonic Analysis Frequency | 1-50Times |
| Maximum Test Voltage | 1000V |
| Current Test Range | 500 A-5A |
| External Sensor Input | BNC |

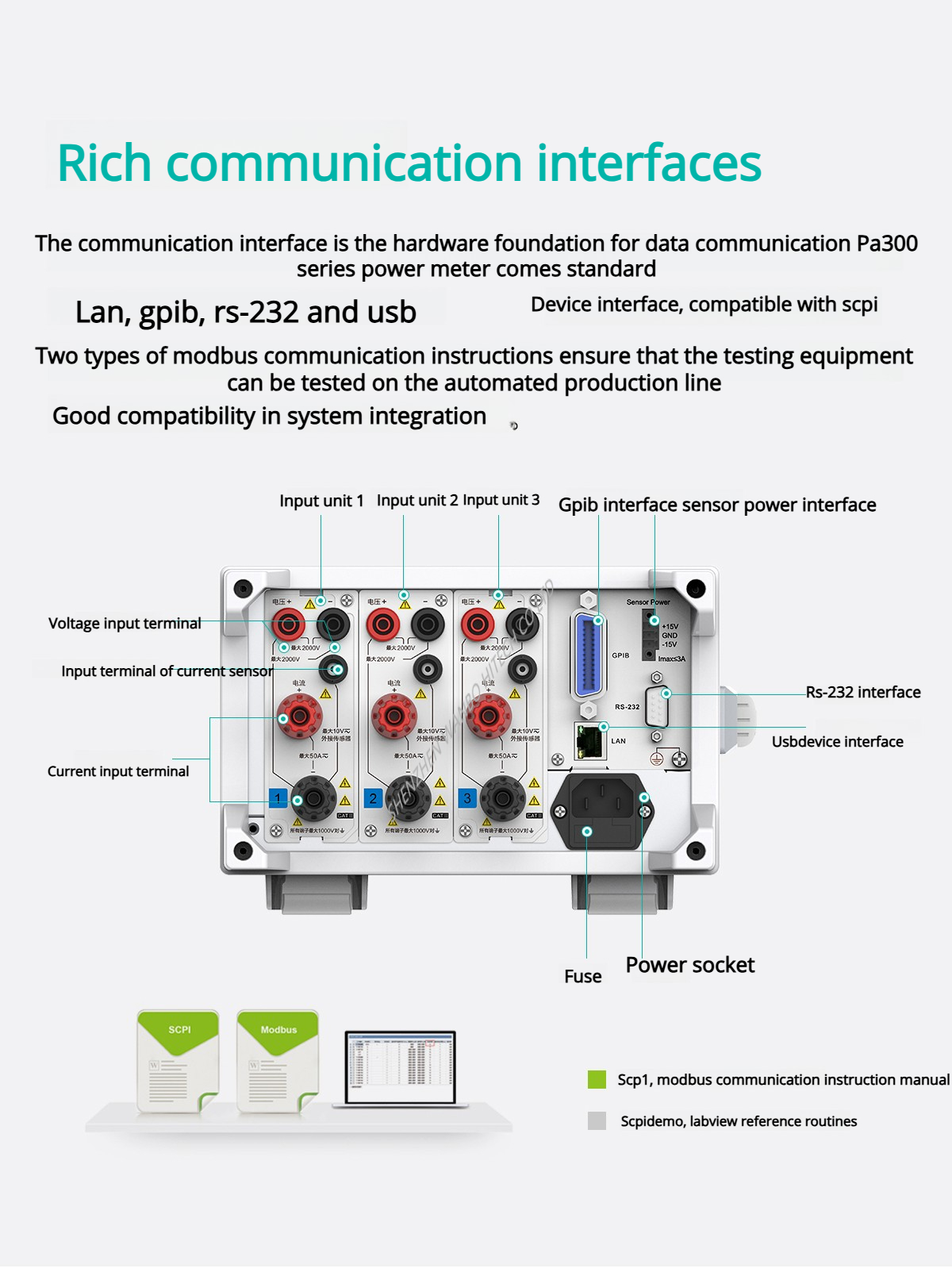

| Communication Interface | GPIB,LAN,RS-232,USB-Host |
| Test Scenario | Photovoltaic Inverter Ac Output Paired with High-Precision Current Sensors |
