ZLG USBCANFD-800U 8通道USB CAN FD接口卡，支持LIN，适用于汽车工业自动化

Product Detail

• High-Speed Multi-Channel Communication: Features 8 independent CAN FD channels, allowing for simultaneous monitoring and data acquisition from multiple bus lines. Supports the latest CAN FD (Flexible Data-rate) standard with data field baud rates up to 5 Mbps and data lengths up to 64 bytes, offering up to 40 times higher data payload than classic CAN 2.0A/B.
• Enhanced Connectivity & Compatibility: Integrates two additional LIN bus interfaces at no extra cost, catering to comprehensive automotive electronic testing needs. Fully compatible with both ISO and Bosch CAN FD standards, as well as classic CAN 2.0A/B mode communication.
• Superior Reliability & Protection: Each CAN FD channel is equipped with independent 2500VDC electrical isolation and protection circuits. This safeguards the interface card from damage caused by ground loop currents, ensuring robust operation in harsh industrial environments (ESD: ±4KV contact discharge, Surge: ±1KV).
• Powerful Processing & Stability: Utilizes an innovative Arm® + FPGA architecture combined with a domestic high-performance HPMicro RISC-V microcontroller. This design ensures real-time performance and stability even under full load testing conditions.
• Comprehensive Software Suite: Comes standard with ZLG's powerful ZXDoc and ZCANPRO software, offering a complete toolset for bus system design, development, and testing. Features include:
  • Real-time bus load monitoring for network security.
  • Support for automotive DBC file loading, protocol parsing, and transmission.
  • UDS diagnostics compliant with ISO 15765 standards.
  • Built-in parsing for CANopen, J1939, and DeviceNet protocols.
  • Message replay functionality and variable curve plotting.
  • Automated test scripting for streamlined device validation.
  • ECU flash programming with E2E security algorithms, compatible with AUTOSAR standards.
• Developer-Friendly: Includes a secondary development library with support for C++, C#, Python, LabVIEW, and other mainstream languages. Provides high-level protocol packages (DBC, UDS, etc.) for rapid application development in automotive and industrial fields.
• High Data Integrity: Incorporates a 40,000-frame hardware buffer and a 130,000-frame software buffer within the library to prevent frame loss during high bus load scenarios.

• Automotive Electronics: ECU testing, vehicle diagnostics, powertrain analysis, ADAS development, in-vehicle network (IVN) testing.
• New Energy Vehicles (NEV): Battery Management System (BMS) testing, charging pile communication.
• Industrial Automation: Machinery control, PLC communication, sensor networks.
• Rail Transportation: Train control and monitoring systems.
• Medical Electronics: Equipment communication interfaces.

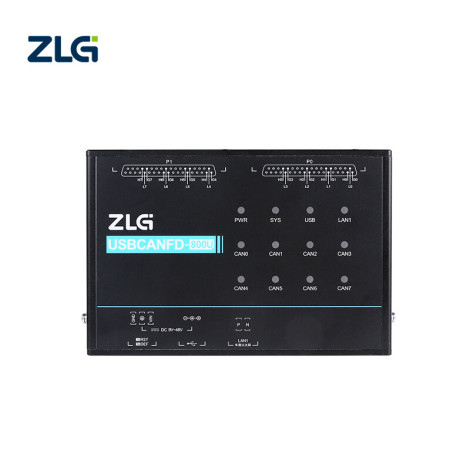

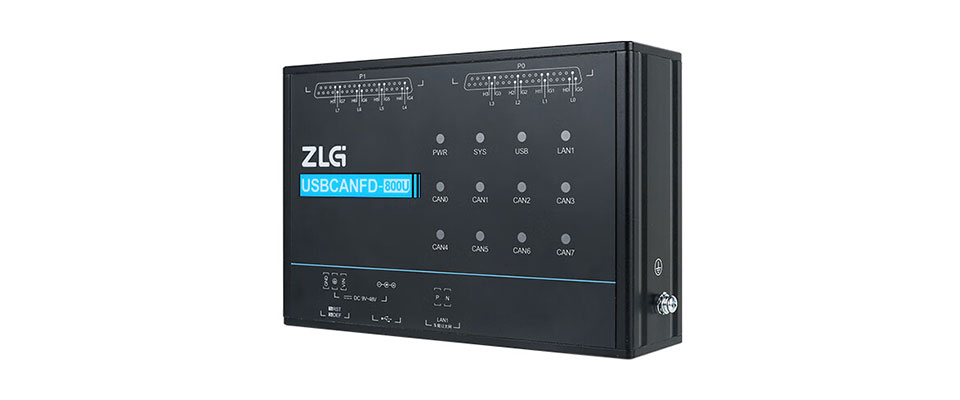

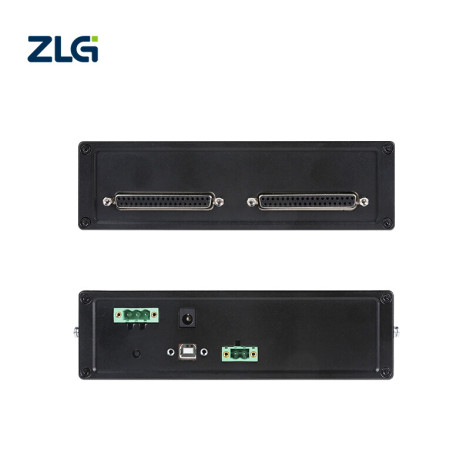

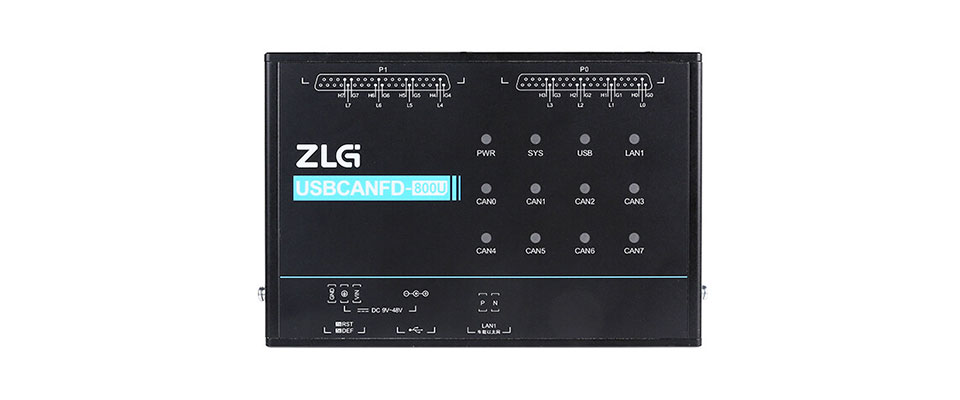

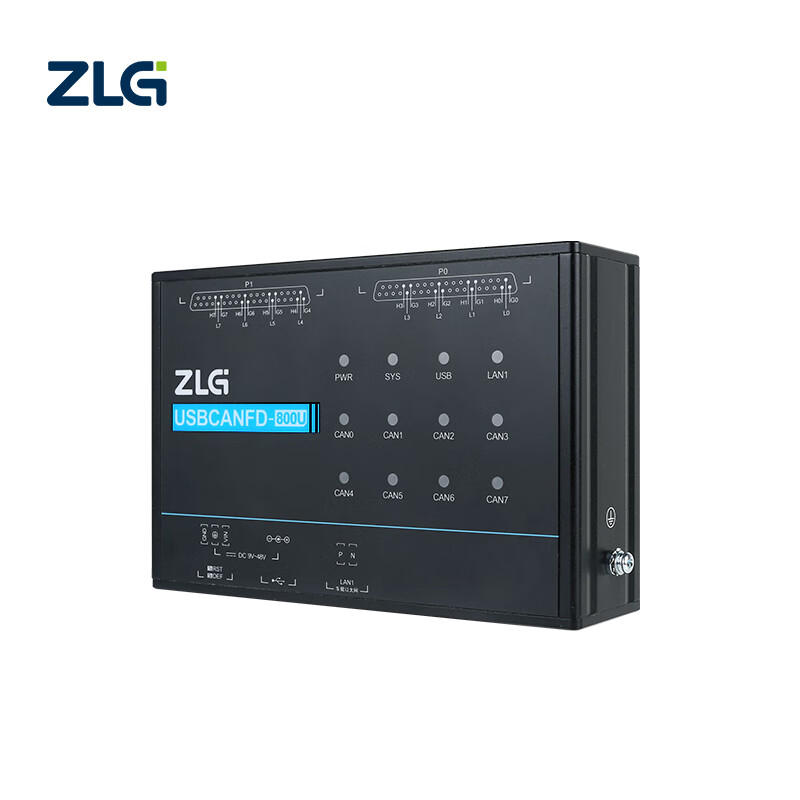

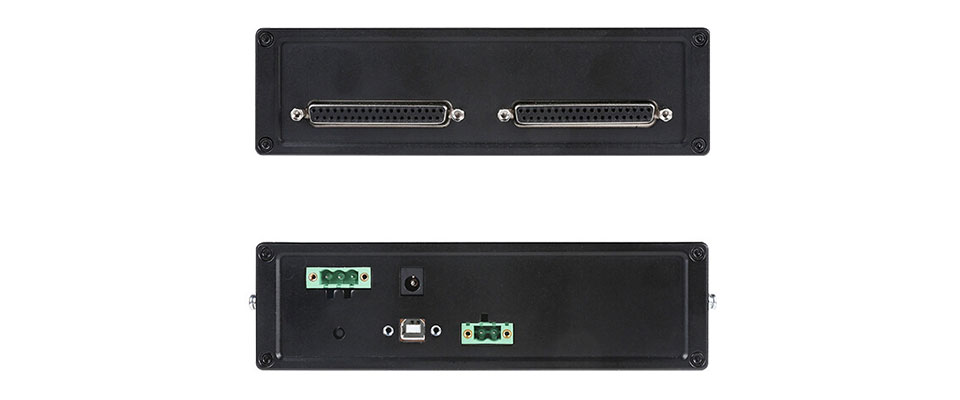

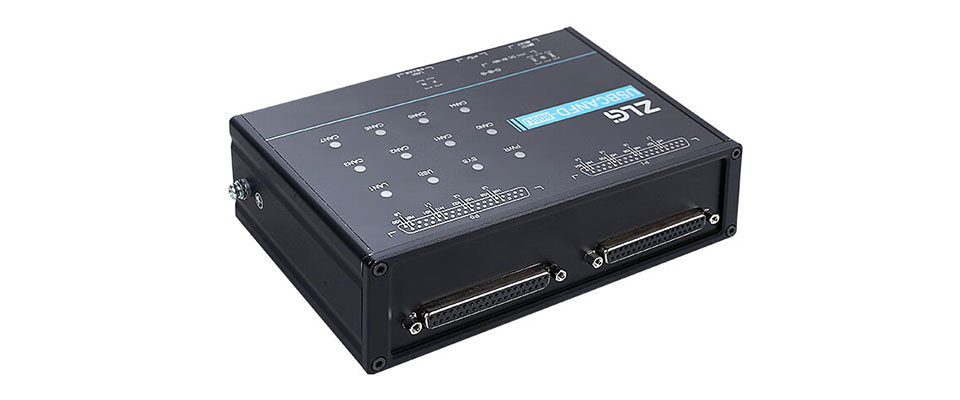

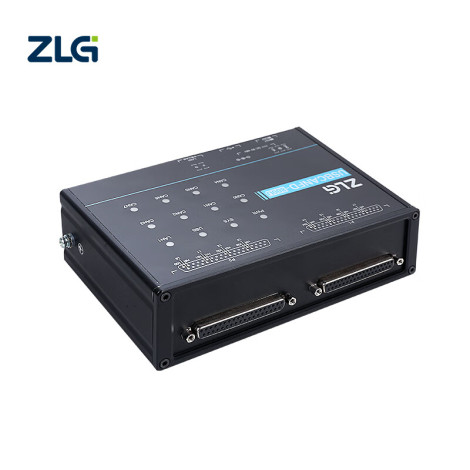

Pictures of USBCANFD-800U:
