Product Overview
ZLG Zhiyuan Electronics CAN isolation bridge repeater hub series, with 2/4/5/8 channel electrical isolation CAN bus interface, can realize the relay function of CAN-bus network, can connect the communication between different speed CAN networks Data store and forward. The main applications are as follows:
* Using this series of products can increase the load node and extend the communication distance, and realize the function of network relay expansion;
* The communication baud rate of each channel can be independently and arbitrarily configured to realize the CAN network interconnection of different communication baud rates;
* This series of products have powerful ID filtering conversion and data conversion functions, and the accurate acceptance ID configuration minimizes the load of the CAN bus. Or change specific IDs and data to achieve the goal of removing interfering data and distinguishing different devices;
* With strong anti-interference ability, it is widely used in the occasions where CAN equipment is subject to strong interference.
* Using this series of products can increase the load node and extend the communication distance, and realize the function of network relay expansion;
* The communication baud rate of each channel can be independently and arbitrarily configured to realize the CAN network interconnection of different communication baud rates;
* This series of products have powerful ID filtering conversion and data conversion functions, and the accurate acceptance ID configuration minimizes the load of the CAN bus. Or change specific IDs and data to achieve the goal of removing interfering data and distinguishing different devices;
* With strong anti-interference ability, it is widely used in the occasions where CAN equipment is subject to strong interference.
Product Parameter

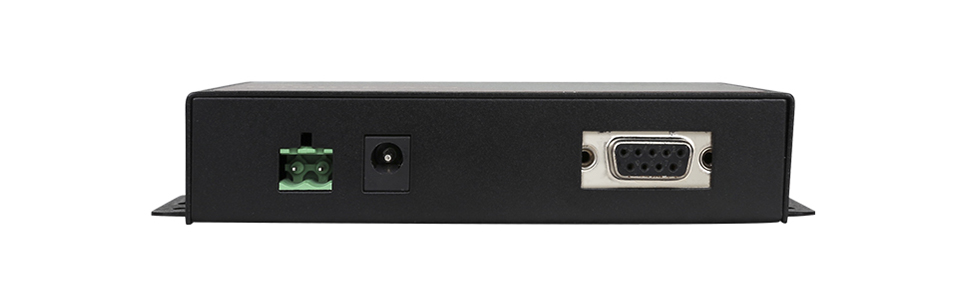

Product Picture

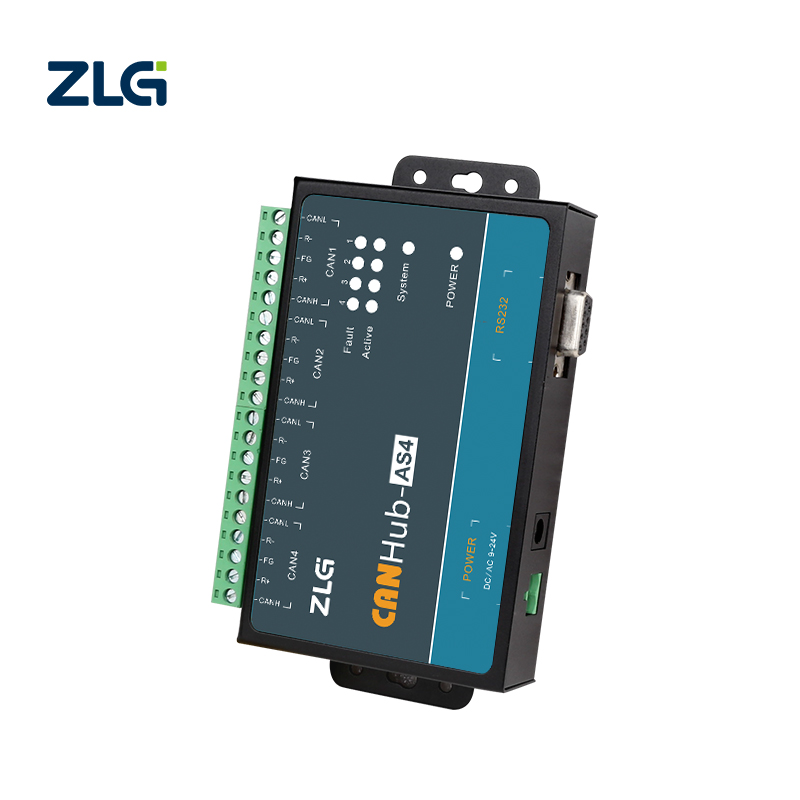

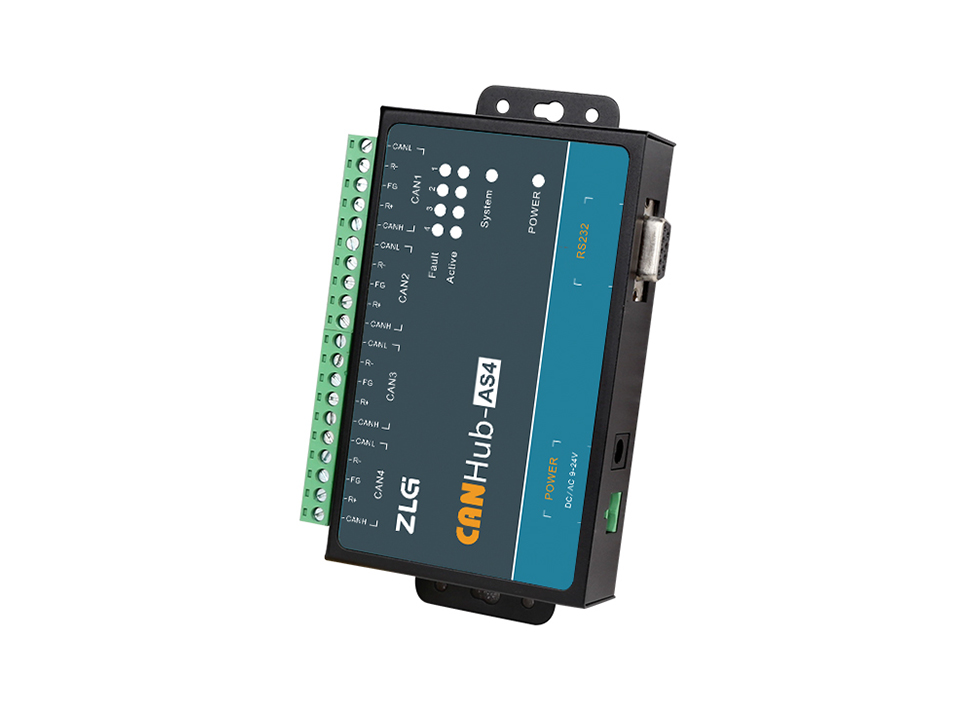

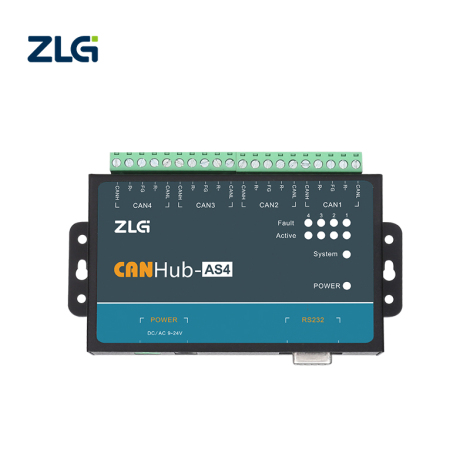

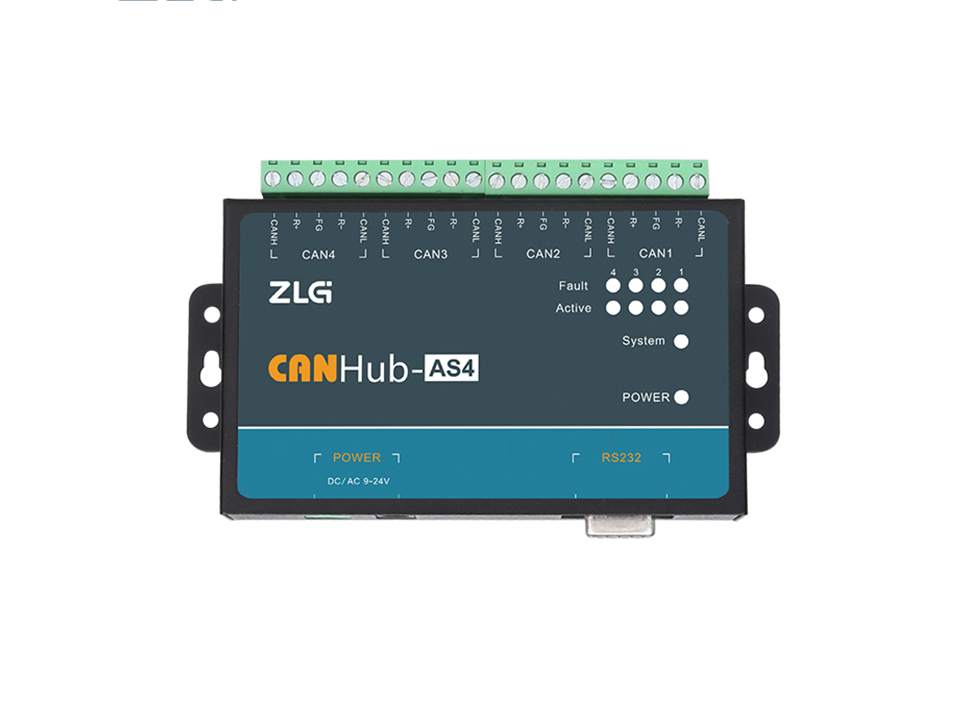

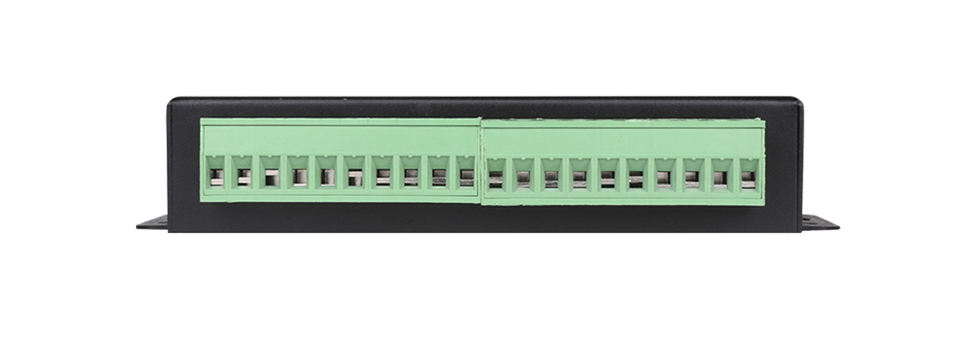

CANHub-AS4

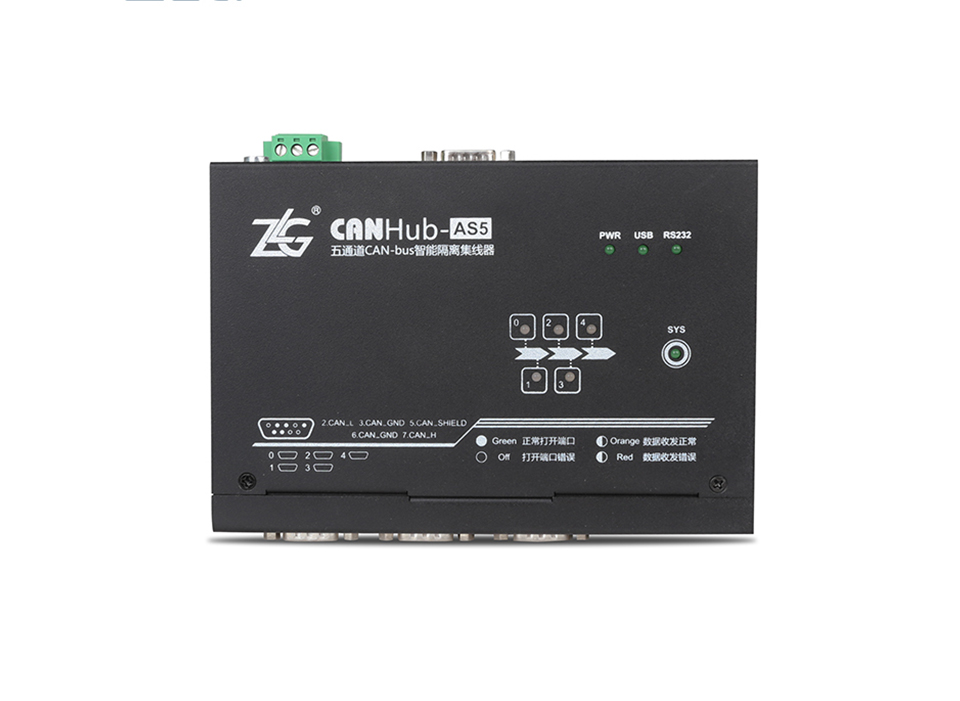

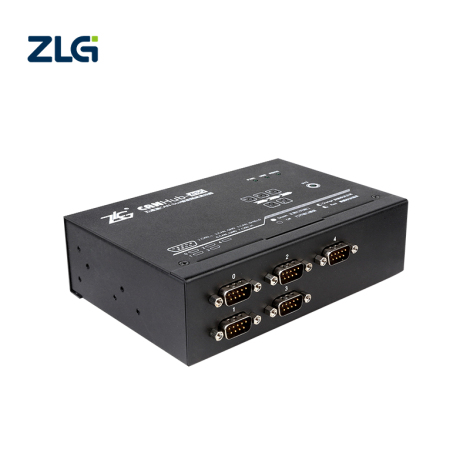

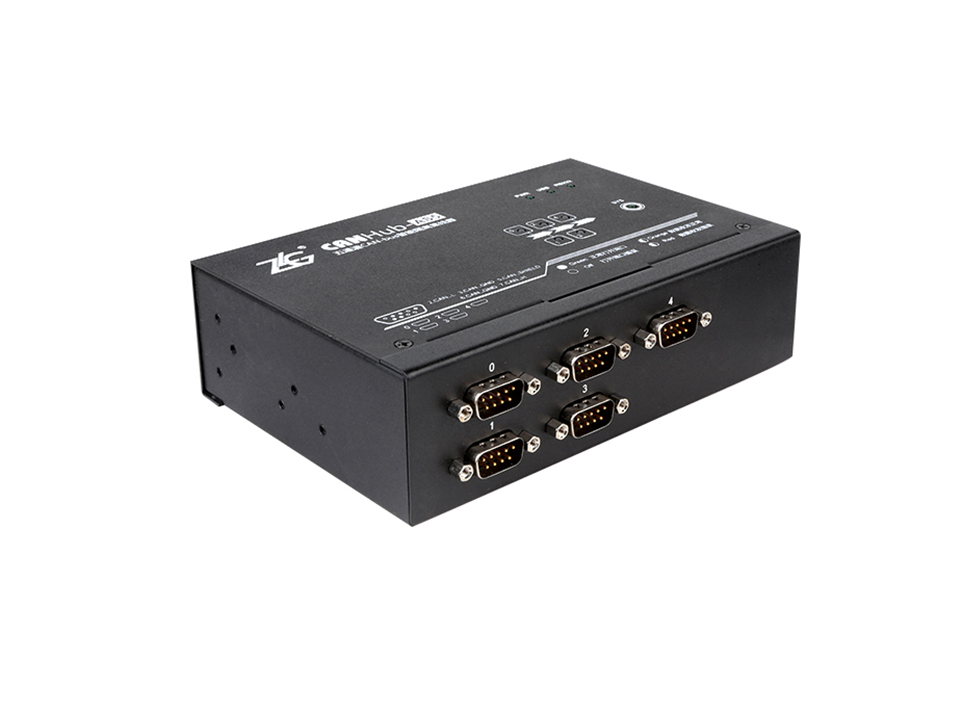

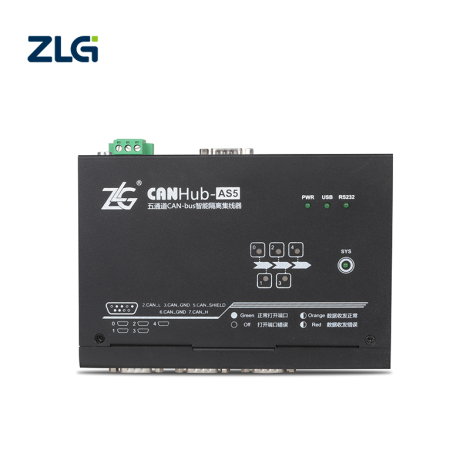

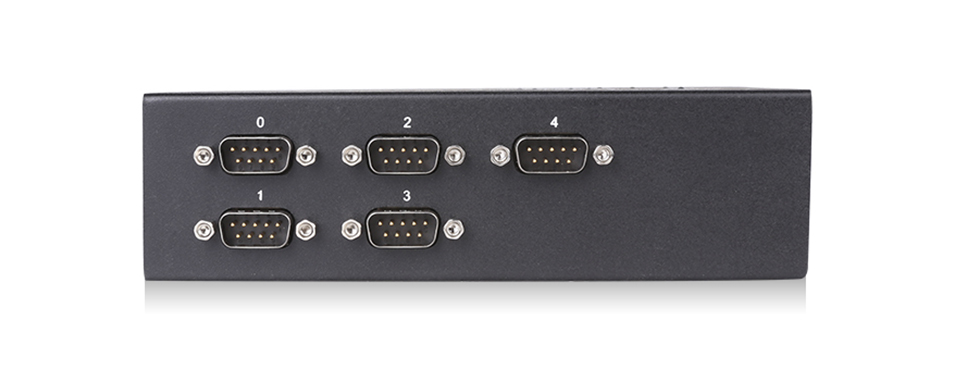

CANHub-AS5

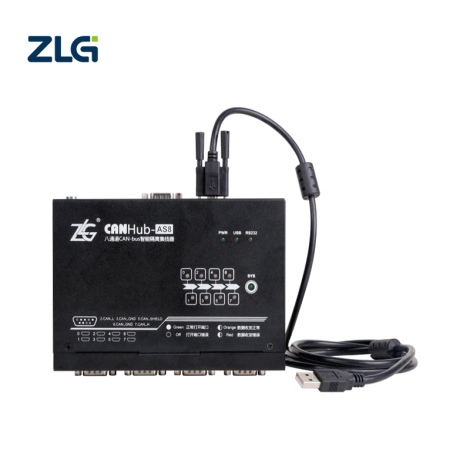

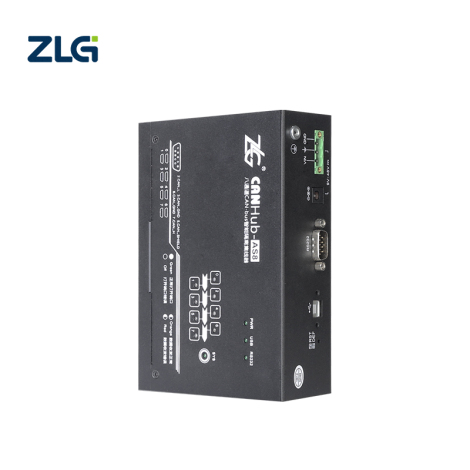

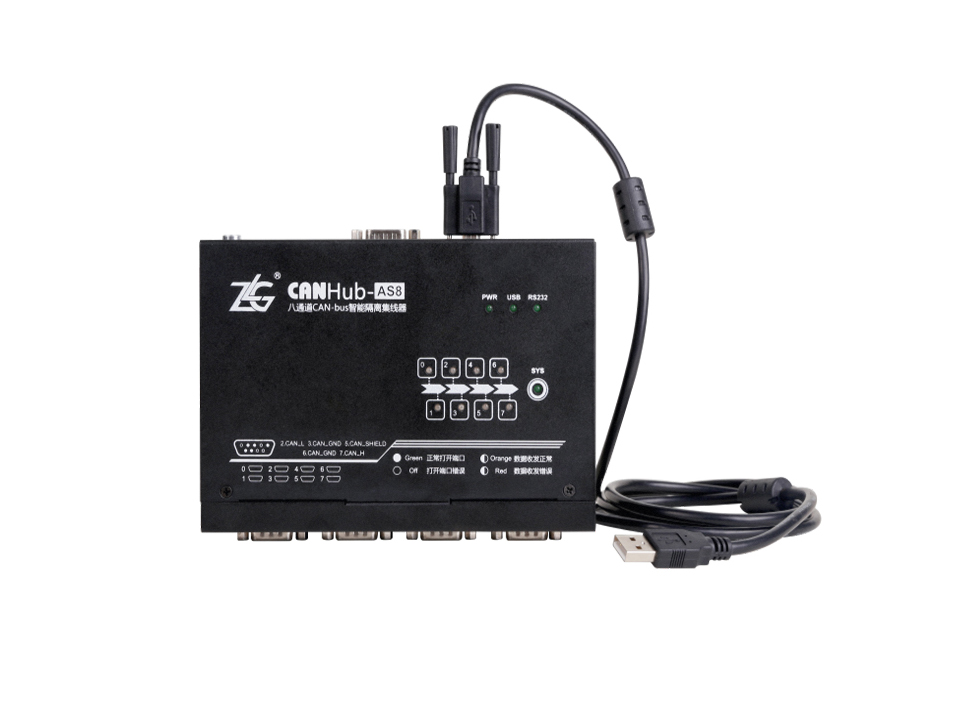

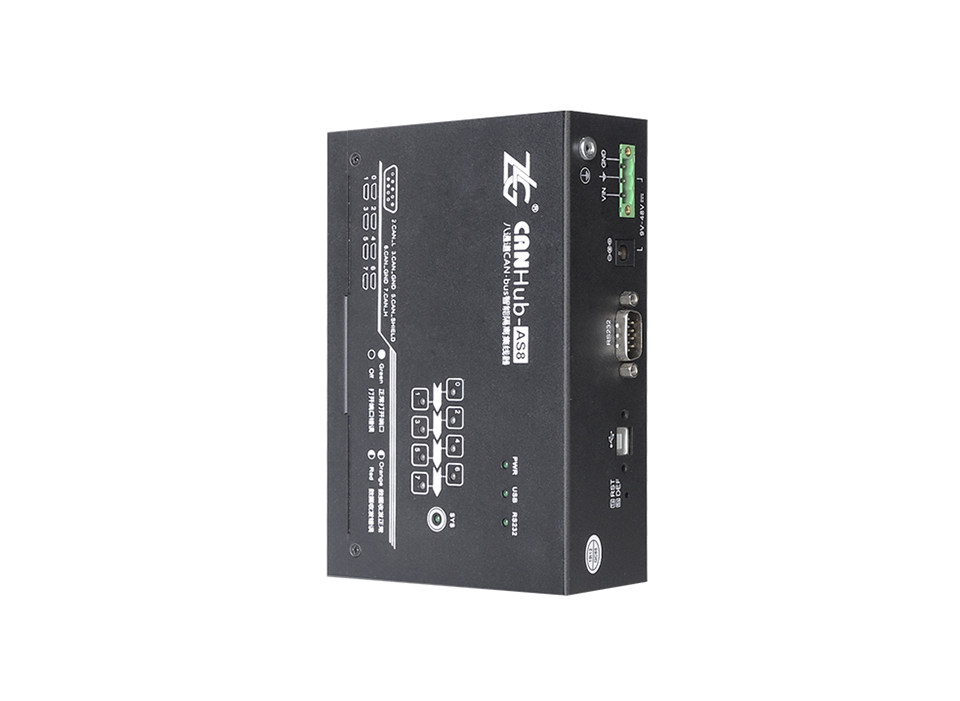

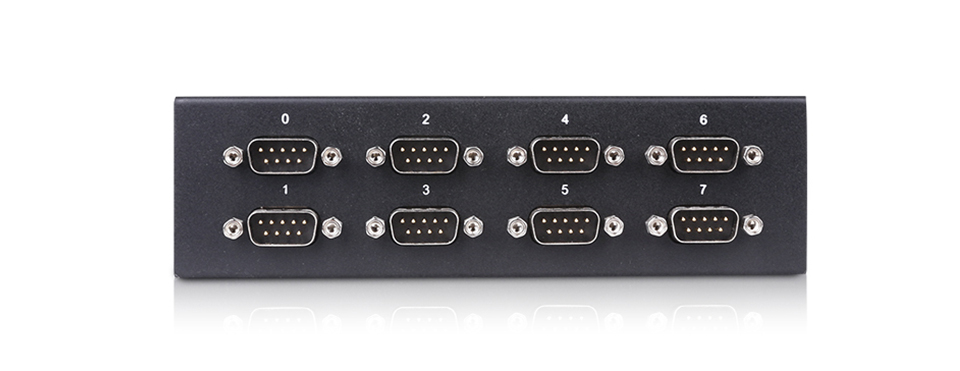

CANHub-AS8

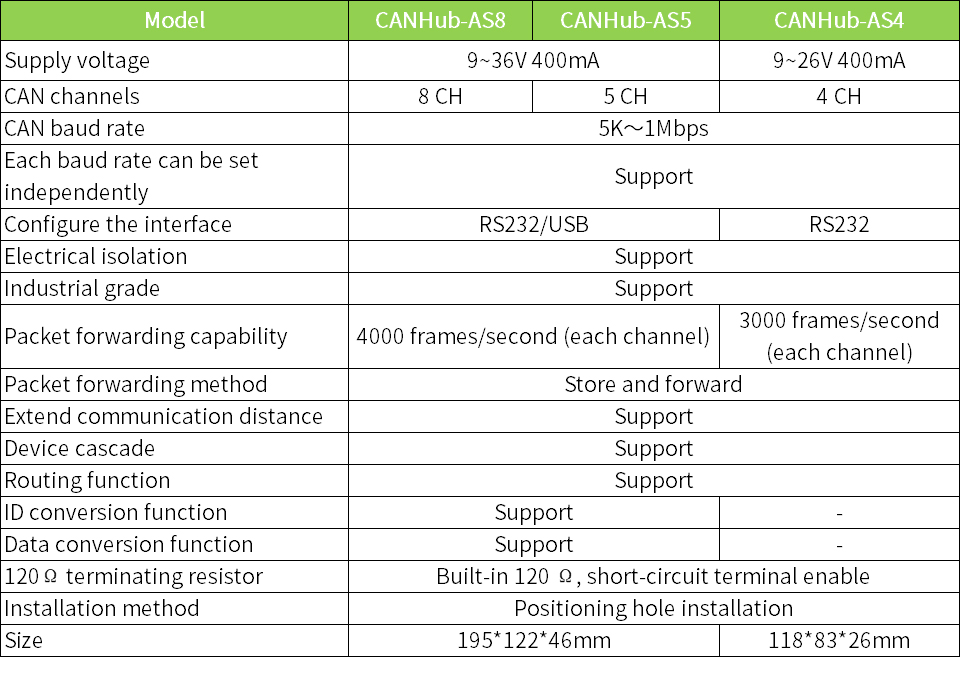

Specification
item | value |
Model Number | CANHub-AS Seires |
Type | CAN Network Repeater |
Place of Origin | China |
Guangdong | |
Brand Name | ZLG |
Network | CAN bus |
Product name | CANBus-AS Series |
Supply voltage | 9~36V(CANHub-AS4:26V) 400mA |
High-speed CAN channels | 8/5/4 CH |
CAN Baud Rate | 5K~1Mbps |
Configuring the interface | RS232/USB |
Message forwarding capability | 4000 fps(CANHub-AS4:3000 fps) (per channel) |
Message forwarding method | Store-and-forward |
Forwarding delay | <3ms |

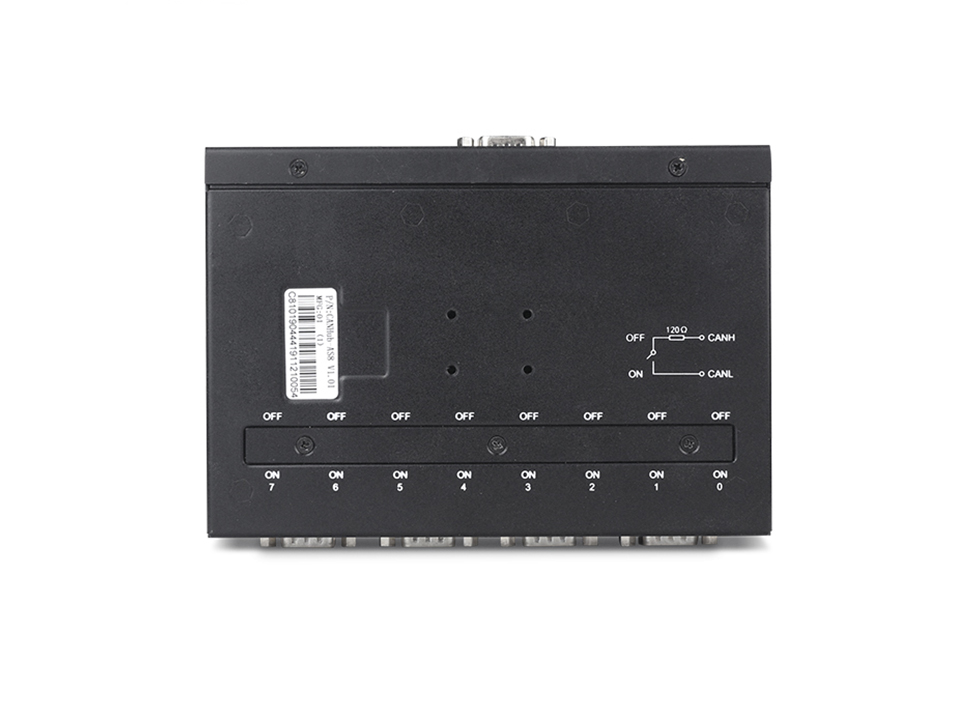

120 Ω termination resistor | Built-in 120 Ω, short-circuit terminal enable |
Installation method | Positioning hole installation |
