Introduction:

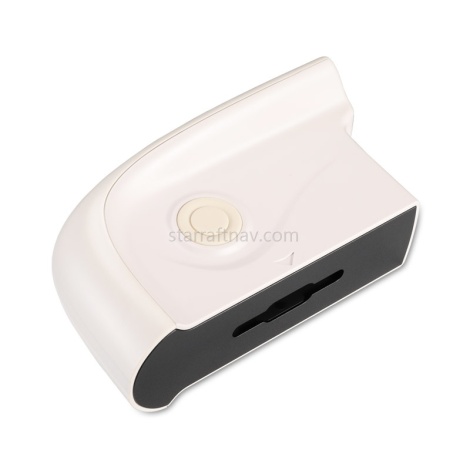

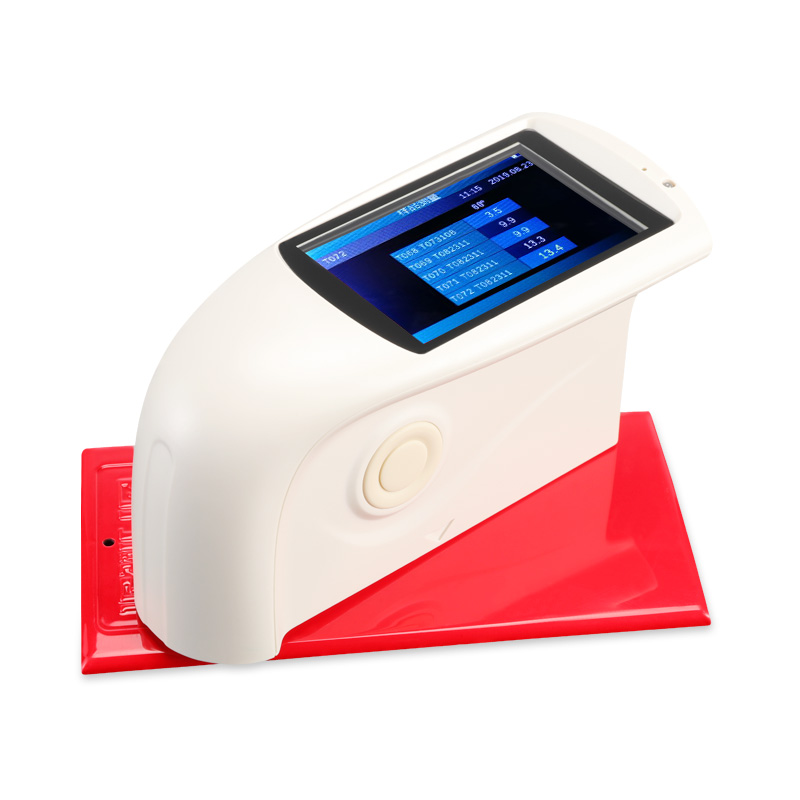

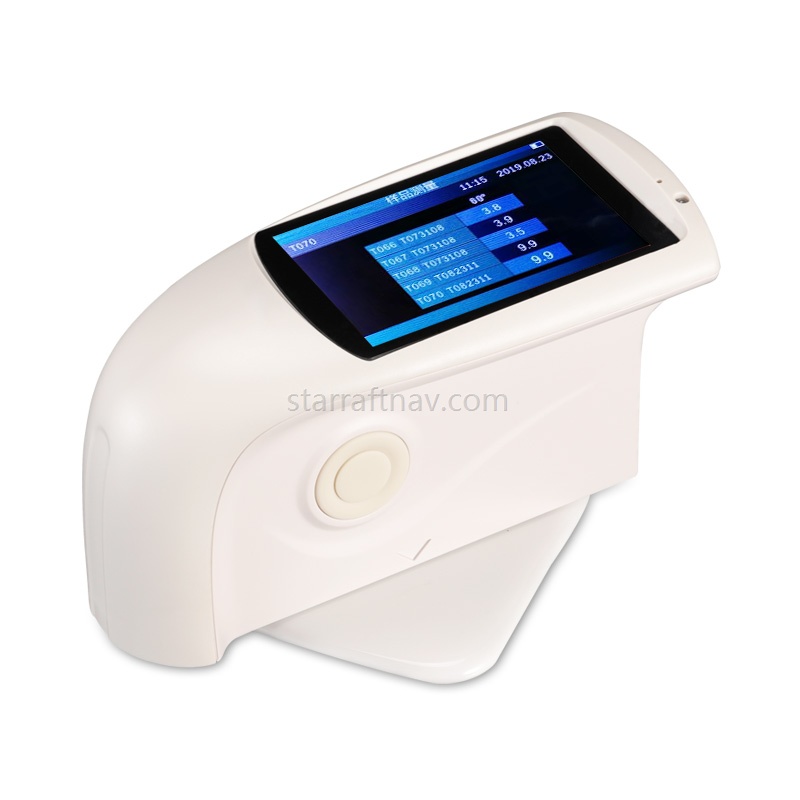

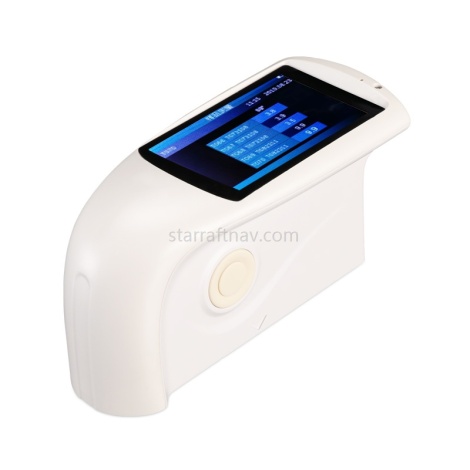

HG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
HG268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
HG268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
Product Paramenters
Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. Meet requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813,ASTM523, GB/T9754;
2. Meet requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813,ASTM523, GB/T9754;
HG268 Tri-angle Gloss Meter | ||
Model: | HG268 | |
Measuring Angle | 20°/60°/85° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 | |
Measuring Area (mm) | 20°: 10x10 60°: 9x15 85°: 5x36 | |
Measuring Range | 20°:0~1000GU 60°:0~1000GU 85°：0~160GU | |
Division Value | 0.1GU | |
Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-1000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU | |
Measurement Standard | Conform with JJG696 first class glossmeter working requirement | |
Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source | |
Errors | ±1.5 , ± 1.5% | |
Measuring Time | 0.1s | |
Dimension | L*W*H : 160mm*75mm*90mm | |
Weight | 350g | |
Language | Chinese/English | |
Battery | 3.7V,3200mAh Li-ion Battery ，>10000 times(within 8 hours) | |
Display | TFT 3.5 inch | |
Interface | USB/RS-232 | |
Storage | Basic mode: 1000 | |
Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. | |
Operation Temperature | 0~40℃（32~104°F） | |
Storage Temperature | -20~50℃（-4~122°F） | |
Humidity | <85% relative humidity, no condensation | |

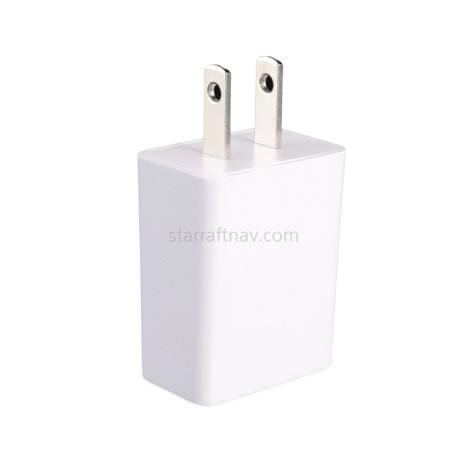

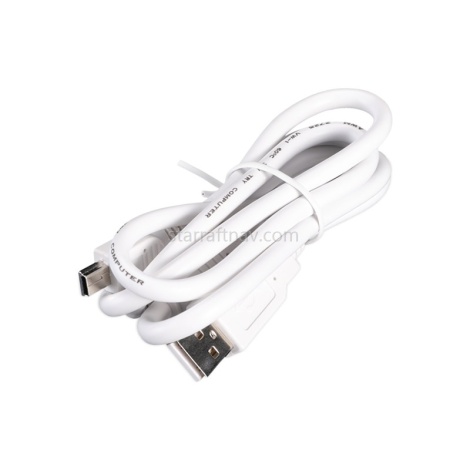

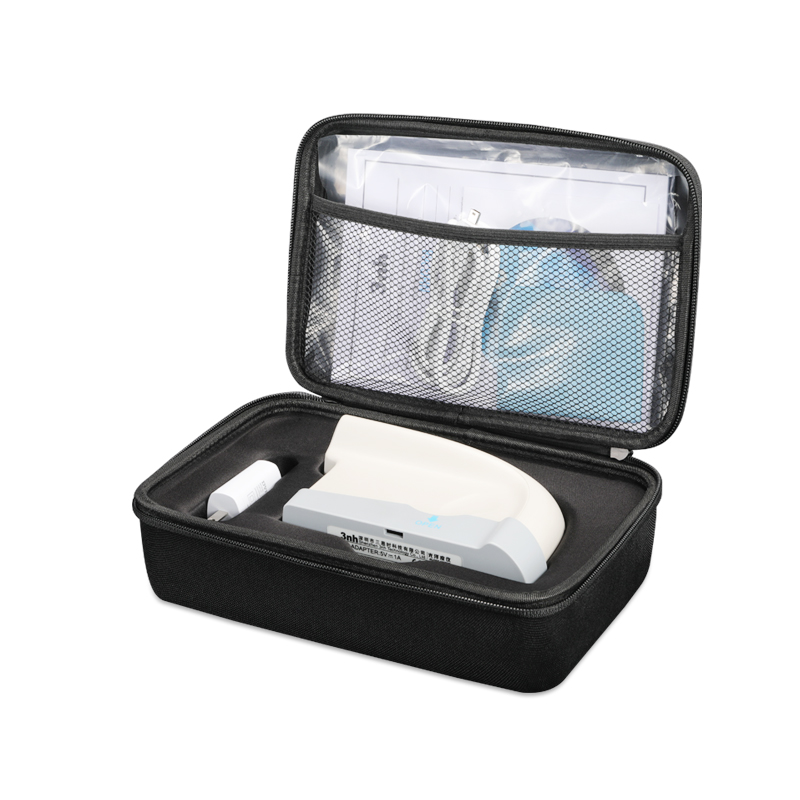

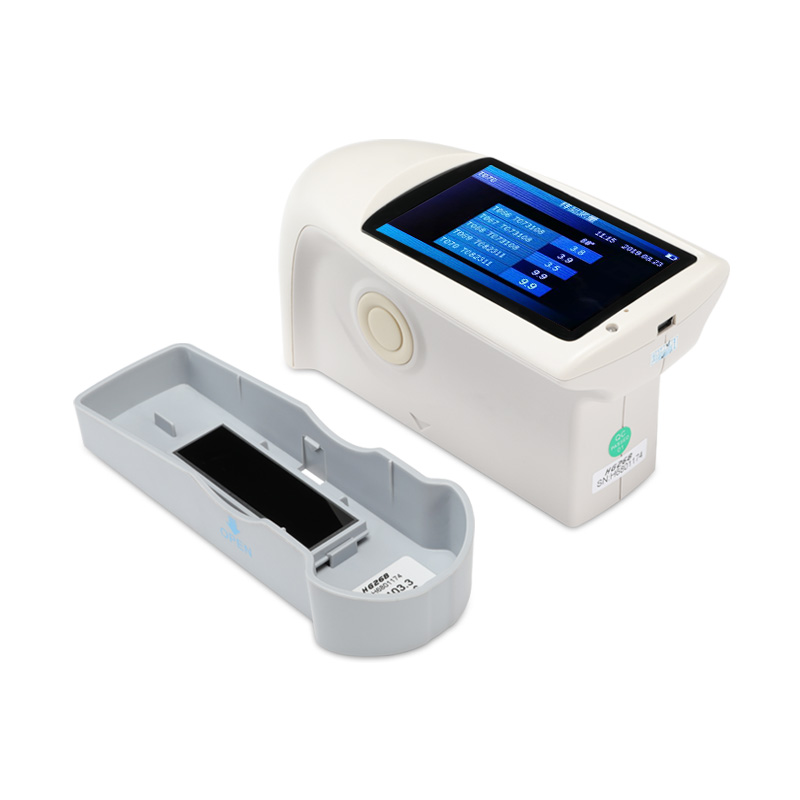

Standard Accessories | Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate | |
Optional Accessories | Miniature Printer | |
Note | The specifications are subject to change without notice. | |
