ZLG CANET-4E-U 4通道工业以太网转CAN转换器，具有4KV EMC隔离

Product Detail

Product Description

The ZLG CANET-4E-U is a robust industrial-grade gateway designed to bridge four CAN 2.0A/B networks with Gigabit Ethernet, enabling seamless multi-channel data exchange for demanding applications like automotive test systems, smart factories, and distributed energy grids

Key Features

1. Quad CAN Channels & Gigabit Ethernet Integration

   • 4 CAN Ports: Each supports 5 Kbps–1 Mbps baud rates with 2.5KVDC isolation, ideal for complex multi-node systems (e.g., EV battery monitoring or industrial PLC clusters)

   • 10/100/1000 Mbps Ethernet: Adaptive interface with 2KV electromagnetic isolation and 4KV surge/EFT protection on power/signal ports


2. Industrial-Grade Durability

   • Operates in **-40°C to +85°C** with 95% RH tolerance (non-condensing) and SECC metal housing for harsh environments like mining or chemical plants

   • EMC/ESD Certification:

     • **±15kV air/±8kV contact discharge** resistance.

     • 4KV surge/EFT protection (power/signal ports), compliant with RoHS 2.0 and CE standards


3. High-Capacity Networking & Protocol Support

   • Multi-User Management:
     • 255 concurrent TCP connections and 6 IP segments per CAN port for simultaneous control of multiple devices

     • 6×254 UDP connections per CAN port, enabling scalable IoT deployments

   • Protocol Flexibility: Full TCP/IP stack (DHCP, DNS, ICMP) and SOCKET compatibility for seamless integration with SCADA or MES systems


4. Advanced Diagnostics & Customization

   • CAN Frame Filtering: Whitelist IDs to reduce bus load by 80%.

   • ZneCom Software (v2.80+): Configure data splitting/merging rules, monitor real-time diagnostics, and perform firmware upgrades via Windows-based tools

   • Free API Library: Simplify custom software development with prebuilt functions for protocol customization


5. Certifications & Compliance

   • RoHS 2.0/CE Certified: Validated for industrial EMI/ESD resilience

   • Wide Voltage Input: 9–24V DC (6.5–30V tolerance) with <3W power consumption


Applications

• Automotive: Multi-ECU diagnostics, charging station networks.

• Industrial: Harsh-environment PLC control (e.g., oil rigs, steel plants).

• Energy: Smart grid monitoring and renewable energy systems.

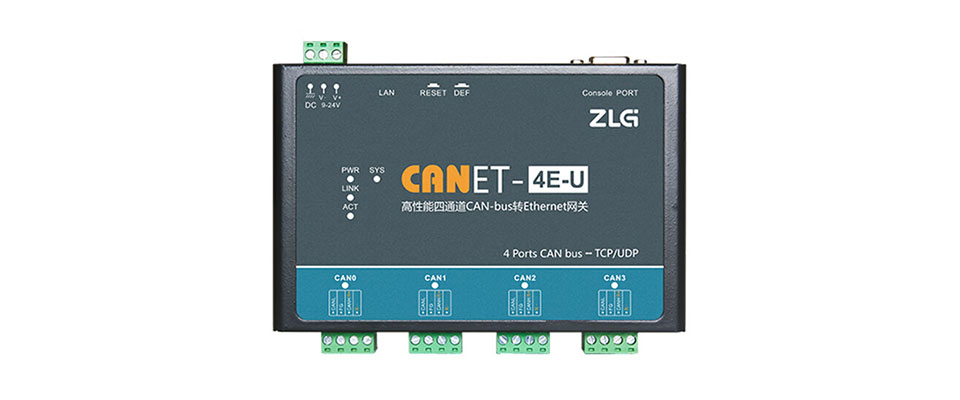

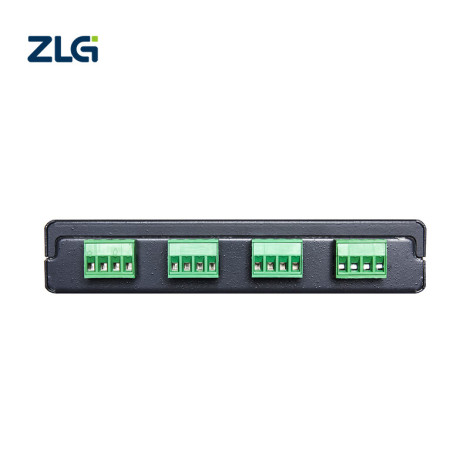

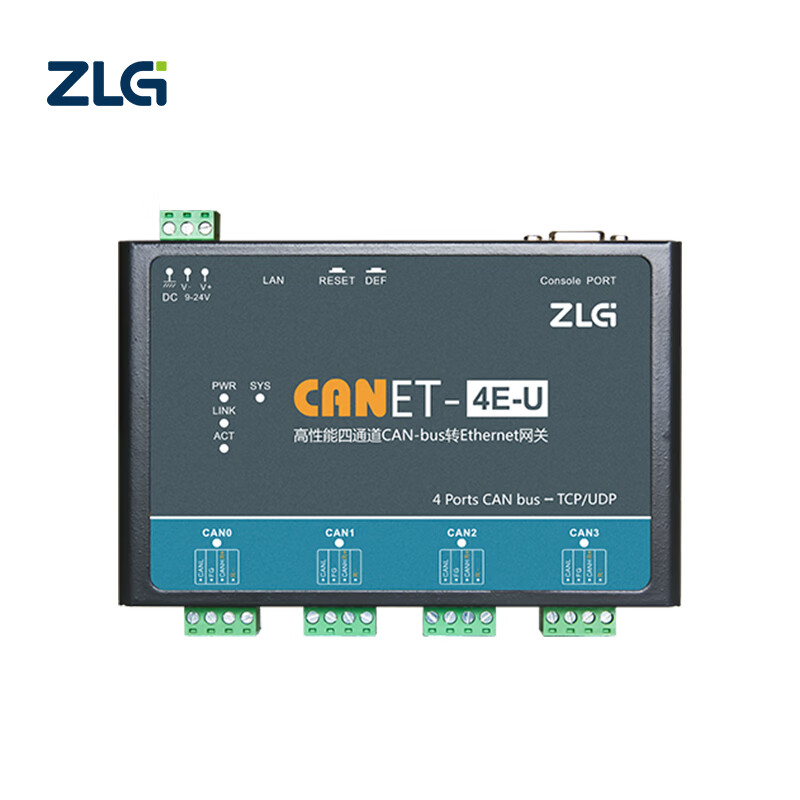

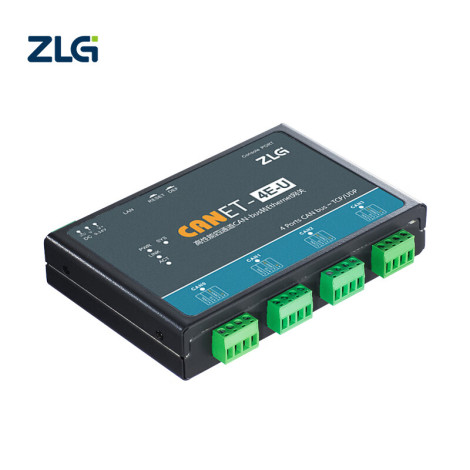

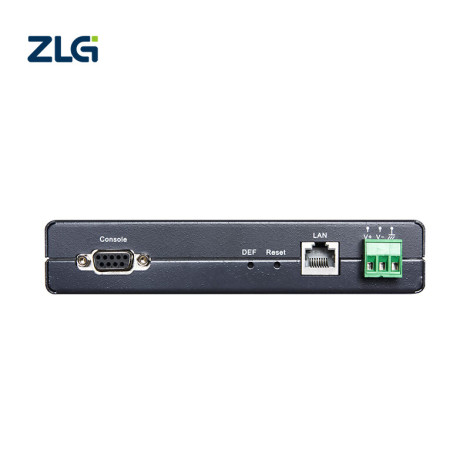

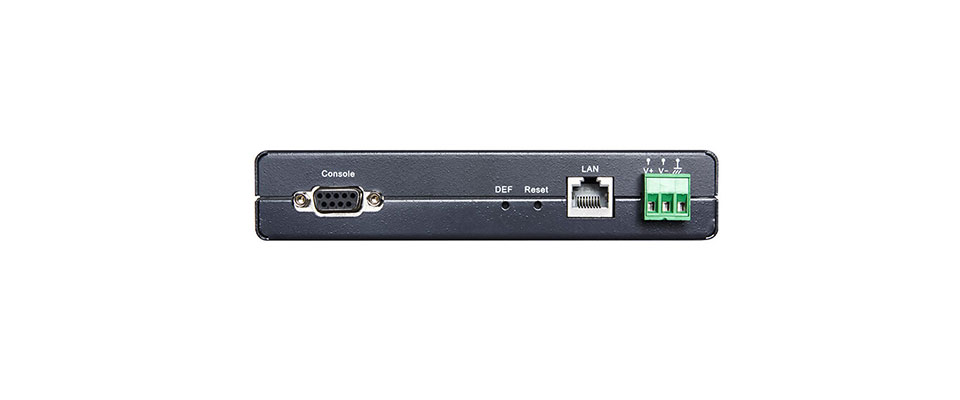

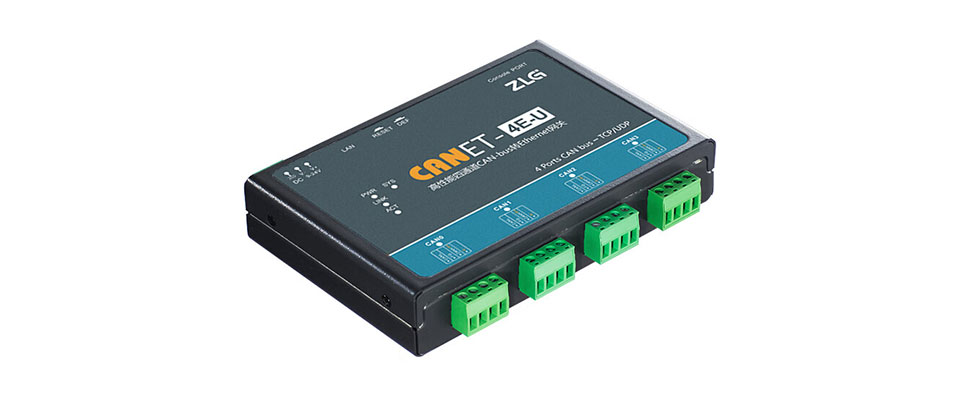

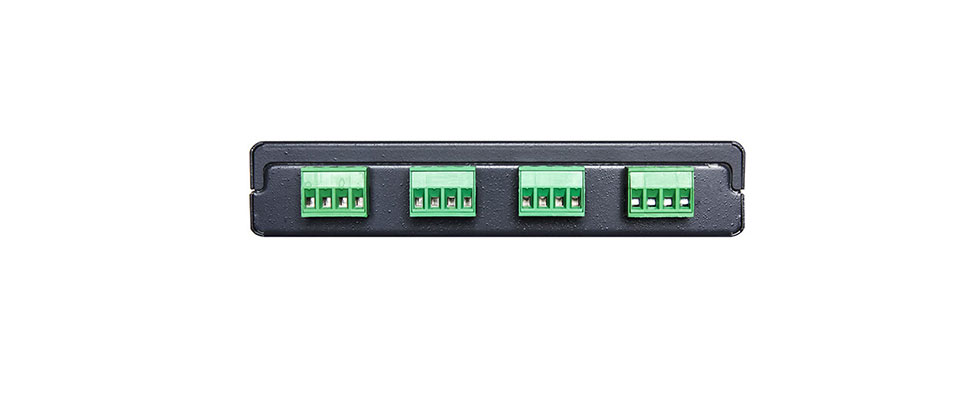

Pictures of CANET-4E-U
