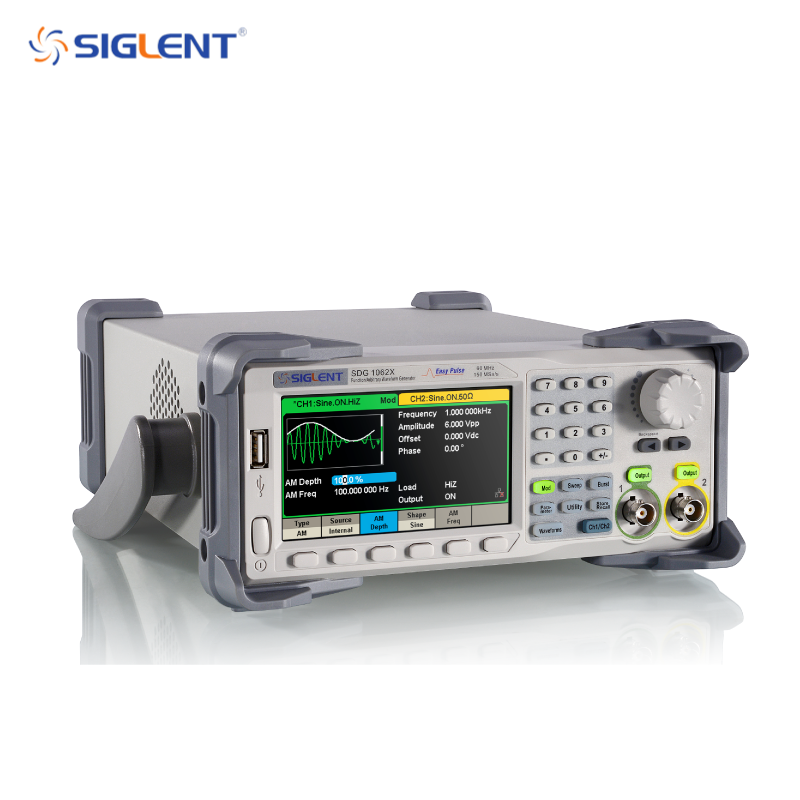

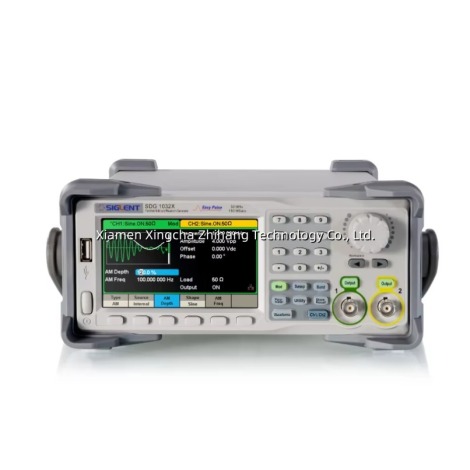

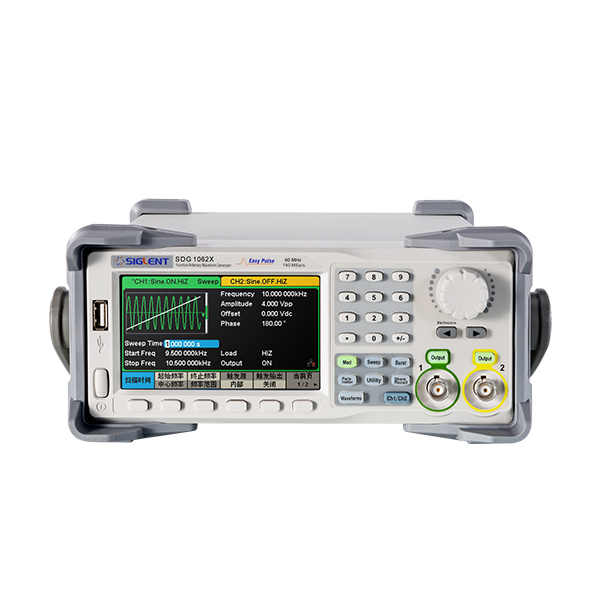

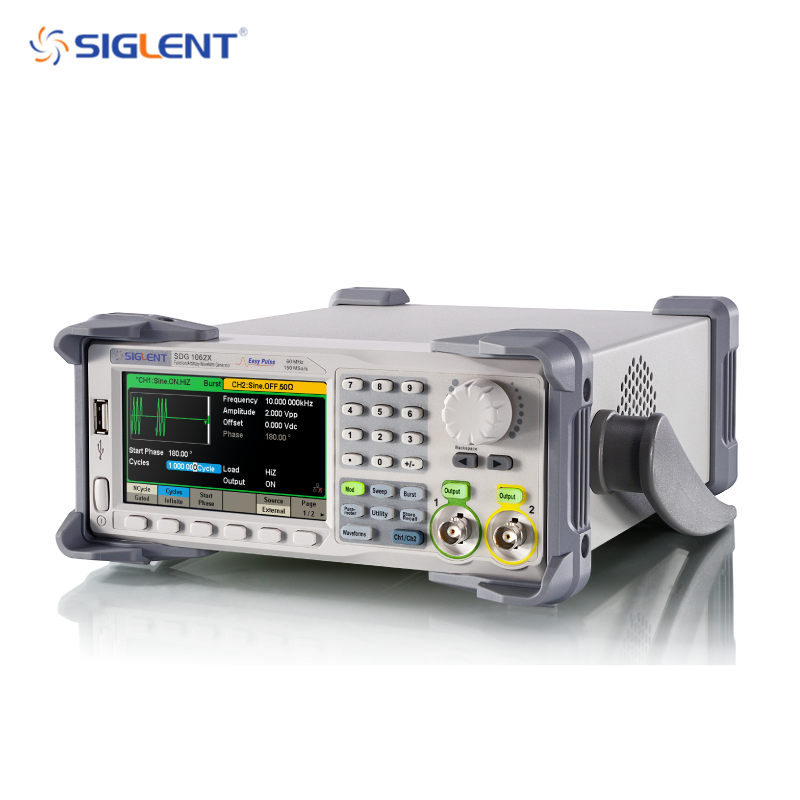

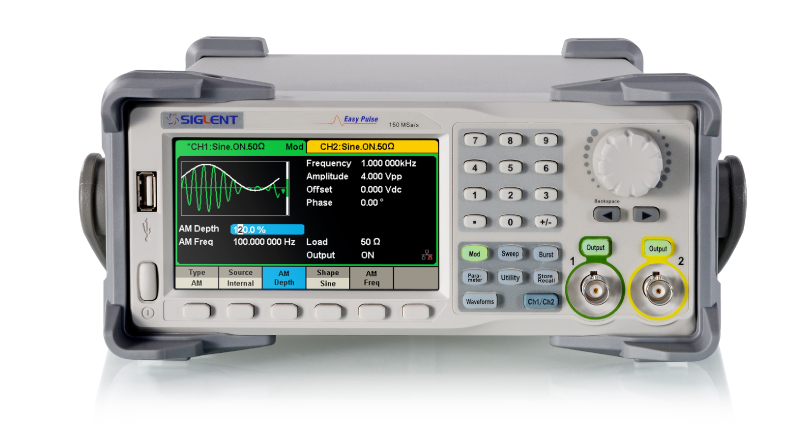

Siglent SDG1062X 60MHz 2通道任意波形发生器 150MSa/s 采样率 14位分辨率 4.3英寸显示屏 正弦波
$
792.85
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Product Overview

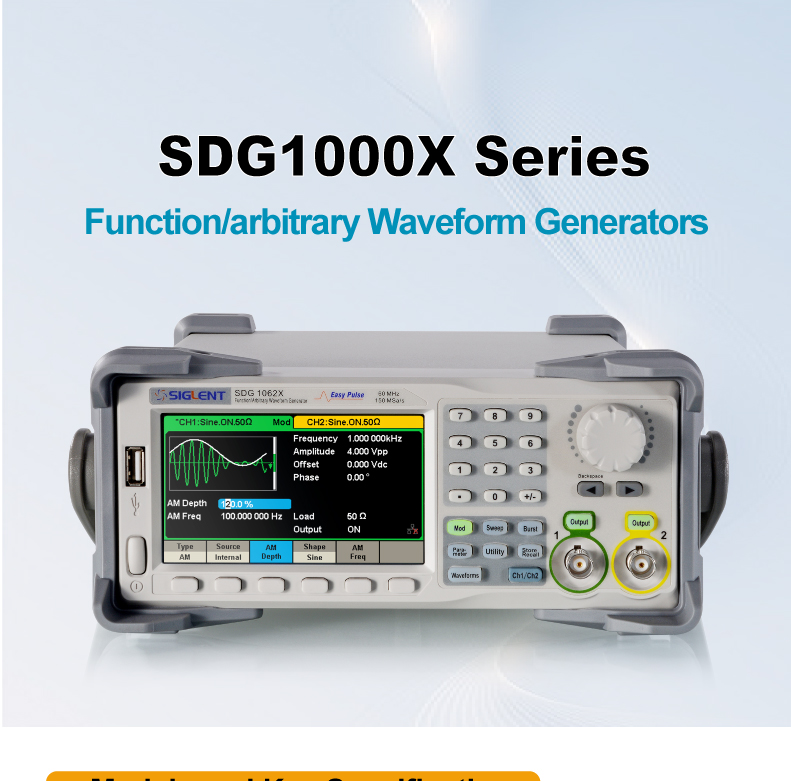

The SDG1000X series dual - channel function/arbitrary waveform generators have a maximum output frequency of 60 MHz, with a sampling rate of 150 MSa/s and 14 - bit vertical resolution. Based on the traditional DDS technology, the innovative EasyPulse and TrueArb technologies are adopted to overcome the inherent defects of DDS when outputting pulses and arbitrary waves. The independent square wave channel can generate low - jitter square waves with a frequency of up to 60 MHz. It has the function of generating various complex waveforms such as modulation, frequency sweep, Burst, harmonic generation, and channel merging, which can meet the wider application needs of users.
Features and Advantages
Features and Advantages

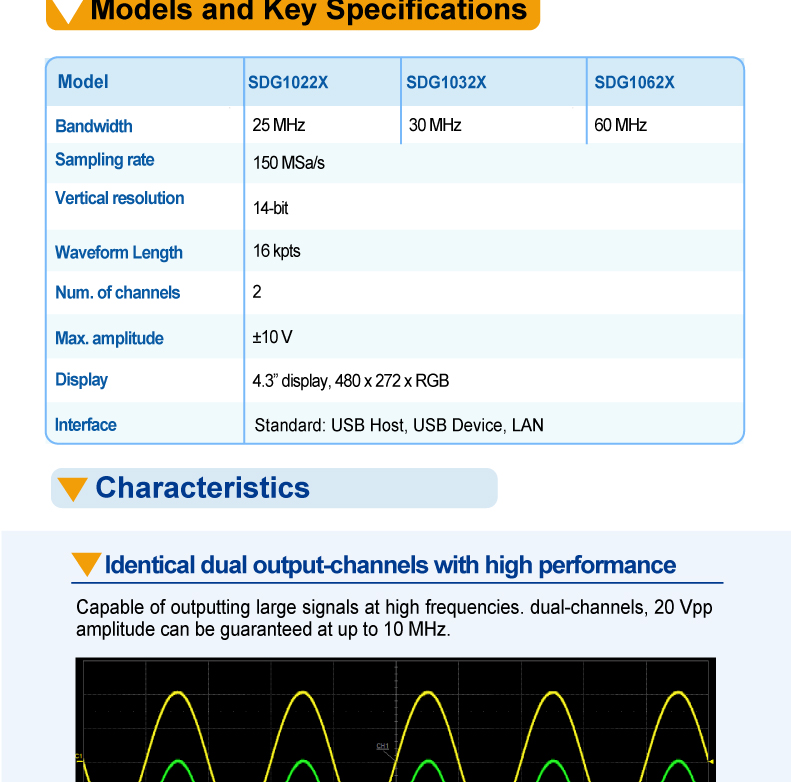

* Dual channels, maximum output frequency of 60 MHz, maximum output amplitude of 20 Vpp
* 150 MSa/s sampling rate, 14 - bit vertical resolution, 16 kpts waveform length

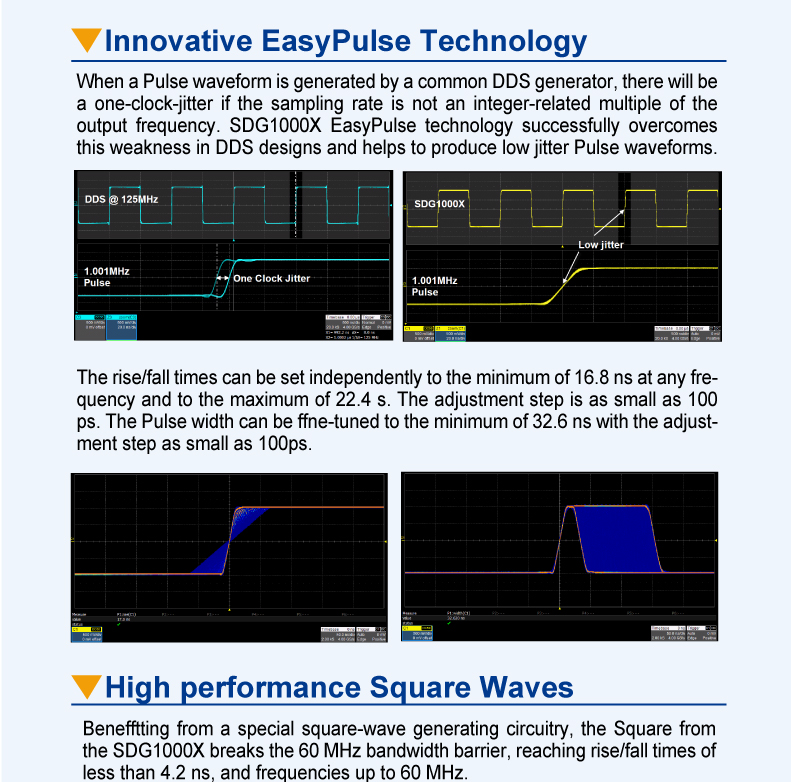

* Innovative EasyPulse technology, capable of outputting low - jitter pulses. Pulse width, rising/falling edges can be finely adjusted, with extremely high adjustment resolution and range

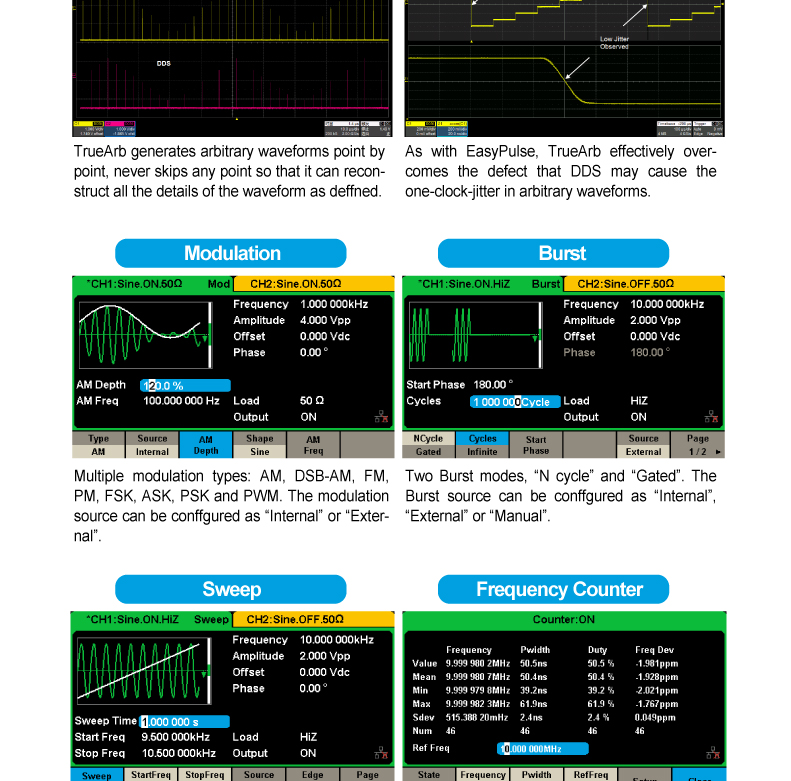

* Innovative TrueArb technology, outputting arbitrary waves point - by - point. Without losing waveform details, it can output low - jitter waveforms of any length within the range of 2 pts - 16 kpts at a variable sampling rate of 1 μSa/s - 30 MSa/s
* Dual channels, maximum output frequency of 60 MHz, maximum output amplitude of 20 Vpp
* 150 MSa/s sampling rate, 14 - bit vertical resolution, 16 kpts waveform length
* Innovative EasyPulse technology, capable of outputting low - jitter pulses. Pulse width, rising/falling edges can be finely adjusted, with extremely high adjustment resolution and range
* Innovative TrueArb technology, outputting arbitrary waves point - by - point. Without losing waveform details, it can output low - jitter waveforms of any length within the range of 2 pts - 16 kpts at a variable sampling rate of 1 μSa/s - 30 MSa/s

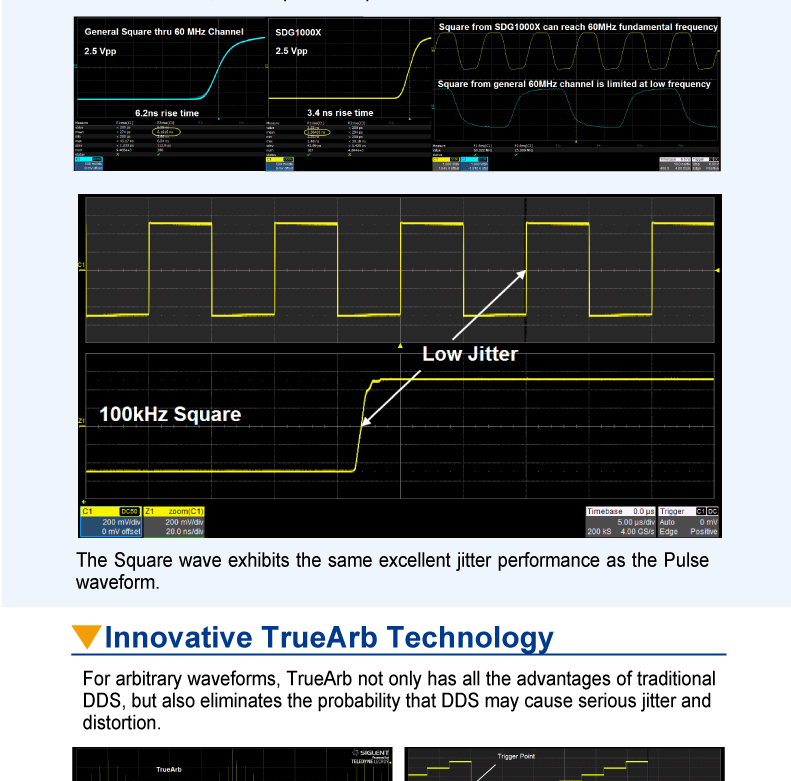

* Independent square wave channel, maximum frequency of 60 MHz, jitter less than 300 ps, 0.05 ppm of the period
* Abundant analog and digital modulation functions: AM, DSB - AM, FM, PM, FSK, ASK, PSK and PWM
* Sweep and Burst functions

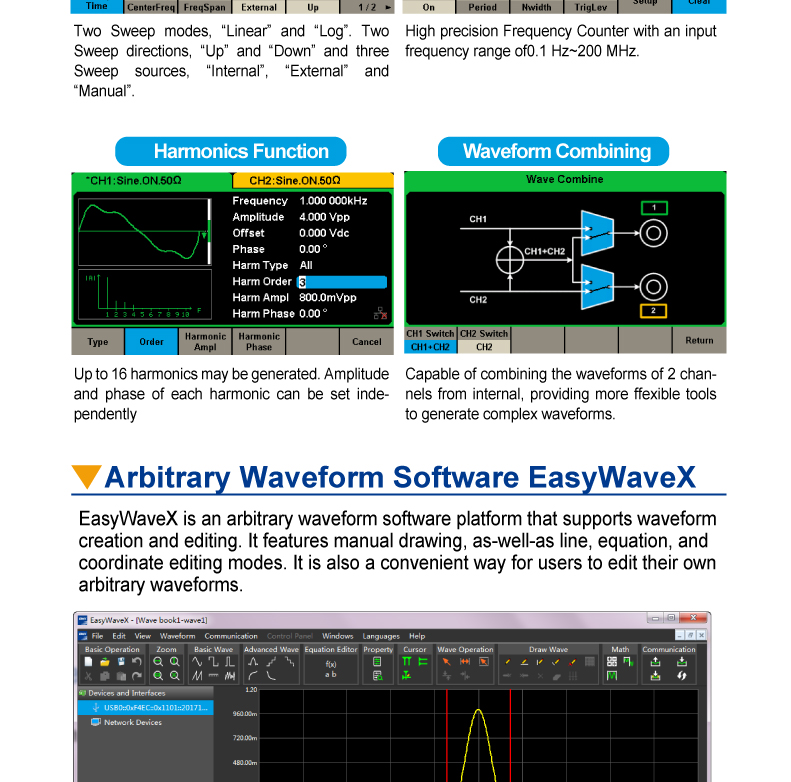

* Harmonic generation function
* Channel merging function
* Hardware frequency meter function
* 196 built - in arbitrary waves

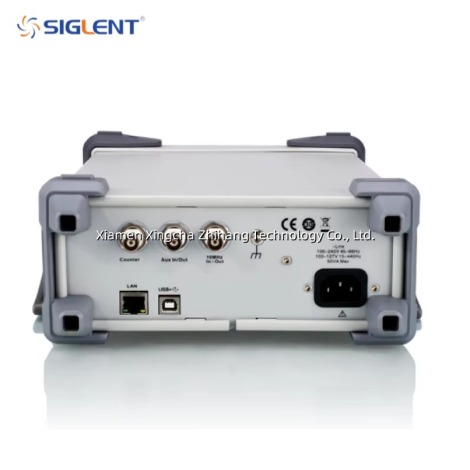

* Rich communication interfaces: Standard USB Host, USB Device (USBTMC), LAN (VXI - 11), optional GPIB
* 4.3 - inch display
* Abundant analog and digital modulation functions: AM, DSB - AM, FM, PM, FSK, ASK, PSK and PWM
* Sweep and Burst functions
* Harmonic generation function
* Channel merging function
* Hardware frequency meter function
* 196 built - in arbitrary waves
* Rich communication interfaces: Standard USB Host, USB Device (USBTMC), LAN (VXI - 11), optional GPIB
* 4.3 - inch display
