ZLG CANHub-AS5 5-Ch工业CAN集线器，2500VDC隔离和1mbps速率

Product Detail

Product Description

The ZLG CANHub-AS5 is a high-performance industrial-grade CAN bus hub designed for complex multi-network integration in demanding environments such as automotive production lines, smart factories, and energy infrastructure With advanced filtering, isolation, and routing capabilities, it resolves challenges like network segmentation, protocol mismatches, and signal interference.

Core Features

1. Multi-Network Integration & Robust Isolation

   • 5 Electrically Isolated CAN Channels: Each port features 2500VDC isolation to eliminate ground loops and noise interference in harsh settings (e.g., EV charging stations, mining equipment)

   • Flexible Topology: Enables unlimited branch lengths on the main network, supporting up to 110 nodes per channel for distributed systems like smart grids


2. High-Capacity Data Handling

   • 1M Frame Buffer per Channel: Ensures zero data loss in high-traffic scenarios (e.g., real-time monitoring of industrial PLCs)

   • 64 Mapping Rules per Channel: Customize frame forwarding to optimize bus load by up to 70% (e.g., filtering non-critical IDs in automotive diagnostics)


3. Advanced Protocol & Configuration Flexibility

   • Multi-Protocol Support: Compatible with CANopen, J1939, DeviceNet, and custom protocols for cross-industry applications

   • Baud Rate Conversion: Independently configure rates (5 Kbps–1 Mbps) per channel to bridge mismatched networks (e.g., legacy 40 Kbps systems with modern 1 Mbps devices)


4. Diagnostics & Security

   • USB/RS232 Auto-Switch: Simplify configuration via Windows-based software with plug-and-play functionality (no reboot required)

   • Firmware Encryption & Recovery: Secure updates and automatic rollback to factory settings in case of failures


5. Industrial-Grade Design

   • Wide Voltage Input: 9–48V DC with SECC metal housing for durability in extreme temperatures (-40°C to +85°C)

   • CE Compliance: Validated for EMC/ESD resilience in industrial environments


Applications

• Automotive: Multi-ECU communication in EV production lines.

• Industrial: Cross-protocol integration (e.g., CANopen + J1939) in chemical plants.

• Energy: Distributed monitoring of solar farms or smart grids.

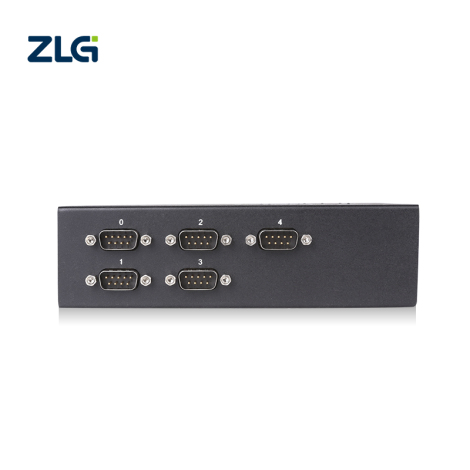

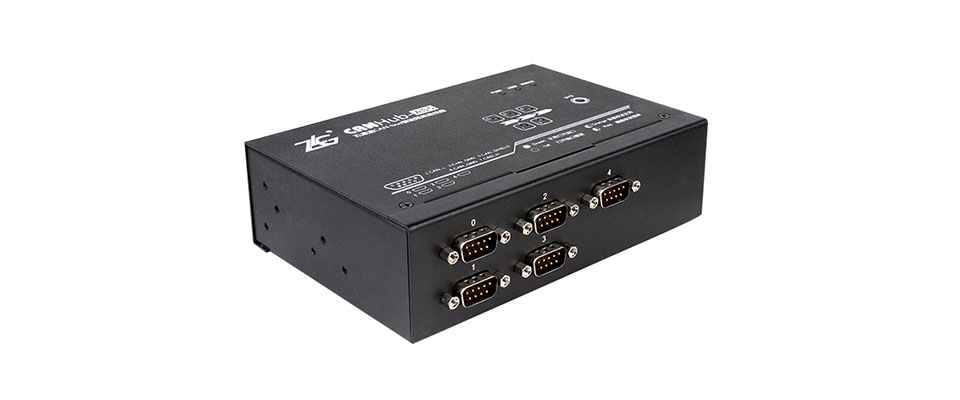

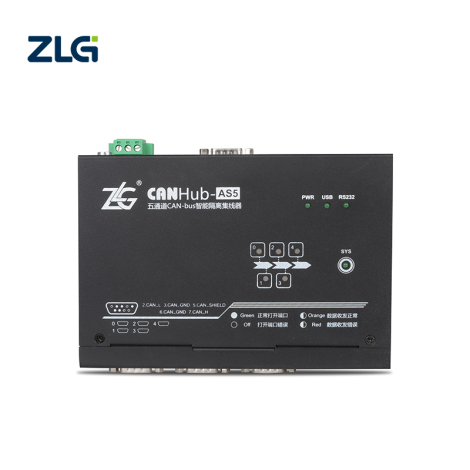

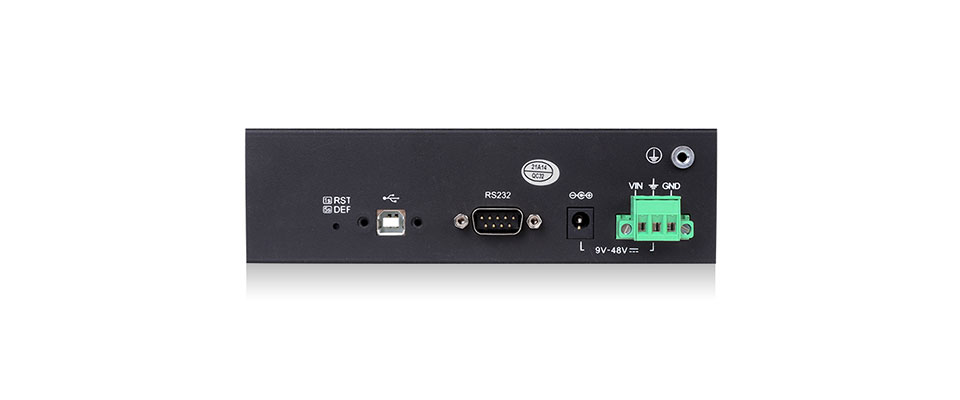

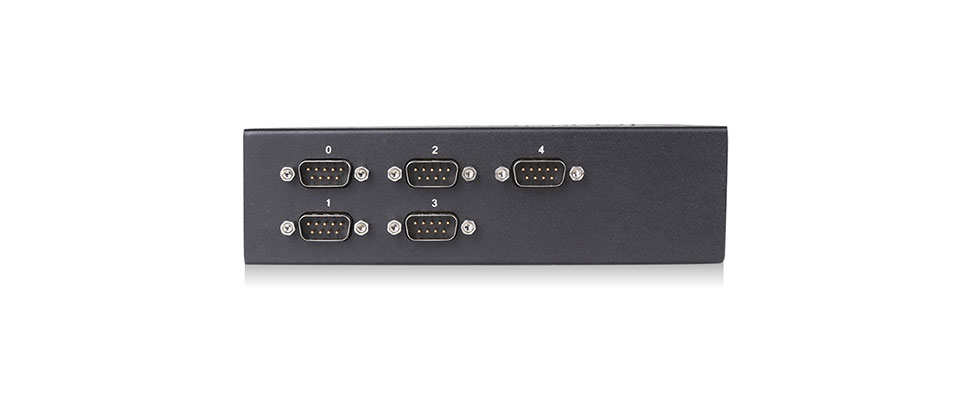

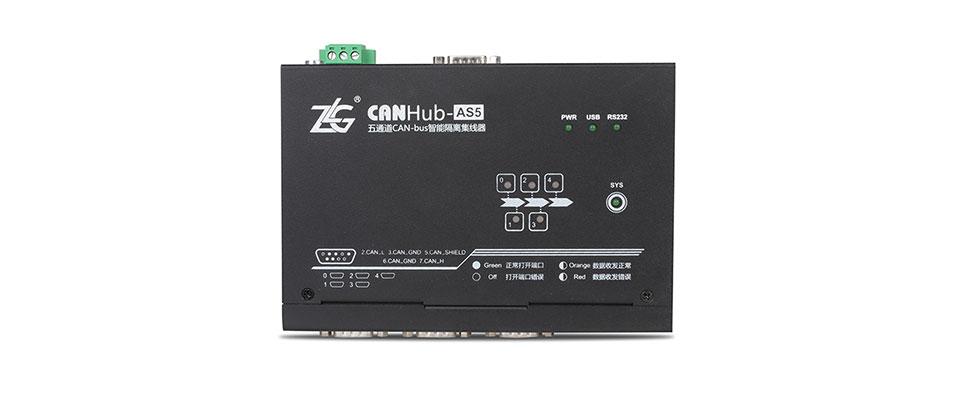

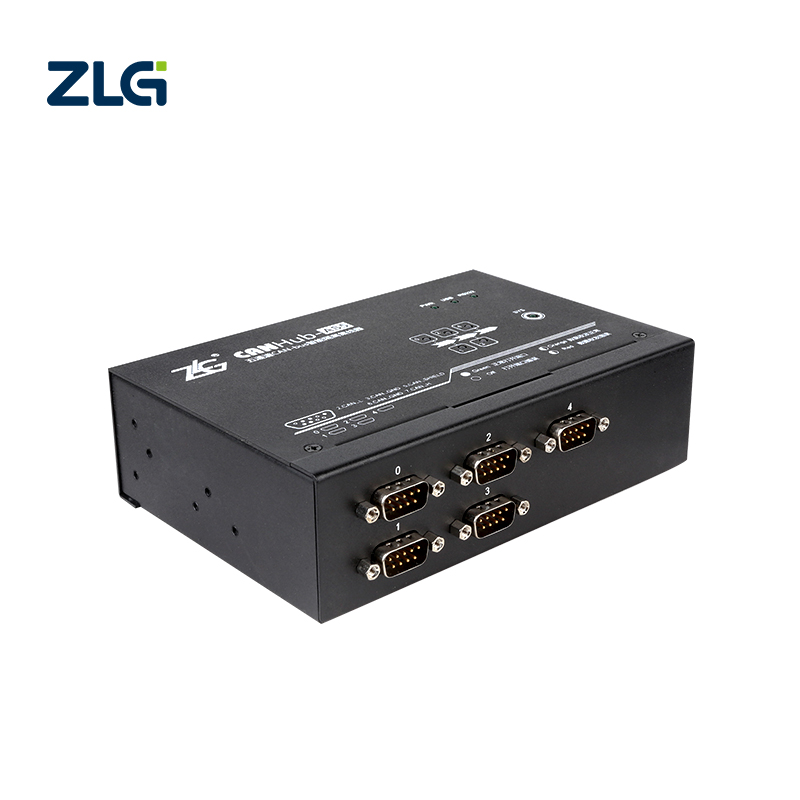

Pictures of CANHub-AS5
