NHG268 Multi-angle Precise Gloss Meter

Model:

NHG268

Measuring Angle

20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523,ASTM D 2457

Measuring Area (mm)

20°: 10x10    60°: 9x15    85°: 5x36

Measuring Range

20°:0~2000GU   60°:0~1000GU   85°:0~160GU

Division Value

0.1GU

Measurement Range                             Repeatability                                         Reproducibility

0-10GU            10-100GU      100-2000GU
± 0.1GU           ± 0.2GU           ± 0.2%GU
± 0.2GU           ± 0.5GU           ± 0.5%GU

Measurement Standard

Conform with JJG696 first class glossmeter working requirement

Chromaticity Corresponding

Corresponding with CIE 1931(2°)  under CIE C light source

Errors

±1.2 , ± 1.2%

Measuring Time

1.0s

Dimension

L*W*H : 160mm*75mm*90mm

Weight

350g

Language

Chinese/English

Battery

3.7V,3200mAh Li-ion Battery ,>10000 times(within 8 hours)

Display

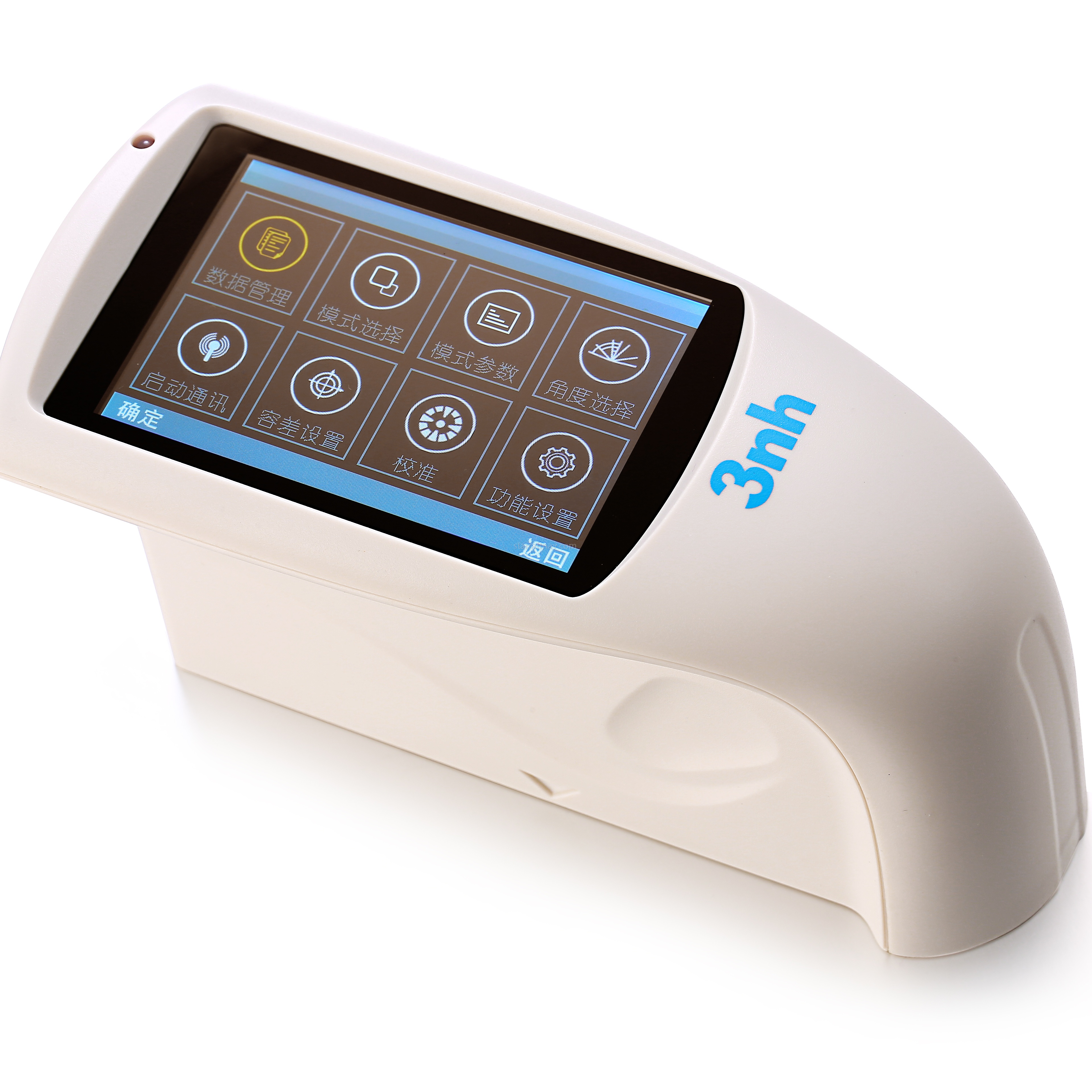

TFT 3.5 inch, capacitive touch screen

Interface

USB/RS-232

Storage

Basic mode: 1000; Statistical Mode: 5000,Continuous mode : 5000

Software

GQC6 Quality Control Software with QC report printing functions and more extended functions.

Operation Temperature

 0~40℃(32~104°F)

Storage Temperature

 -20~50℃(-4~122°F)

Humidity

<85% relative humidity,  no condensation

Standard Accessories

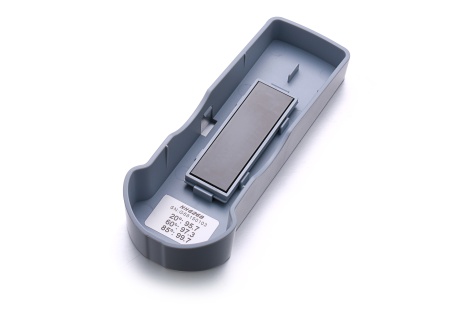

Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate

Optional Accessories

Miniature Printer

Note

The specifications are subject to change without notice.
