ZLG VBNET-1GM 汽车以太网转换器 100/1000BASE-T1 至 100/1000BASE-TX，带 TE 连接接口

Product Detail

• High-Performance Conversion: Enables full-duplex physical layer conversion between one 100/1000BASE-T1 automotive Ethernet port (TE Connectivity interface) and one standard 100/1000BASE-TX Ethernet port.
• Dual-Speed Support: Supports both 100 Mbps and 1000 Mbps (Gigabit) data rates on both interfaces with auto-negotiation.
• OPEN Alliance Compliant: The automotive Ethernet interface meets the OPEN Alliance BroadR-Reach specification (100/1000BASE-T1).
• TE Connectivity Interface: The automotive Ethernet port uses a connector compatible with TE Connectivity (Tyco) specifications.
• Robust Industrial Design: Operates reliably within a wide temperature range of -40°C to 85°C.
• Flexible Mode Configuration: Supports Master/Slave mode selection via an adaptive function or a physical DIP switch. Configuration takes effect immediately.
• Built-in Noise Immunity: The automotive Ethernet port includes a built-in 100/1000BASE-T1 filter compliant with OPEN Alliance standards.
• Compact and Portable: Features a small form factor for easy integration into test setups or vehicles.
• Dual Power Options: Can be powered via a USB Type-C interface or a wide-range DC power supply. Both can be connected simultaneously.
• Clear Status Indication: Equipped with LED indicators for link and communication status.

• Model: VBNET-1GM
• Brand: ZLG (Guangzhou Zhiyuan Electronics)
• Series: VBNET-1GX
• Automotive Ethernet Interface: 1 port, 100/1000BASE-T1, OPEN Alliance BroadR-Reach compliant, TE Connectivity (Tyco) compatible connector
• Standard Ethernet Interface: 1 port, 100/1000BASE-TX, RJ45 connector
• Data Rate: 100 Mbps / 1000 Mbps
• Conversion: Full-duplex physical layer conversion
• Master/Slave Mode: Configurable via DIP switch or adaptive
• Operating Temperature: -40°C to +85°C
• Power Supply: Wide-range DC input or USB Type-C
• Housing: Industrial-grade

• R&D Testing: Prototype validation and network debugging.
• After-sales & Diagnostics: Vehicle network troubleshooting and analysis.
• ECU Production Line: ECU programming and functional testing.
• Subsystem Testing: Testing individual vehicle modules (e.g., infotainment, ADAS).
• Vehicle-level Integration: Connecting test PCs to the vehicle's Ethernet backbone for system-level validation and flashing.

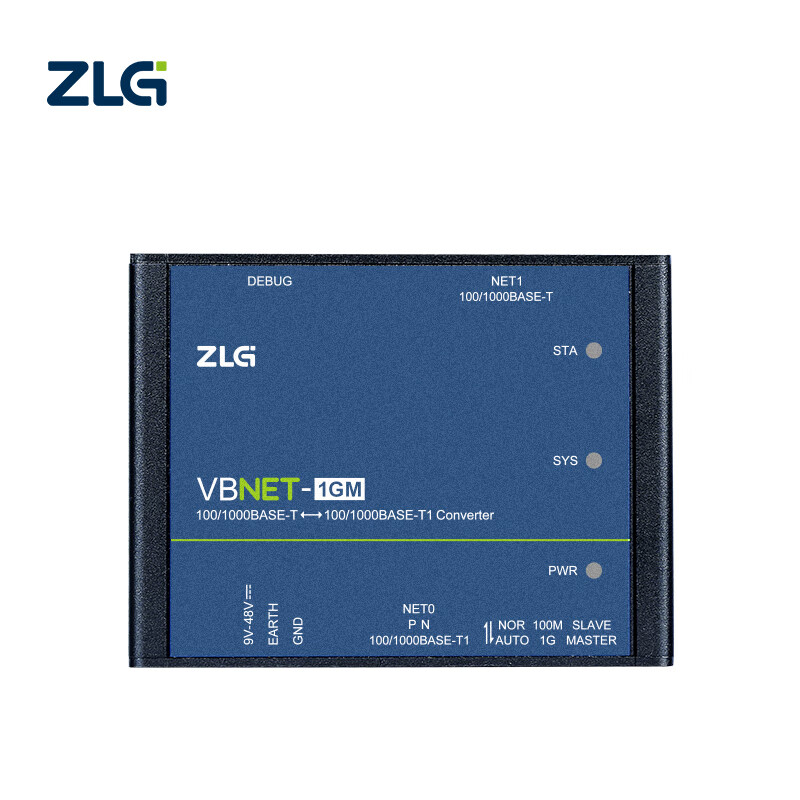

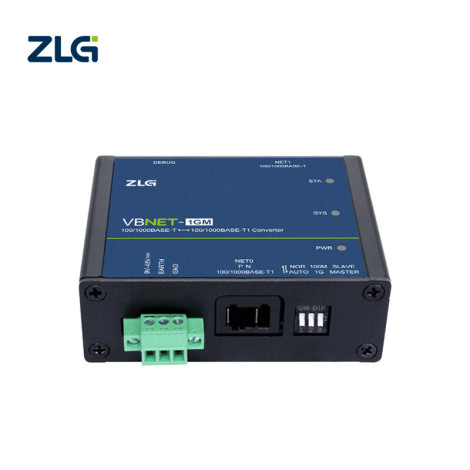

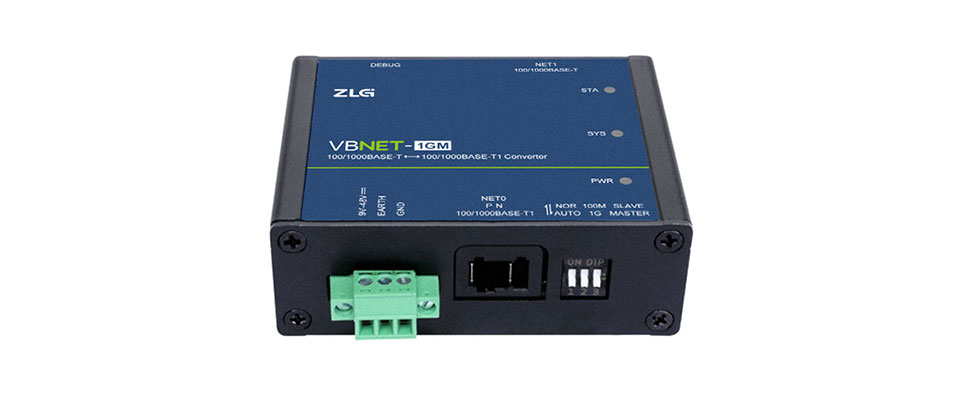

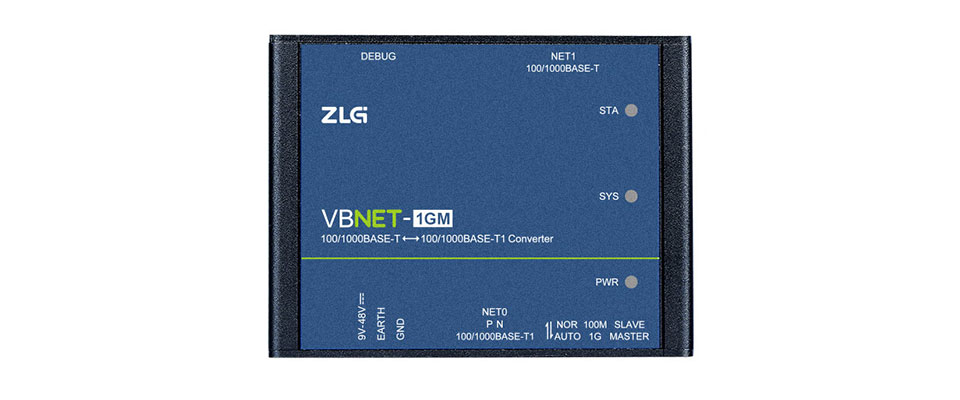

Pictures of VBNET-1GM
