经济型便携式3NH光泽度计YG60M 60度0.01精度IP55防护CE/ROHS白色220V适用于电子电力1年保修
$
243.04
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Products Description
Introduction:

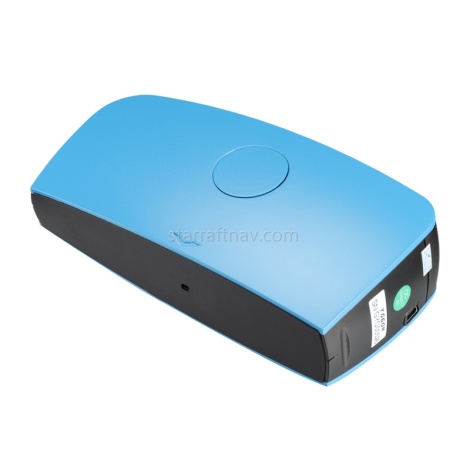

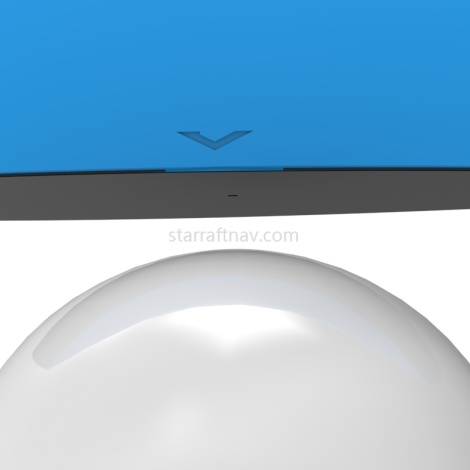

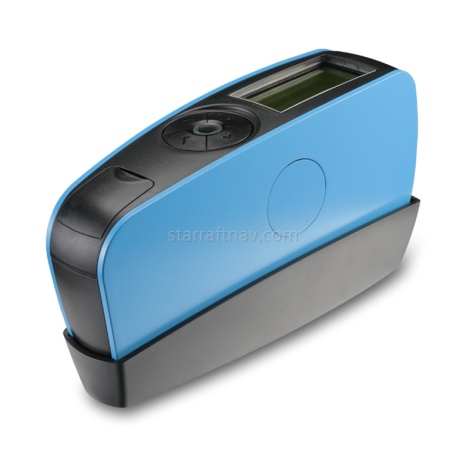

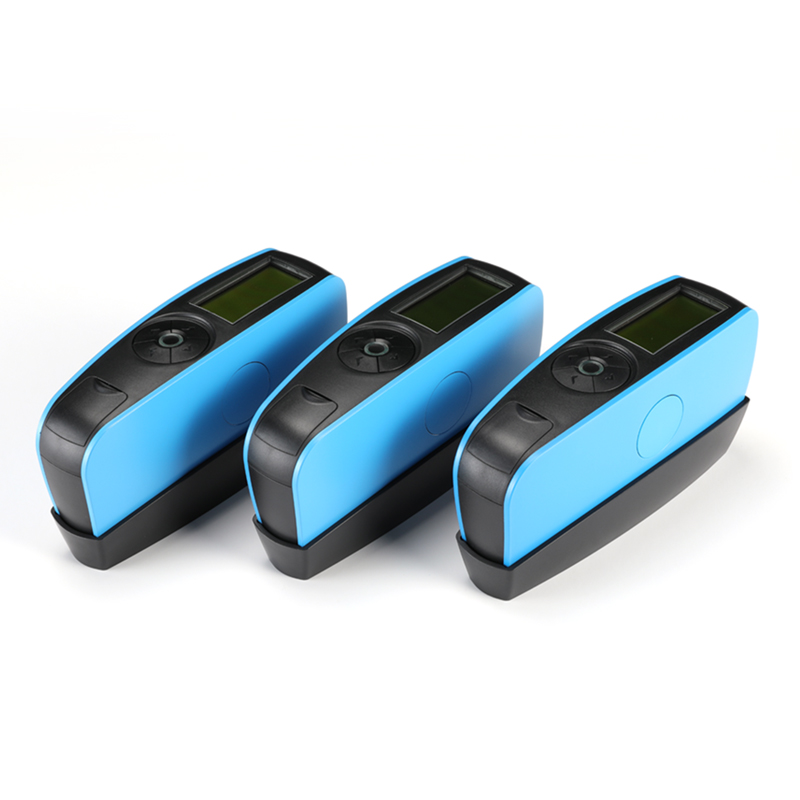

Micropore gloss meter YG60M is a high-precision small-aperture handheld gloss meter developed by 3nh , which is professionally used for gloss measurement of curved surfaces or ultra-small objects. The instrument adopts a 60° universal angle design, with a range of up to 1000GU, simple operation and strong portability. It is widely used in gloss measurement and quality inspection in paints, inks, coatings, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
Product Paramenters
Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. Meet requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813,ASTM523, GB/T9754;
2. Meet requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813,ASTM523, GB/T9754;
Features:
1. Small aperture: 2*4mm
2. 60° angle for semi gloss
3. Display 5 sets of measurement data, good for comparison
4. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
5. Continuous mode to check uniformity over large areas
6. Connect to PC, more extend functions
7. Input gloss value manually
8. Large touch screen operation, easy to use
9. Beauty appearance, good man-machine communication interface
10. Powerful functions to meet many different requirements
11. Large storage to save over 3500 data
12. Built-in lithium ion rechargeable battery.
2. 60° angle for semi gloss
3. Display 5 sets of measurement data, good for comparison
4. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
5. Continuous mode to check uniformity over large areas
6. Connect to PC, more extend functions
7. Input gloss value manually
8. Large touch screen operation, easy to use
9. Beauty appearance, good man-machine communication interface
10. Powerful functions to meet many different requirements
11. Large storage to save over 3500 data
12. Built-in lithium ion rechargeable battery.
Product number | YG60M 60° Micro Gloss Meter |
Measuring Angles | 60° |
Measuring spot(mm) | 60°:2X4 |
Measuring range | 60°: 0~1000GU |
Graduation value | 0.1GU |
characteristic | It can be used for gloss measurement and gloss data transmission in paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries. |
Measurement Mode | Basic mode, statistical mode, continuous mode, quality control mode |
measure time | 0.5 seconds |
Repeatability | 0~100GU:±0.2GU ; 100~1000GU:±0.2%GU |
accuracy | Meet the requirements of JJG 696 working gloss meter |
Automatic shutdown time | 30~120 seconds optional |

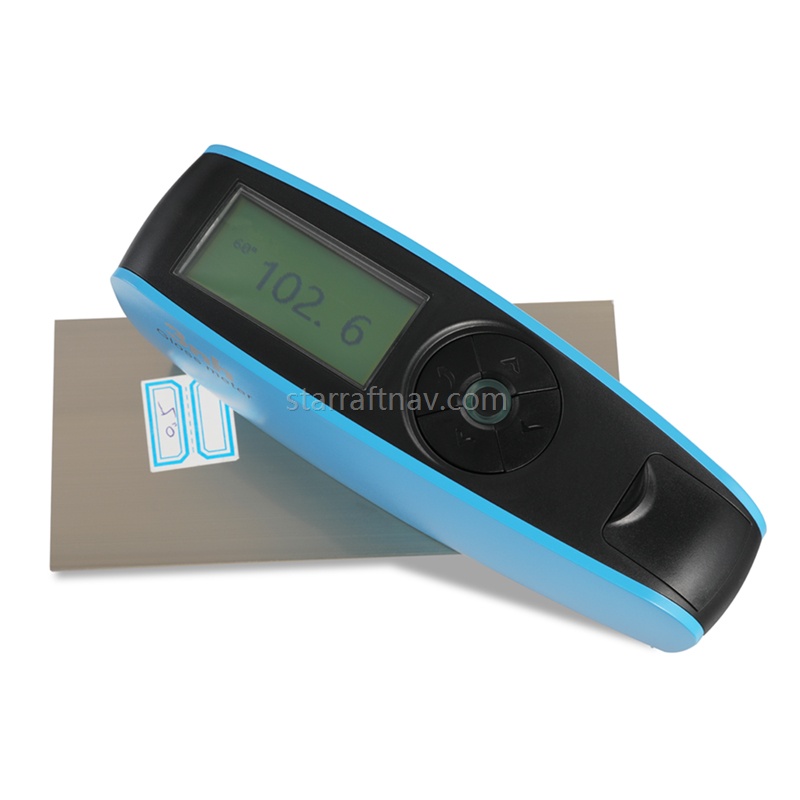

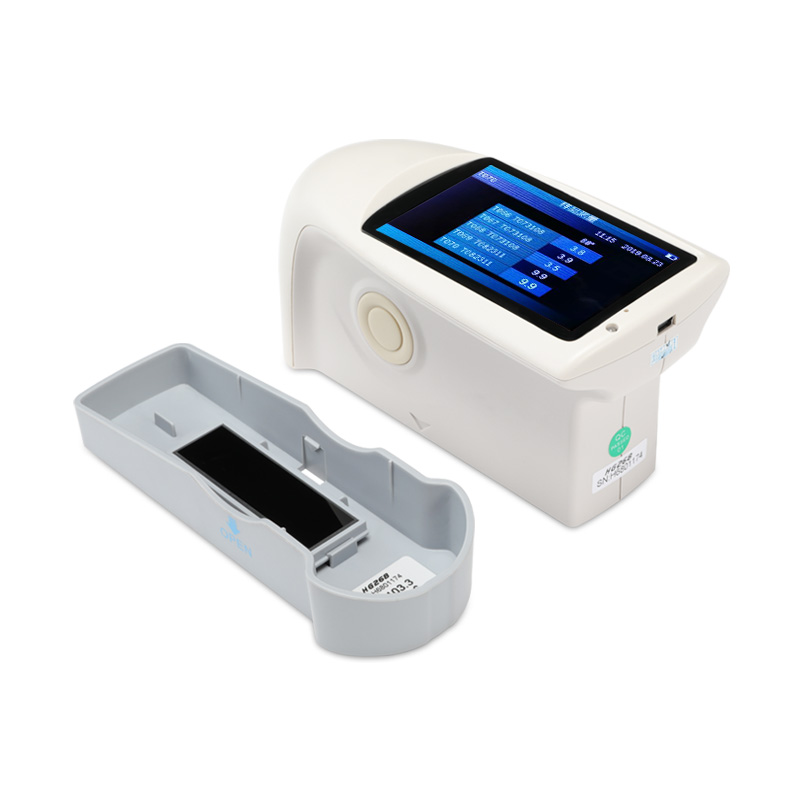

Long time calibration | Auto Identify Calibration Board and Calibrate / manual calibration |
language | Simplified Chinese, English, Traditional Chinese |
Storing data | 35,000 (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode) |
Display | 2.3 inch black and white display |
size | 160X52X84mm |
weight | About 300g (including calibration box and batteries) |

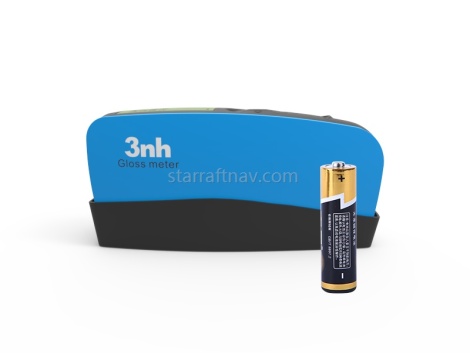

power supply | 1 AA alkaline battery or NiMH rechargeable battery, can measure more than 10,000 times; or use USB port |
interface | USB |
PC Software | GQC6 quality management software, quality inspection report printing, more functional expansion |
Operating temperature range | 0~40°C (32~104°F) |
Storage temperature range | -20~50°C (-4~122°F) |
humidity | Less than 85% RH, no condensation |

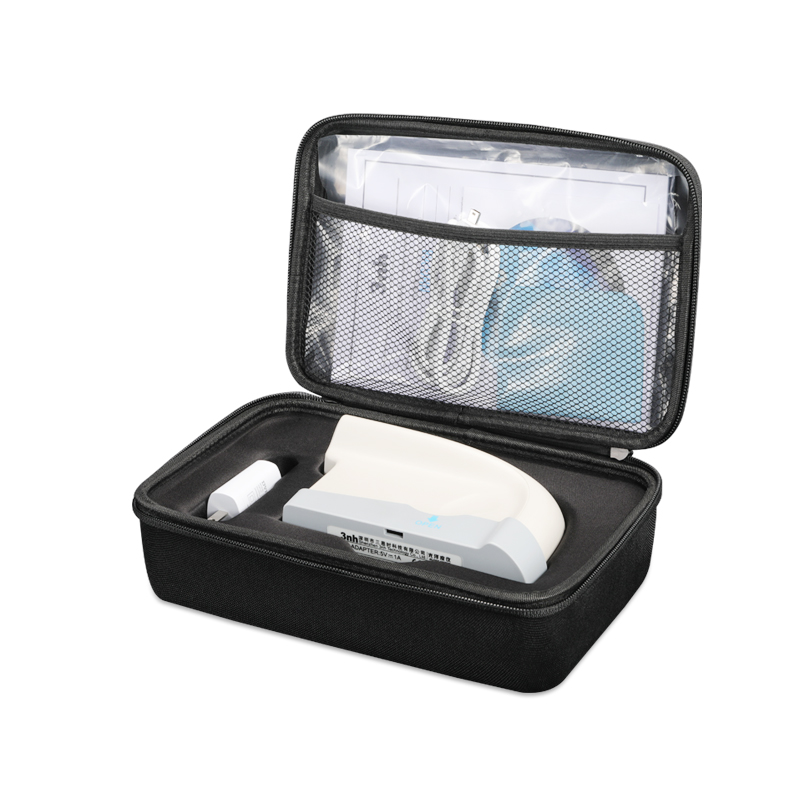

Standard accessories | USB data cable, instruction manual, GQC quality management software (download from official website or provided by after-sales), calibration board |
Optional accessories | Micro printer, Bluetooth 5.0 adapter |
Note | The technical parameters are for reference only, please refer to the actual products sold |
