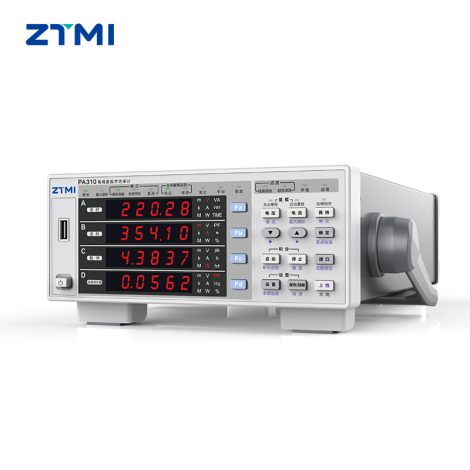

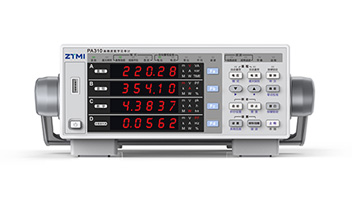

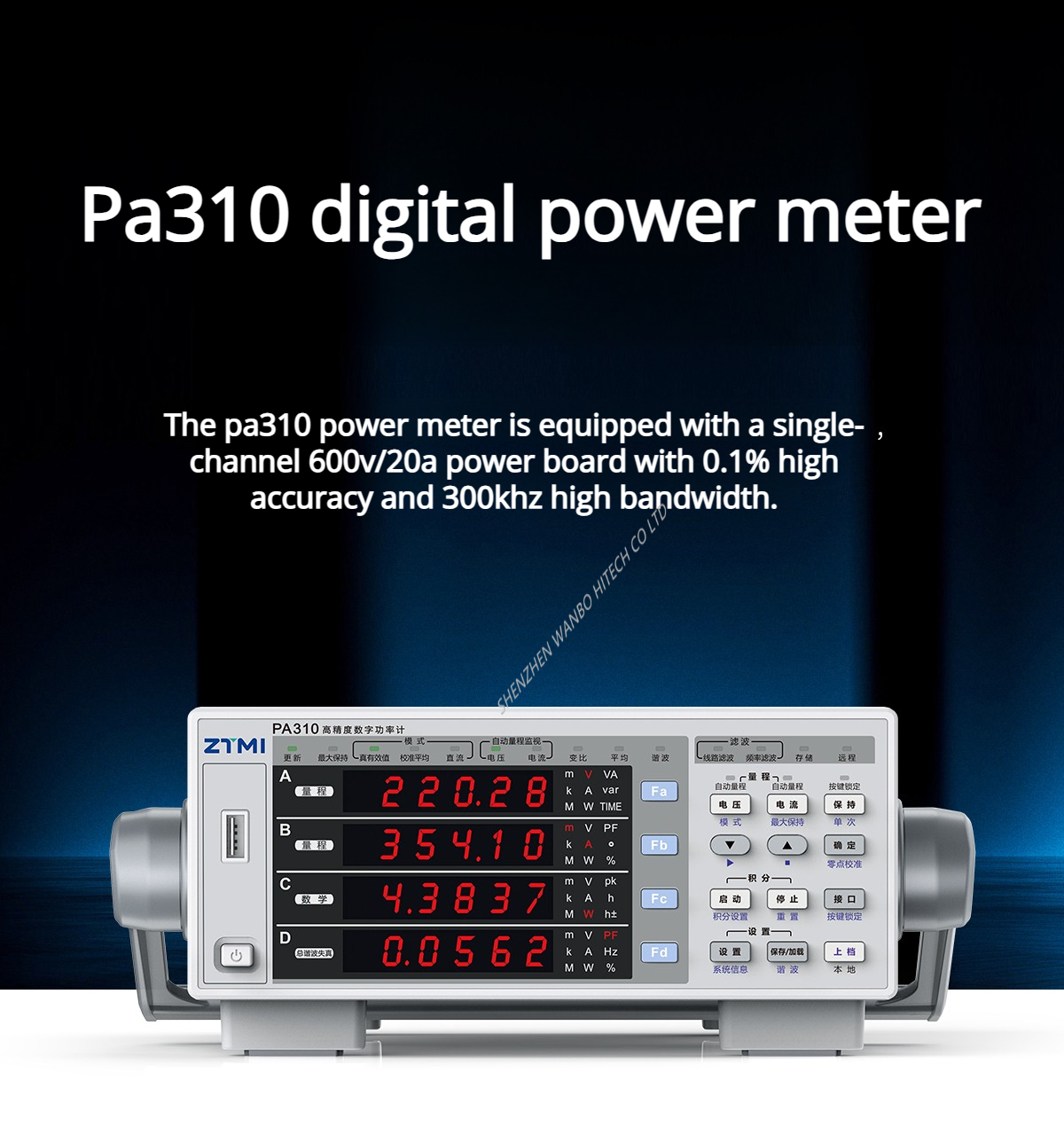

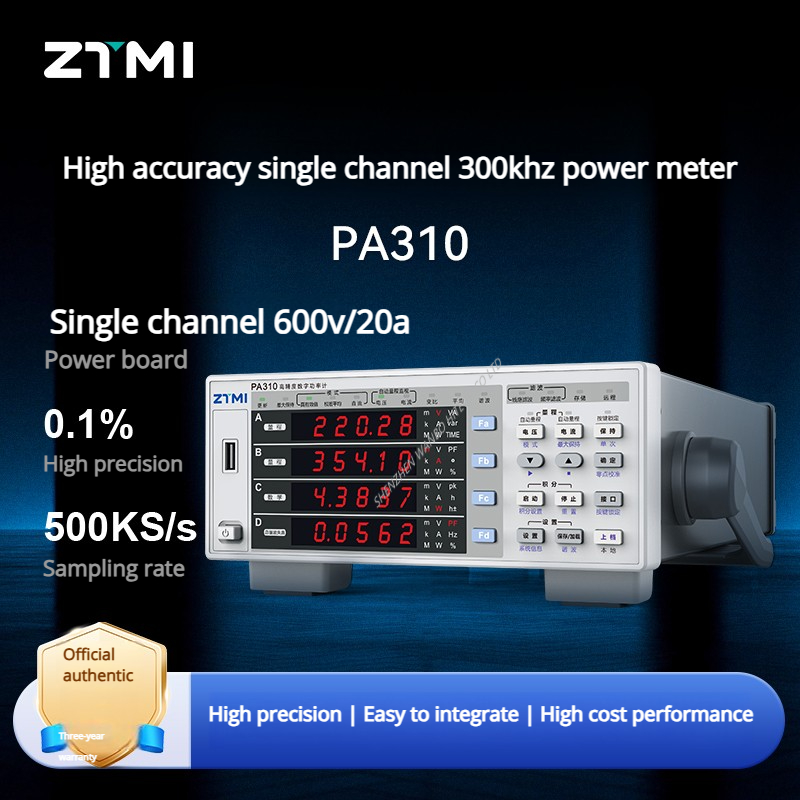

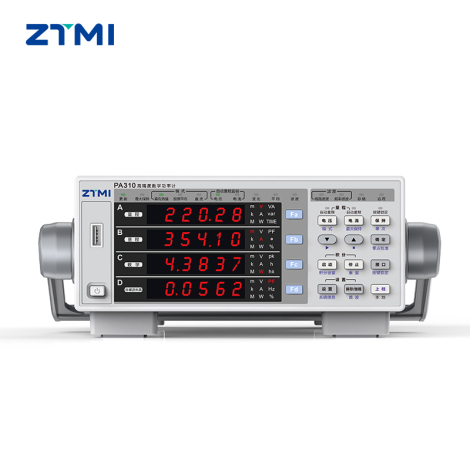

PA310 Digital Power Meter
The PA310 power meter is equipped with a single-channel 600V/20A power board card, featuring a high accuracy of 0.1% and a high bandwidth of 300KHz.
| Model | PA310 |
|---|---|
| Actual Picture |  |
| Input Channel | Single Channel |
| Basic Accuracy | 0.1% |
| Input Bandwidth | DC,0.1Hz ~ 300kHz |
| Sampling Rate | 500KS/s |

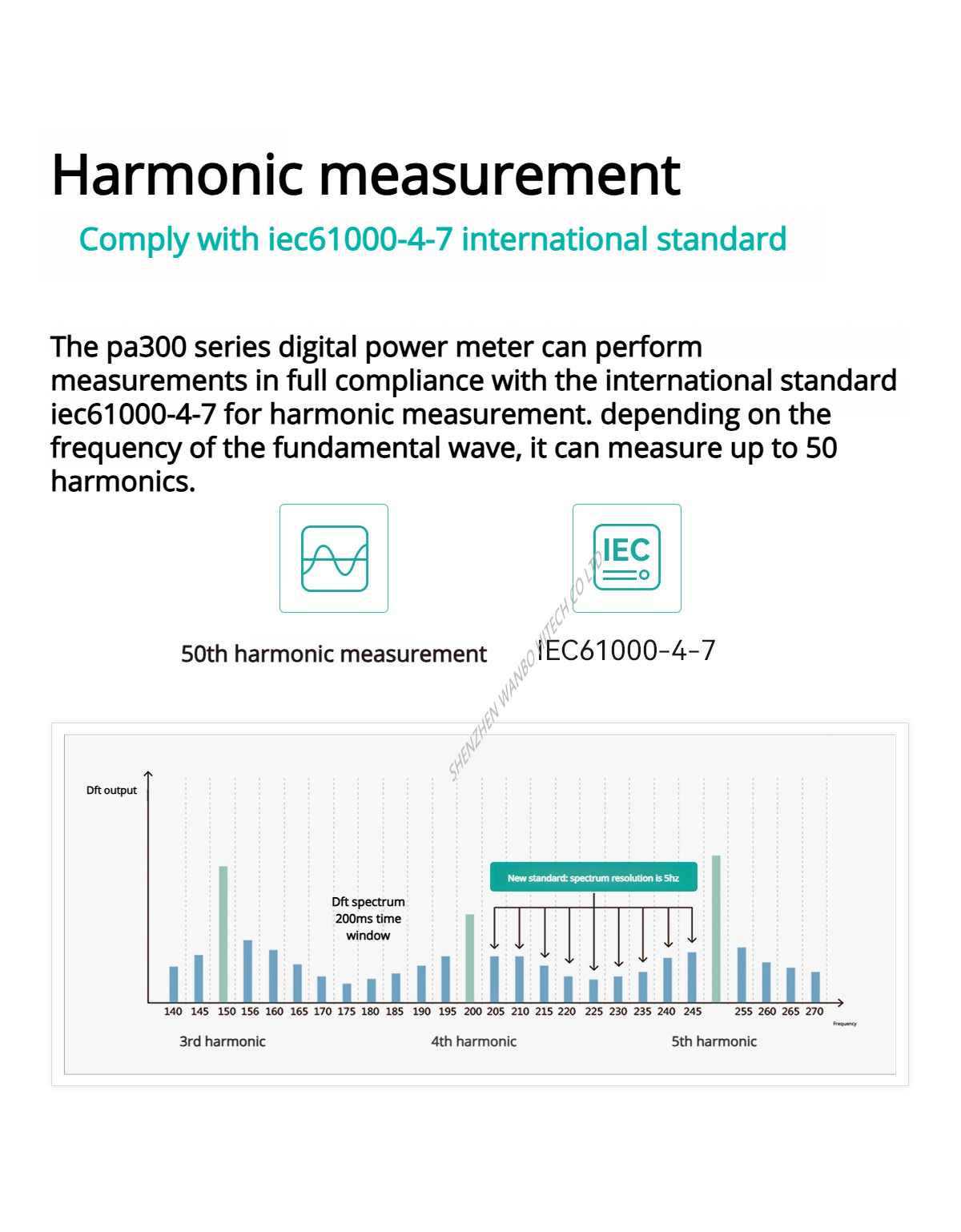

| Harmonic Analysis Frequency | 1-50Times |
| Maximum Test Voltage | 600V |
| Current Test Range | 25 A-20A |
| External Sensor Input | BNC |
| Communication Interface | GPIB,LAN,RS-232,USB-Host |
| Test Scenario | Single-Phase Low-Power Power Supply Power Consumption Testing in the Home Appliance Industry |
