ZLG VBNET-100U 100MB 车载以太网转换器 100BASE-TX 转 100BASE-T1 转换器

Product Detail

• High-Performance Conversion: Enables full-duplex physical layer signal conversion between one 100BASE-T1 automotive Ethernet port and one standard 100BASE-TX Ethernet port.
• OPEN Alliance Compliant: The automotive Ethernet interface meets the OPEN Alliance BroadR-Reach specification (100BASE-T1), ensuring compatibility with modern vehicle networks.
• Robust Industrial Design: Operates reliably within a wide temperature range of -40°C to 85°C, suitable for harsh automotive environments.
• Flexible Mode Configuration: Supports Master/Slave mode selection via an adaptive function or a physical DIP switch. Switch configuration takes effect immediately upon power-up.
• Built-in Noise Immunity: The automotive Ethernet port includes a built-in 100BASE-T1 filter compliant with OPEN Alliance standards, ensuring stable and reliable communication in any vehicle environment.
• Compact and Portable: Features a small form factor (84mm x 63mm x 30mm) with an aluminum alloy shell, making it easy to integrate into test setups or vehicles.
• Dual Power Options: Can be powered via a USB Type-C interface (5V) or a wide-range DC power supply (9-36V). Both power sources can be connected simultaneously.
• Clear Status Indication: Equipped with LED indicators to display the link and communication status of the automotive Ethernet connection.
• Low Power Consumption: The entire device consumes less than 2W of power.

• Model: VBNET-100U
• Brand: ZLG (Guangzhou Zhiyuan Electronics)
• Automotive Ethernet Interface: 1 port, 100BASE-T1, OPEN Alliance BroadR-Reach compliant, OPEN2 terminal
• Standard Ethernet Interface: 1 port, 100BASE-TX, RJ45 connector
• Data Rate: 100 Mbps
• Conversion: Full-duplex physical layer conversion
• Master/Slave Mode: Configurable via DIP switch or adaptive
• Operating Temperature: -40°C to +85°C
• Isolation: 2500VDC electrical isolation
• Power Supply: DC 9-36V or USB Type-C 5V
• Power Consumption: < 2W
• Dimensions: 84mm (L) × 63mm (W) × 30mm (H)
• Housing: Aluminum alloy

• 1 x VBNET-100U Device
• 1 x 2P Terminal
• 1 x 3P Terminal
• 2 x Metal Pendants
• 4 x Metric Screws
• 1 x Network Cable (Ethernet)
• 1 x Certificate of Conformity

• R&D Testing: Prototype validation and network debugging.
• After-sales & Diagnostics: Vehicle network troubleshooting and analysis.
• ECU Production Line: ECU programming and functional testing.
• Subsystem Testing: Testing individual vehicle modules (e.g., infotainment, ADAS).
• Vehicle-level Integration: Connecting test PCs to the vehicle's Ethernet backbone for system-level validation and flashing.

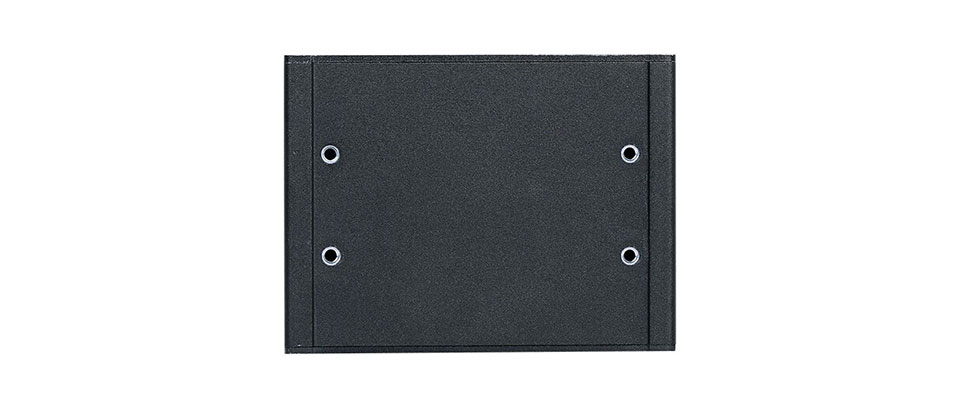

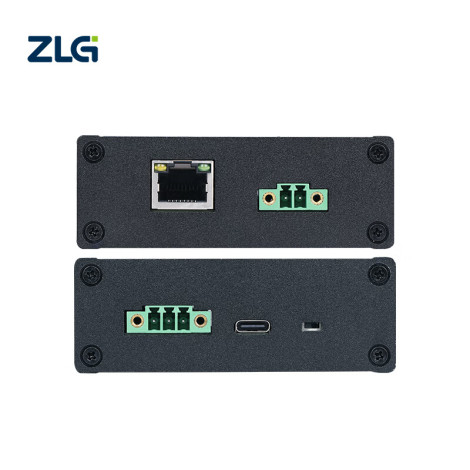

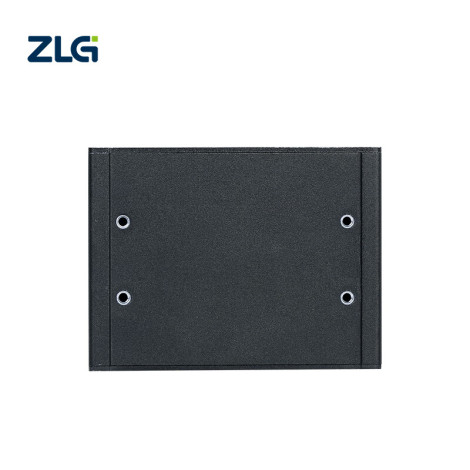

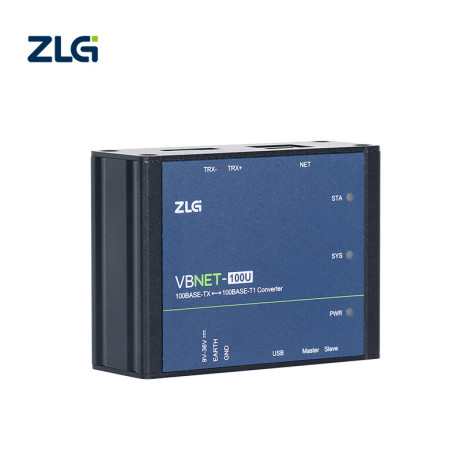

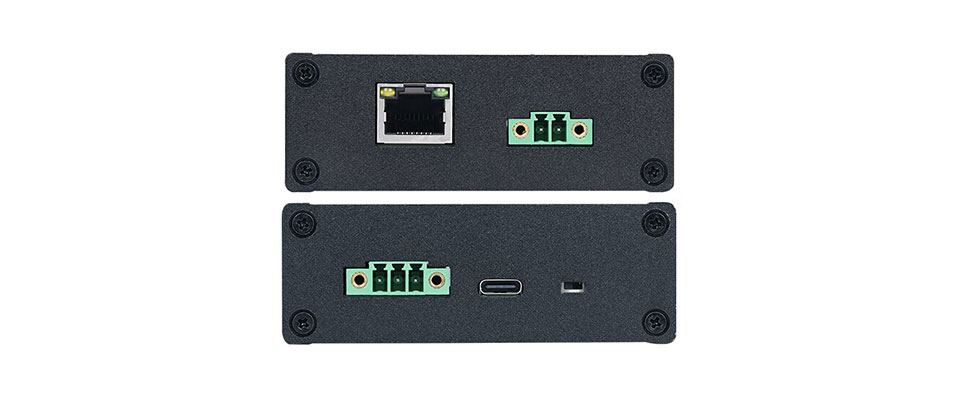

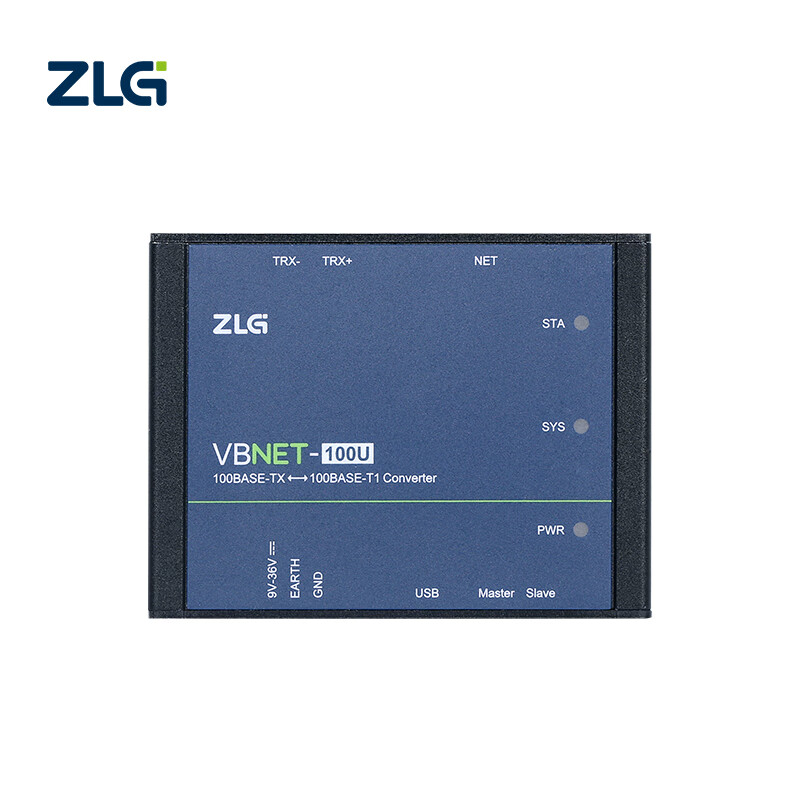

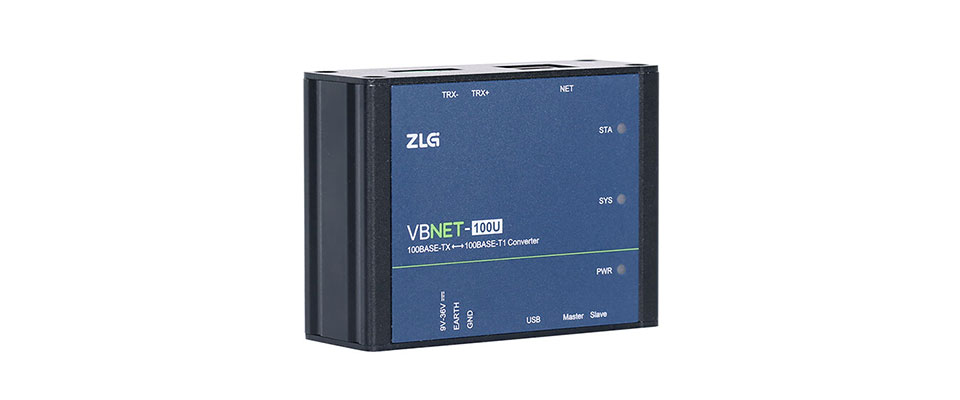

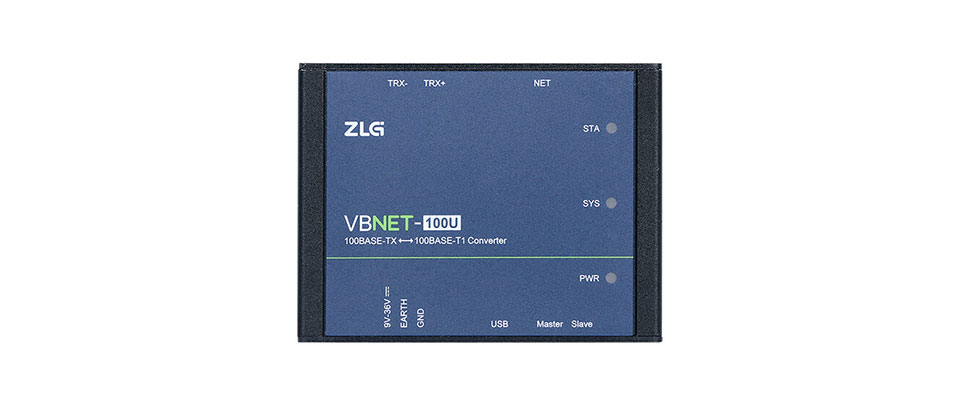

Pictures of VBNET-100U
