ZLG USBCAN-I + 1-CH CAN总线适配器-用于汽车和工业分析仪的USB 2.0 J1939/CANopen/DeviceNet
Product Detail
Product Description
Core Features
High-Speed CAN 2.0 Analysis
Real-time monitoring of ISO 11898-2 networks up to 1Mbps, optimized for automotive OBD-II and industrial CANopen systems.
Multi-Protocol Decoding
Pre-loaded support for SAE J1939, CANopen, and DeviceNet protocols to accelerate heavy-duty vehicle and PLC diagnostics.
Hardware-Accelerated Filtering
Embedded 32-bit MCU with 2000-frame buffer and programmable ID filters, minimizing PC resource consumption.
Compact Industrial Design
Single-channel architecture (100×72×25mm) for embedded installations in vehicles or control cabinets.
Robust Connectivity
Operates from -40°C to +85°C with 2500V DC isolation and 15kV ESD protection.
Technical Specifications
CAN Standard: ISO 11898-2 (CAN 2.0A/B)
Baud Rate: 10kbps–1Mbps (software adjustable)
USB Interface: USB 2.0 Type-A (480Mbps)
Isolation: 2500V DC (CAN-to-USB)
OS Support: Windows 7/10/11, Linux (kernel 3.2+)
Power: Bus-powered via USB
Dimensions: 100mm × 72mm × 25mm
Key Applications
Automotive: ECU diagnostics, electric vehicle CAN bus monitoring, fleet management
Industrial: CANopen network debugging, production line error tracing
Heavy Machinery: J1939 telematics for construction/mining equipment
R&D: Embedded system prototyping, sensor signal validation
Package Contents
1× USBCAN-I+ Adapter
1× Shielded USB-A Cable (1.8m)
1× DB9 Male to 5-pin Terminal Adapter
1× Quick Start Guide (English/German/French)
Why Choose USBCAN-I+?
Cost-Effective Precision: Single-channel design reduces hardware cost while maintaining full protocol support.
Seamless Integration: Native compatibility with LabVIEW/C#/Python via open API.
Future-Ready: Upgrade path to multi-channel solutions available.
Certifications & Support
CE/FCC/RoHS certified
18-month warranty with global technical support
Free Resources:
Download Drivers & SDK
API documentation and protocol decoding templates

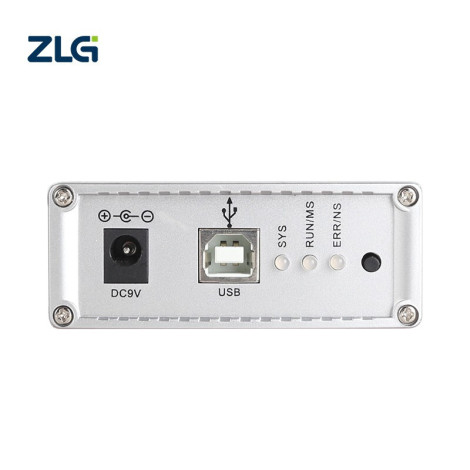

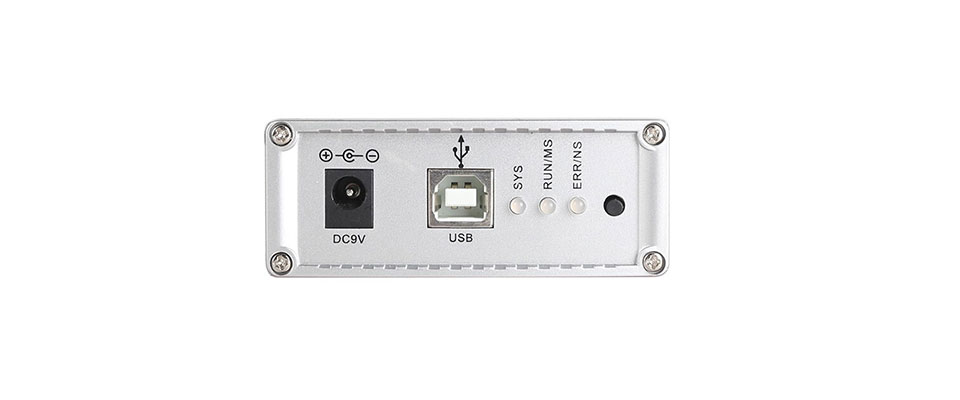

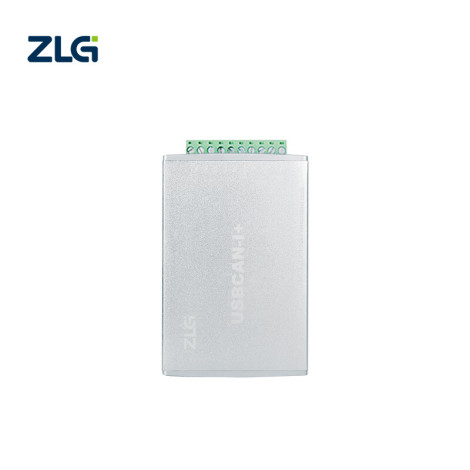

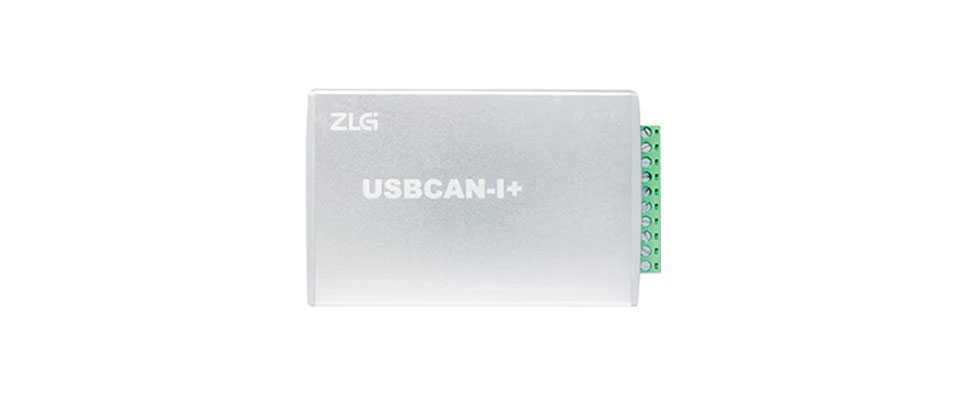

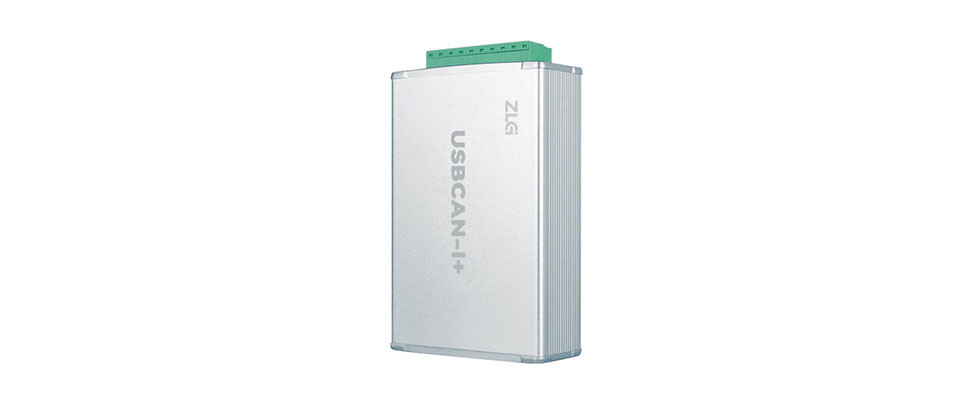

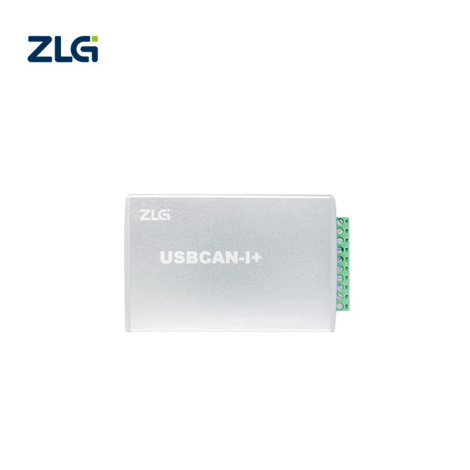

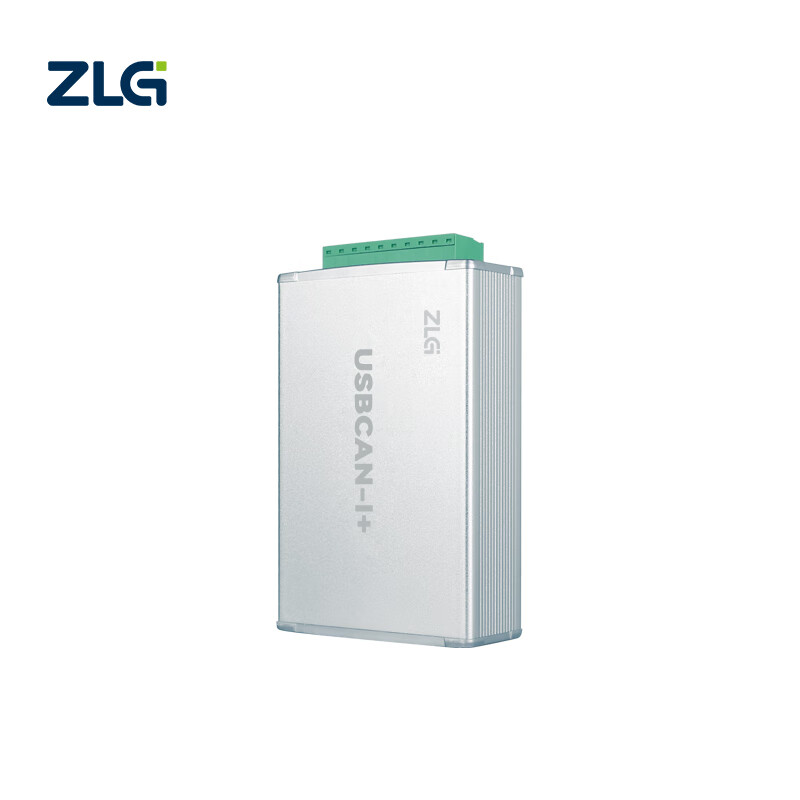

Pictures of USBCAN-I+
