Hioki EV HV SYSTEM ADVANCED for KIT 日本原产 1 年保修

Product Detail

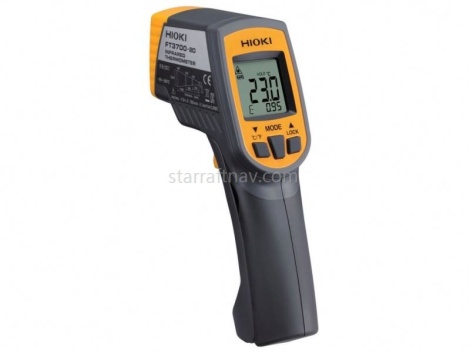

Temperature Measurement with Infrared Thermometer FT3700
- Pistol design with easy-to-see display
- Full menu of basic measuring functions
- Easily test in difficult locations, moving objects or where there is danger of electric shock

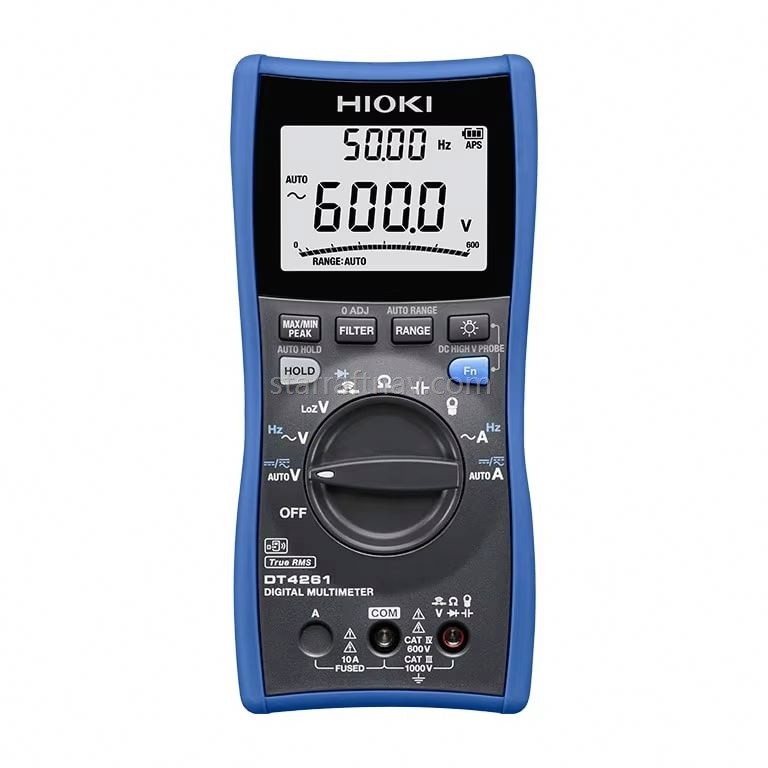

Zero-Voltage Measurement with Digital Multimeter DT4261
- Helps personnel analyze issues in field
- Boosts work efficiency with digitalization (Excel® Direct Input Function)
- Ensures safety by preventing erroneous test lead insertion (terminal shutters)
- Stop worrying about losing test lead caps
- Excellent dust and water resistance (compliant with IP54 international standard)

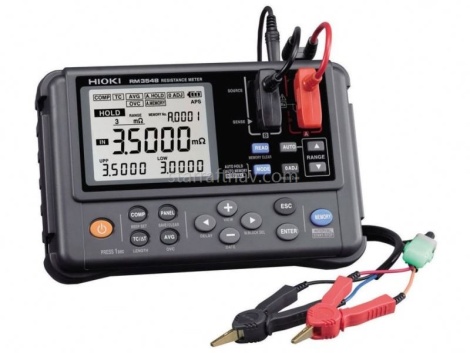

Equipotential Bonding Test with Resistance Meter RM3548
- 0.02 % basic accuracy, 0.1 μΩ max. resolution, 1A max. testing current
- Measure from 0.0 μΩ (testing current 1 A) to 3.5 MΩ
- Easily record up to 1,000 data points in memory simply by applying instrument’s probes
- Smoothly capture temperature-rise test data using interval measurement
- Portable design is ideal for maintenance and testing of large equipment
Insulation Resistance Test with Insulation Tester IR4059

Digital bar graph with 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ

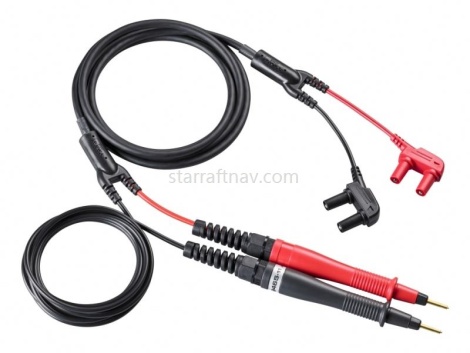

Multi-functional test lead with remote switch improves work efficiency: flashlight, remote test start, LED light for PASS/FAIL notification
Stable and high-speed digital readings; 0.3 second response time for PASS/ FAIL judgment
Continuity check via 200 mA testing
Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles
Drop proof onto concrete from 1m (3.28 feet)

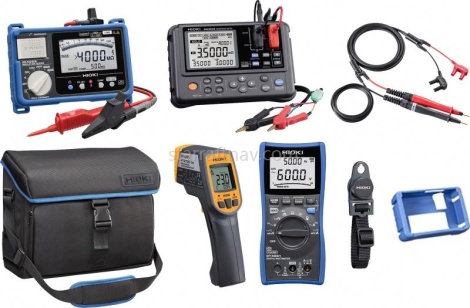

Carrying Case C0213 accommodates all instruments in one case
Magnetic Strap Z5020 fixes instruments to chassis to check readings at eye level
Wireless Adapter Z3210 enables Bluetooth connectivity with GENNECT Cross mobile app to store and compare data
