ZLG CANFDDTU-400ER 4通道CAN FD数据记录仪汽车黑匣子，用于车辆测试和诊断

Product Detail

• Multi-Channel CAN FD Recording: Features 4 independent, user-configurable CAN FD channels for simultaneous monitoring and data acquisition from multiple bus lines or vehicle functional domains.
• High-Capacity Local Storage & Flexible Recording: Supports local data logging onto a high-speed SD card. The included ZCANConfigTool/CANDTU configuration software allows setup of various intelligent recording modes: long-duration recording, conditional recording, pre-trigger recording, and timed recording.
• Powerful Data Analysis Compatibility: Recorded data can be saved and converted into nine standard formats (BLF, ASC, CSV, etc.) and is fully compatible with ZLG's advanced automotive bus analysis software suite ZXDoc/ZCANPRO for in-depth offline analysis, DBC parsing, and diagnostics.
• Physical Trigger for Fault Marking: Includes a dedicated Trigger button to mark specific bus message data in real-time during testing, enabling rapid identification and localization of intermittent faults within the recorded files.
• Robust Industrial Design: Built with a durable metal housing for harsh environments. Features channel isolation for protection and is designed for reliable operation across a wide temperature range with a wide DC input voltage.
• Strictly Tested & Certified: The CANFDDTU series undergoes rigorous anti-vibration and harsh environment testing, ensuring stable performance in demanding applications like vehicles, ships, and industrial machinery. The series is certified as a High-Tech Product in Guangdong Province.
• Note: This model (CANFDDTU-400ER) is designed for local data logging and does not include built-in 4G cellular or WiFi connectivity for real-time cloud transmission.

• Model: CANFDDTU-400ER
• CAN FD Channels: 4 independent channels
• Interface: DB9 connectors
• PC Interface: High-speed USB
• Storage: High-speed SD Card (supports large capacity)
• Recording Modes: Long-duration, Conditional, Pre-trigger, Timed
• Data Formats: BLF, ASC, CSV, etc. (9 formats)
• Compatible Software: ZXDoc, ZCANPRO
• Housing: Metal
• Operating Temperature: Wide range (e.g., -40°C to +85°C)

• Automotive R&D & Road Testing: Data collection and fault analysis for traditional and New Energy Vehicles (NEVs).
• Fleet Diagnostics: Recording vehicle bus data for maintenance and troubleshooting.
• Rail Transportation: Monitoring and fault detection in train control systems.
• Industrial Machinery: CAN(FD) communication logging in wind turbines, elevators, and construction equipment.

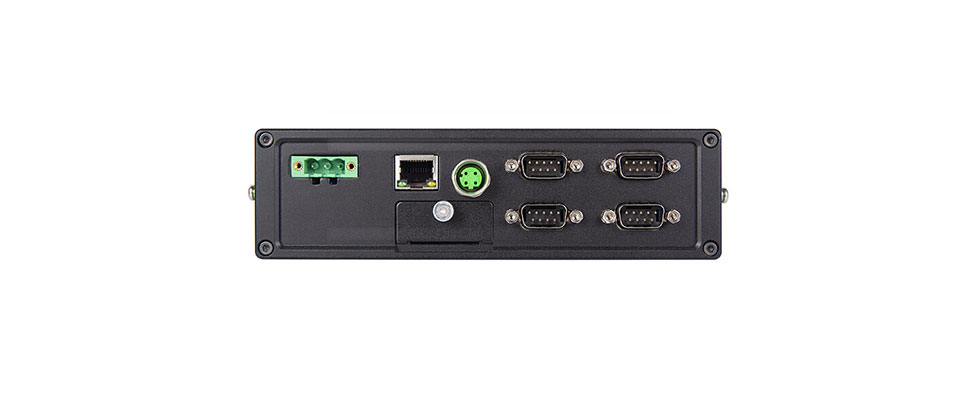

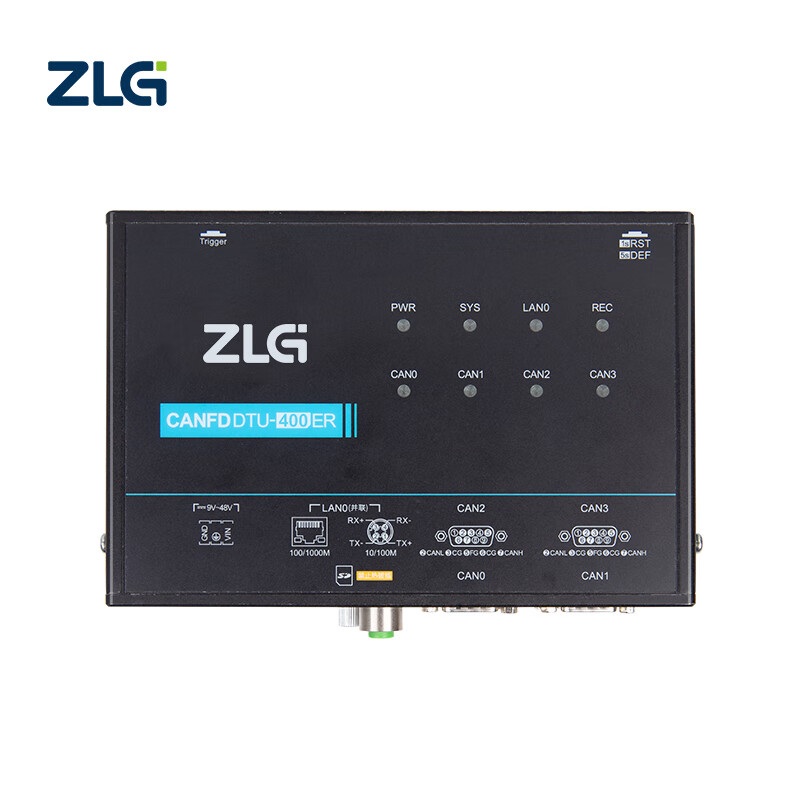

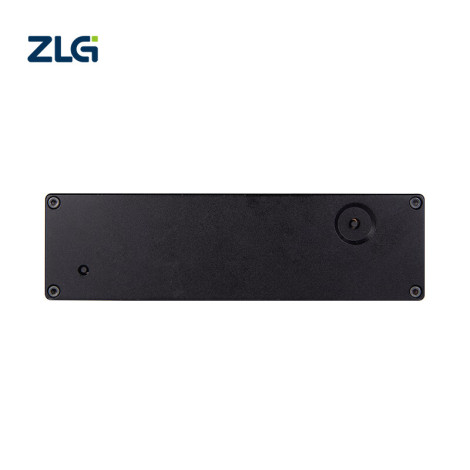

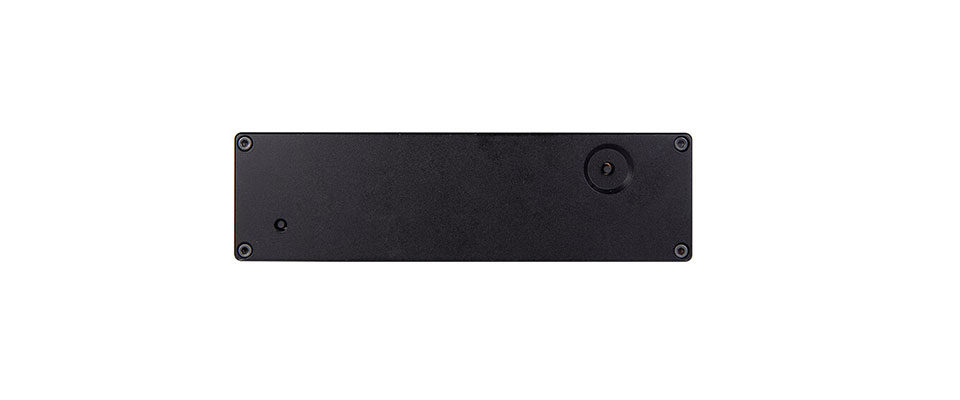

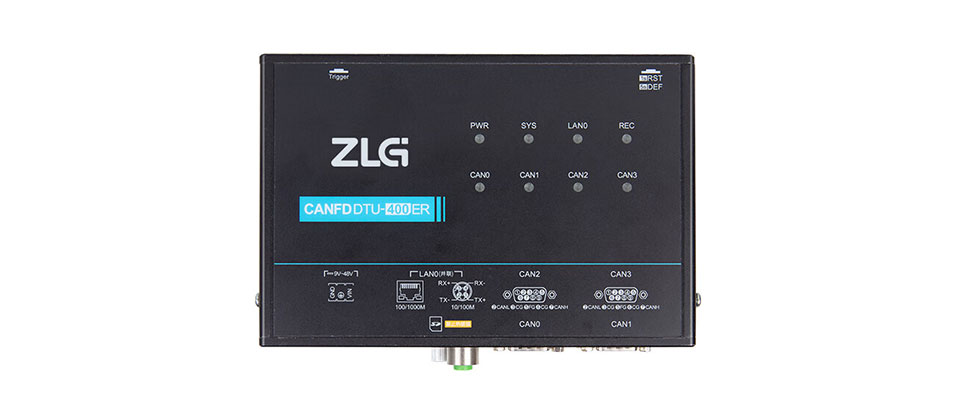

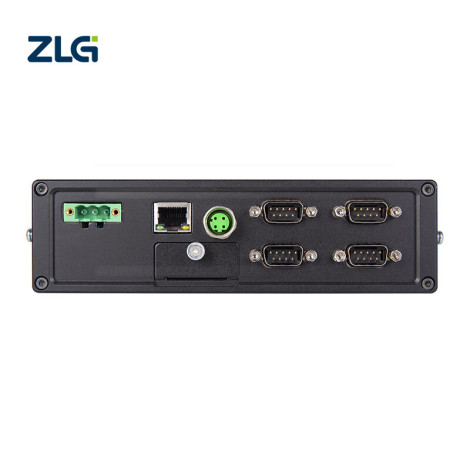

Pictures of CANFDDTU-400ER
