Keysight PP0002A Hi-Z+ 探头，800 MHz 模拟带宽，1200 Vrms CAT II 输入电压 - 享受折扣
$
1711.38
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
The PP0002A is a high-voltage passive probe that provides all the ease of use benefits of a passive probe, with the performance generally seen from an active probe. |
The PP0002A is a high-voltage passive probe that provides all the ease of use benefits of a passive probe, with the performance generally seen from an active probe.

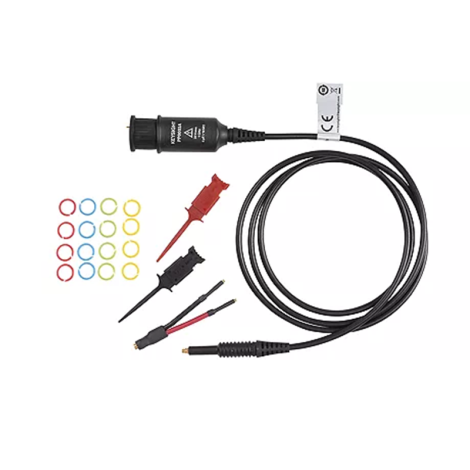

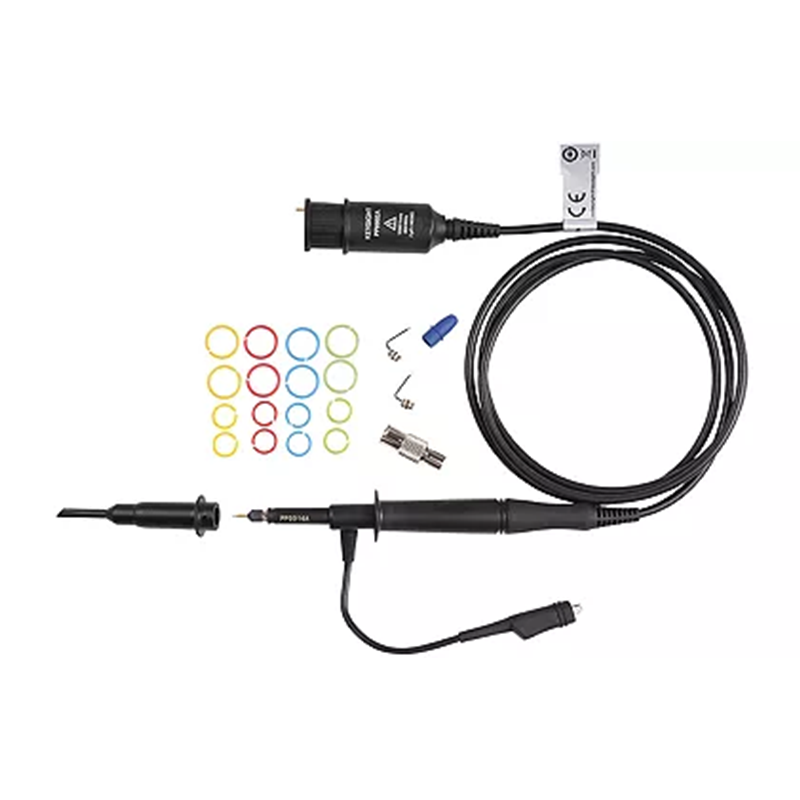

The PP0002A is a high-voltage passive probe with 800 MHz of analog bandwidth and less than 2 pF of capacitive loading, while providing a never before seen 1200 Vrms input voltage. It provides all the ease of use benefits of a passive probe, with the performance generally seen from an active probe. The AutoProbe I interface provides offset and auto configuration of probe type and attenuation setting. PP0002A provides:800 MHz of analog bandwidth (<2 pF input capacitance)1200 Vrms CAT II input voltage, and up to 3 kV peak transient overvoltage40 MΩ input impedance at low frequenciesAutoProbe I compatibility1.3 meter cable length for ease of useSmall 5mm tip and compact probe design for easy probing on smaller targetsVariable attenuation, automatically configured by the oscilloscopeRigid tip for secure device-under-test connectivityReplaceable probe tip cartridgesLarge accessory set for versatile connectivityThe PP0002A is designed for use on InfiniiVision and Infiniium oscilloscopes with the AutoProbe I interface, with the use of the PP0004A adapter. The PP0001A/2A/3A probes are a new generation of Hi-Z+ probes for which the probe is to be viewed as a combination of the “probe and probe adapter (PP0004A)”. This combination does not have a fixed attenuation ratio but rather has multiple available attenuation ratios per given V/div settings to accommodate a very large dynamic range and flat frequency response.
