Products Description

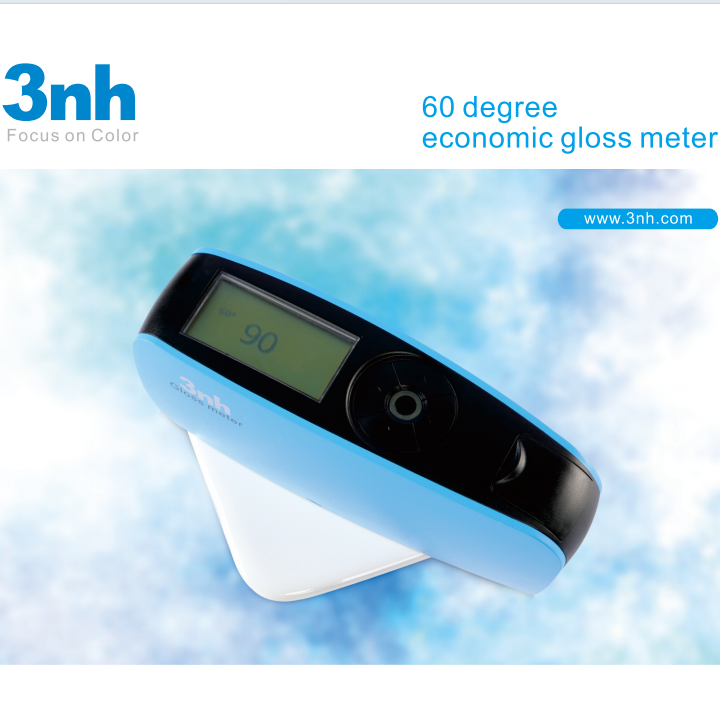

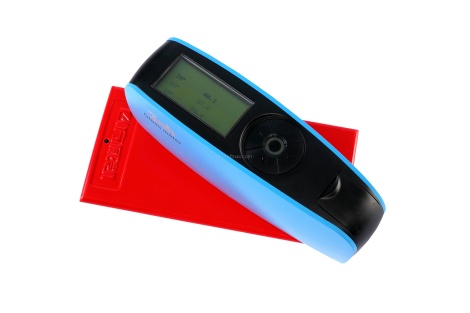

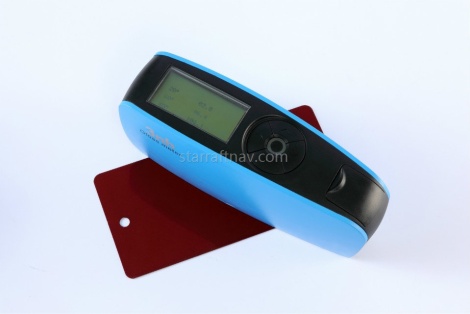

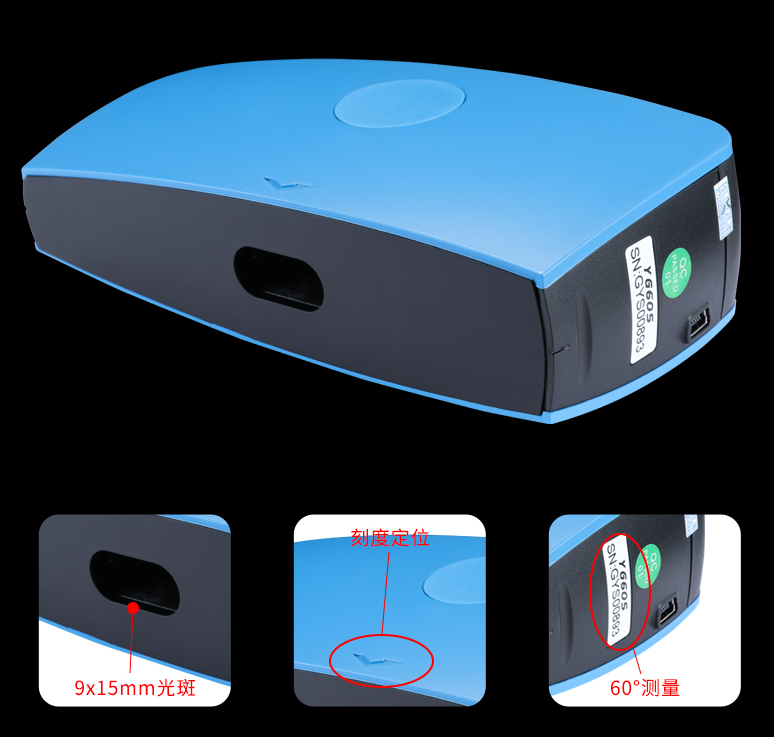

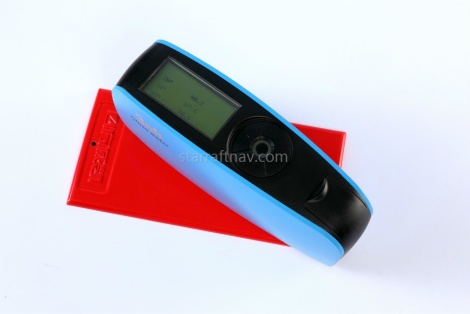

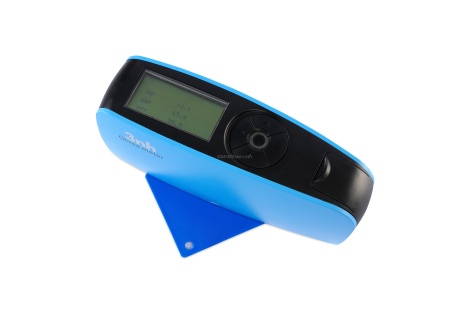

3nh 60 degree single angle cheap gloss meter YG60S
YG60S 60°Economic Gloss Meter is manufactured according to international standard ISO2813 and China standard GB/T 9754. It can meet requirements of JJG696.
3nh YG60S gloss meter can test material with high gloss (0-300Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
3nh YG60S gloss meter can test material with high gloss (0-300Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Product Paramenters
YG60S Economic Glossmeter | ||
Model | YG60S 60°Economic Gloss Meter | |
Measuring Angle | 60° | |
Measurement range | 60°: 0-200GU | |
Division Value | 1GU | |
Measuring Modes | Basic mode | |
Measuring Time | 0.5S | |
Repeatability | 0~100GU : ±1GU; 100~200GU : ±1%GU | |
Accurate | Conform with JJG696 requirements of gloss meter | |
Auto Power-off Time | 30s | |
Long-time Calibration | / | |
Language | Chinese & English | |
Storage | / | |
Display | 2.3 inch white and black screen | |
Size | 160*52*84mm | |
Weight | About 300g | |
Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge | |
Interface | USB | |
PC Software | / | |
Operation Temperature Range | 0-40ºC(32-104° F) | |
Storage Temperature Range | -20-50ºC(-4-122° F) | |
Humidity Range | < 85% RH, without condensation | |

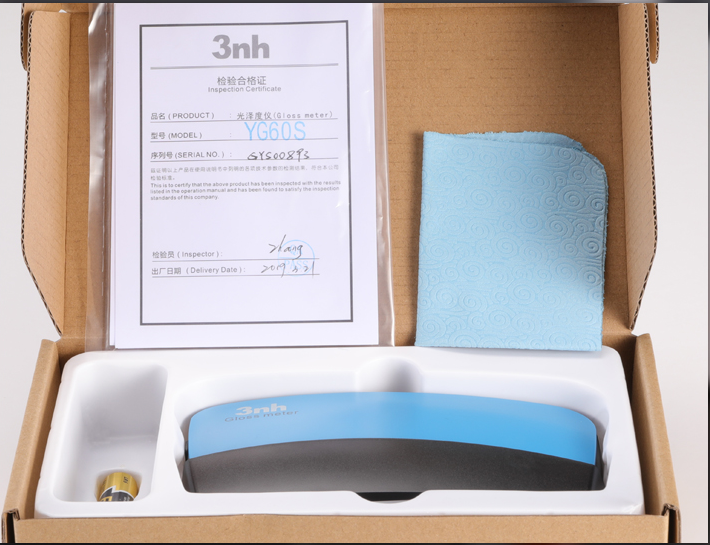

Standard Accessories | User manual, calibration plate | |
Optional Accessories | Miniature printer,Bluetooth | |
Notification: the technical parameter is only for reference | ||
Display Accuracy | 0.01 | |
Measurement time | Approx. 1.5s | |
Repeatability | Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
Inter-instrument error | MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles) | |
Measurement method | Single measurement, average measurement (2~99 times) | |
Locating method | Stabilizer locating | |
Size | LxWxH=81X71X214mm | |
Weight | About 460g | |
Battery power | Lithium battery, 6000 times in 8 hours | |
Illuminant life span | 5 years, more than 3 million times measurements | |
Display | TFT true color 3.5inch, capacitive touch screen | |
Data port | USB, Bluetooth® 5.0 | |
Data storage | 500 standard samples, 1,0000 samples , APP mass storage | |
Language | Simplified Chinese, English, Traditional Chinese | |
Operating temperature range | 0~40℃, 0~85%RH (no condensation), altitude< 2000m | |
Storage temperature range | -20~50℃, 0~85%RH (no condensation) | |
Standard Accessories | Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download) | |
Optional Accessories | USB micro printer, powder test box, Bluetooth micro printer,holder base | |
Notes. | Technical parameters are for reference only, subject to the actual sales of products | |
