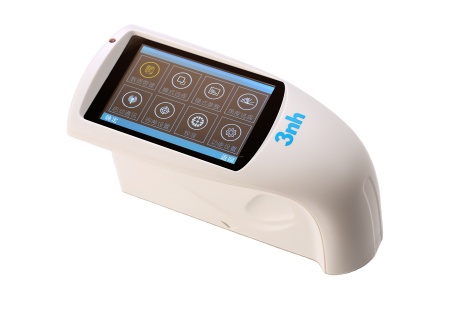

3nh HG268 三角度光泽度计，用于金属亮度测试 20/60/85 次测量 1% 精度 0.1 秒测量时间 1 年保修
Product Detail
HG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
HG268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

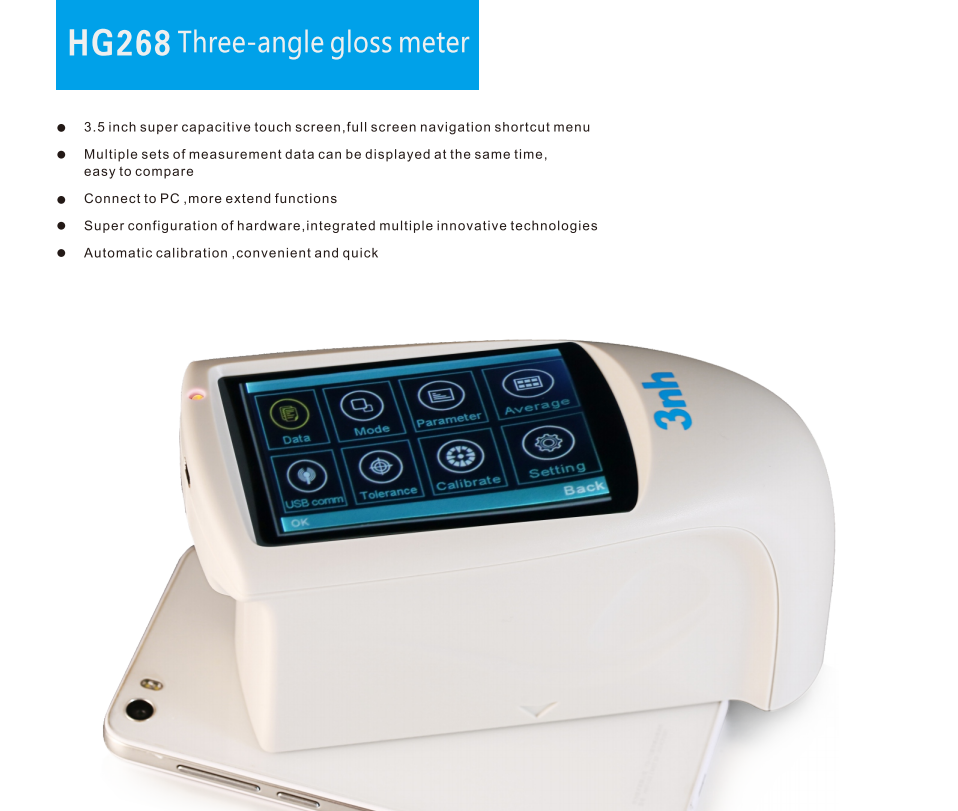

HG268 Tri-angle Gloss Meter | |
Measuring Angle | 20°/60°/85° |
Measuring Area (mm) | 20°: 10x10 60°: 9x15 85°: 5x36 |
Measuring Range | 20°:0~1000GU 60°:0~1000GU 85°:0~160GU |
Division Value | 0.1GU |
Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-1000GU |
Measurement Standard | Conform with JJG696 first class glossmeter working requirement |
Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
Errors | ±1.5 , ± 1.5% |
Measuring Time | 0.1s |
Dimension | L*W*H : 160mm*75mm*90mm |
Weight | 350g |
Language | Chinese/English |
Battery | 3.7V,3200mAh Li-ion Battery ,>10000 times(within 8 hours) |
Display | TFT 3.5 inch |
Interface | USB/RS-232 |
Storage | Basic mode: 1000 |
Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
Operation Temperature | 0~40ºC(32~104°F) |
Storage Temperature | -20~50ºC(-4~122°F) |
Humidity | <85% relative humidity, no condensation |

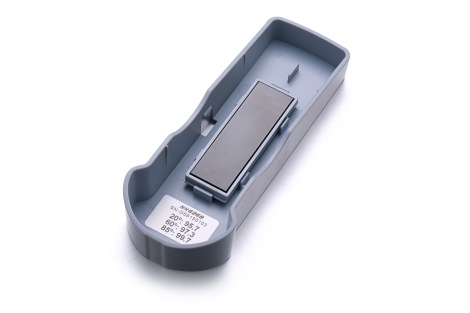

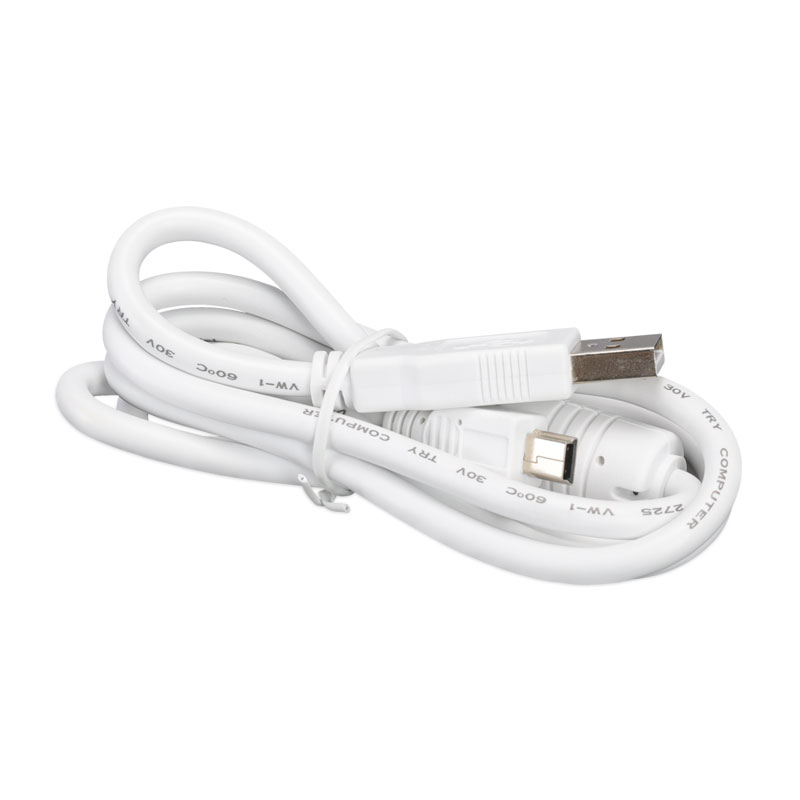

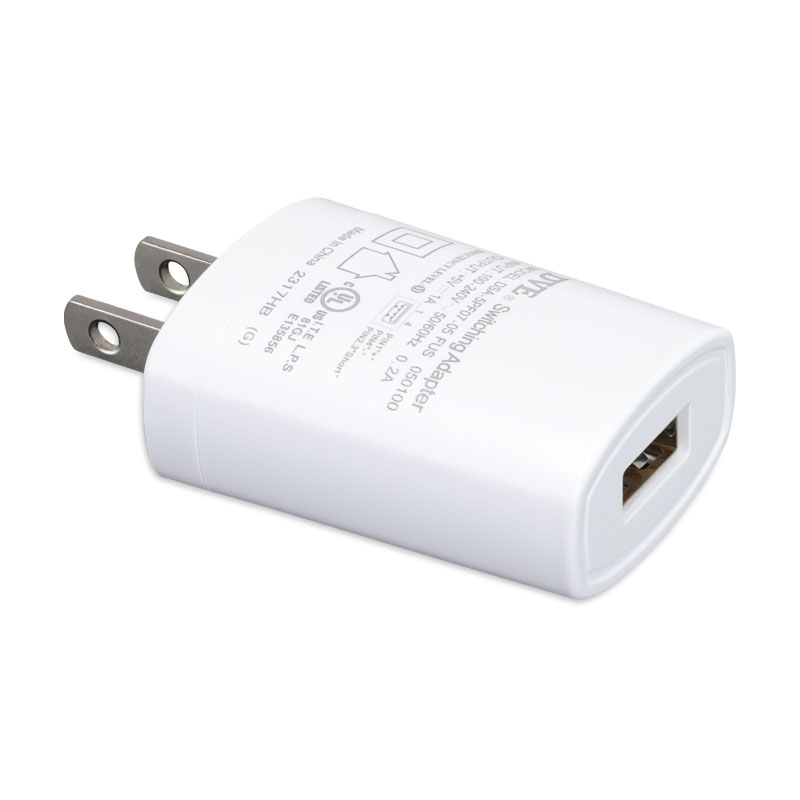

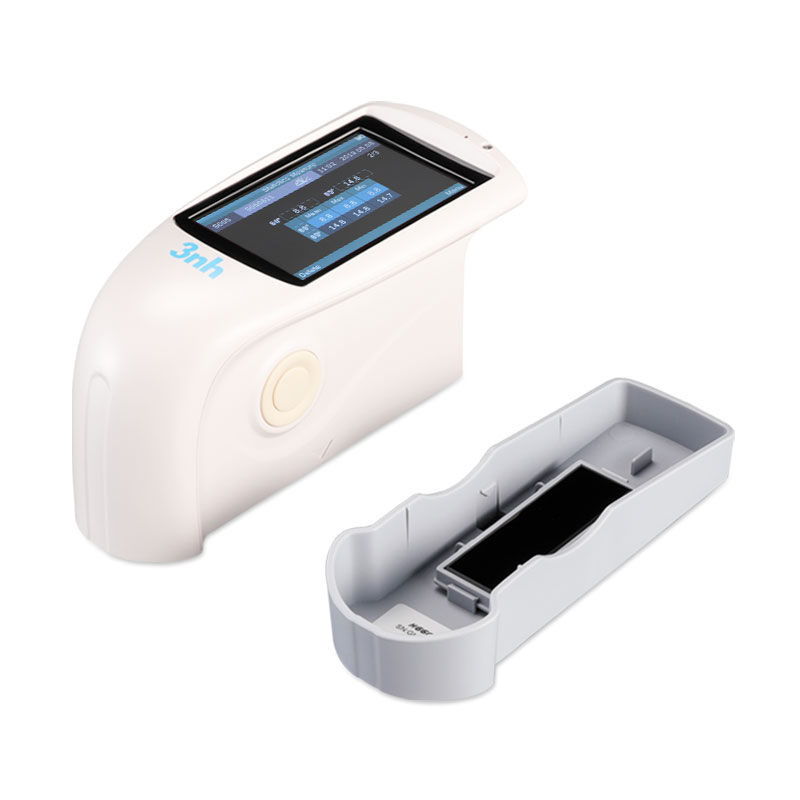

Standard Accessories | Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate |
Optional Accessories | Miniature Printer |
Note | The specifications are subject to change without notice. |
