Product Overview
ZLG Zhiyuan Electronics CANWiFi-200T converter realizes the function of mutual transmission of CAN-bus data and WiFi data. It integrates 2 CAN-bus interfaces, 1 WLAN interface and 1 LAN interface, and comes with TCP/IP or UDP protocol stack, users can easily complete the interconnection between CAN-bus network and WiFi network, greatly expanding the application scope of CAN-bus network.
* High-speed 800MHz main frequency 32-bit processor;
* Integrated 2.4G WLAN interface, compliant with IEEE 802.11a/b/g/n standard, supports AP and Station modes;
* 10M/100M self-applicable Ethernet interface, 2KV electromagnetic isolation;
* 2 CAN channels, 2.5KVDC withstand voltage isolation;
* CAN port baud rate 5k~1000kbps can be set arbitrarily;
* Embedded hardware watchdog timer;
* Power supply voltage range 9V ~ 24V DC;
* Working temperature: -40℃～70℃;
* Humidity: 5% - 95% RH, no condensation;
* Rugged metal housing, SECC metal (1.1 mm);
* Designed for industrial environments.
* High-speed 800MHz main frequency 32-bit processor;
* Integrated 2.4G WLAN interface, compliant with IEEE 802.11a/b/g/n standard, supports AP and Station modes;
* 10M/100M self-applicable Ethernet interface, 2KV electromagnetic isolation;
* 2 CAN channels, 2.5KVDC withstand voltage isolation;
* CAN port baud rate 5k~1000kbps can be set arbitrarily;
* Embedded hardware watchdog timer;
* Power supply voltage range 9V ~ 24V DC;
* Working temperature: -40℃～70℃;
* Humidity: 5% - 95% RH, no condensation;
* Rugged metal housing, SECC metal (1.1 mm);
* Designed for industrial environments.

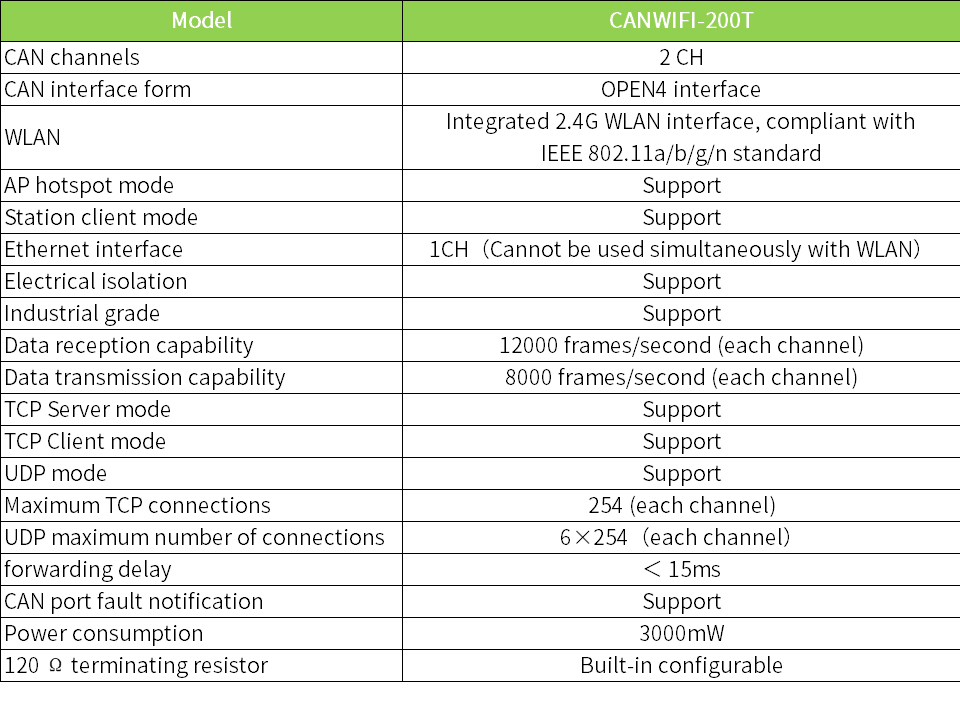

Product Parameter

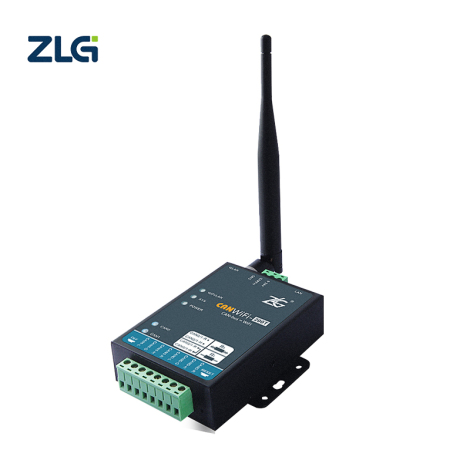

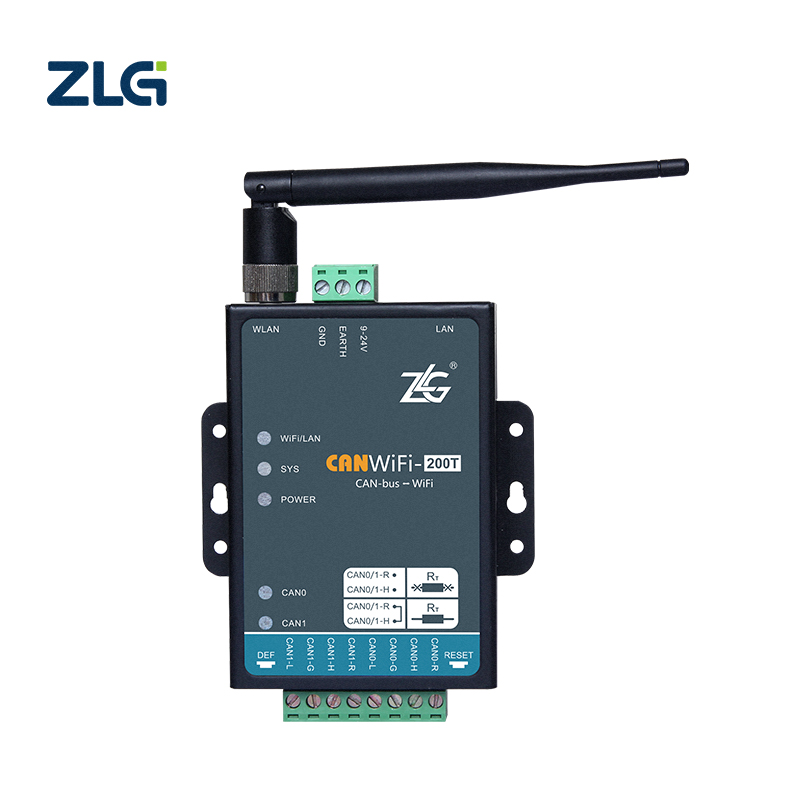

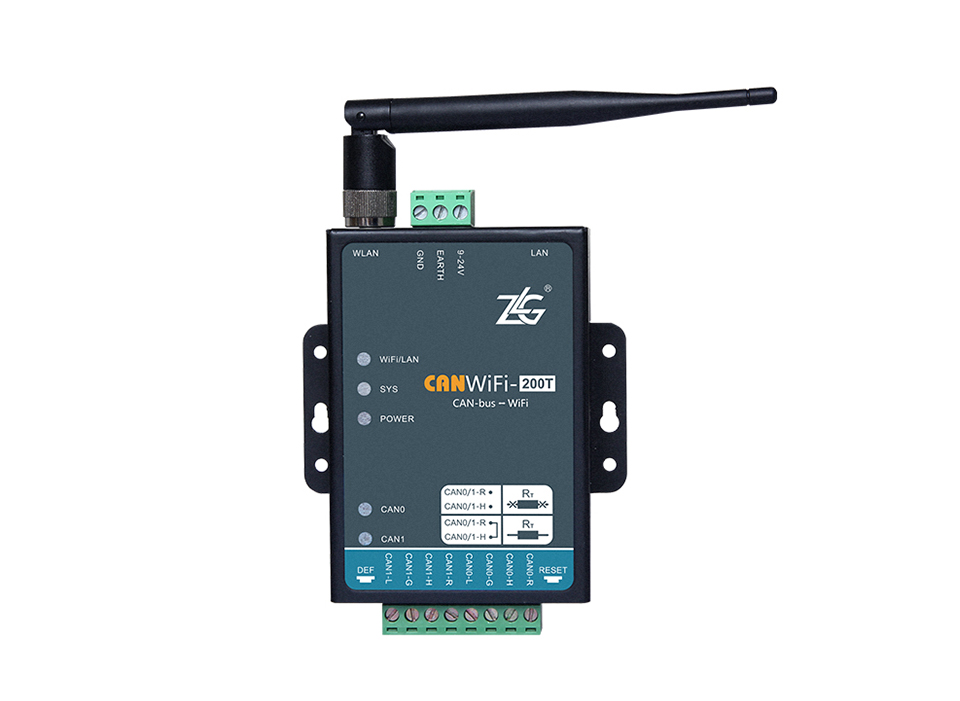

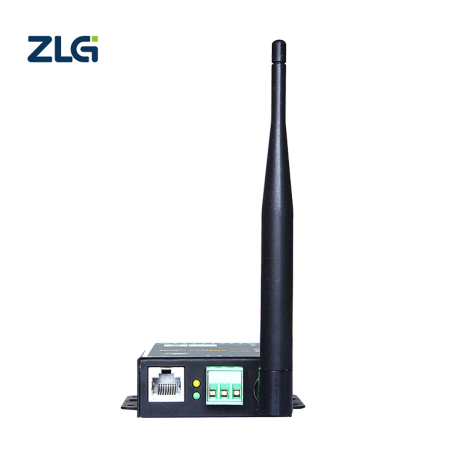

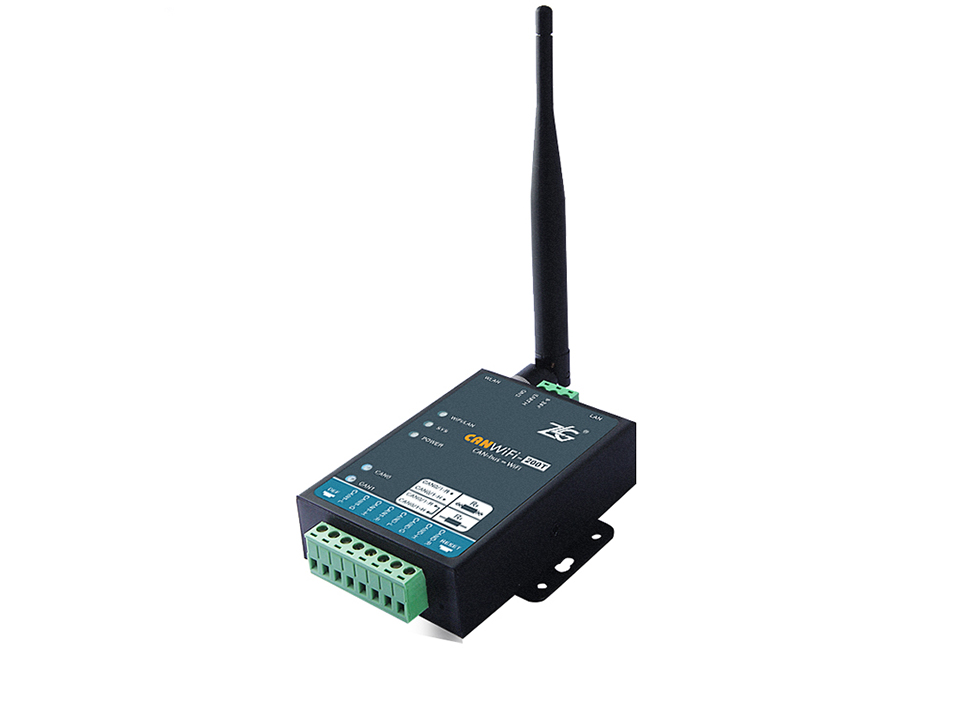

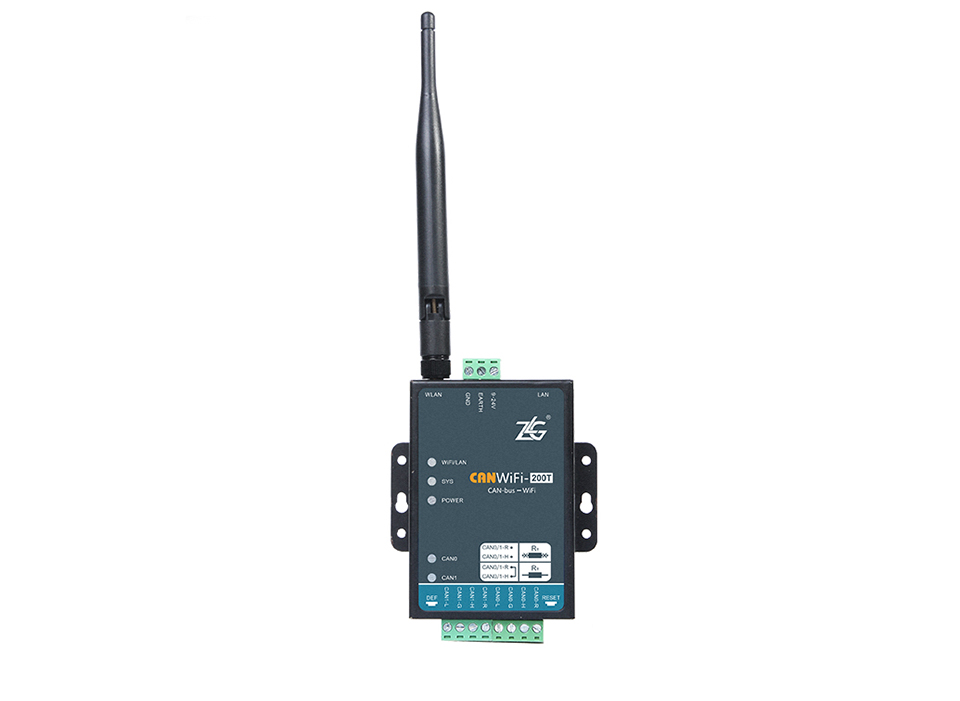

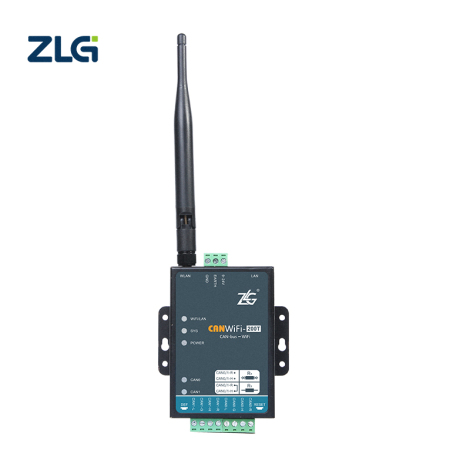

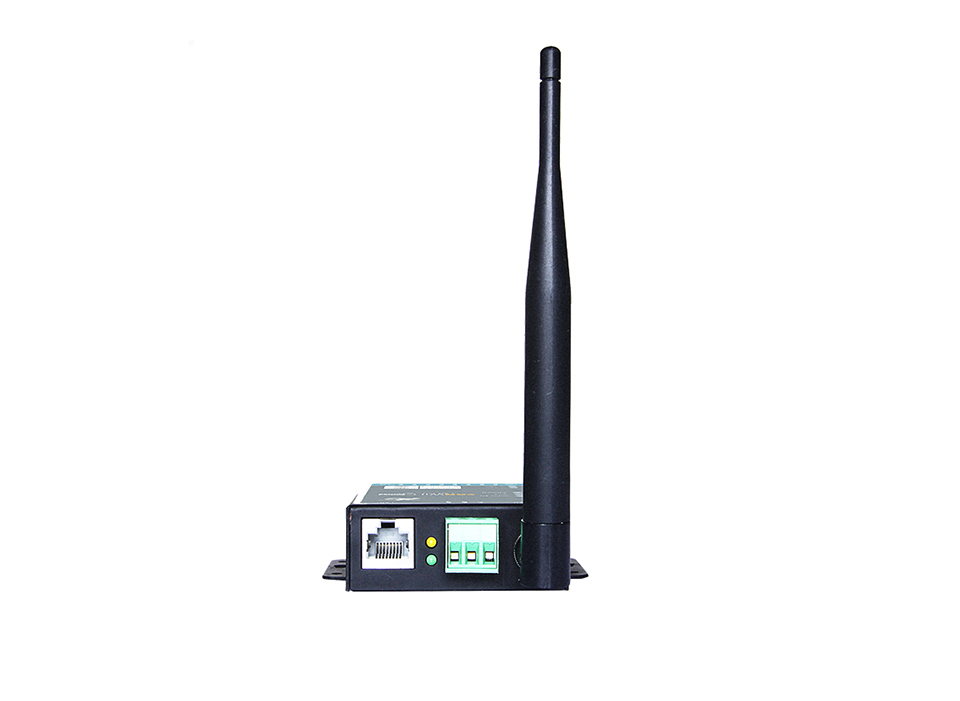

Product Picture
Driver & Software
All our products have free drivers and PC software.
If you need, please contact us.
We will send the corresponding product drivers and software to your mailbox.
Thank you.
If you need, please contact us.
We will send the corresponding product drivers and software to your mailbox.
Thank you.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | ZLG |
Model Number | CANWIFI-200T |
Product name | CANWIFI-200T |
CAN channels | 2 CH |
CAN interface form | OPEN4 interface |
WLAN | 2.4G WLAN interface, compliant with IEEE 802.11a/b/g/n standard |
AP Hotspot Mode | Support |
Station Client Mode | Support |
Ethernet Interface | 1 CH (not to be used at the same time as WLAN) |
Data receiving capacity | 12,000 fps (per channel) |
Data sending capability | 8,000 fps (each way) |
120 Ω termination resistor | Built-in configurable |
