Product Overview

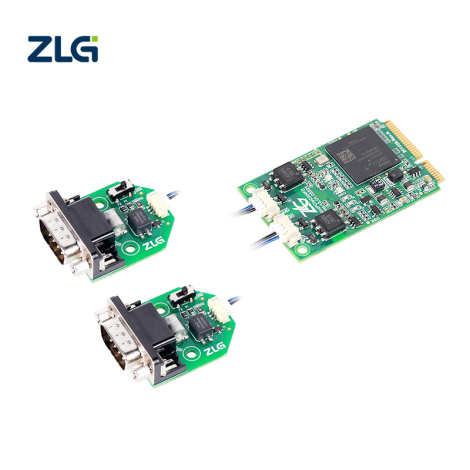

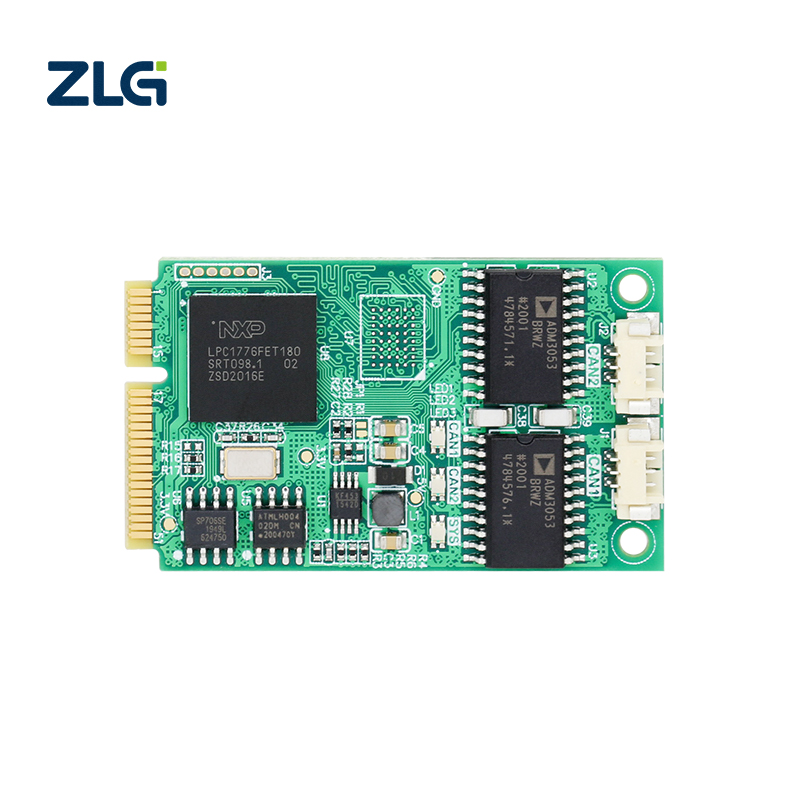

MiniPCIeCAN series is a high-performance MiniPCIe interface CAN card launched by Zhiyuan Electronics. It can extend the motherboard with MiniPCIe card slot to two CAN interfaces. It adopts standard MiniPCIe board size and can be easily installed on notebook computers with MiniPCIe interface.
* Interface with industrial computer: using standard MiniPCIe interface;
* Communication method with industrial computer: USB2.0 pin in MiniPCIe interface;
* Power supply mode: using MiniPCIe interface 3.3V power supply, power consumption 200mA;
* Number of CAN channels: 2-channel isolated CAN interface;
* The CAN TTL signal can be switched to the second function IO, which is convenient to design the CAN transceiver circuit by yourself;
* CAN supports both CAN2.0A and CAN2.0B protocols, in line with ISO/DIS 11898-1/2/3 standards;
* CAN baud rate: programmable and set arbitrarily, the range is between 5Kbps ~ 1Mbps;
* Maximum frame flow: single channel can be up to 14000 frames per second (1M baud rate, standard remote frame);
* CAN channel adopts electromagnetic isolation, DC/DC power isolation, isolation voltage: 2500VDC;
* CAN interface EMC level: contact discharge ±4KV, group pulse ±1KV;
* Support Win2000, WinXP, Win7, Win8 operating system and Linux2.4, Linux2.6 operating system;
* Can be used in environments with safety and explosion-proof requirements;
* Installation method: standard MiniPCIe card slot, small size, plug and play;
* Working temperature -40~85℃;
* Standard MiniPCIe board size 30mm(W)*50.95mm(L)
* Interface with industrial computer: using standard MiniPCIe interface;
* Communication method with industrial computer: USB2.0 pin in MiniPCIe interface;
* Power supply mode: using MiniPCIe interface 3.3V power supply, power consumption 200mA;
* Number of CAN channels: 2-channel isolated CAN interface;
* The CAN TTL signal can be switched to the second function IO, which is convenient to design the CAN transceiver circuit by yourself;
* CAN supports both CAN2.0A and CAN2.0B protocols, in line with ISO/DIS 11898-1/2/3 standards;
* CAN baud rate: programmable and set arbitrarily, the range is between 5Kbps ~ 1Mbps;
* Maximum frame flow: single channel can be up to 14000 frames per second (1M baud rate, standard remote frame);
* CAN channel adopts electromagnetic isolation, DC/DC power isolation, isolation voltage: 2500VDC;
* CAN interface EMC level: contact discharge ±4KV, group pulse ±1KV;
* Support Win2000, WinXP, Win7, Win8 operating system and Linux2.4, Linux2.6 operating system;
* Can be used in environments with safety and explosion-proof requirements;
* Installation method: standard MiniPCIe card slot, small size, plug and play;
* Working temperature -40~85℃;
* Standard MiniPCIe board size 30mm(W)*50.95mm(L)

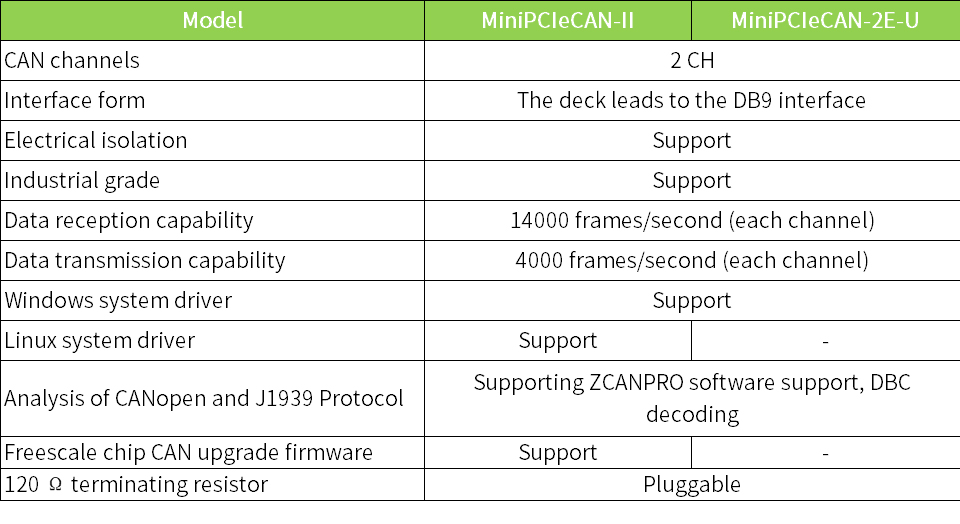

Product Parameter

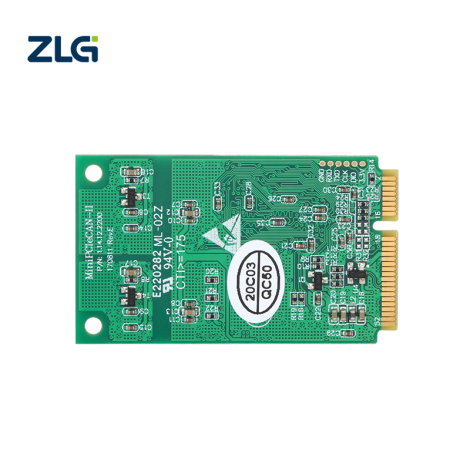

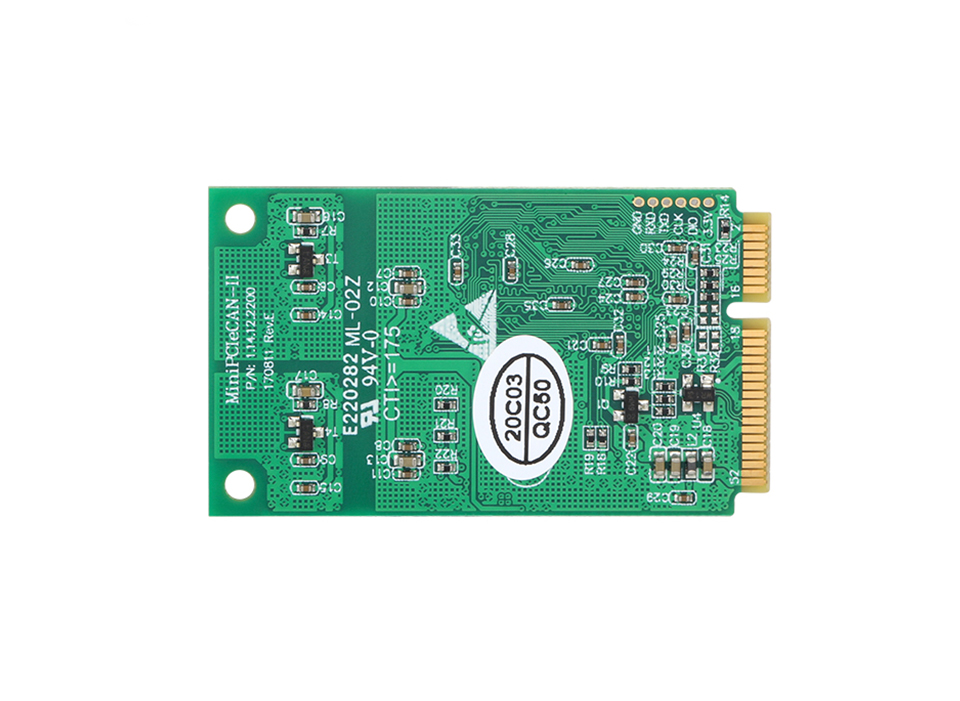

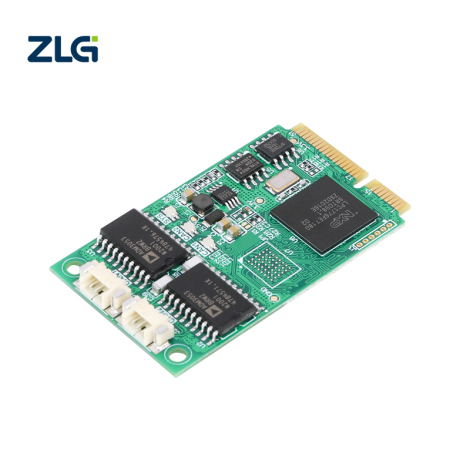

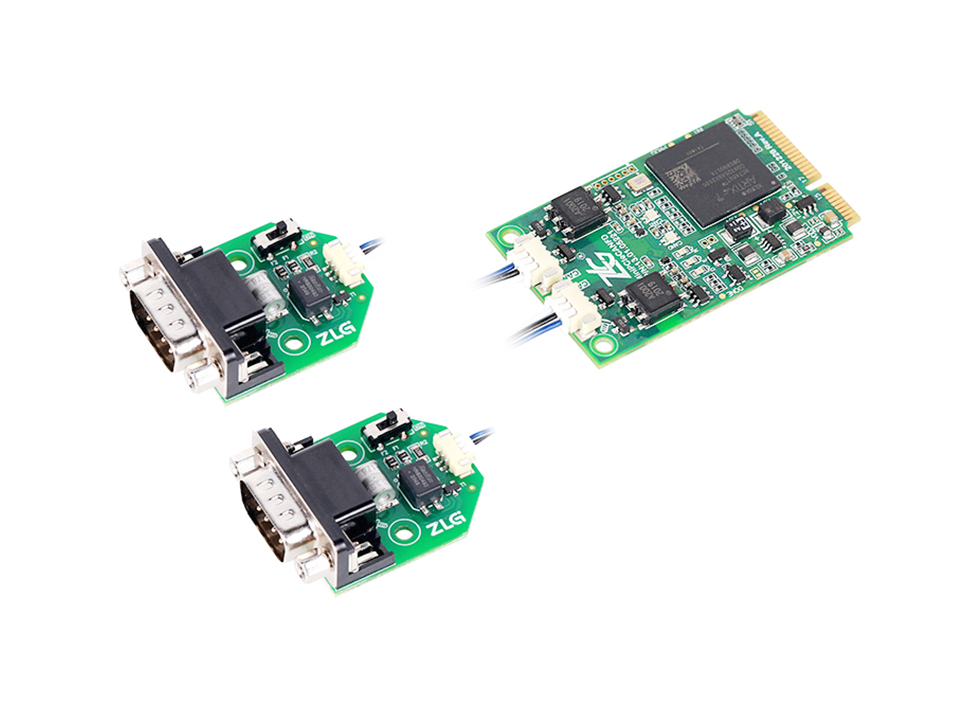

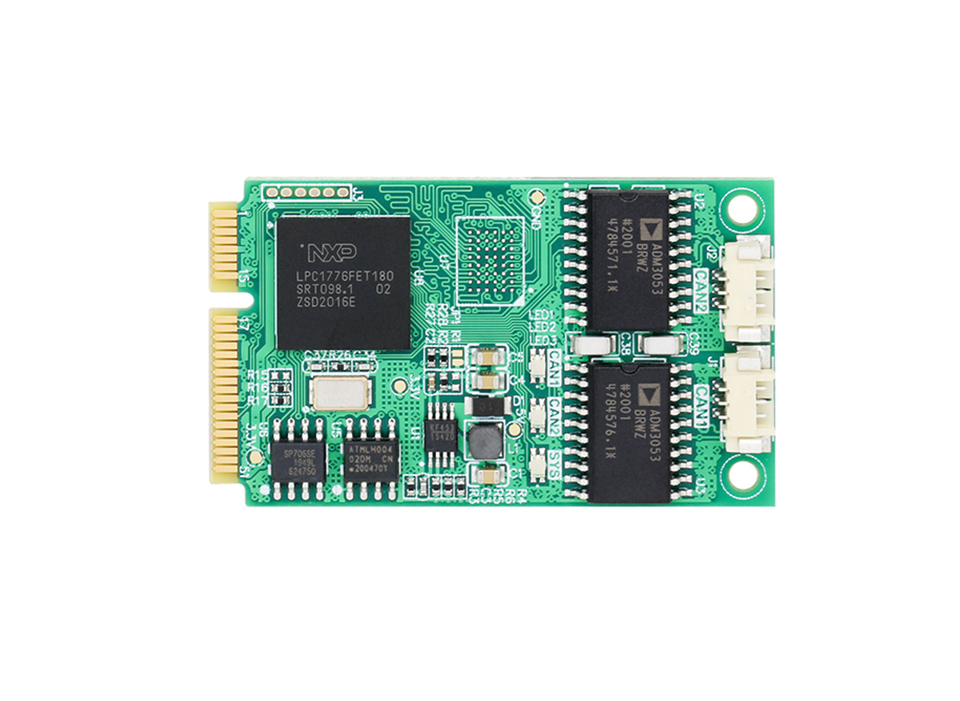

Product Picture
Driver & Software
All our products have free drivers and PC software.If you need, please contact us.
We will send the corresponding product drivers and software to your mailbox.
Thank you.
We will send the corresponding product drivers and software to your mailbox.
Thank you.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | ZLG |
Model Number | MiniPCIeCAN Series |
Product name | MiniPCIeCAN Series |
CAN channels | 2 CH |

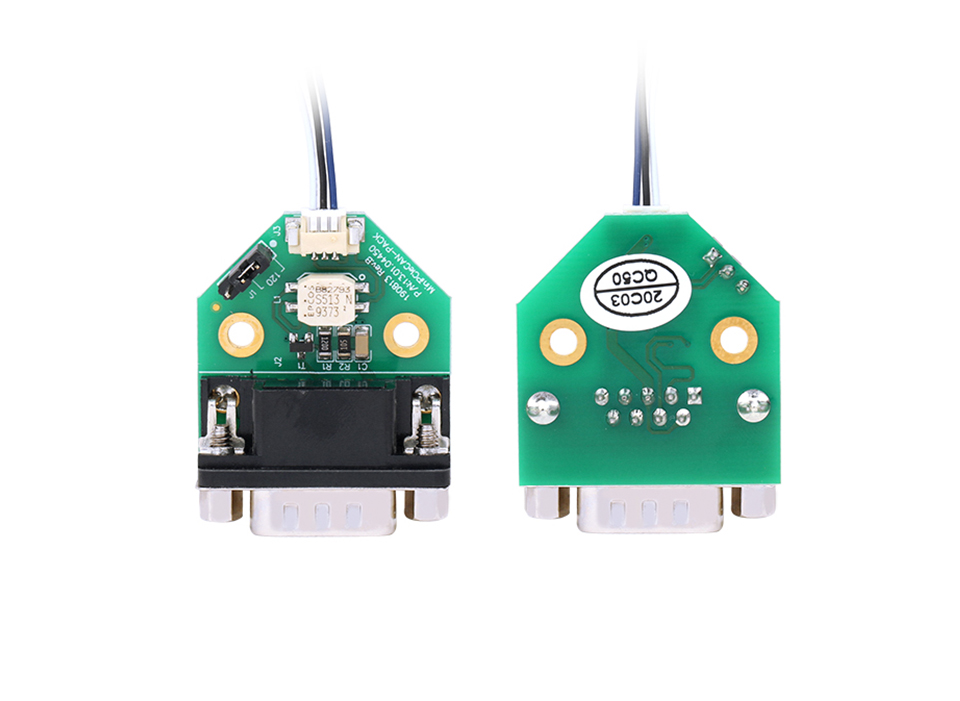

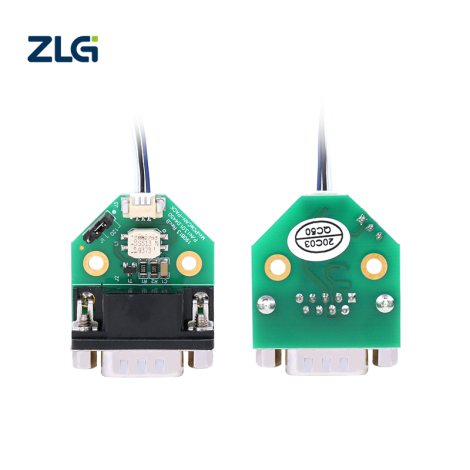

Interface form | Card holder leads to DB9 interface |
Data receiving capability | 14000 fps (per channel) |
Data sending capability | 3000/4000 fps (per channel) |
Windows system driver | Support |
Linux system driver | Support(MiniPCIeCAN-2E-U Not support) |
CANopen and J1939 protocol analysis | Equipped with ZCANPRO software support, DBC decoding |
120 Ω termination resistor | Pluggable |
