3nh 高精度光泽度计 60 度角测量仪，用于表面亮度评估，具有 1 年保修 YG60
$
223.60
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Product Description
YG60 60°Accurate Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
Advantages
Product Parameters
| Model | YG60 60°Accurate Gloss Meter |
| Measuring Angle | 60° |
| Measuring Range | 60°: 0-1000GU |
| Division Value | 0.1GU |
| Measuring Modes | Basic mode; Statistic mode; Continuous mode; QC mode |
| Measuring Time | 0.5S |
| Repeatability | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
| Accurate | Conform with JJG696 first grade requirements of gloss meter |
| Auto Power-off Time | Within 30s-120s |
| Long-time Calibration | Automatically check and made the calibration |
| Language | Chinese & English |
| Storage | 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) |
| Display | 2.3 inch white and black screen |
| Size | 160*52*84mm |
| Weight | About 300g |
| Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge |
| Interface | USB & Bluetooth 2.1 version |
| PC Software | GQC6 QC software can printing testing report and with more extended functions |
| Operation Temperature Range | 0-40ºC(32-104° F) |
| Storage Temperature Range | -20-50ºC(-4-122° F) |
| Humidity Range | < 85% RH, without condensation |

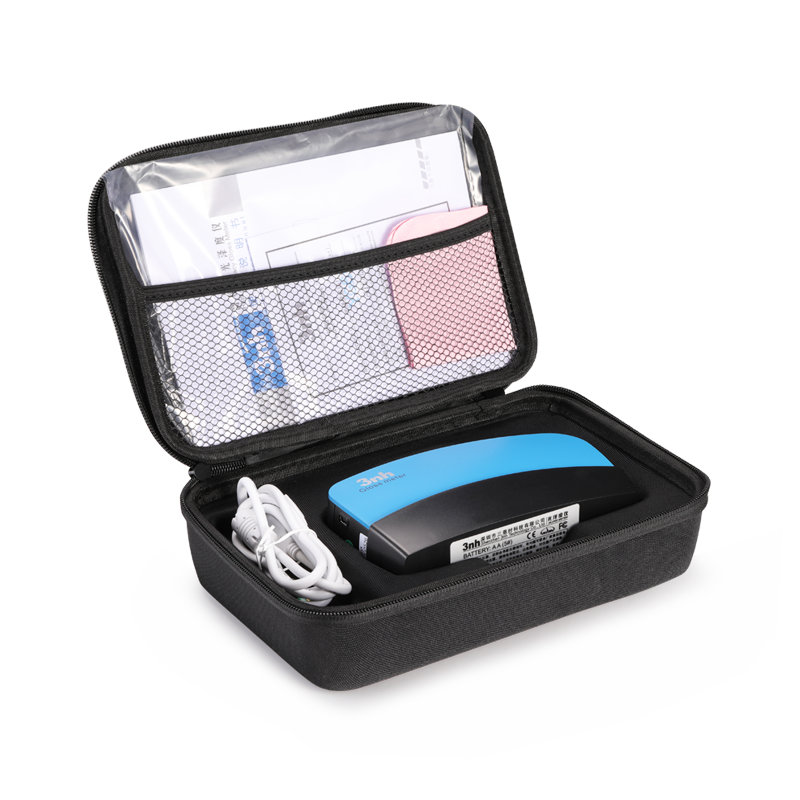

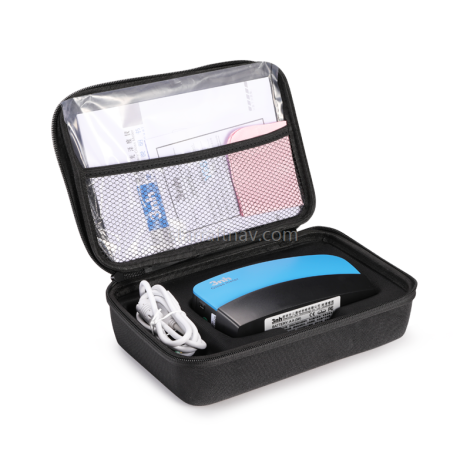

| Standard Accessories | USB cable, user manual, calibration plate, QC software |
| Optional Accessories | Miniature printer,Bluetooth |
| Notification: the technical parameter is only for reference |

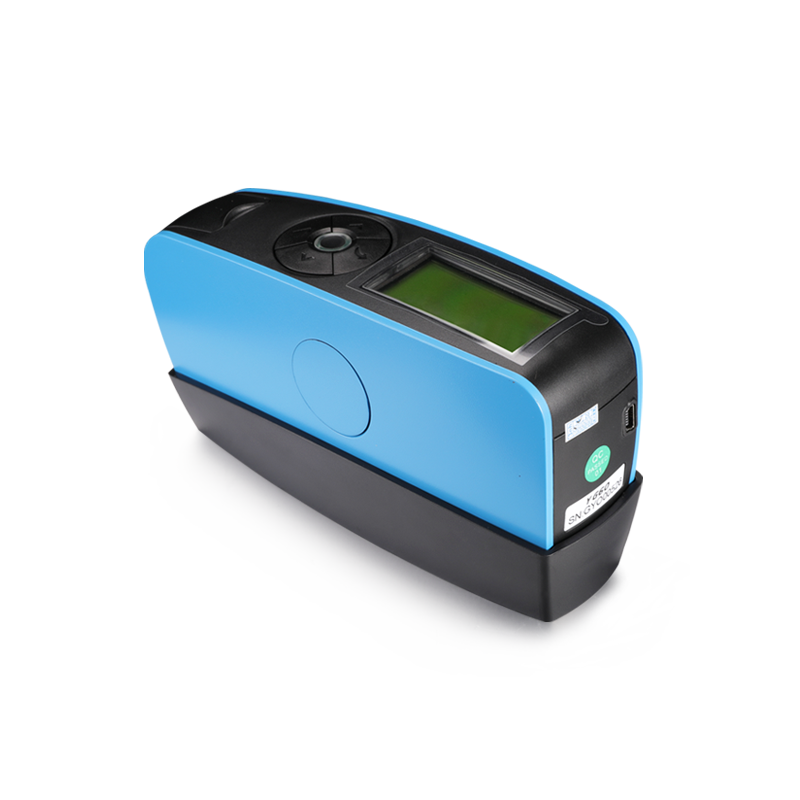

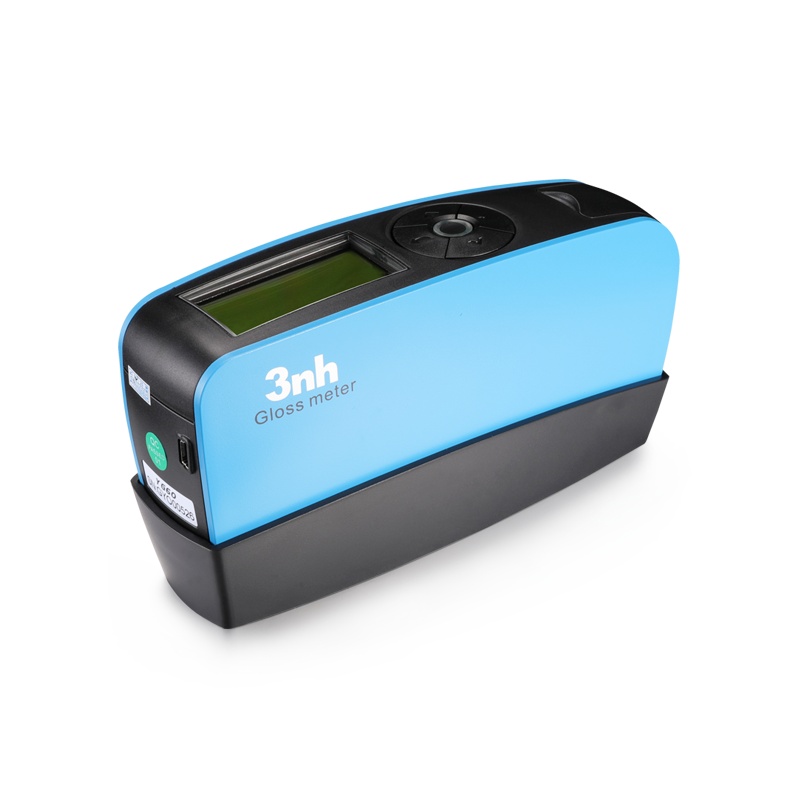

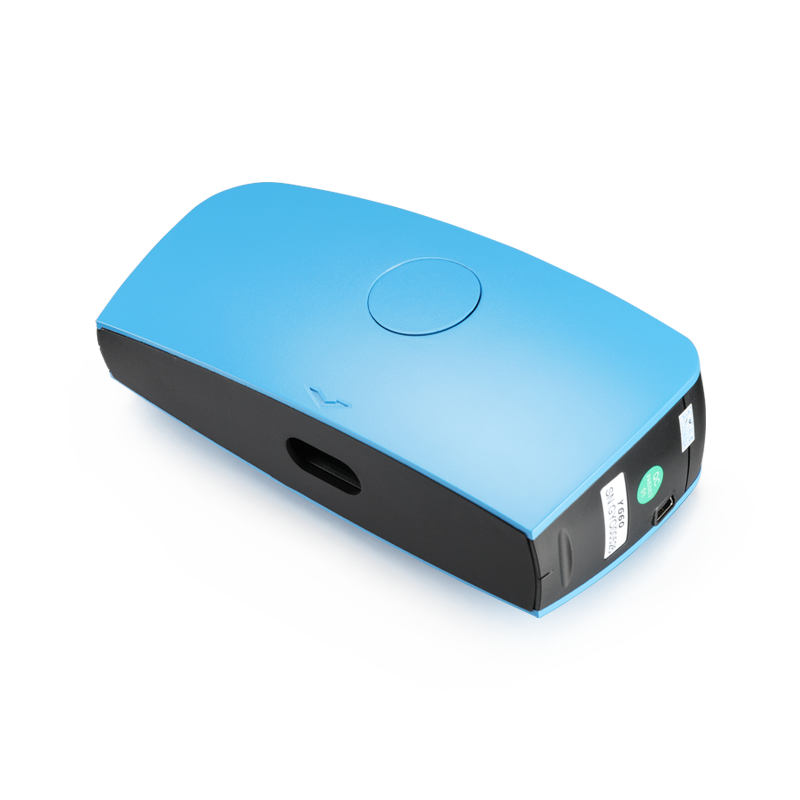

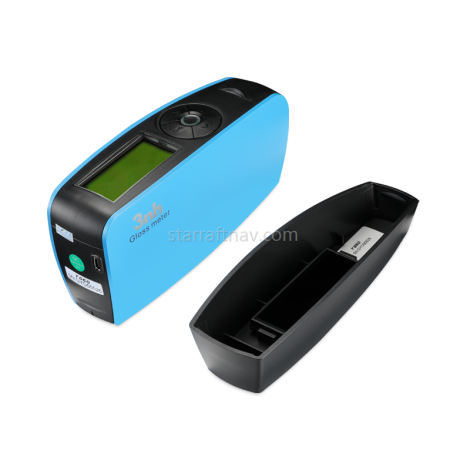

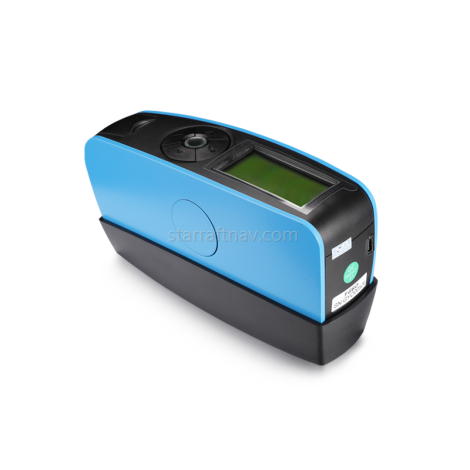

Detailed Images
