ZLG CANET-E-U工业以太网到具有2.5千伏隔离和TCP/UDP协议的CAN转换器

Product Detail

Product Description

The ZLG CANET-E-U is a rugged industrial-grade gateway designed to seamlessly bridge CAN-bus networks with Gigabit Ethernet, enabling reliable data exchange in harsh environments like automotive diagnostics, smart factories, and energy management systems.

Key Features

1. High-Speed Dual-Network Integration

   • Gigabit Ethernet Port: 10/100/1000 Mbps adaptive interface with 2KV electromagnetic isolation for stable communication under voltage fluctuations

   • CAN-bus Interface: 1 channel with 2.5KVDC isolation, supporting baud rates from 5 Kbps to 1 Mbps for CAN 2.0A/B compatibility

     Industrial Robustness

2. • Operates in **-40°C to +85°C** with humidity tolerance up to 95% RH (non-condensing)

   • EMC/ESD Protection:
     • ESD Resistance: ±15kV (air discharge), ±8kV (contact discharge)

     • EFT/Surge Protection: ±2KV on power/signal ports for reliability in high-interference environments like mining or EV charging stations


3. Advanced Protocol Handling

   • Multi-Protocol Support: TCP Server/Client, UDP, DHCP, DNS, and ICMP for seamless IoT integration

   • High-Capacity Networking:
     • 200 concurrent TCP connections and 6 IP segments per CAN port for multi-user management

     • CAN Frame Filtering: Whitelist up to 64 IDs per channel to reduce bus load by 80%


4. Smart Diagnostics & Configuration

   • Hardware Watchdog: Auto-reboots to recover from system faults

   • ZneCom Software: Preloaded Windows tools (v2.81+) for real-time monitoring, firmware upgrades, and custom rule setup (e.g., CAN frame splitting/merging)


5. Flexible Power & Certifications

   • Wide Voltage Input: 6.5–30V DC (9–24V nominal) with <2W power consumption

   • Certifications: CE, RoHS 2.0, and industrial-grade EMI/ESD compliance


Applications

• Automotive: Remote ECU diagnostics, EV charging pile networks.

• Industrial: PLC control in harsh environments (e.g., mining, chemical plants).

• Energy: Smart grid monitoring and power distribution systems.

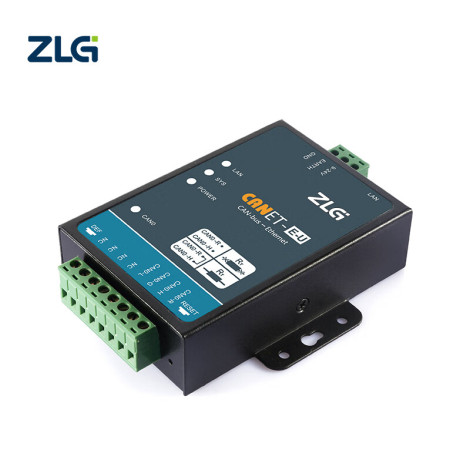

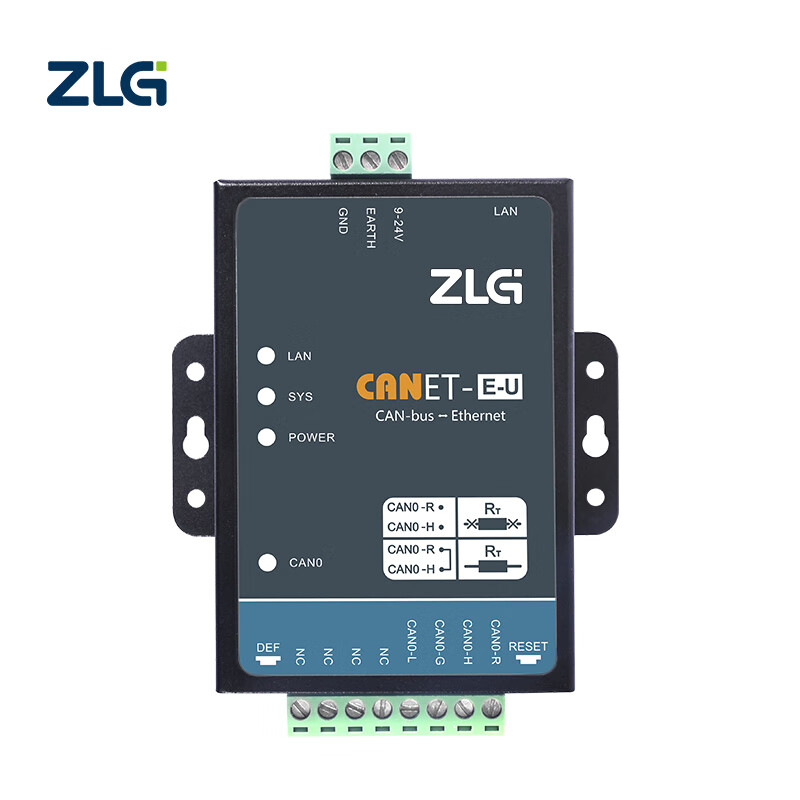

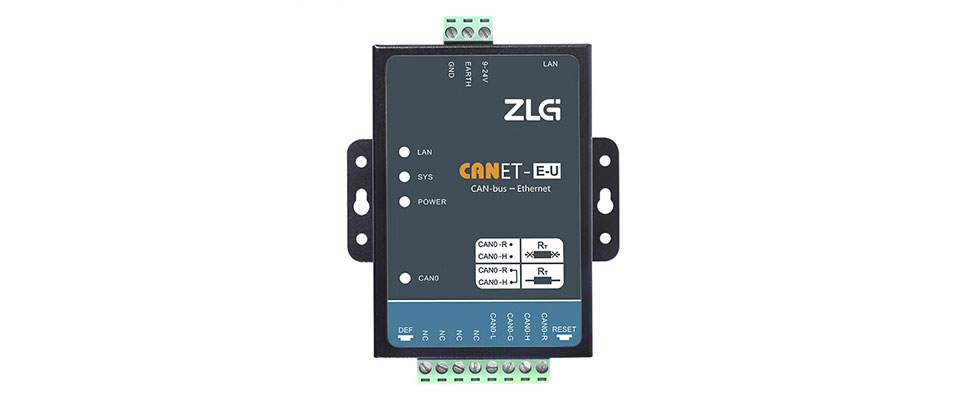

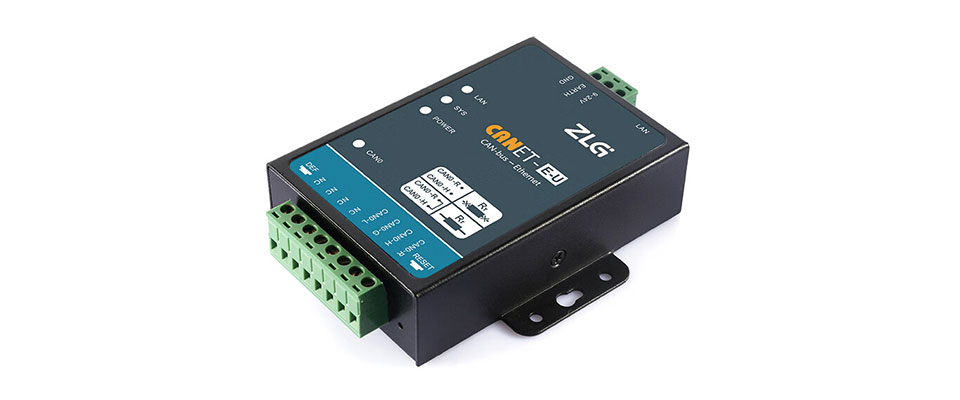

Pictures of CANET-E-U
