The ZLG CANFDBridge is an intelligent CAN FD protocol converter designed to enhance industrial and automotive communication systems by bridging CAN/CAN FD networks, resolving protocol mismatches, and extending signal transmission distances. With dual-channel isolation and flexible data conversion modes, it ensures reliable communication in high-interference environments such as electric vehicles, mining equipment, and smart factories

Core Features

1. Dual-Channel Isolation & Robust Design

   • Two fully isolated CAN(FD) channels with 2500V DC electrical isolation to prevent ground loop interference and enhance reliability in harsh environments (e.g., automotive motor control, mining systems)

   • Operates in extreme temperatures (-40°C to +85°C) and supports explosion-proof requirements for hazardous industrial scenarios


2. Flexible Protocol Conversion

   • Seamless conversion between CAN ↔ CAN, CAN ↔ CAN FD, and CAN FD ↔ CAN FD networks, supporting mixed networks during phased upgrades
     Advanced data handling:
   • • Frame Mapping: Transform specific IDs/data fields for compatibility (e.g., battery pack testing with identical BMS configurations)

     • Merge/Split: Combine multiple 8-byte CAN frames into 64-byte CAN FD packets (or vice versa) to optimize bandwidth


3. High-Speed & Low Latency

   • Achieves 6,000 frames/sec (CAN) and 4,600 frames/sec (CAN FD) throughput with **<60μs latency**, ideal for real-time control in AGVs and robotic systems

   • Customizable baud rates (40Kbps–5Mbps) and terminal resistor toggling via configuration software


4. Enhanced Network Diagnostics

   • Hardware Filtering: Whitelist up to 64 standard/extended IDs per channel to reduce bus load by 80%
     Error Monitoring: Auto-reports error counters and channel status via USB for rapid fault diagnosis (e.g., EMI-induced CAN bus errors in EV charging systems)
   •

5. Plug-and-Play Configuration

   • Preloaded with ZCANPRO software for rule setup (mapping, merging) and offline operation after initial USB configuration


Technical Specifications

• Isolation Voltage: 2500V DC

• Power Consumption: <2W

• Compliance: CE/FCC/RoHS

• Certifications: Industrial-grade EMI/ESD protection

Applications

• Automotive: CAN FD upgrades for ADAS/ECU diagnostics, EV charging pile networks

• Industrial: Remote monitoring in mining, PLC control systems, and power grid communications


• IoT Integration: Extend CAN FD networks to cloud platforms via Ethernet/WiFi gateways

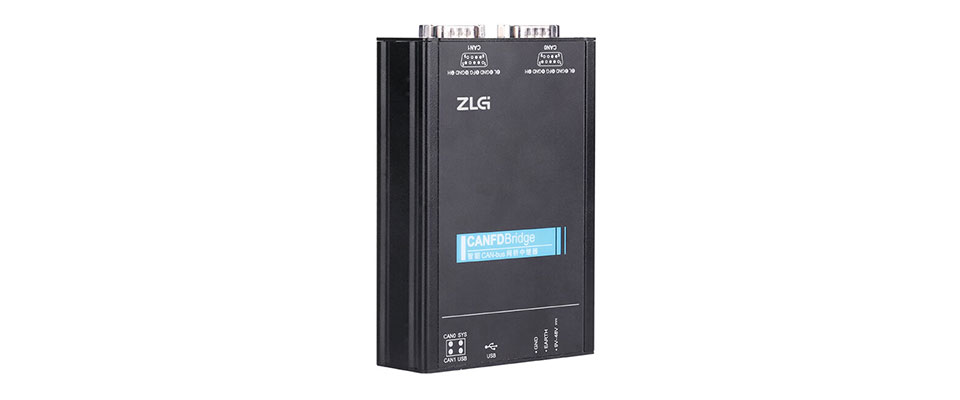

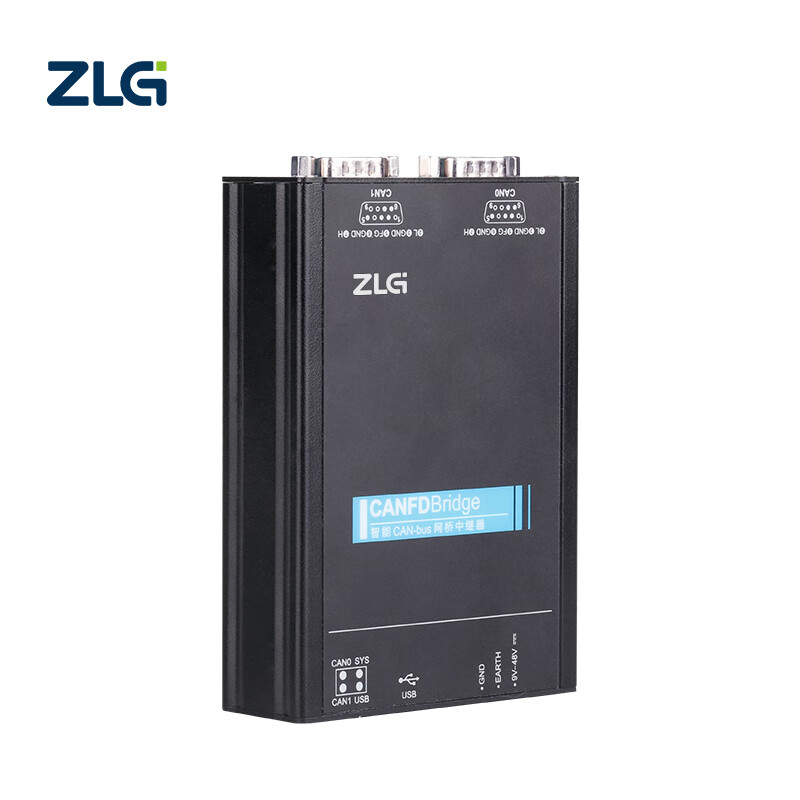

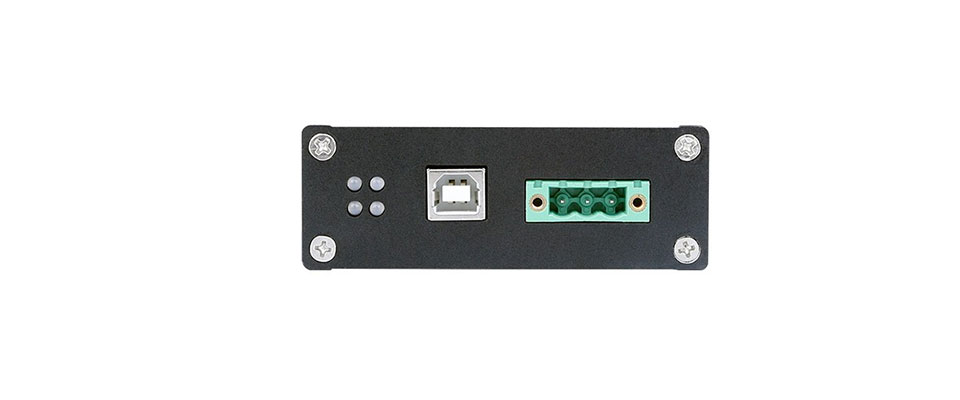

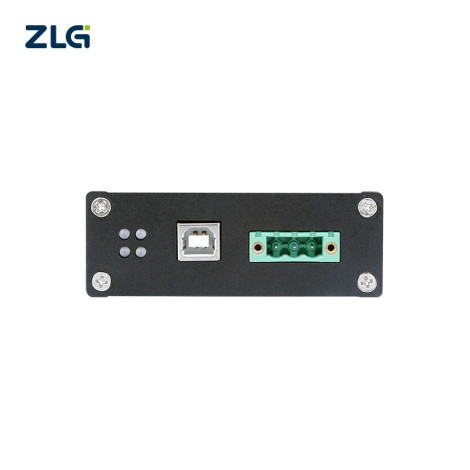

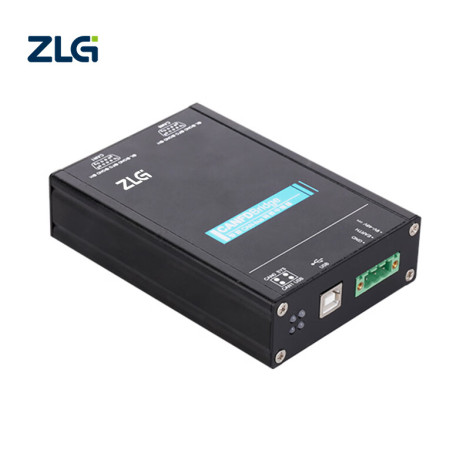

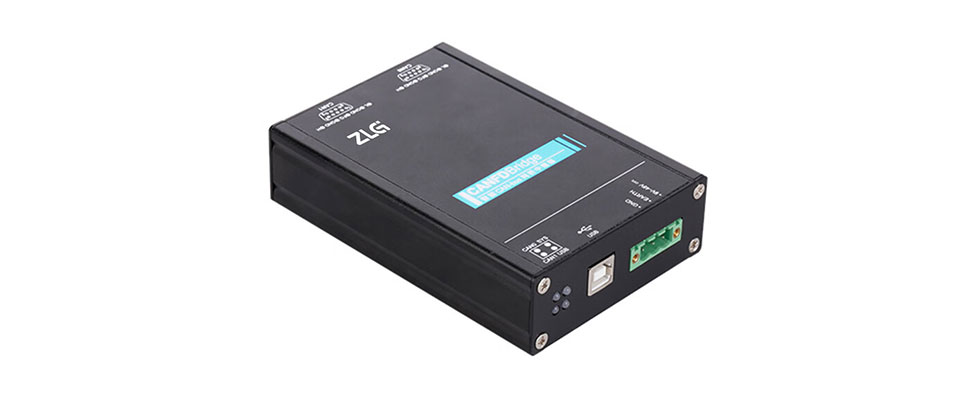

Pictures of CANFDBridge
