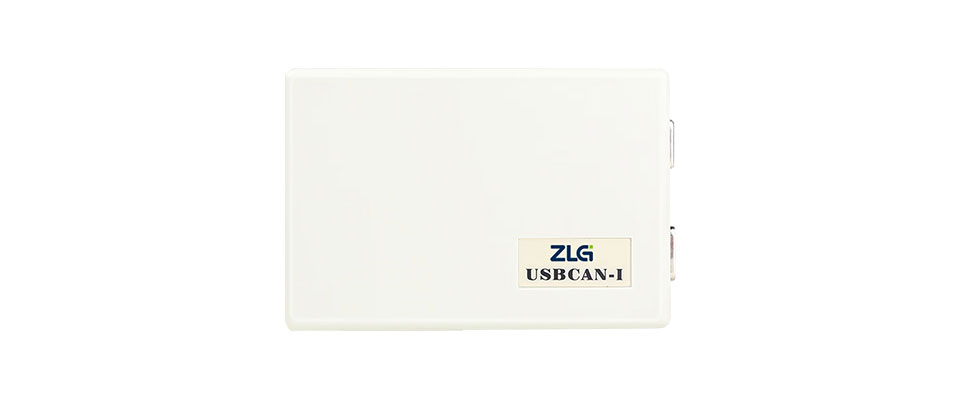

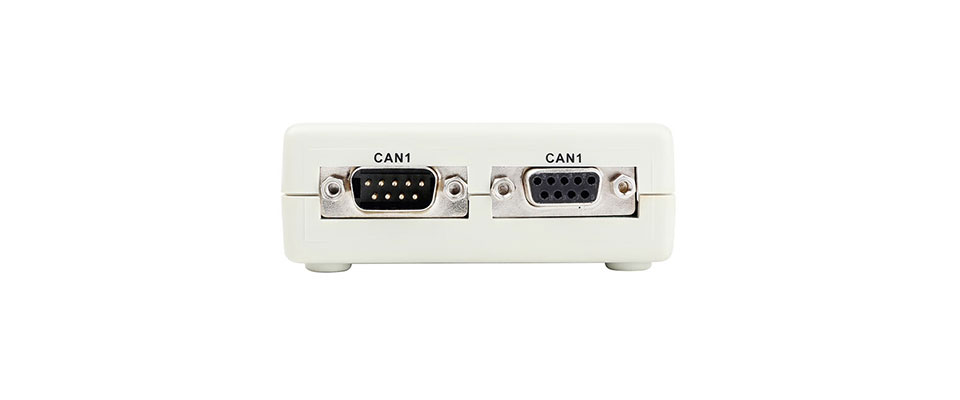

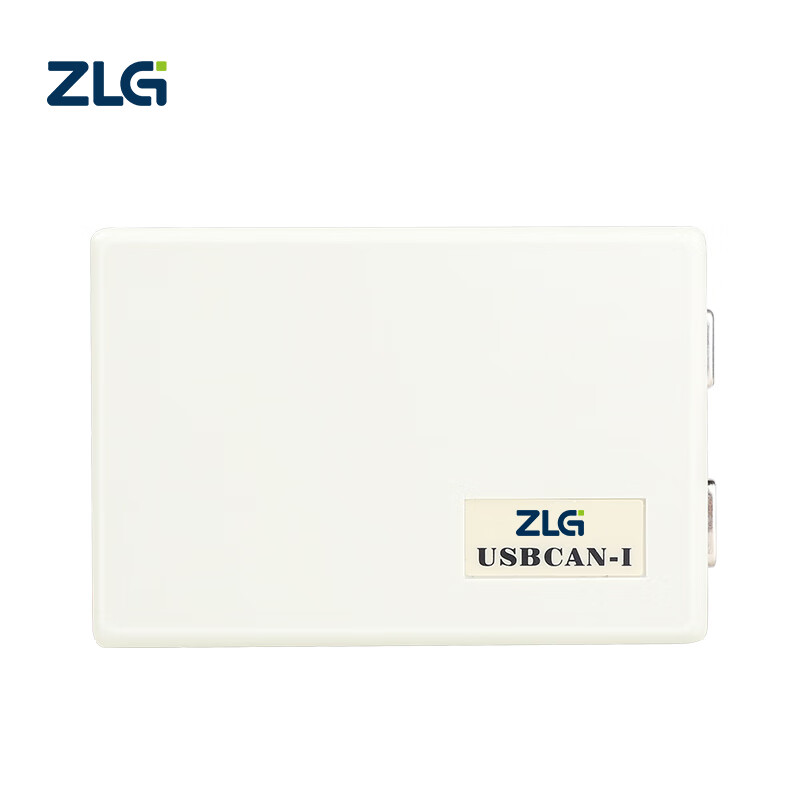

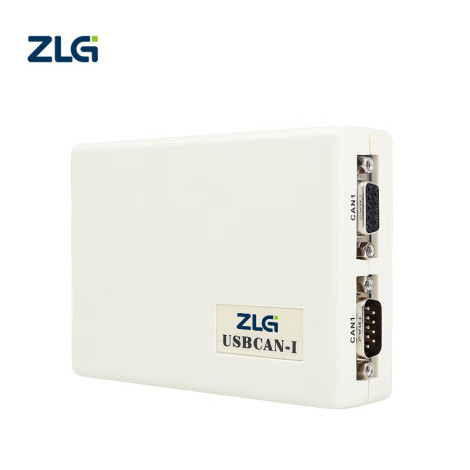

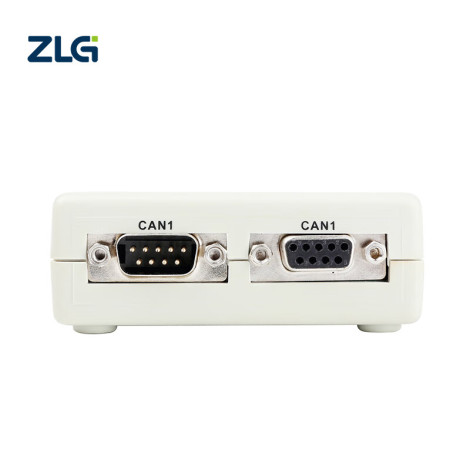

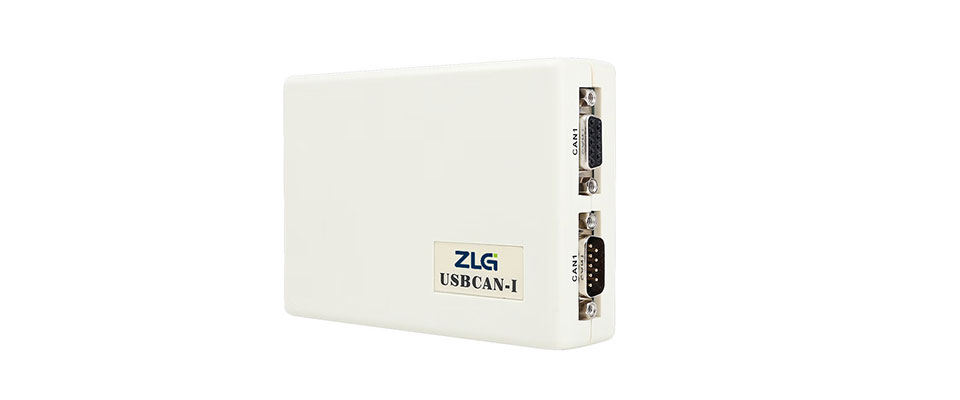

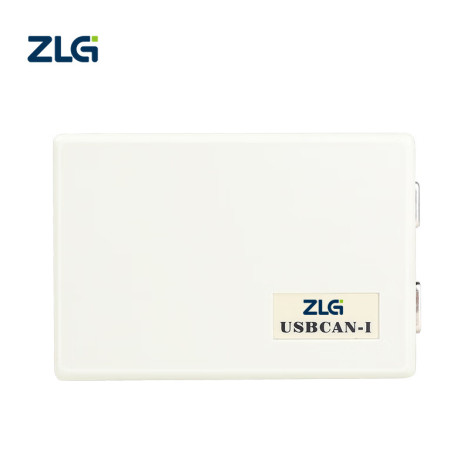

ZLG USBCAN-I Single Channel CAN Bus Analyzer
Professional CAN 2.0/J1939 Monitoring for Automotive & Industrial Systems
Core Features
1Mbps High-Speed CAN Analysis
Capture and decode CAN 2.0A/B frames in real-time via USB 2.0, optimized for J1939/OBD-II diagnostics and industrial bus data logging.
SAE J1939 Protocol Support
Pre-configured parsing for heavy-duty vehicle data (RPM, DTC fault codes, ECU signals) without additional software.
Compact Single-Channel Design
Space-efficient architecture for portable diagnostics, embedded systems, or tight control cabinet installations.
Plug-and-Play USB Operation
No external power required – fully powered through USB 2.0. Includes free ZCANAnalyzer software (Windows/Linux compatible).
Industrial-Grade Reliability
Operates in extreme temperatures (-40°C to +85°C) with 2500V DC isolation and EMI/ESD protection for harsh environments.
Technical Specifications
CAN Channels: 1 (ISO 11898-2 compliant)
Baud Rate Range: 10kbps to 1Mbps (software configurable)
USB Interface: Type-A connector, 480Mbps transfer speed
Isolation: 2500V DC between CAN and USB sides
OS Compatibility: Windows 7/10/11, Linux (Python/C#/LabVIEW API included)
Dimensions: 95mm × 65mm × 24mm (3.7 × 2.5 × 0.9 inches)
Typical Applications
Automotive Repair: OBD-II diagnostics, ECU programming, EV battery management monitoring
Commercial Vehicles: J1939 telematics data collection for trucks, buses, and construction equipment
Industrial Automation: PLC communication debugging, production line CAN network analysis
Education & R&D: CAN protocol training, embedded system prototyping
Package Contents
1× USBCAN-I Analyzer Unit
1× USB-A to USB-A Cable (1.5m/4.9ft)
1× DB9 Male to 5-pin Terminal Adapter
1× Multilingual Quick Start Guide (English, German, French, Spanish)
Key Advantages of Single-Channel Design
Cost Efficiency: 30% more affordable than dual-channel alternatives for basic monitoring tasks.
Simplified Workflow: Eliminate channel-switching complexity in single-bus applications.
Scalable Solution: Easily add multiple units for multi-bus synchronization when needed.
Why Choose ZLG?
Industry Leader: 20+ years in CAN bus technology development
Certifications: CE, FCC, RoHS compliant
Global Support: 18-month warranty with lifetime technical assistance
Free Resources:
Step-by-step API documentation and video tutorials
Compatibility Note:
Requires driver installation (Windows/Linux).
For CAN FD or advanced protocol analysis (CANopen/DeviceNet), see [USBCAN-FD Series].
