ZLG USBCAN-E-迷你单通道USB转CAN适配器，带隔离，用于汽车工业CAN总线分析仪

Product Detail

Product Description:
The ZLG USBCAN-E-mini is a compact and rugged single-channel USB-to-CAN interface designed for automotive diagnostics, industrial automation, and embedded system development. Featuring 2500V DC isolation protection and CAN 2.0A/B protocol compatibility, this adapter ensures stable data transmission in high-noise environments.

Key Features:

• Industrial-Grade Isolation: 2500V DC isolation between USB and CAN interfaces eliminates ground loop interference and protects connected devices.

• High-Speed Communication: Supports CAN baud rates from 5Kbps to 1Mbps for real-time monitoring and control.

• Wide Compatibility: Compatible with Windows 7/10/11 systems (drivers and PCAN-View toolkit included).

• Compact Design: Ultra-portable size for fieldwork and integration into control cabinets.

• Robust Performance: Operates in extreme temperatures (-40℃ to +85℃) with 9-36V wide voltage input.

Technical Specifications:

• CAN Standard: ISO 11898-2 compliant

• Isolation Voltage: 2500V DC

• Baud Rate: 5Kbps–1Mbps (software-configurable)

• Power Supply: 5V DC (reverse-polarity protection)

• Operating Temperature: -20℃ to +80℃

• Certifications: CE, FCC, RoHS

Typical Applications:

• Automotive ECU programming and diagnostics

• Industrial machinery CAN bus monitoring

• UAV/AGV communication systems

• Laboratory equipment data acquisition

Package Includes:
1× USBCAN-E-mini Device
1× USB Cable
1× DB9-OPEN5 Adapter plate
1× Quick Start Guide

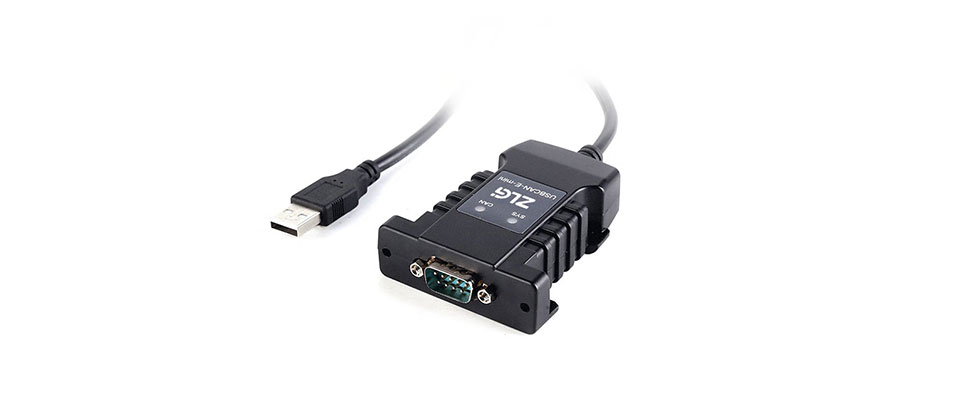

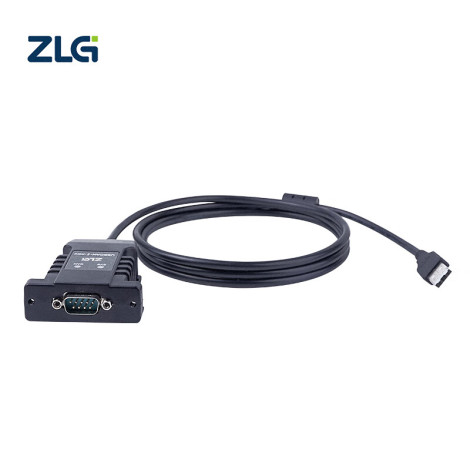

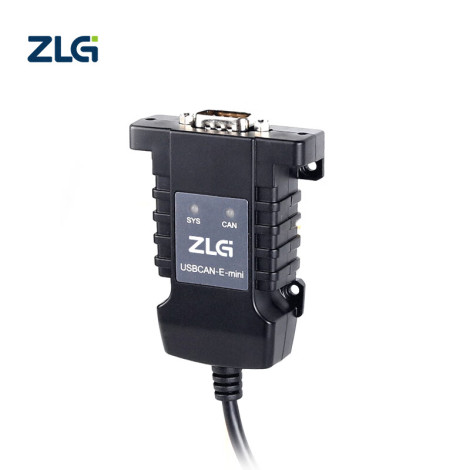

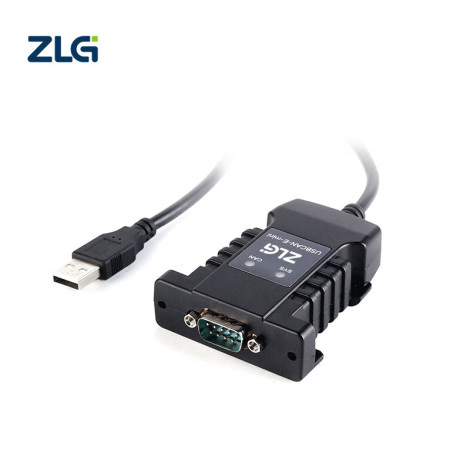

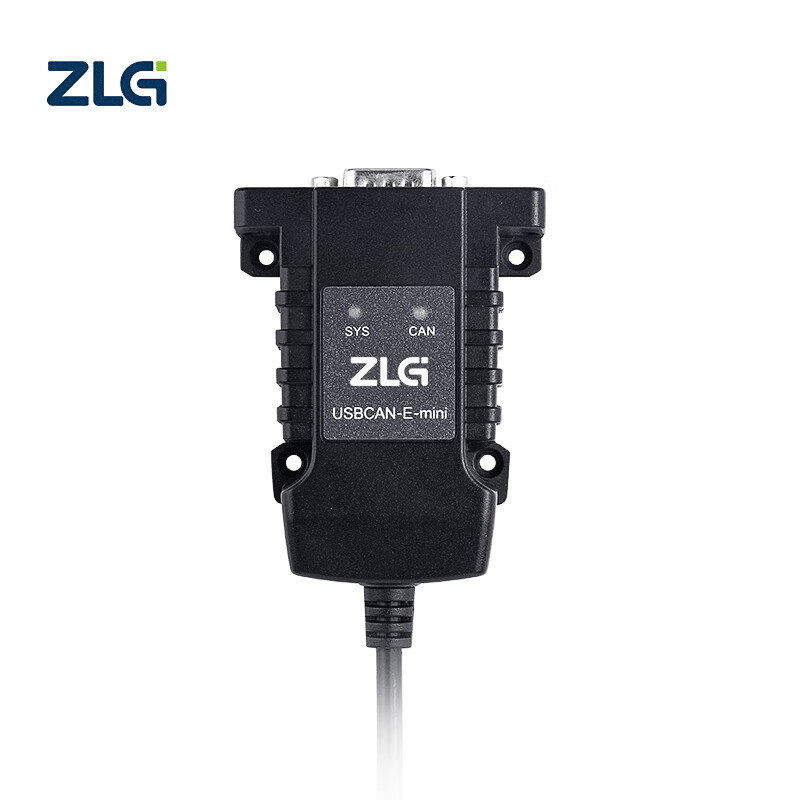

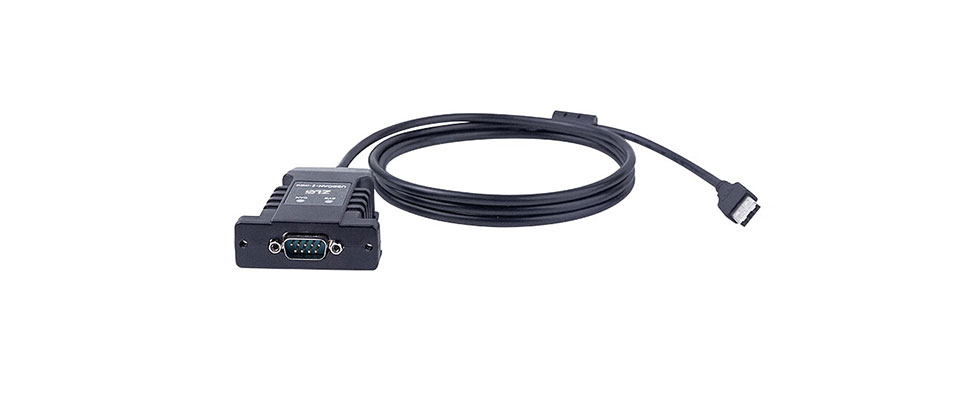

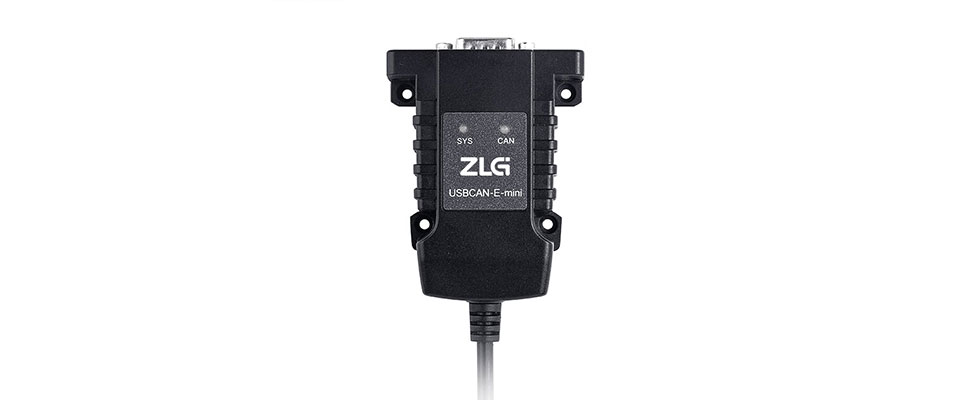

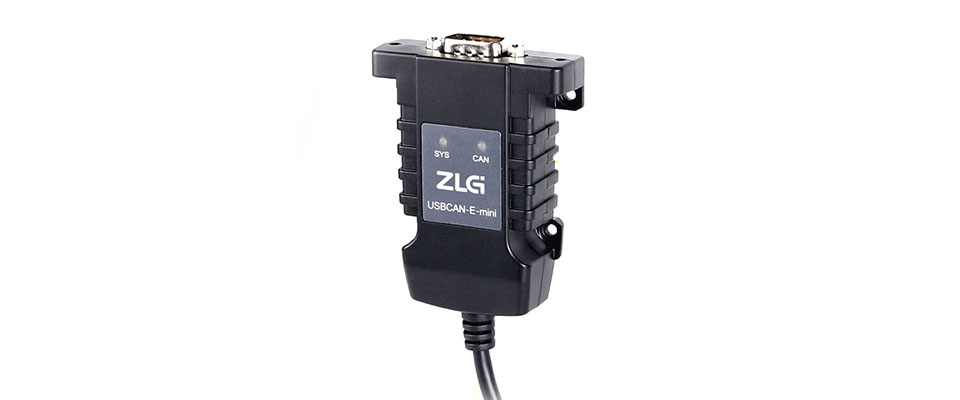

Pictures of USBCAN-E-mini:
