Keysight UXR1102B Infiniium UXR 系列示波器：110 GHz，2 通道 - 享受折扣
$
226673.06
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Bandwidth：5 to 110 GHz |
ADC Bits：10-bits |
Channels：1, 2, or 4 |
Max Memory Depth：2 GPts |
GSa/sec：128 or 256 |
Max DDC Bandwidth：2.16 GHz |

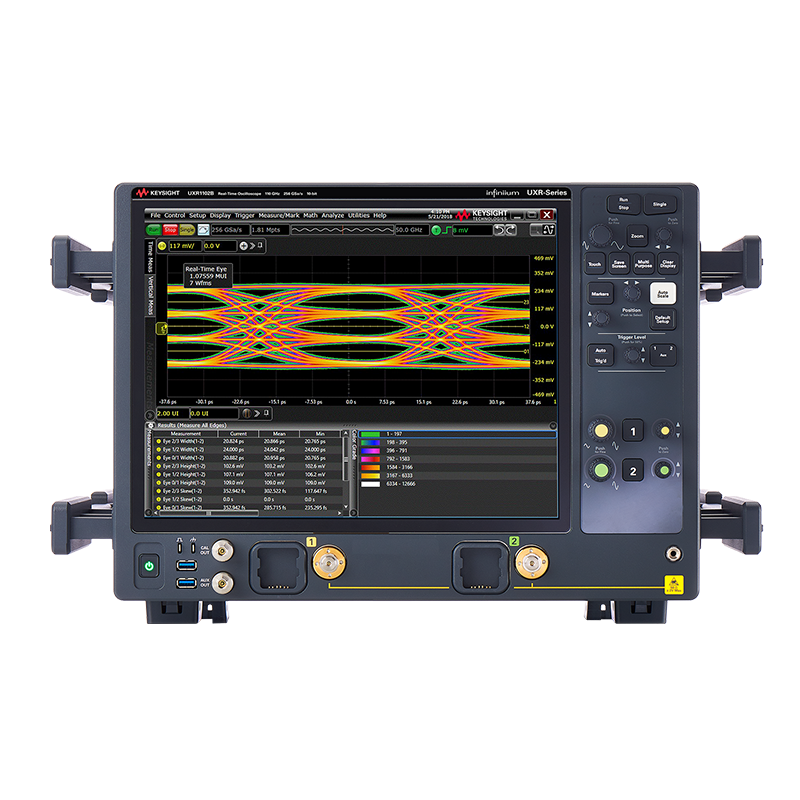

The UXR1102B is the 110 GHz, 2-channel, UXR-Series real-time Infiniium oscilloscope
110 GHz bandwidth 2 channels and upgradable to 4 channels500 Mpts of memory per channel included and upgradable to 2 Gpts of memory per channel256 GSa/s sample rate on all channels160 MHz DDC included and upgradable to 2.16 GHz DDC160 MHz RTSA included and upgradable to 320 MHz RTSAHigh-definition 10-bit analog-to-digital converter (ADC)The industry’s lowest noise and jitter measurement floorThe industry’s highest ENOB at all supported bandwidthOptional calibration module N2125A for on-site self-calibrationHigh-speed SDA and Clock Recovery includedUser-defined functions includedInfiniiSim Basic included to simply compensate for the channel loss with one block modelPrecisionProbe/PrecisionCable included helping quickly characterize the probe or cable lossWhat’s includedRemovable 960 GB enterprise grade SSD 2.5” hard driveOne Torque-Wrench 8 lb-in, 5/16 inchOne Torque-Wrench, 4-in-lb 6mm-open end Gold-HandleOne Torque-Wrench, Special Double-end 14mm-open end 4 and 10-in-lbOne per channel adapter, 1 mm Female Ruggedized to 1 mm FemaleOne per channel adapter, 1 mm Female Ruggedized to 1.85 mm FemaleOne adapter, 1 mm Female Ruggedized to 2.92 mm Female connectorOne connector saver, 3.5 mm Female-to-FemaleOne Wrench for fixed position, 2mm thick, dual-ended, fits 6mm and 7mmOne Wrench for fixed position, 2mm thick, dual-ended, fits 8mm both endsOne Wrench for fixed position, fits 12 mmCountry-specific power cordFront coverUSB keyboardUSB optical mouseESD mat with wrist and heel strapsCalibration Certificate
UXR0334B | Get Quote |
UXR0504B | Get Quote |
UXR1104B | $2,231,511 |
UXR0051BP | Get Quote |
UXR0134B | Get Quote |
UXR0104B | Get Quote |
UXR0164B | Get Quote |
UXR0204B | Get Quote |
UXR0252BP | Get Quote |
UXR0254B | Get Quote |
UXR0254BP | Get Quote |
UXR0402B | Get Quote |
UXR0402BP | Get Quote |
UXR0404B | Get Quote |
UXR0404BP | Get Quote |
UXR0502B | Get Quote |
UXR0592B | Get Quote |
UXR0592BP | Get Quote |
UXR0594B | Get Quote |
UXR0594BP | Get Quote |
UXR0702B | $852,039 |
UXR0702BP | $871,461 |
UXR0704B | $1,066,979 |
UXR0704BP | $1,201,728 |
UXR0802B | $1,024,445 |
UXR0804B | $1,280,266 |
UXR1002B | $1,531,888 |
UXR1004B | $1,954,333 |
UXR1102B | $1,700,514 |
