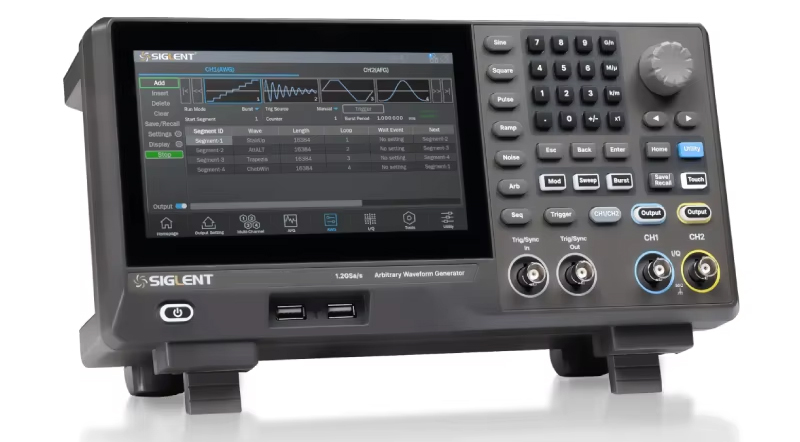

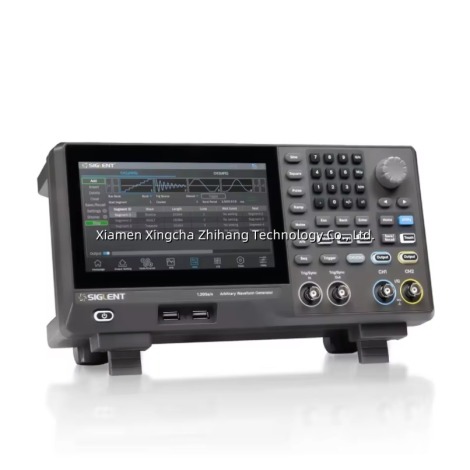

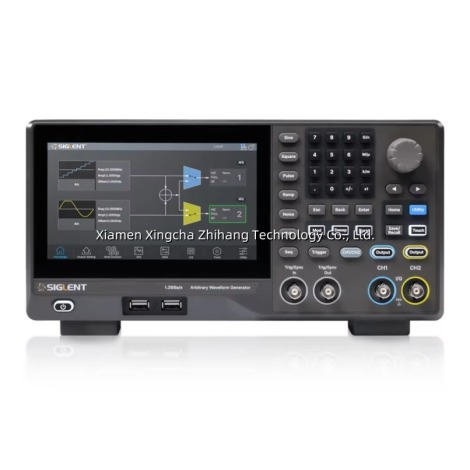

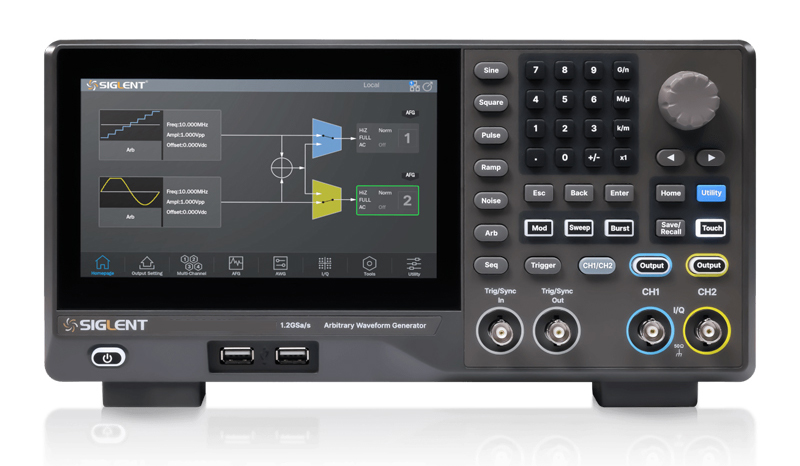

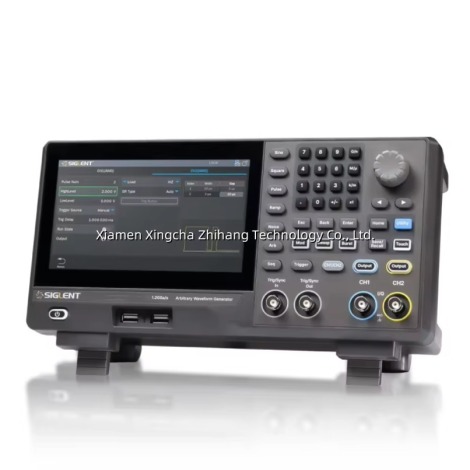

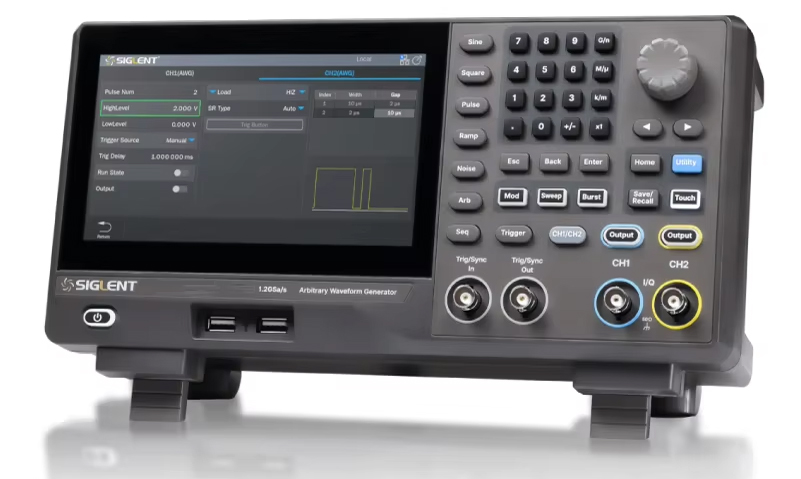

Siglent SDG3202X 2通道任意波形发生器 200MHz 1.2GSa/s 16位分辨率 正弦波 40Mpts 存储
$
1618.66
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail

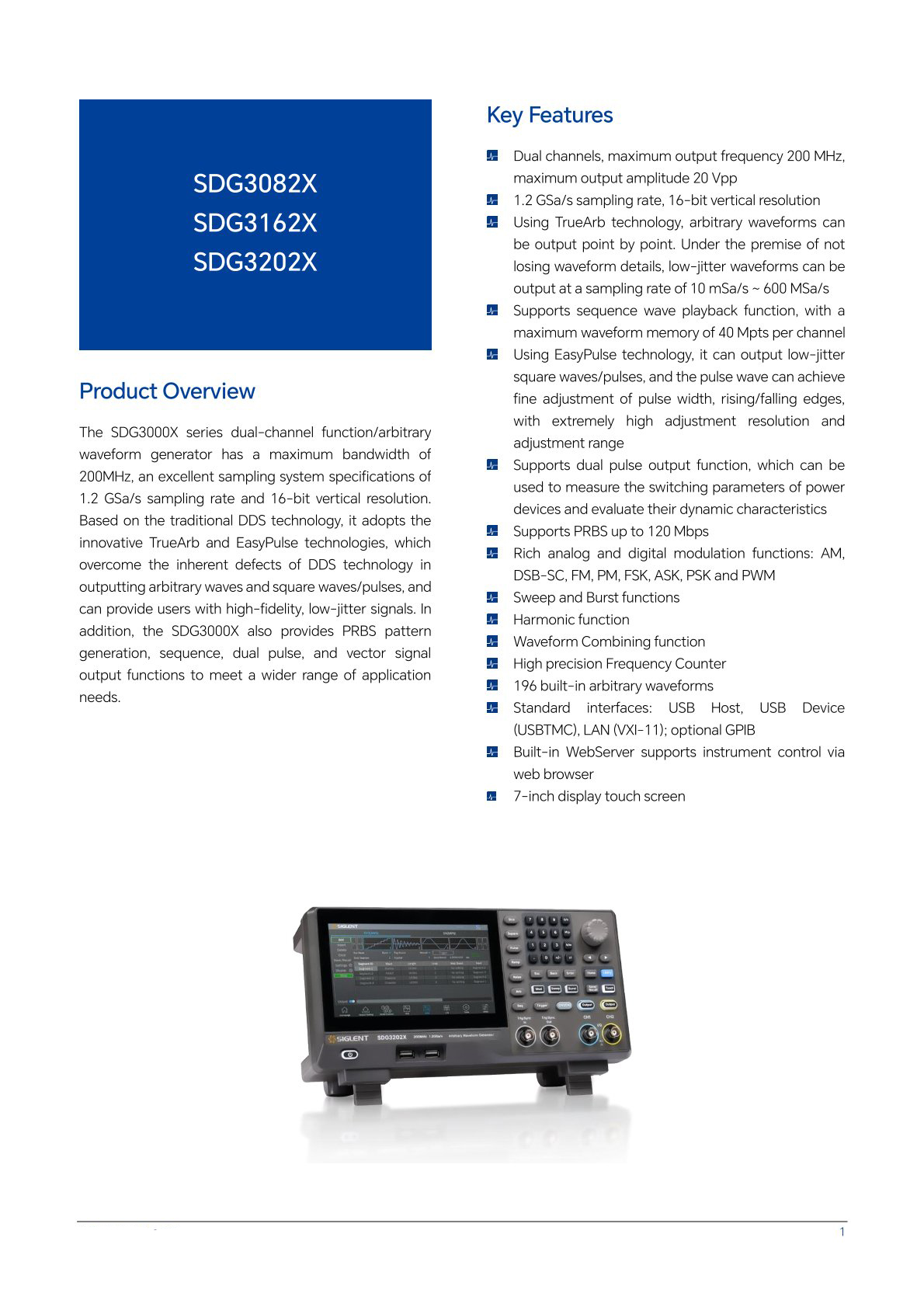

Product Introduction
The SDG3000X series features 16-bit vertical resolution, a maximum output frequency of 200MHz, a sampling rate of 1.2GSa/s, and a maximum memory depth of 40Mpts per channel. It adopts innovative EasyPulse and TrueArb technologies, which significantly reduce waveform jitter. Equipped with a 7-inch capacitive touchscreen, the SDG3000X supports intuitive operation settings. It also has the capabilities of sequence wave generation, noise generation, harmonic generation, IQ signal generation, PRBS pattern generation, and various complex signal generation, and supports multi-pulse output, facilitating double-pulse testing of power devices. As a multi-functional waveform generation device, the SDG3000X is widely used in fields such as communications, semiconductors, new energy, scientific research and education, providing more options for different testing solutions.
Features and Advantages
* Dual-channel, maximum output frequency 200 MHz, maximum output amplitude 20 Vpp
* 1.2 GSa/s digital-to-analog converter sampling, 16-bit vertical resolution
* Adopts TrueArb technology, outputting arbitrary waves point by point. It can output low-jitter waveforms at a sampling rate of 10 MSa/s ~ 600 MSa/s without losing waveform details.
* Supports sequence wave playback function, with a maximum memory depth of 40 Mpts per channel

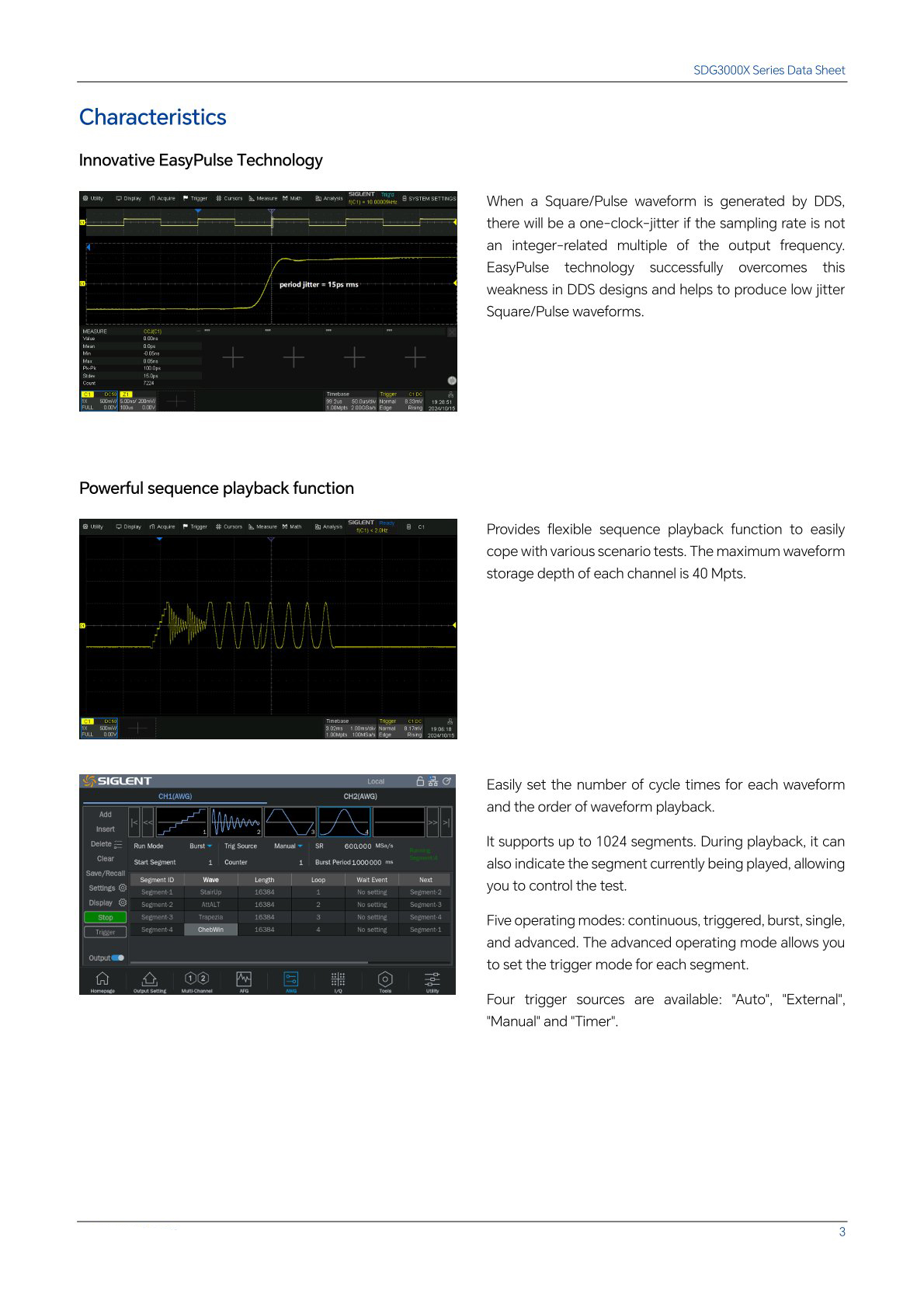

* Adopts EasyPulse technology, which can output low-jitter square waves/pulses. At the same time, pulse width can be finely adjusted, and rising/falling edges can be finely adjusted. Each pulse can adjust the resolution and adjustment range.
* 1.2 GSa/s digital-to-analog converter sampling, 16-bit vertical resolution
* Adopts TrueArb technology, outputting arbitrary waves point by point. It can output low-jitter waveforms at a sampling rate of 10 MSa/s ~ 600 MSa/s without losing waveform details.
* Supports sequence wave playback function, with a maximum memory depth of 40 Mpts per channel
* Adopts EasyPulse technology, which can output low-jitter square waves/pulses. At the same time, pulse width can be finely adjusted, and rising/falling edges can be finely adjusted. Each pulse can adjust the resolution and adjustment range.

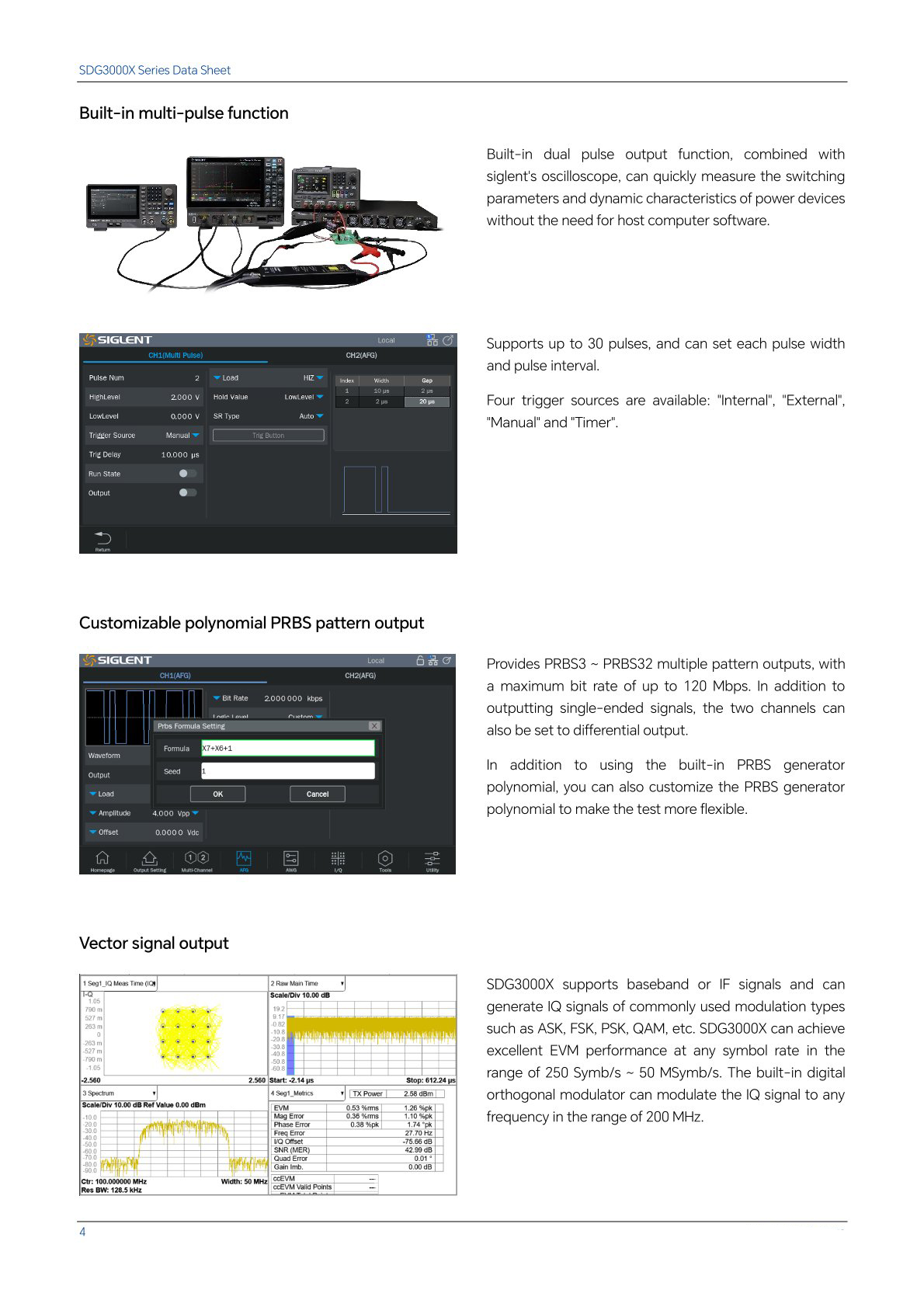

* Supports double-pulse output function, which can be used to measure the switching parameters of power devices and evaluate their dynamic characteristics
* Can output PRBS patterns with a maximum of 120 Mbps

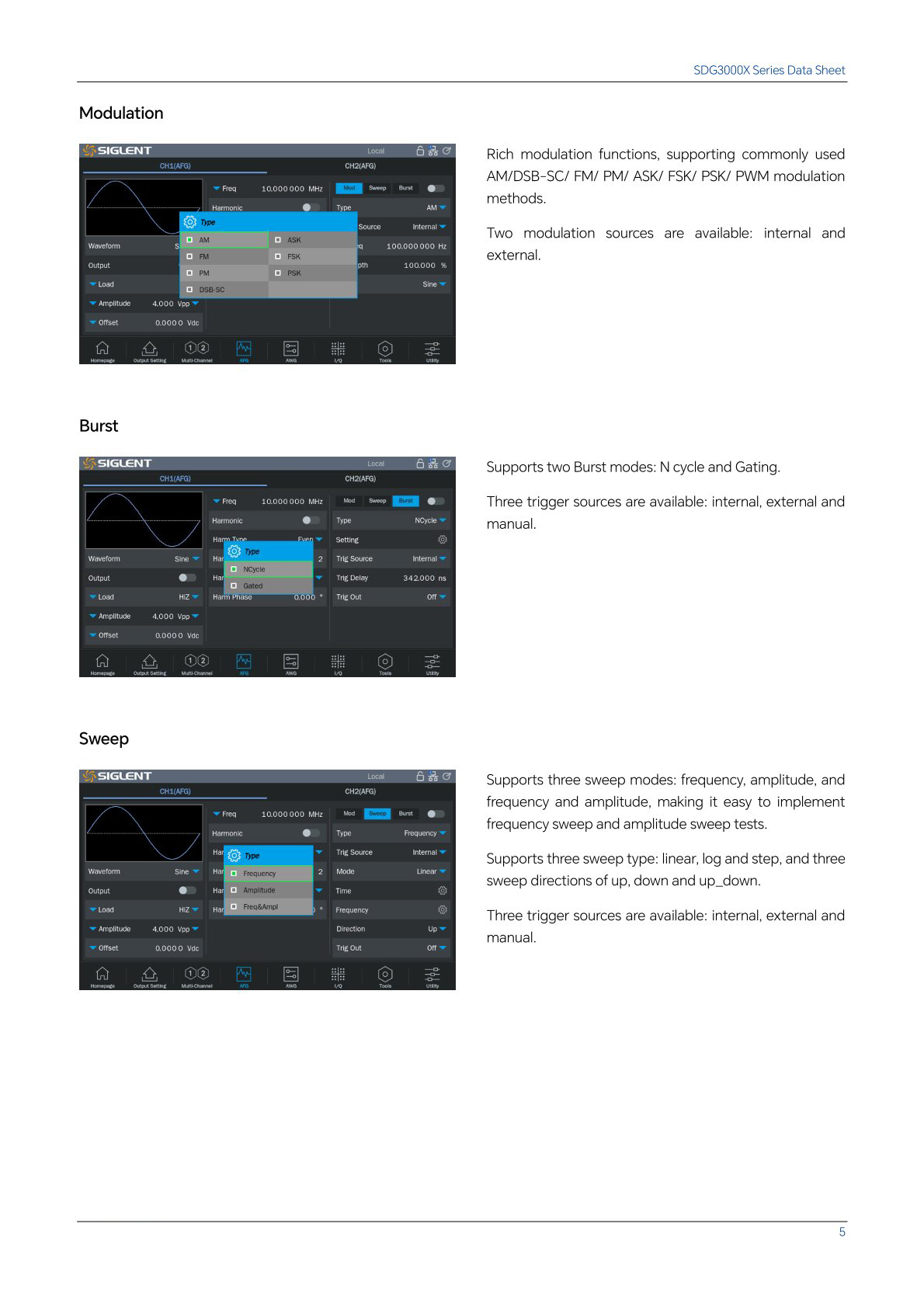

* Rich analog modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
* Sweep and Burst functions
* Harmonic generation function
* Suitable for combined functions

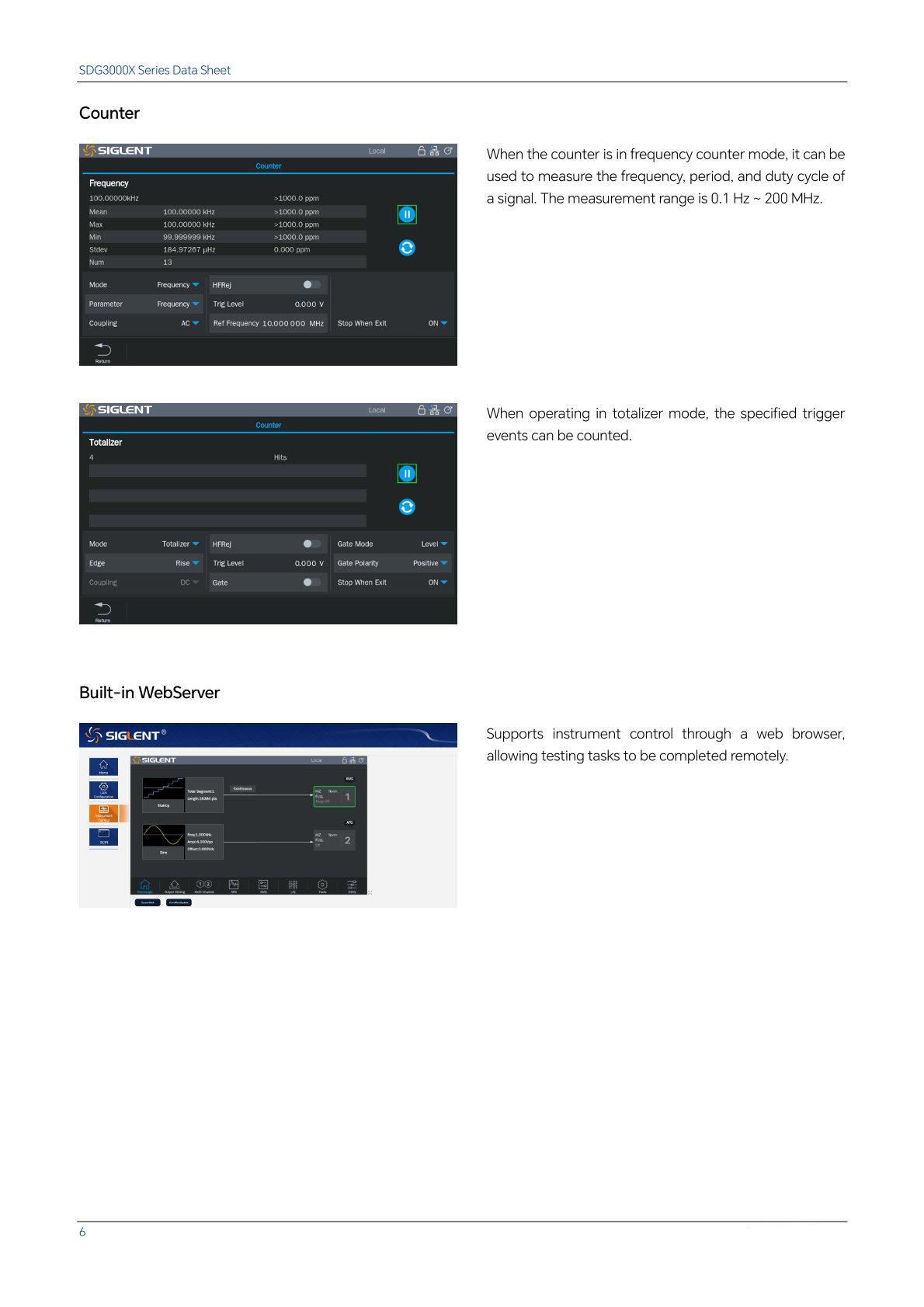

* Hardware frequency counter function
* 196 built-in arbitrary waves
* Rich communication interfaces: standard USB Host, USB Device (USBTMC), LAN (VXI-11), optional GPIB
* Built-in WebServer, supports controlling the instrument through a web browser
* 7-inch color display touch screen
* Can output PRBS patterns with a maximum of 120 Mbps
* Rich analog modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
* Sweep and Burst functions
* Harmonic generation function
* Suitable for combined functions
* Hardware frequency counter function
* 196 built-in arbitrary waves
* Rich communication interfaces: standard USB Host, USB Device (USBTMC), LAN (VXI-11), optional GPIB
* Built-in WebServer, supports controlling the instrument through a web browser
* 7-inch color display touch screen
