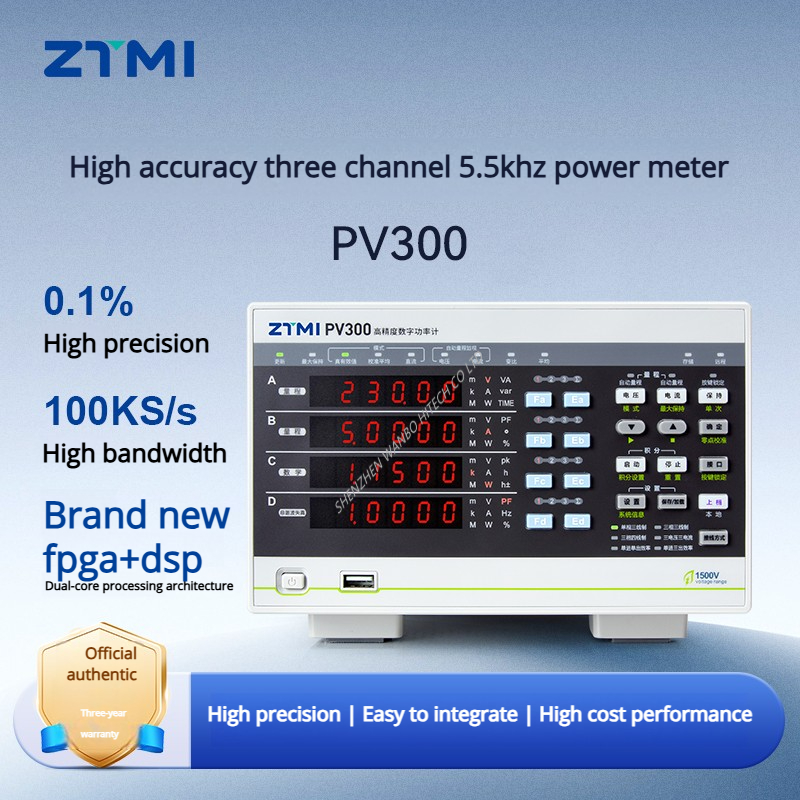

100ks/s采样率PV300的ZTMI高精度三通道5.5khz数字功率计
$
4540.41
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail

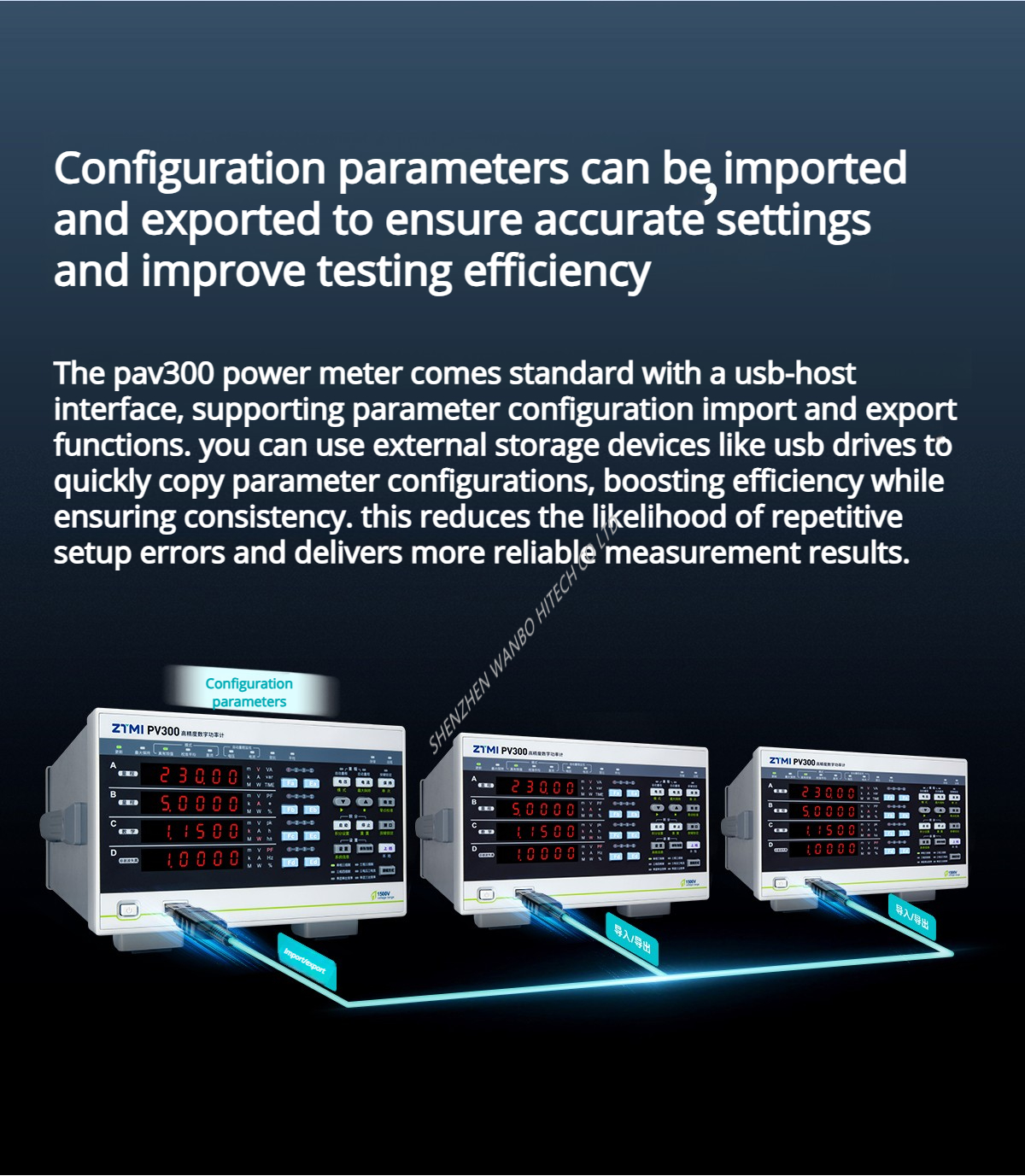

Configuration parameters can be imported and exported, ensuring accurate settings and enhancing test efficiency.
The PV300 power meter is equipped with a USB-Host interface by default. It supports the import and export functions of parameter configuration, allowing users to quickly copy the parameter configuration using external storage devices such as USB drives, thereby improving efficiency while ensuring the consistency of parameter configuration, reducing the possibility of errors caused by repeated settings, and providing more reliable measurement results.
| Model | PV300 |
|---|---|

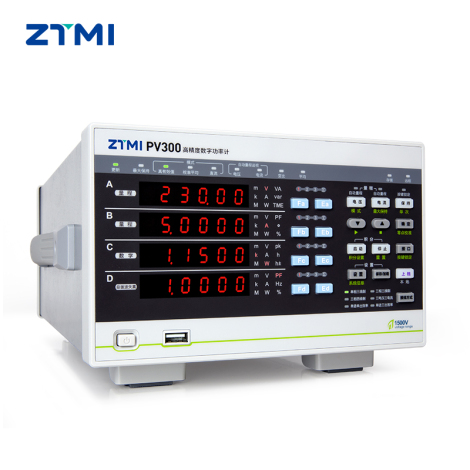

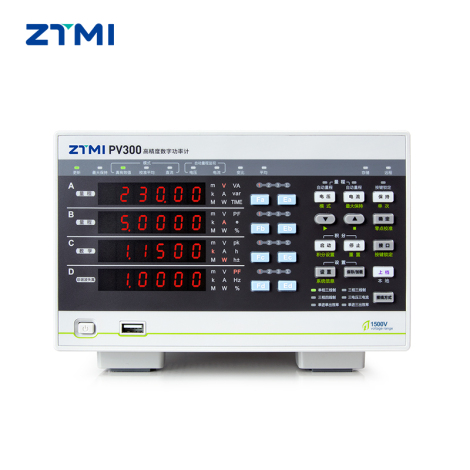

| Actual Picture |  |
| Input Channel | Three Channels |
| Basic Accuracy | 0.1% |
| Input Bandwidth | DC,0.1Hz ~ 5.5kHz |
| Sampling Rate | 100KS/s |
| Harmonic Analysis Frequency | None |
| Maximum Test Voltage | 1000V |
| Current Test Range | 5mA-50A |
| External Sensor Input | BNC |

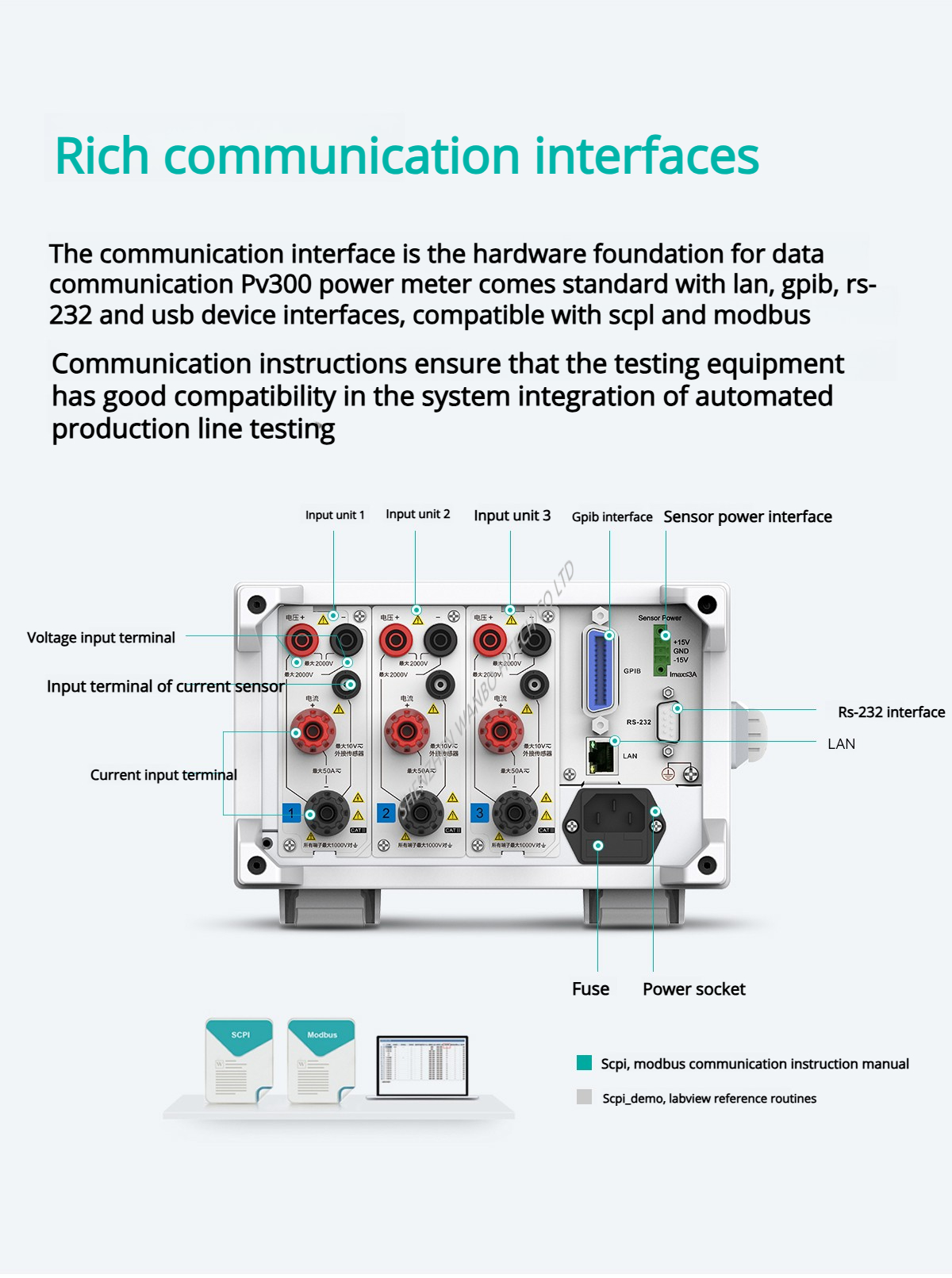

| Communication Interface | GPIB,LAN,RS-232,USB-Host |

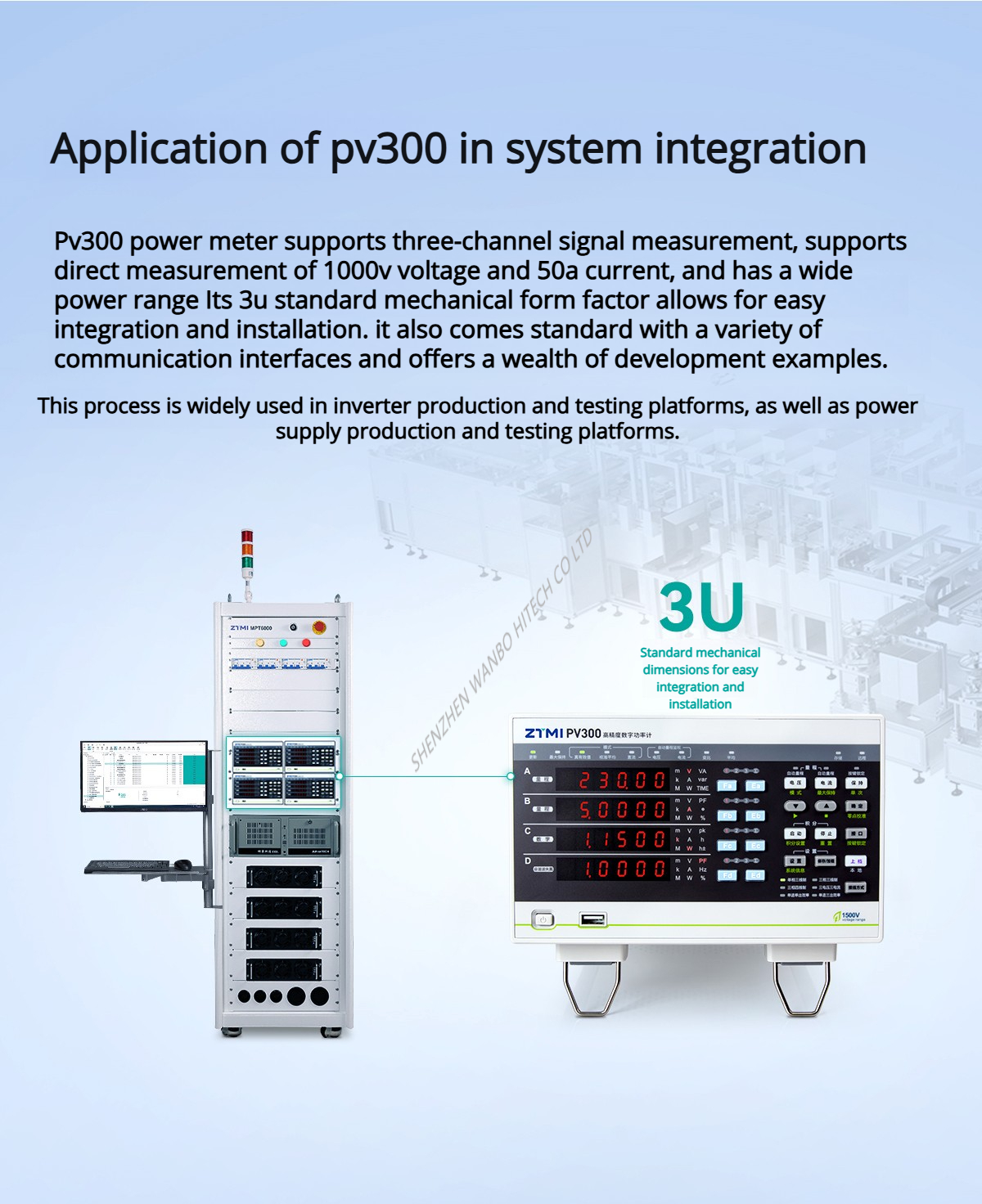

| Test Scenario | Production Testing System Integration |
