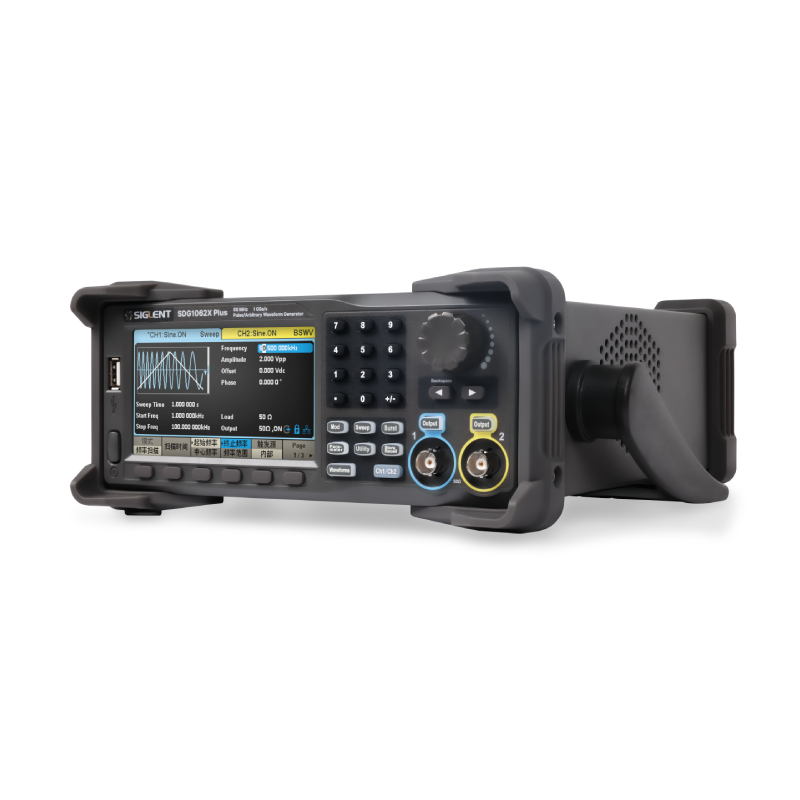

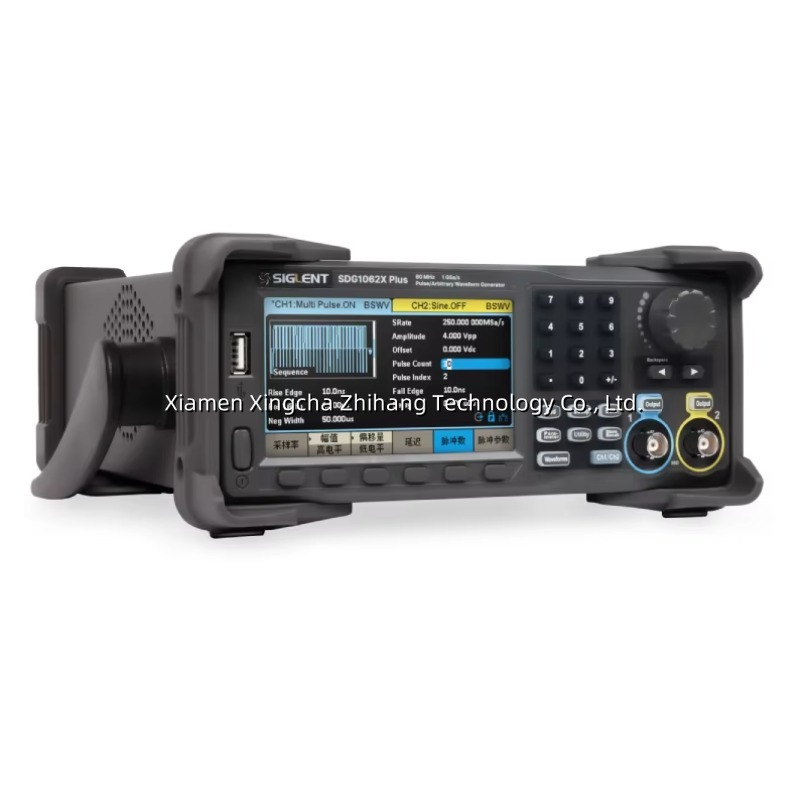

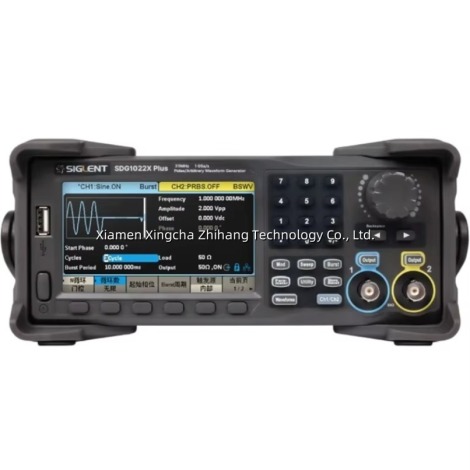

Siglent SDG1022X Plus 双通道 25MHz 函数发生器 1GSa/s 采样 正弦波形 10V 幅值 8 Mpts 序列
$
527.77
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Features and Advantages

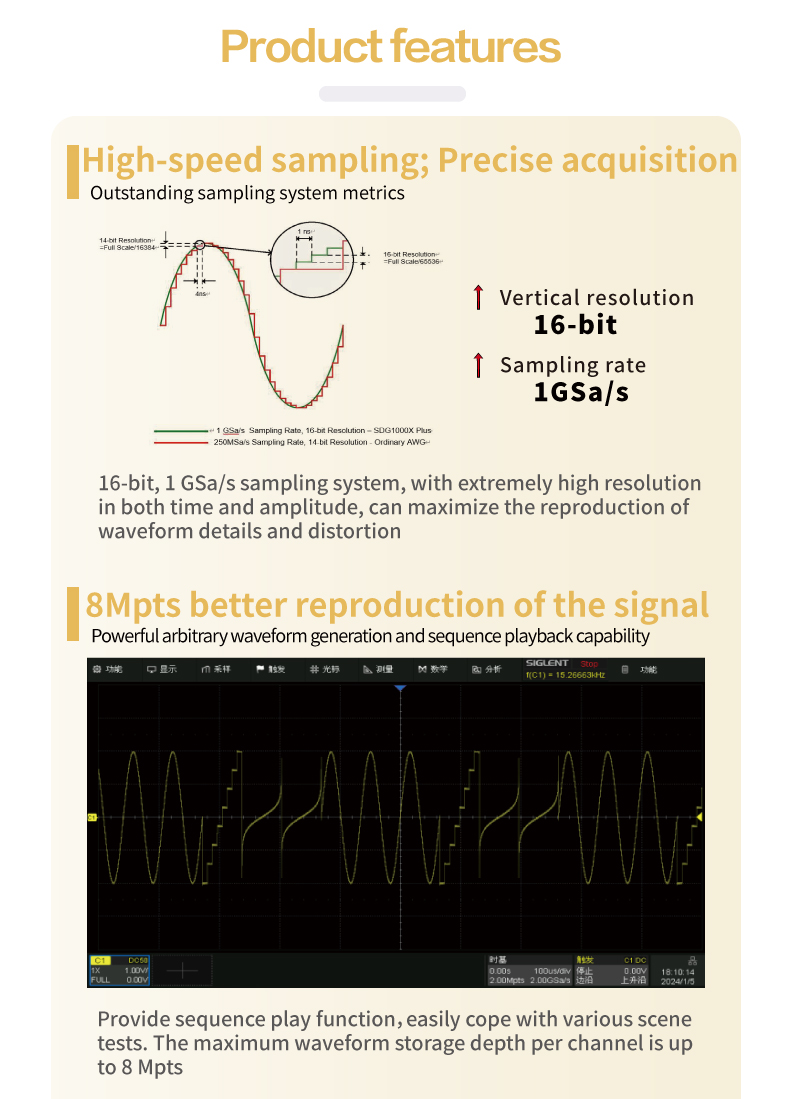

* Dual channels, maximum output frequency of 60 MHz, maximum output amplitude of 20 Vpp* 1 GSa/s DAC (Digital - to - Analog Converter) sampling rate, 16 - bit vertical resolution

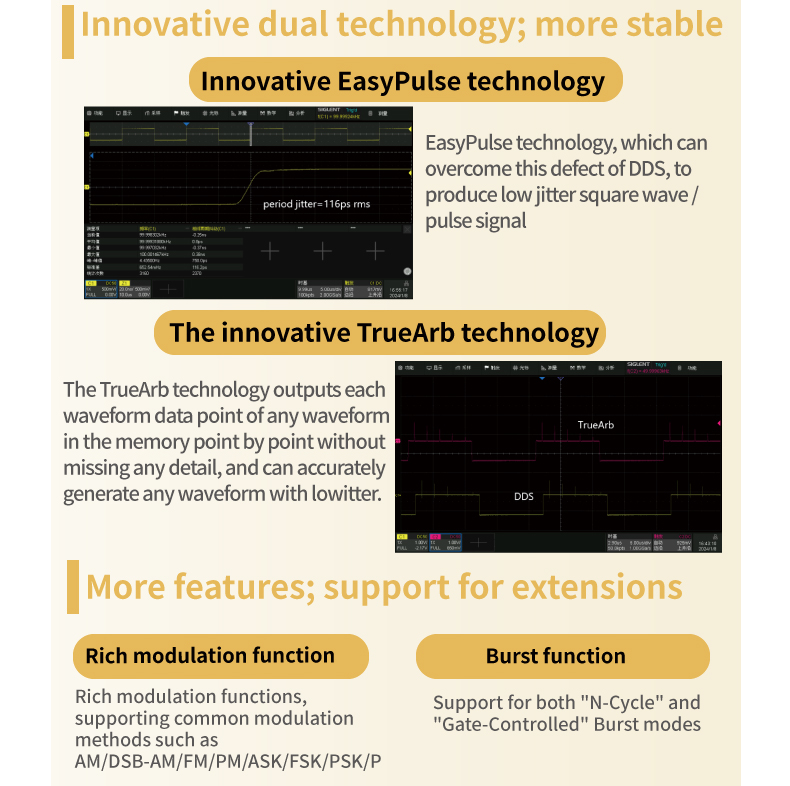

* Adopts TrueArb technology, outputs arbitrary waves point - by - point. Without losing waveform details, it can output low - jitter waveforms at a variable sampling rate of 1 μSa/s - 250 MSa/s

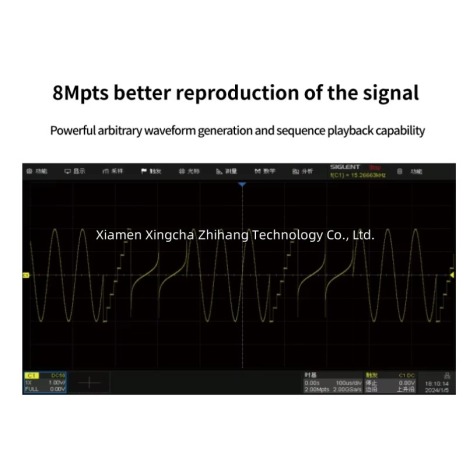

* Supports sequence wave playback function, with a maximum storage depth of 8 Mpts per channel
* Adopts EasyPulse technology, capable of outputting low - jitter square waves/pulses. Meanwhile, the pulse waves can achieve fine adjustment of pulse width, rising/falling edges, with extremely high adjustment resolution and range
* Supports double - pulse output function, which can be used to measure the switching parameters of power devices and evaluate their dynamic characteristics

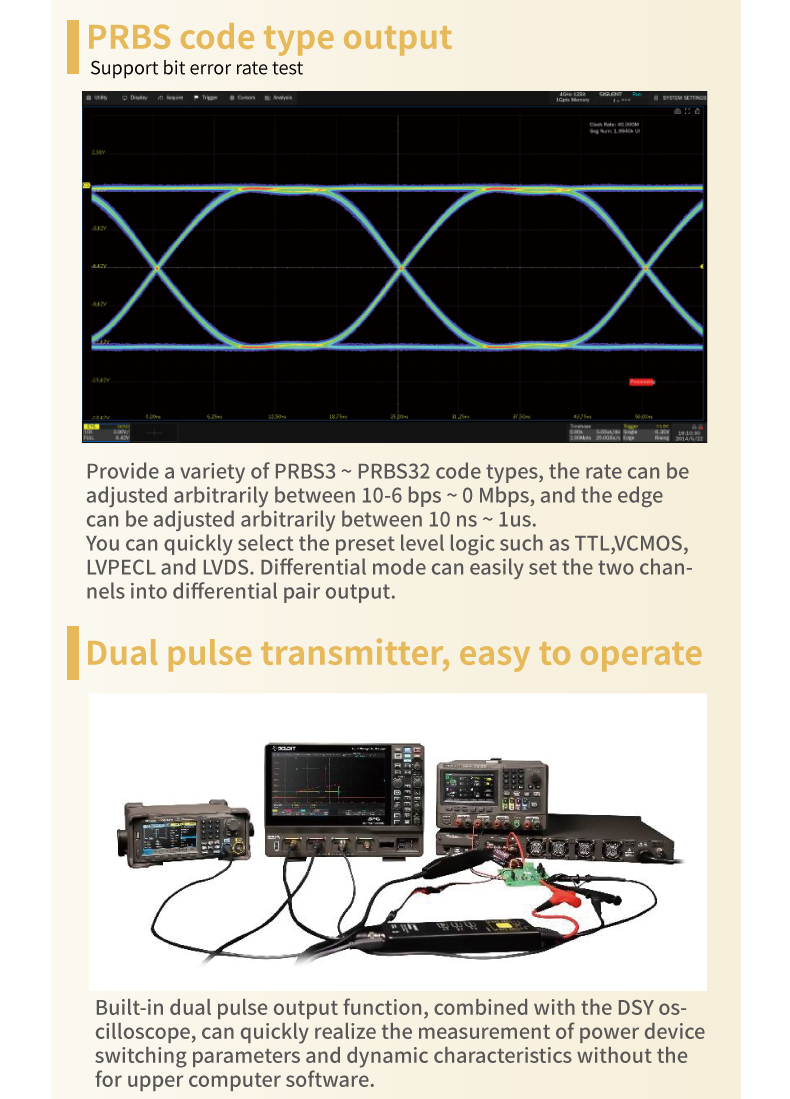

* Can output PRBS (Pseudorandom Binary Sequence) patterns with a maximum of 40 Mbps
* Rich analog and digital modulation functions: AM, DSB - AM, FM, PM, FSK, ASK, PSK, and PWM

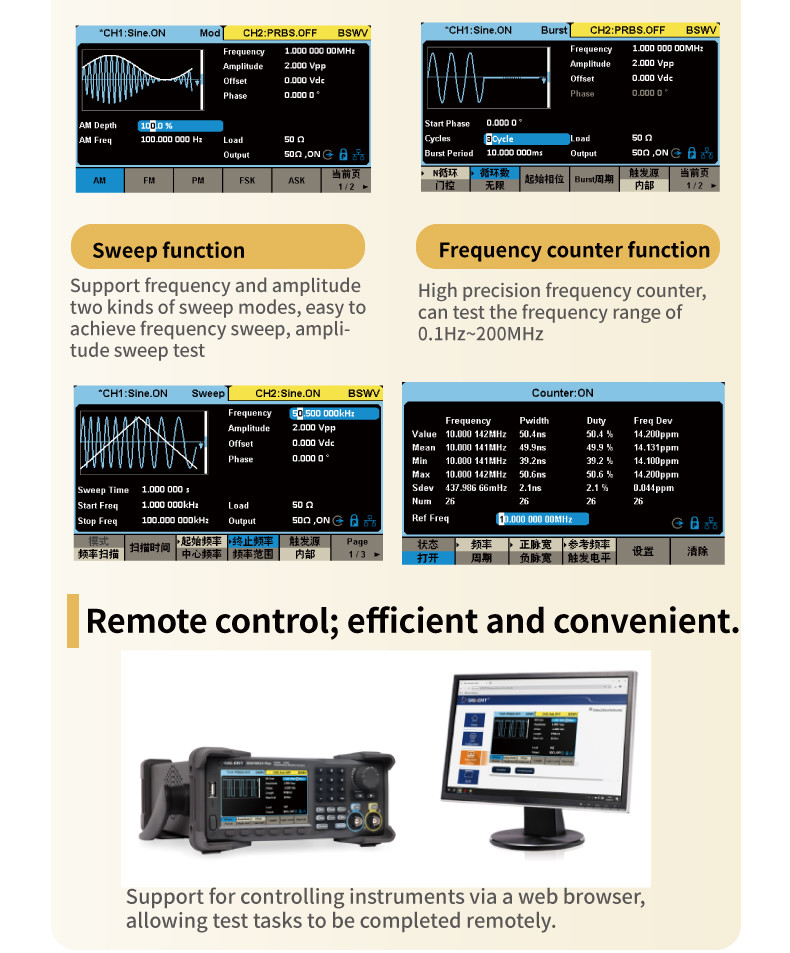

* Sweep and Burst functions
* Harmonic generation function
* Channel merging function
* Hardware frequency meter function
* 196 built - in arbitrary waves

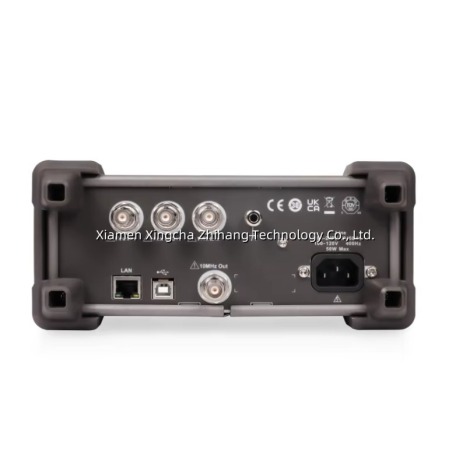

* Rich communication interfaces: Standard USB Host, USB Device (USBTMC), LAN (VXI - 11), optional GPIB
* Built - in WebServer supports instrument control via web browser
* 4.3 - inch display screen
* Rich analog and digital modulation functions: AM, DSB - AM, FM, PM, FSK, ASK, PSK, and PWM
* Sweep and Burst functions
* Harmonic generation function
* Channel merging function
* Hardware frequency meter function
* 196 built - in arbitrary waves
* Rich communication interfaces: Standard USB Host, USB Device (USBTMC), LAN (VXI - 11), optional GPIB
* Built - in WebServer supports instrument control via web browser
* 4.3 - inch display screen
Product Overview

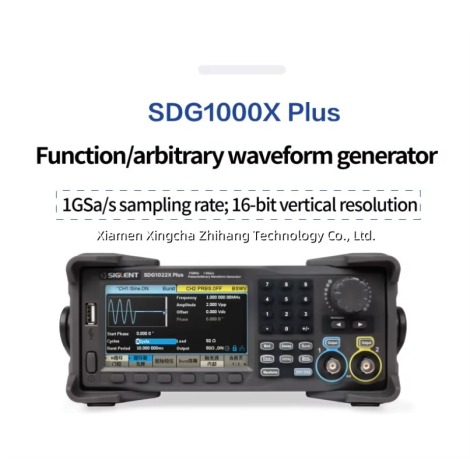

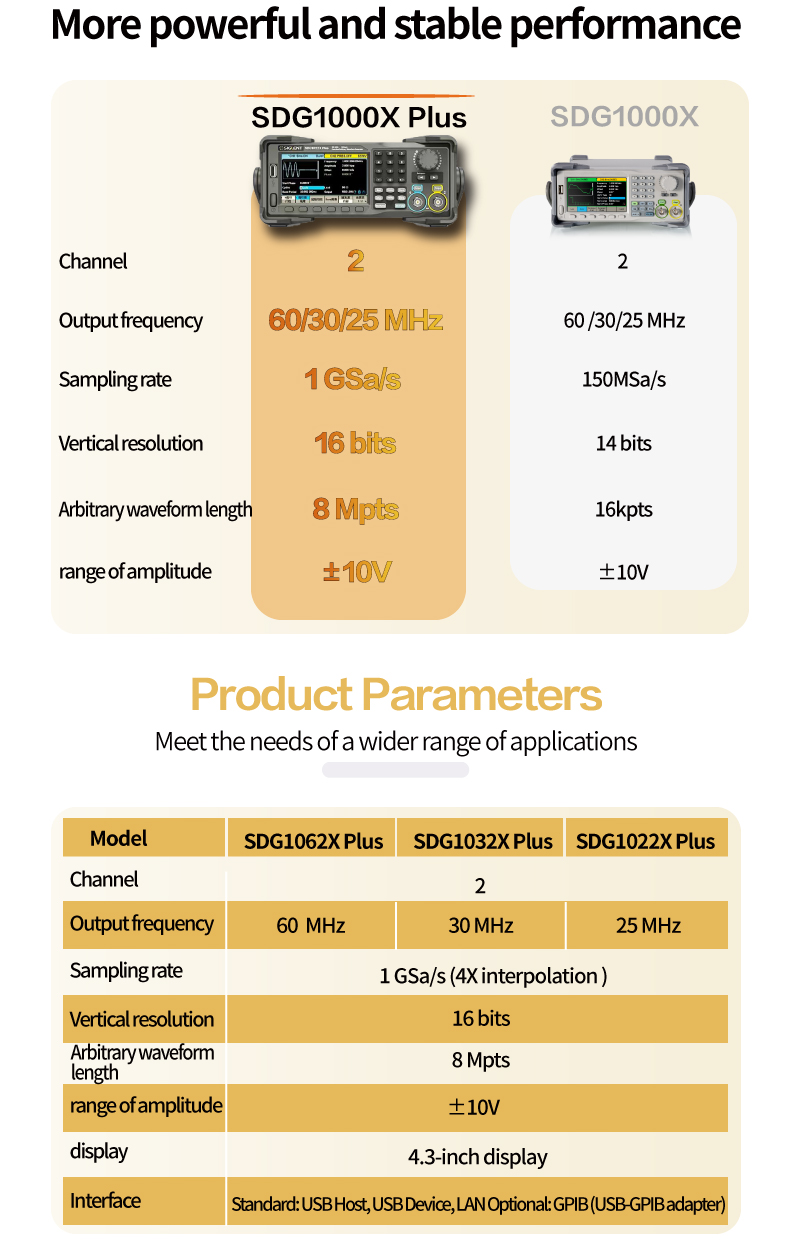

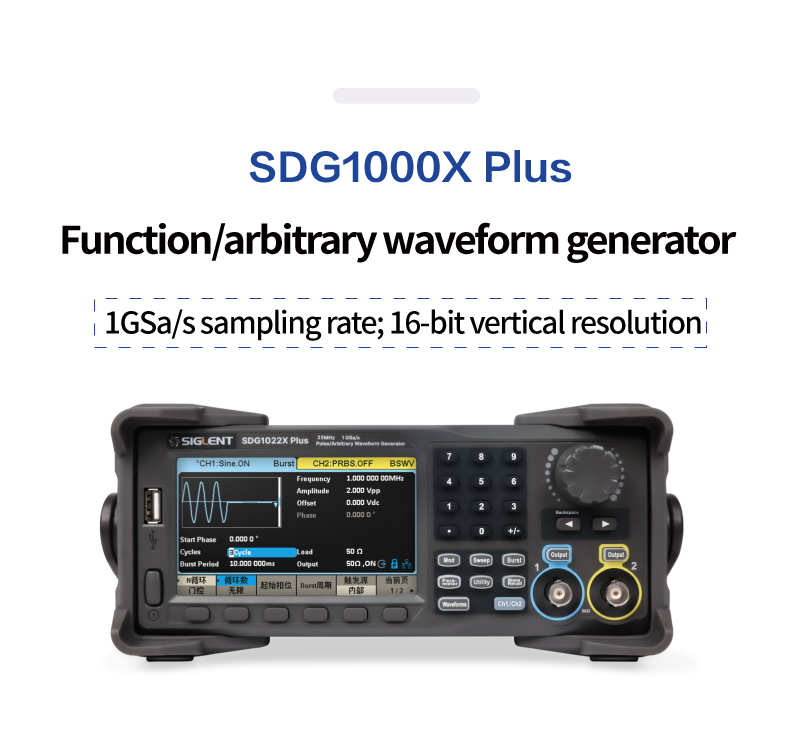

The SDG1000X Plus series dual - channel function/arbitrary waveform generators have a maximum bandwidth of 60 MHz, and feature excellent sampling system specifications with a sampling rate of 1 GSa/s and 16 - bit vertical resolution. Based on the traditional DDS technology, the innovative TrueArb and EasyPulse technologies are adopted to overcome the inherent defects of the DDS technology when outputting arbitrary waves and square waves/pulses. It can provide users with high - fidelity and low - jitter signals. In addition, the SDG1000X Plus also provides functions such as PRBS pattern generation, sequence wave output, and double - pulse output, meeting a wider range of application requirements.
The SDG1000X Plus series dual - channel function/arbitrary waveform generators have a maximum bandwidth of 60 MHz, and feature excellent sampling system specifications with a sampling rate of 1 GSa/s and 16 - bit vertical resolution. Based on the traditional DDS technology, the innovative TrueArb and EasyPulse technologies are adopted to overcome the inherent defects of the DDS technology when outputting arbitrary waves and square waves/pulses. It can provide users with high - fidelity and low - jitter signals. In addition, the SDG1000X Plus also provides functions such as PRBS pattern generation, sequence wave output, and double - pulse output, meeting a wider range of application requirements.
