ZLG CANopen采集设备USB到CANopen转换器CANopen主卡符合CIA规范USBCAN-E-P
$
339.75
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Product Overview
The USBCAN-E-P master card integrates 1 CAN channel, which can be connected to the CAN bus and realize the data communication of the CANopen protocol. The CAN channels of the interface card are integrated with complete electrical isolation protection, anti-surge protection, strong anti-interference ability, stable performance and reliable communication.
We provide powerful software support, including CANopen function library, CANopen test software, EDS configuration software, OPC server, etc. It provides a reliable and efficient solution for CANopen network.
* Universal USB interface, suitable for 5V system;
* Number of CAN channels: 1;
* Electrical isolation: DC 2500V or AC 1700V;
* The CANopen interface supports DS301V 4.02, DS303-3, etc., and has passed the CIA conformance test;
* Up to 32 slave stations, can register up to 128 RPDOs, 512 TPDOs, support PDO, SDO sending;
* Support all NMT network management functions;
* The main station card hardware automatically stores emergency messages;
* Supports all PDO communication types, and can monitor each PDO;
* Operating environment: Win9X/Me, Win2000/XP, Vista, win2003, Win7, Win8 and other operating systems;
* ESD (Electrostatic Discharge) Protection: IEC 61000-4-2 Level 3 (contact discharge 6KV, air discharge 15KV);
* CAN communication interface supports 2KV, 5/100HZ group pulse protection;
* CAN communication interface supports 2KV, 5/100Hz surge protection;
* Working temperature and storage temperature: -40℃～+85℃;
* Physical size: 115mm*76mm;
* Installation method: portable;
* CAN interface EMC level: contact discharge ±8KV, group pulse ±2KV;
* CAN baud rate: baud rate in line with CANopen specification - 10kbps 20kbps 50kbps 100kbps 125kbps 250kbps 500kbps 800kbps 1000kbps;
We provide powerful software support, including CANopen function library, CANopen test software, EDS configuration software, OPC server, etc. It provides a reliable and efficient solution for CANopen network.
* Universal USB interface, suitable for 5V system;
* Number of CAN channels: 1;
* Electrical isolation: DC 2500V or AC 1700V;
* The CANopen interface supports DS301V 4.02, DS303-3, etc., and has passed the CIA conformance test;
* Up to 32 slave stations, can register up to 128 RPDOs, 512 TPDOs, support PDO, SDO sending;
* Support all NMT network management functions;
* The main station card hardware automatically stores emergency messages;
* Supports all PDO communication types, and can monitor each PDO;
* Operating environment: Win9X/Me, Win2000/XP, Vista, win2003, Win7, Win8 and other operating systems;
* ESD (Electrostatic Discharge) Protection: IEC 61000-4-2 Level 3 (contact discharge 6KV, air discharge 15KV);
* CAN communication interface supports 2KV, 5/100HZ group pulse protection;
* CAN communication interface supports 2KV, 5/100Hz surge protection;
* Working temperature and storage temperature: -40℃～+85℃;
* Physical size: 115mm*76mm;
* Installation method: portable;
* CAN interface EMC level: contact discharge ±8KV, group pulse ±2KV;
* CAN baud rate: baud rate in line with CANopen specification - 10kbps 20kbps 50kbps 100kbps 125kbps 250kbps 500kbps 800kbps 1000kbps;

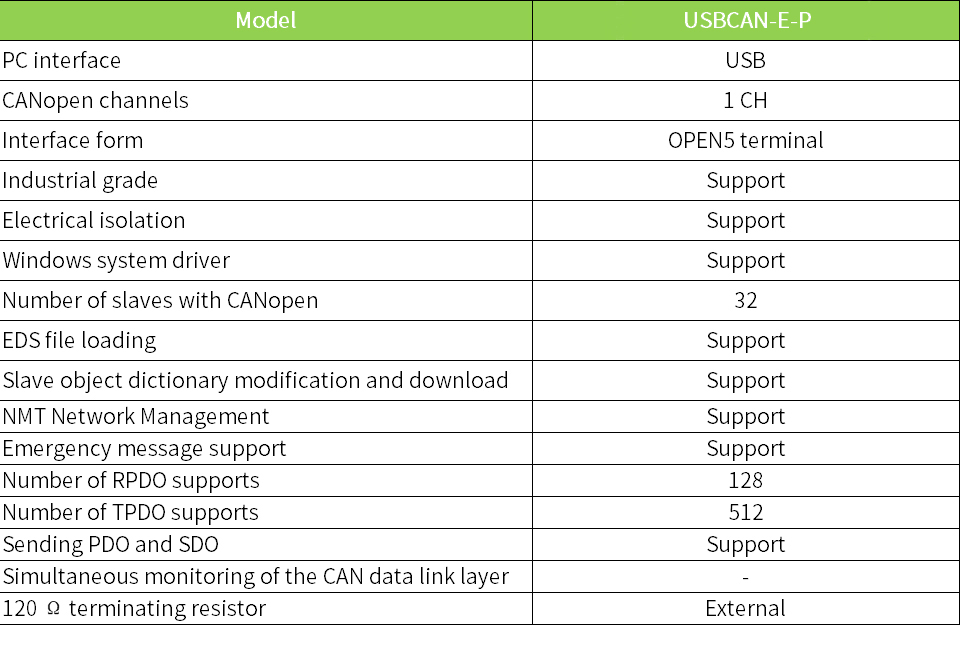

Product Parameter

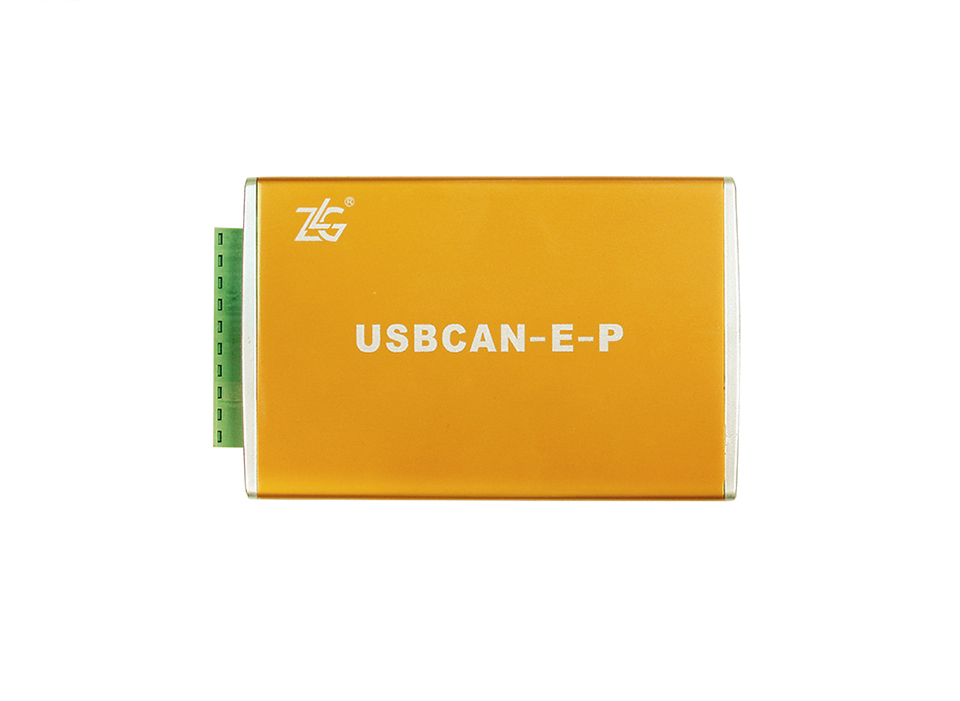

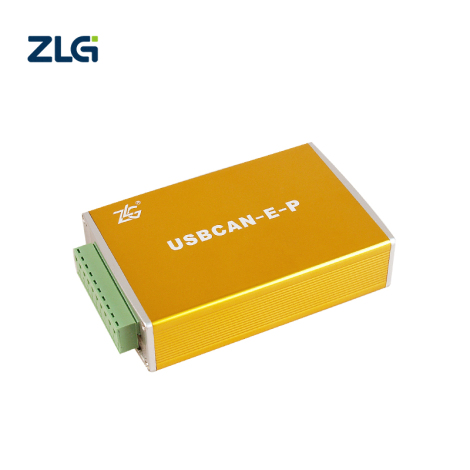

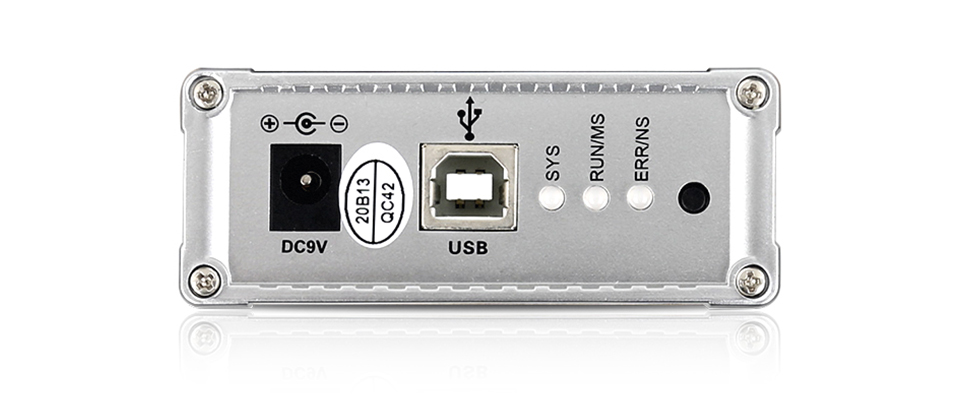

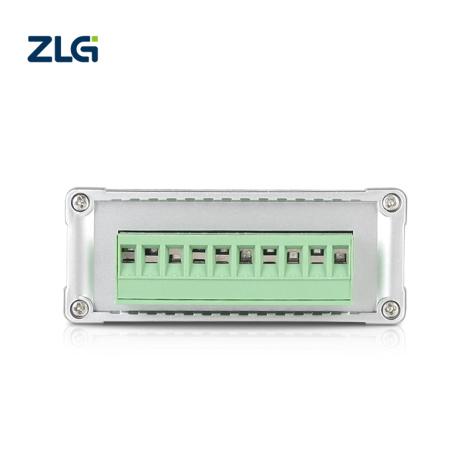

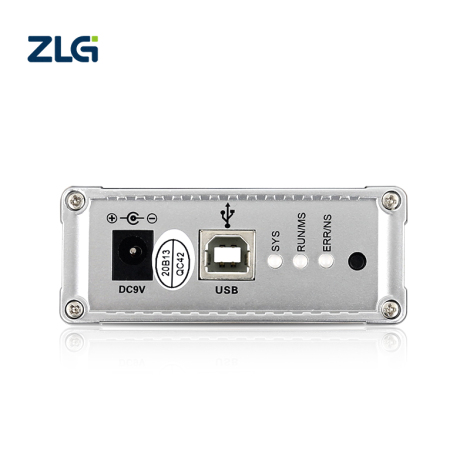

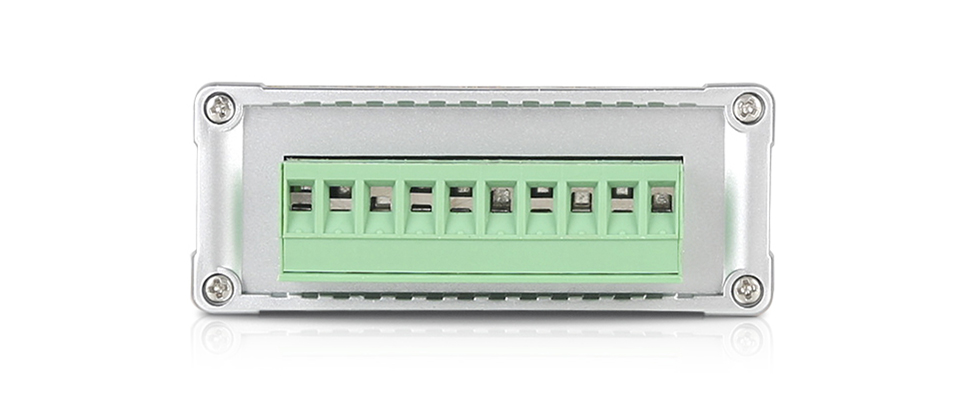

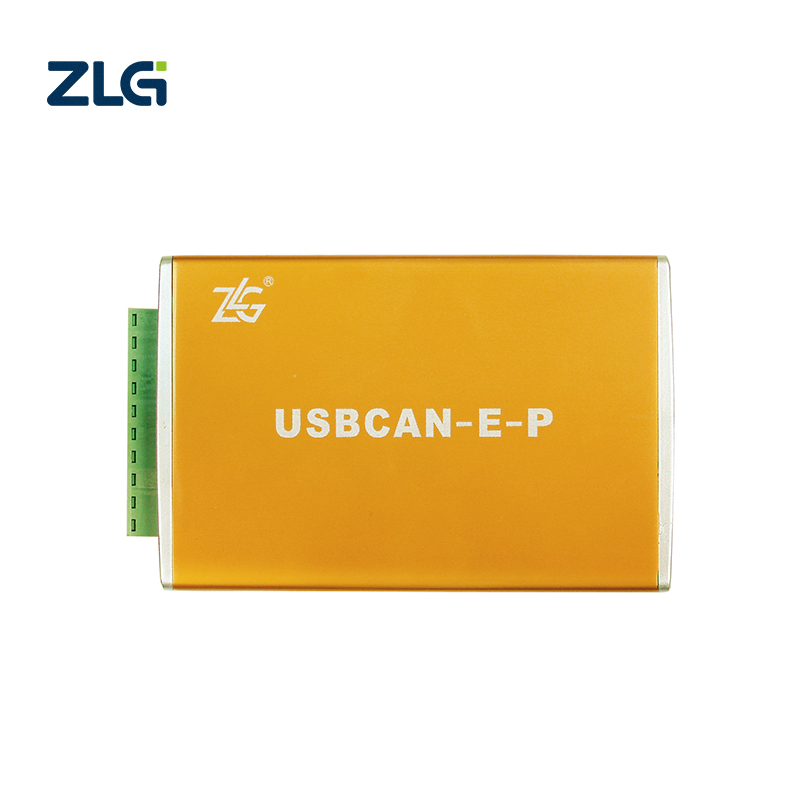

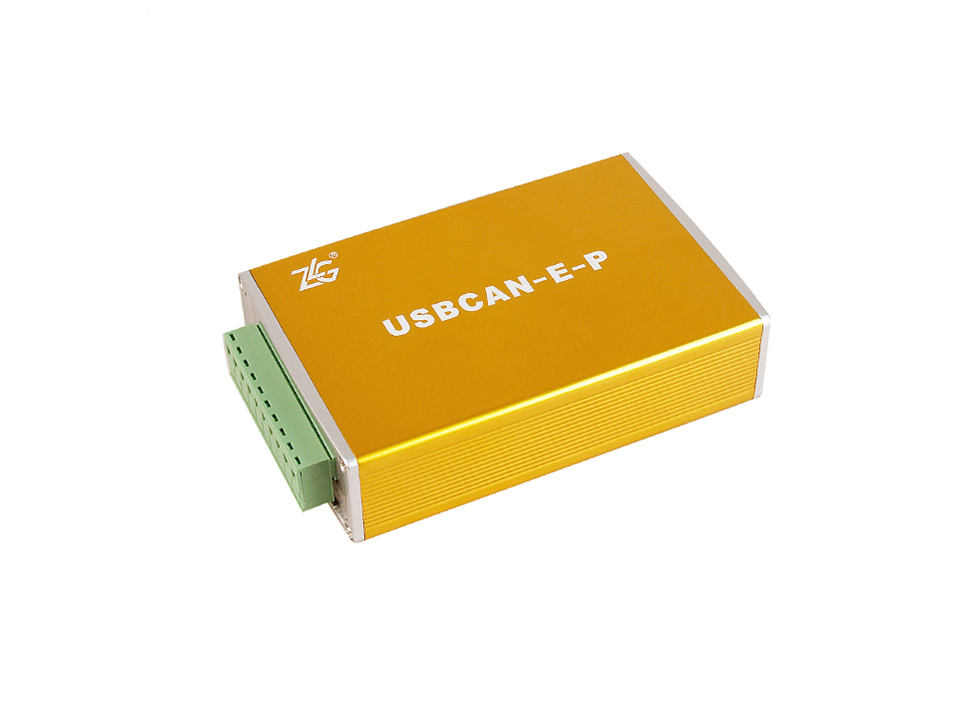

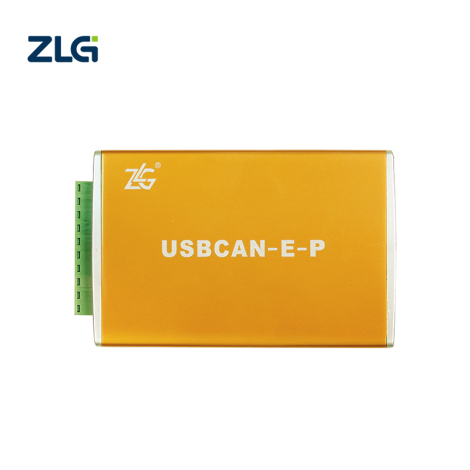

Product Picture
Driver & Software
All our products have free drivers and PC software.If you need, please contact us.
We will send the corresponding product drivers and software to your mailbox.
Thank you.
We will send the corresponding product drivers and software to your mailbox.
Thank you.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | ZLG |
Model Number | USBCAN-E-P |
Product name | USBCAN-E-P |
PC Interface | USB |
CANopen channels | 1 CH |
Interface form | OPEN5 terminal |
Windows system drivers | Support |
With CANopen slave number | 32 |
EDS file loading | Support |
RPDO support | 128 |
TPDO Support | 512 |
120 Ω termination resistor | External connection |
