Product Overview
ZLG USBCAN series CAN interface cards are compatible with USB2.0 full speed specification and can support 1/2/4/8 CH CAN interface. Using this interface card, the PC can be connected to the CAN network through USB for CAN bus data acquisition and processing. It mainly has the following advantages:
* Power supply mode: USB bus power supply, non-portable, external power supply (+9V~+25V, 200mA) can be used when the power supply is insufficient;
* PC interface: USB2.0 compatible with USB3.0 and USB1.1;
* Electrical isolation: DC 2500V or AC 1700V;
* Working temperature: -40℃～+85℃;
* Physical size: 115mm*76mm (non-portable);
* Number of CAN channels: 1, 2 channel isolated CAN interface;
* CAN channel adopts electromagnetic isolation, DC/DC power isolation, isolation voltage: 2500VDC;
* Support CAN2.0A and CAN2.0B protocols at the same time, in line with ISO/DIS 11898-1/2/3 standard;
* Installation method: portable or simple fixed method;
* CAN interface EMC level: contact discharge ±8KV, group pulse ±2KV;
* Can be used in environments with safety and explosion-proof requirements;
* Maximum frame flow: single channel can be up to 14000 frames per second (1M baud rate, standard remote frame);
* CAN baud rate: programmable and set arbitrarily, the range is between 5Kbps ~ 1Mbps;

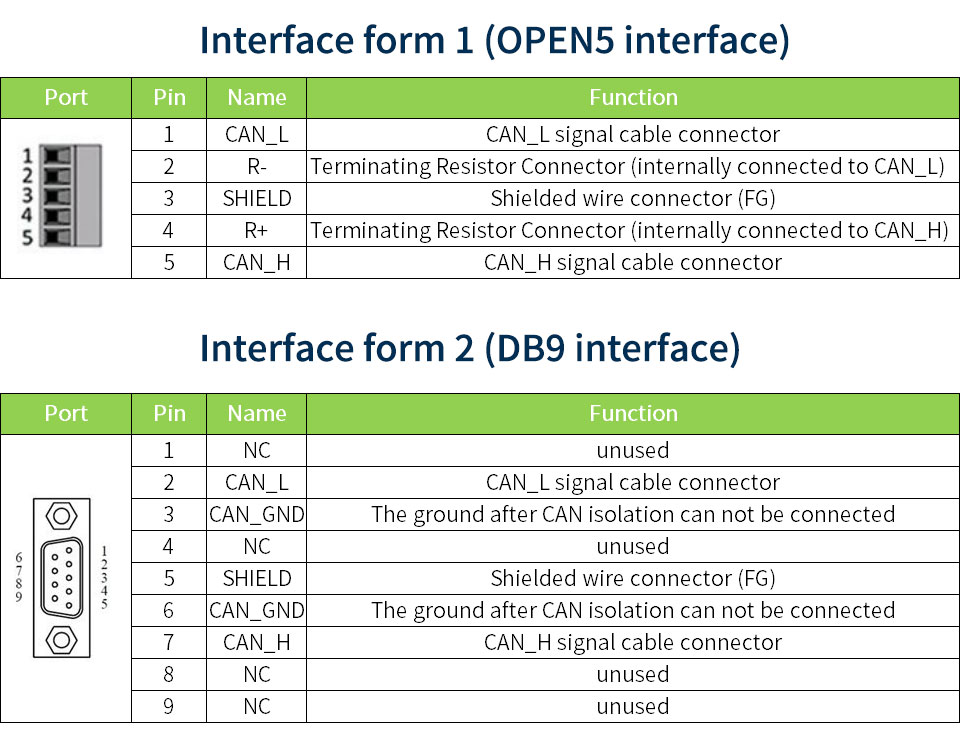

* There are 2 forms of CAN interface.
* Power supply mode: USB bus power supply, non-portable, external power supply (+9V~+25V, 200mA) can be used when the power supply is insufficient;
* PC interface: USB2.0 compatible with USB3.0 and USB1.1;
* Electrical isolation: DC 2500V or AC 1700V;
* Working temperature: -40℃～+85℃;
* Physical size: 115mm*76mm (non-portable);
* Number of CAN channels: 1, 2 channel isolated CAN interface;
* CAN channel adopts electromagnetic isolation, DC/DC power isolation, isolation voltage: 2500VDC;
* Support CAN2.0A and CAN2.0B protocols at the same time, in line with ISO/DIS 11898-1/2/3 standard;
* Installation method: portable or simple fixed method;
* CAN interface EMC level: contact discharge ±8KV, group pulse ±2KV;
* Can be used in environments with safety and explosion-proof requirements;
* Maximum frame flow: single channel can be up to 14000 frames per second (1M baud rate, standard remote frame);
* CAN baud rate: programmable and set arbitrarily, the range is between 5Kbps ~ 1Mbps;
* There are 2 forms of CAN interface.

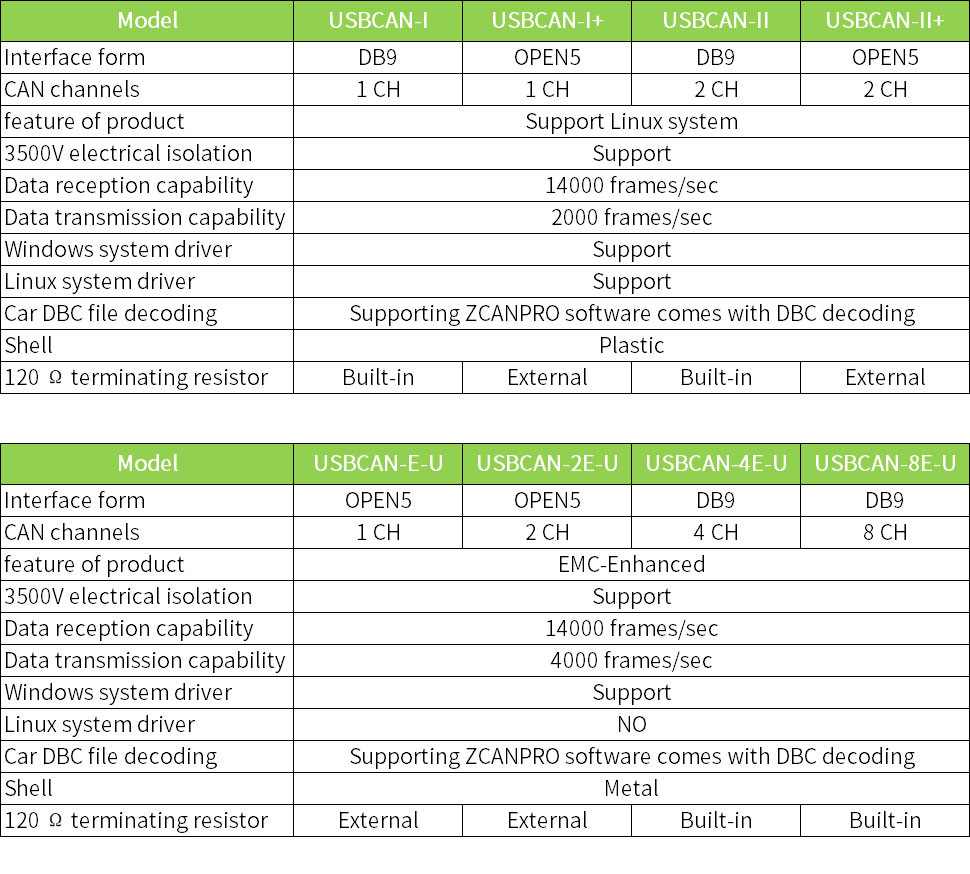

Product Parameter

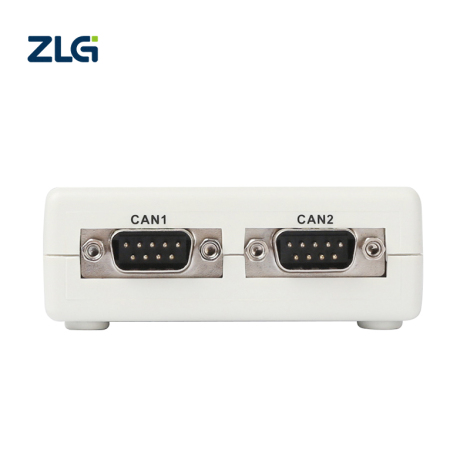

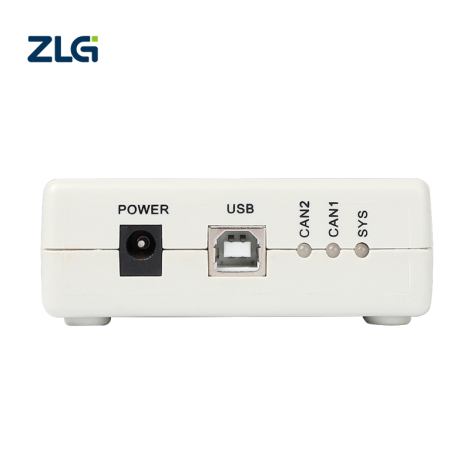

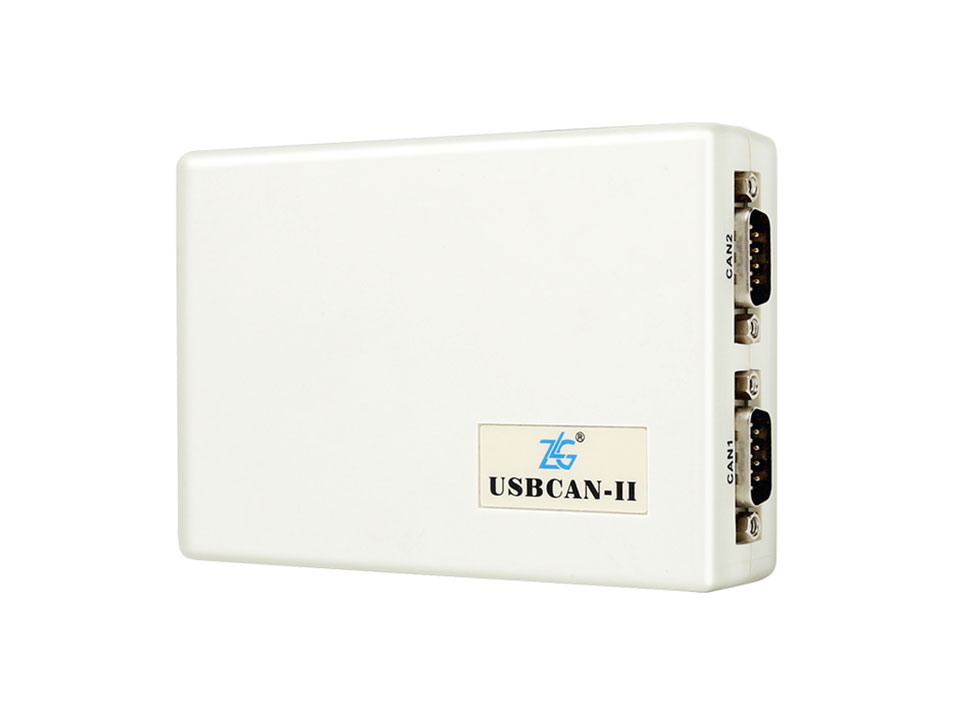

Product Picture

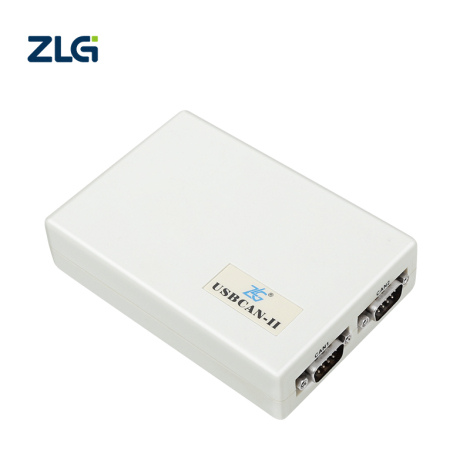

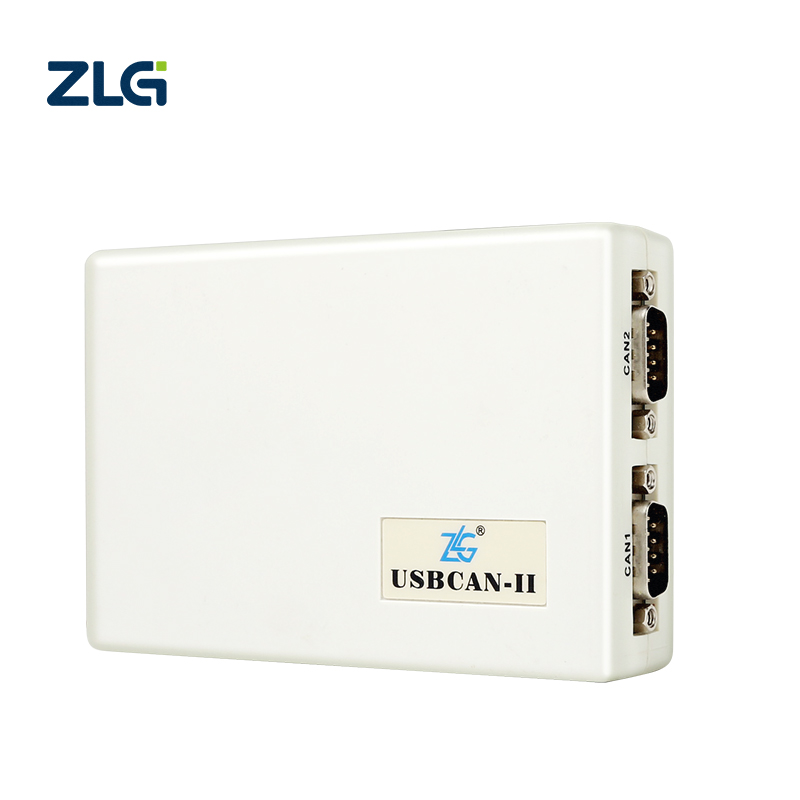

USBCAN-II
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | ZLG |
Model Number | USBCAN Series |
Product name | USBCAN Series |
CAN channels | 2 CH |
Electrical isolation | 3500 VDC |
Data receiving capability | 27000 fps |
Data sending capability | 19000 fps |
Windows system driver | Support |
Linux system driver | Support(USBCAN-E-mini,USBCAN-E/2E-U Not) |
In-vehicle DBC file decoding | Equipped with ZCANPRO software with DBC decoding |
120 Ω termination resistor | Built-in/External |
