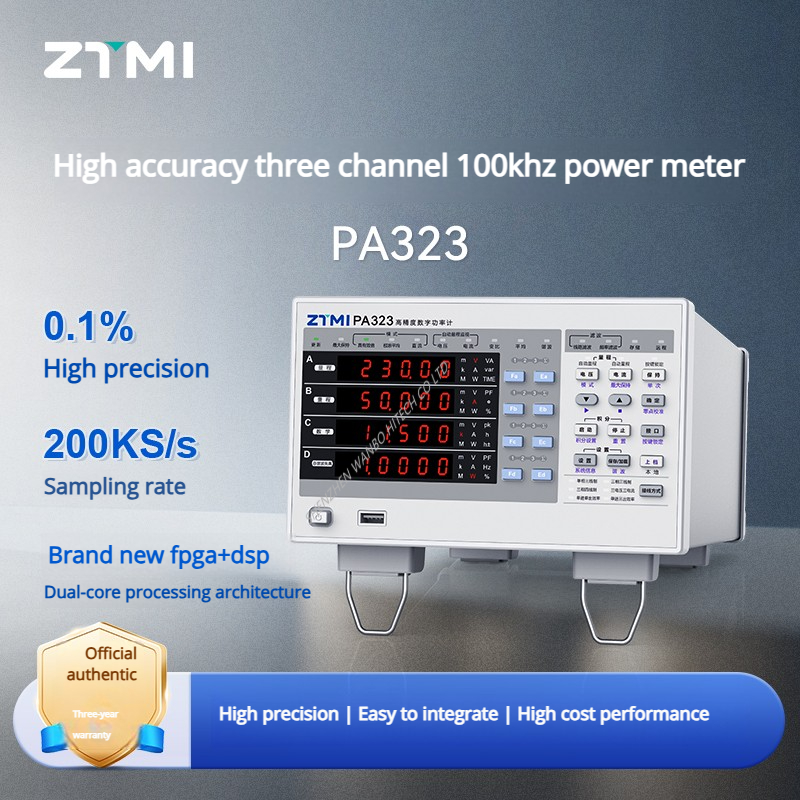

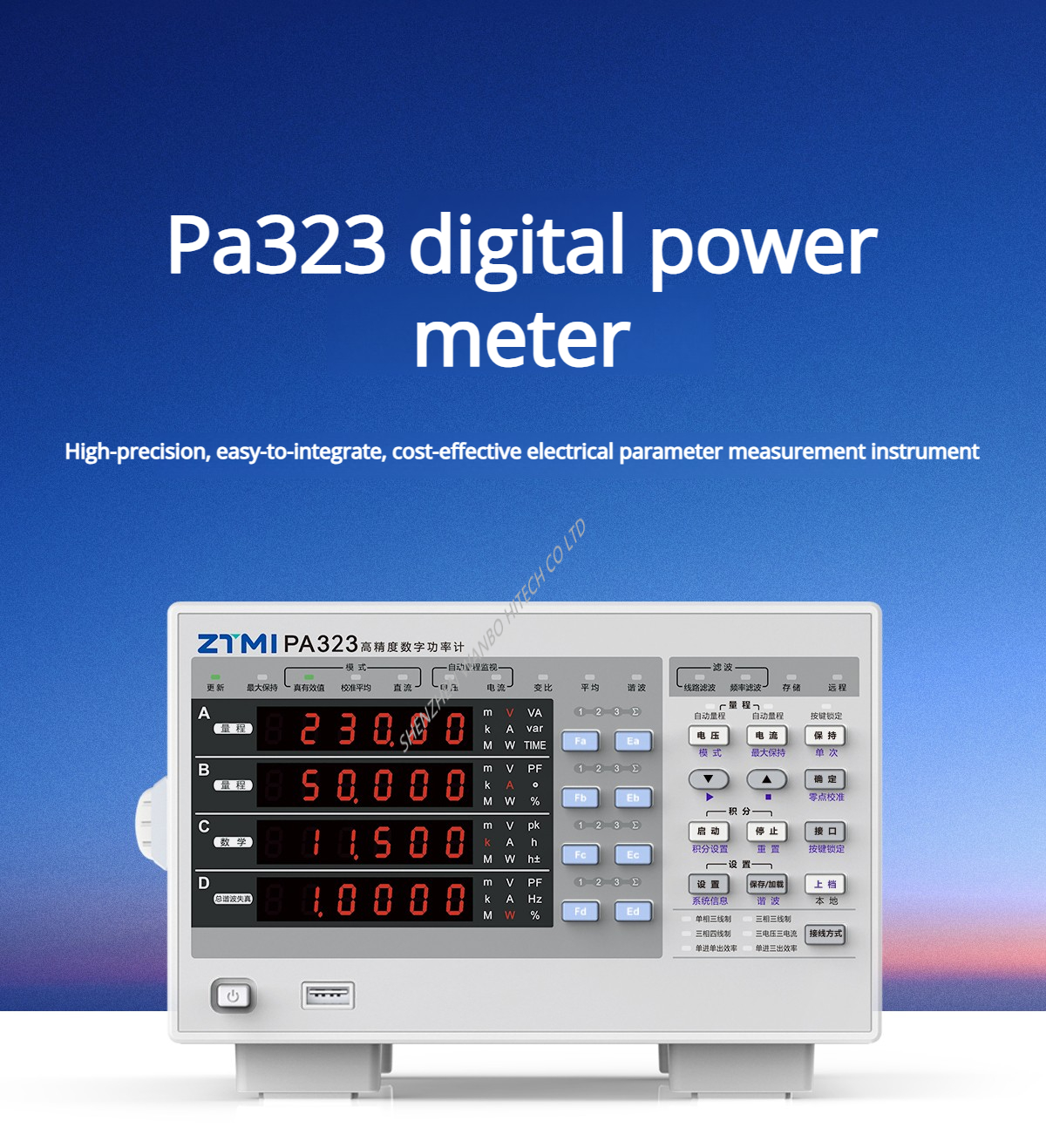

ZTMI三通道数字功率计，带宽100khz，采样率200ks/s，PA323
$
4540.41
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail

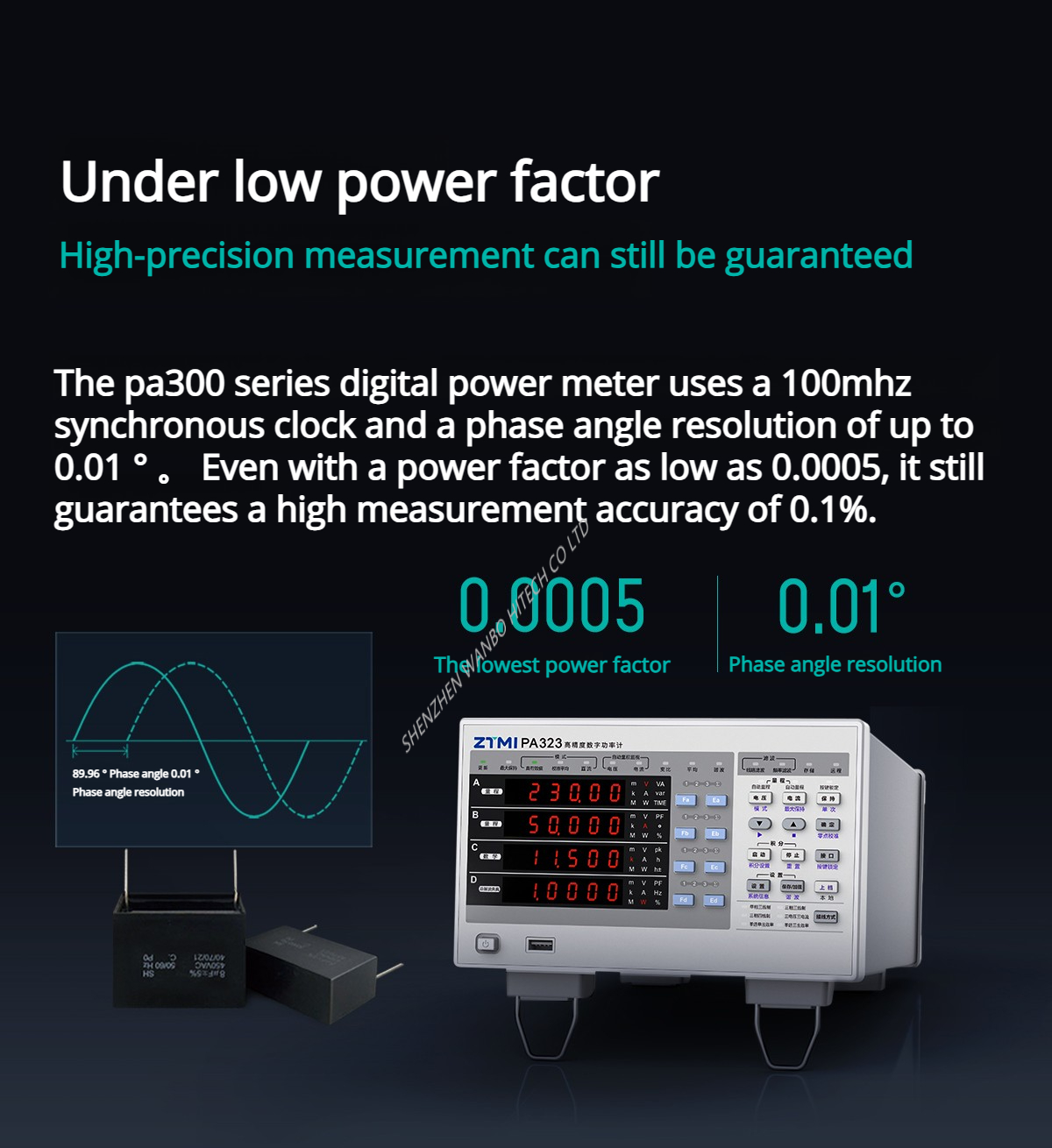

High-precision measurement can still be ensured even under low power factor conditions.
The PA300 series digital power meter adopts a 100 MHz synchronous clock and has a phase angle resolution of up to 0.01 . Even at a power factor as low as 0.0005, it can still ensure a high measurement accuracy of 0.1%.
| Model | PA323 |
|---|---|

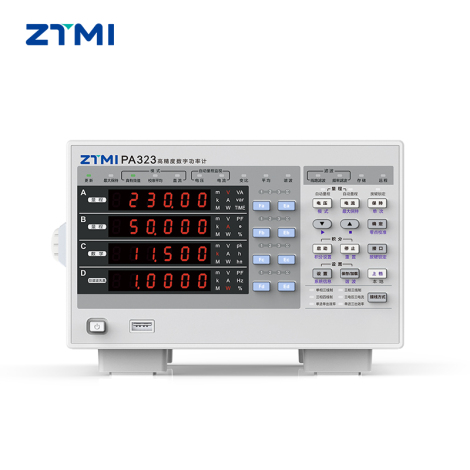

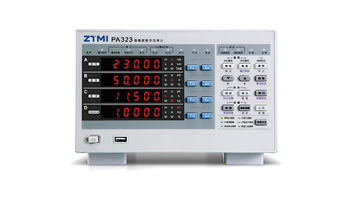

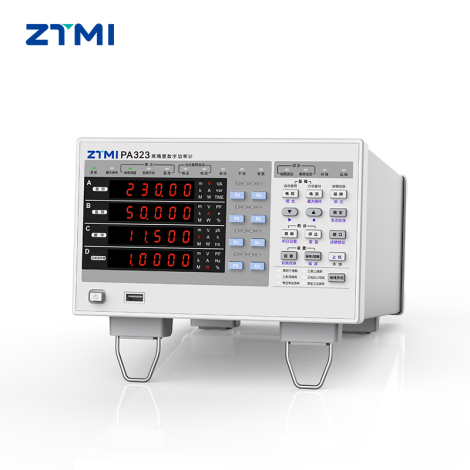

| Actual Picture |  |
| Input Channel | Three Channels |
| Basic Accuracy | 0.1% |

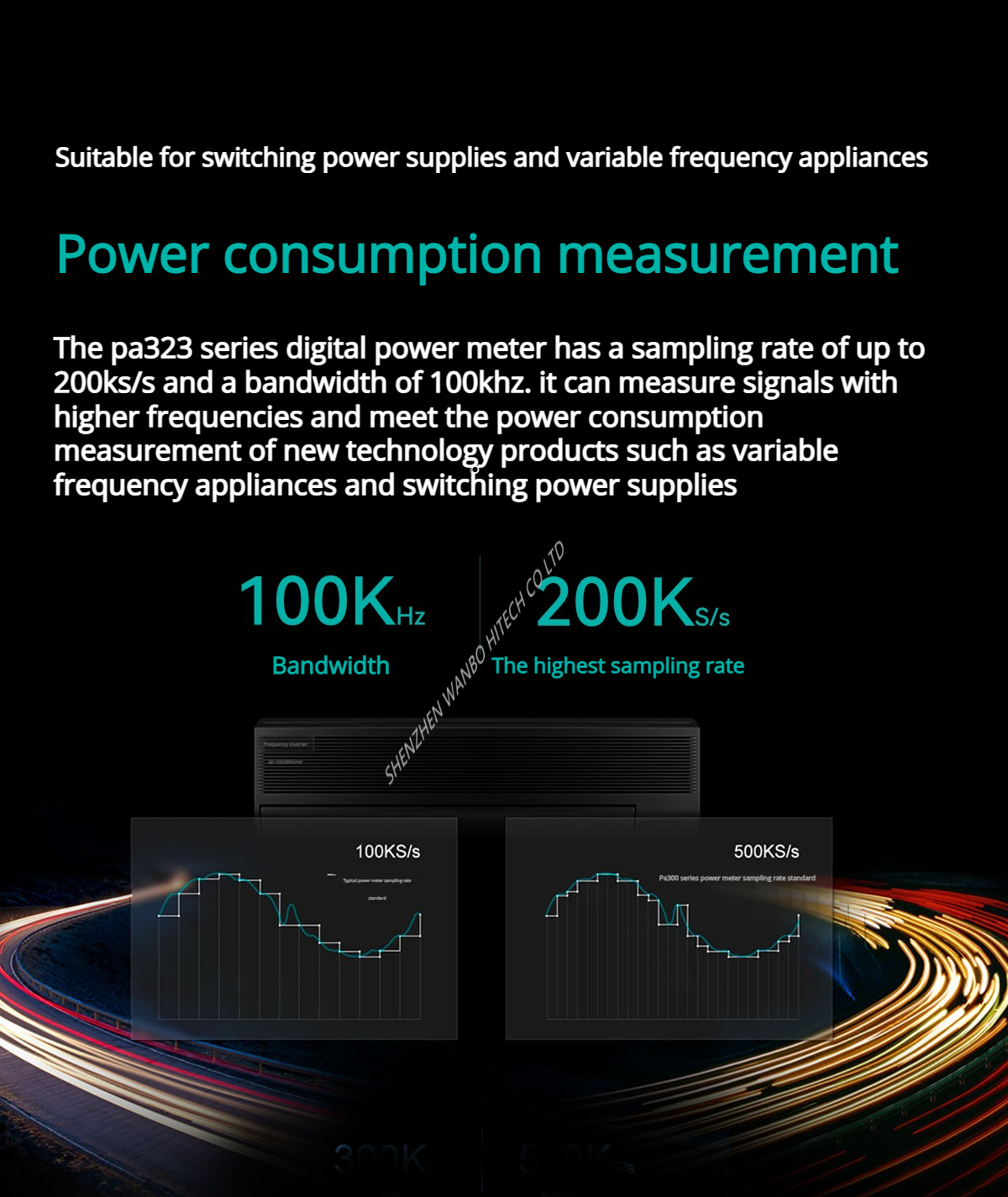

| Input Bandwidth | DC,0.1Hz ~ 100kHz |
| Sampling Rate | 200KS/s |
| Harmonic Analysis Frequency | 1-50Times |
| Maximum Test Voltage | 600V |
| Current Test Range | 2.5mA-20A |
| External Sensor Input | BNC |
| Communication Interface | GPIB,LAN,RS-232,USB-Host |
| Test Scenario | Small Power Motor Three-Phase Low-Power Power Supply |
