3nh YG60 1000GU塑料大理石光泽仪，60度0.1 Gu 1年保修
$
223.60
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Products Description

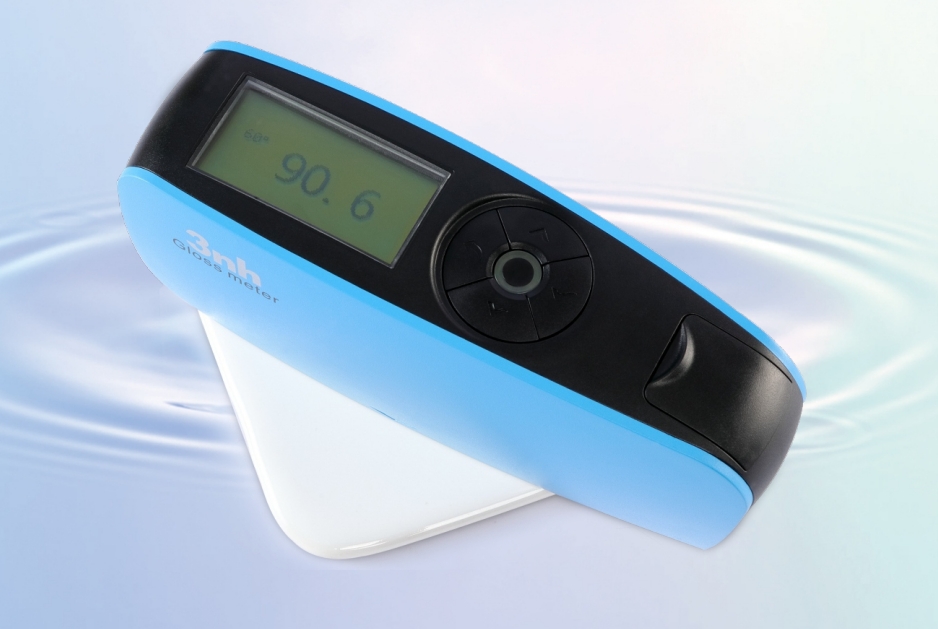

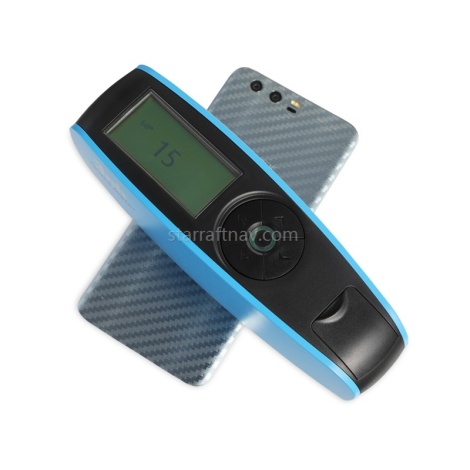

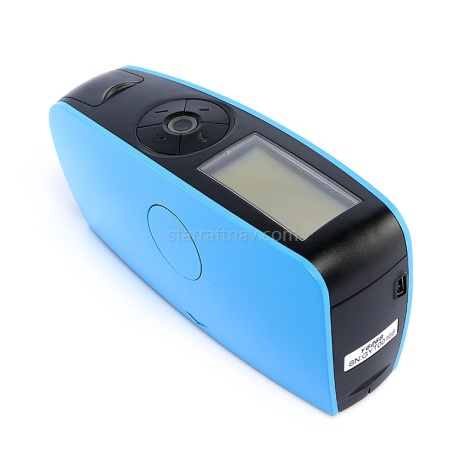

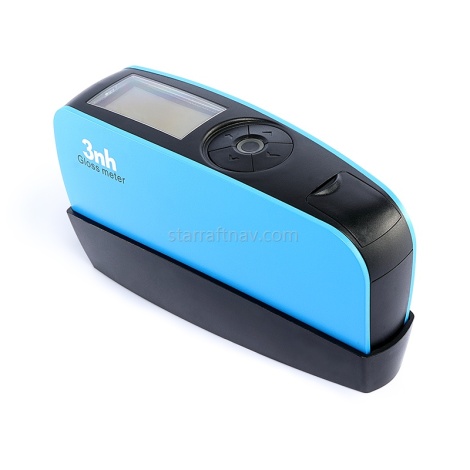

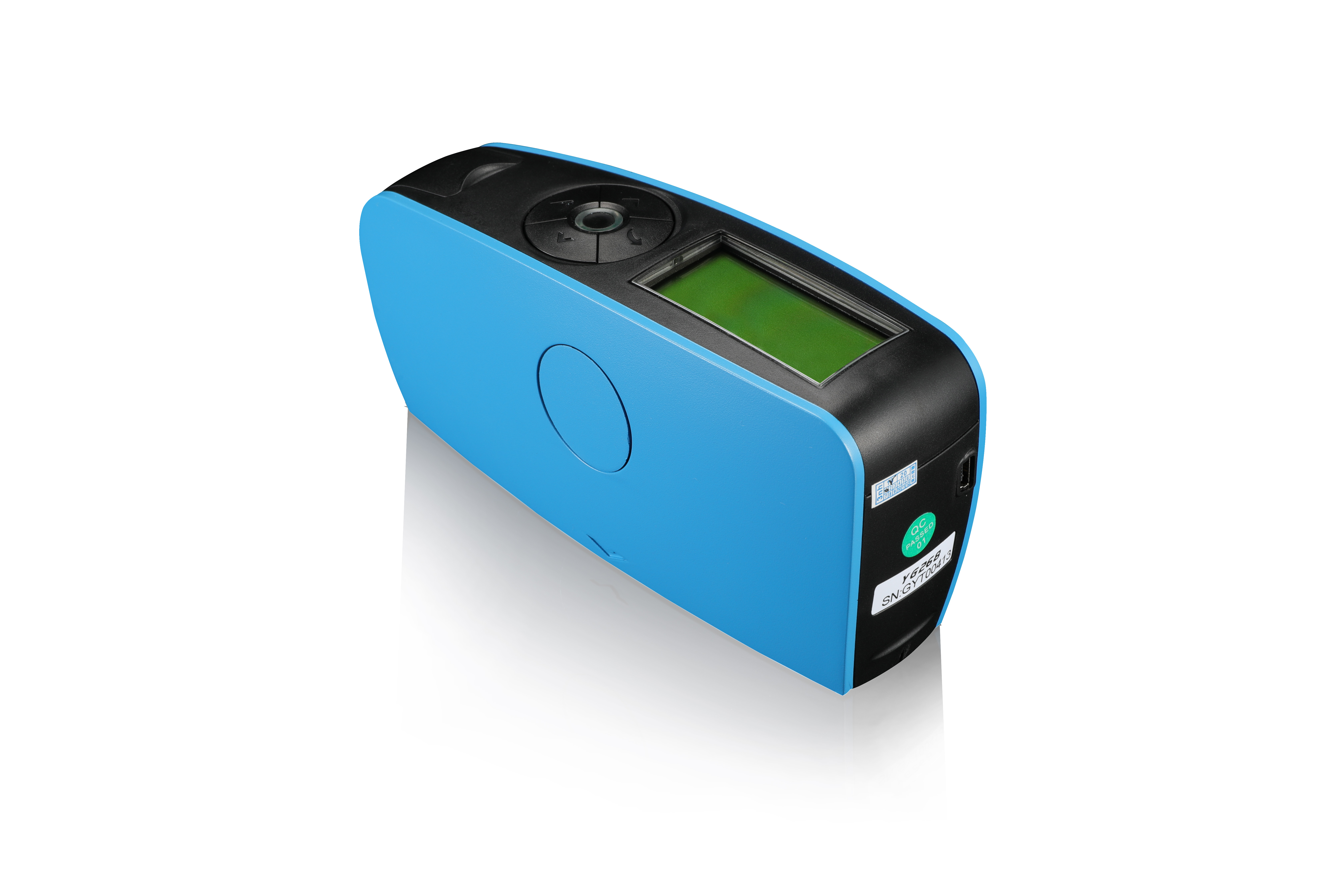

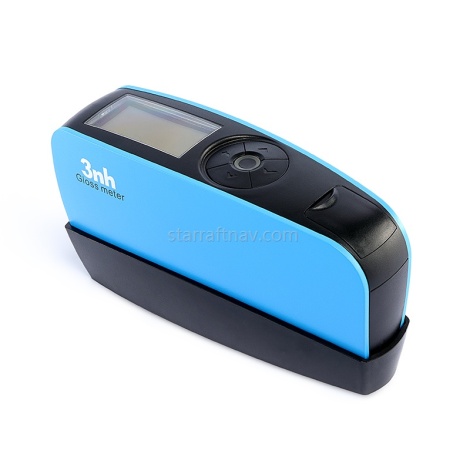

3nh YG60 standard board gloss meter with 1000gu glossy range
YG60 60°Accurate Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet requirements of JJG696.
YG60 touch screen gloss meter can test material with high gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
YG60 touch screen gloss meter can test material with high gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Product Paramenters
|
Model
|
YG60 60°Accurate Gloss Meter
|
|
|
Measuring Angle
|
60°
|
|
|
Measurement Range
|
60°: 0-1000GU
|
|
|
Division Value
|
0.1GU
|
|
|
Measuring Modes
|
Basic mode; Statistic mode; Continuous mode; QC mode
|
|
|
Measuring Time
|
0.5S
|
|
|
Repeatability
|
0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
|
|
|
Accurate
|
Conform with JJG696 requirements of gloss meter
|
|
|
Auto Power-off Time
|
Within 30s-120s
|
|
|
Long-time Calibration
|
Automatically check and made the calibration
|
|
|
Language
|
Chinese & English
|
|
|
Storage
|
35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
|
|
|
Display
|
2.3 inch white and black screen
|
|
|
Size
|
160*52*84mm
|
|
|
Weight
|
About 300g
|
|
|
Power Supply
|
1pc dry-cell battery(can measure 10000 times) or use USB Charge
|
|
|
Interface
|
USB
|
|
|
PC Software
|
GQC6 QC software can printing testing report and with more extended functions
|
|
|
Operation Temperature Range
|
0-40ºC(32-104° F)
|
|
|
Storage Temperature Range
|
-20-50ºC(-4-122° F)
|
|
|
Humidity Range
|
< 85% RH, without condensation
|
|
|
Standard Accessories
|

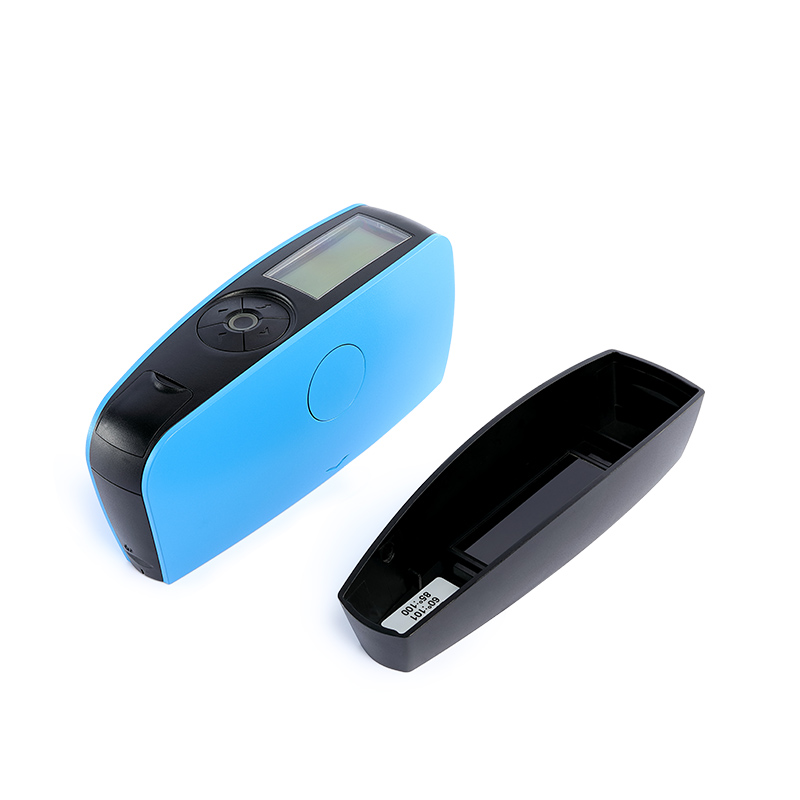

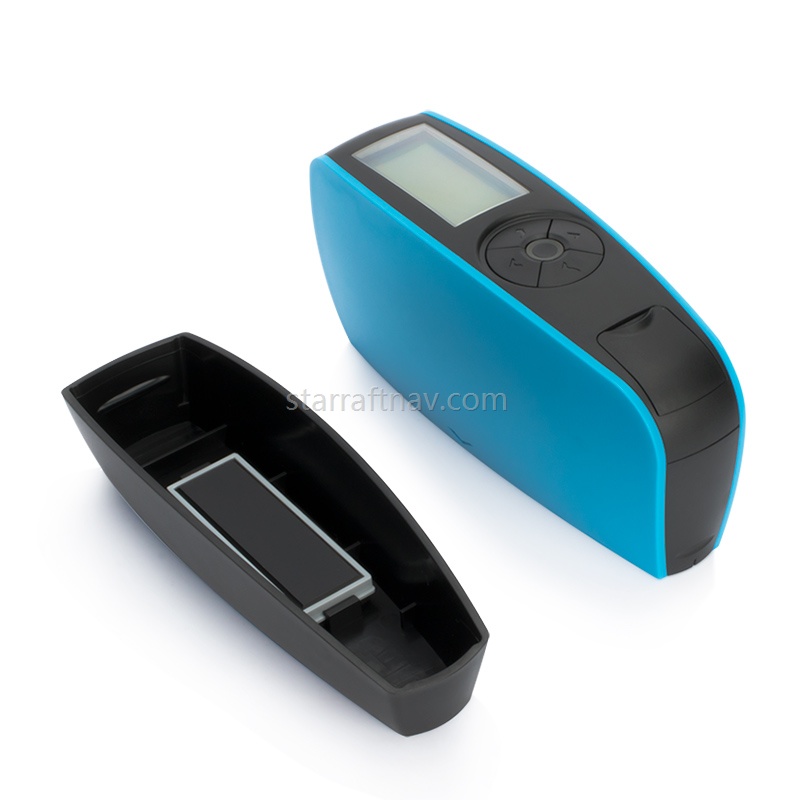

USB cable, user manual, calibration plate, QC software
|
|
|
Optional Accessories
|
Miniature printer,Bluetooth
|
|
|
Notification: the technical parameter is only for reference
|
|
|

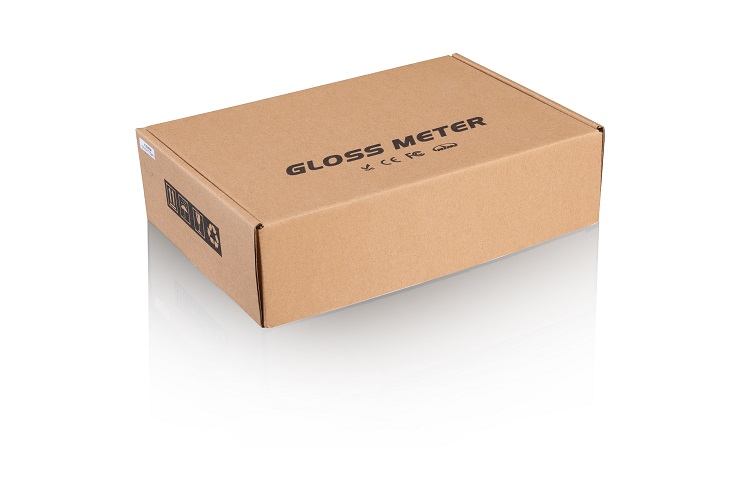

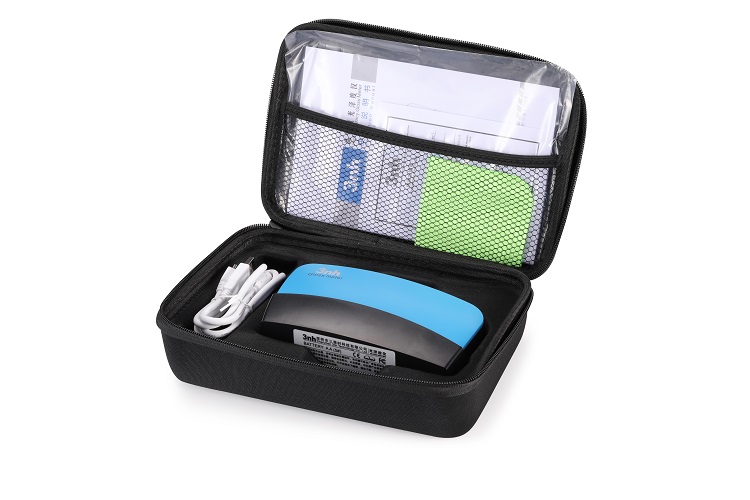

Product packaging
