ZLG VBNET-1GH 汽车以太网转换器 100/1000BASE-T1 至 100/1000BASE-TX，带罗森伯格接口
$
222.93
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Product Overview
The ZLG VBNET-1GH is an industrial-grade high-performance automotive Ethernet media converter, part of the VBNET-1GX series. It features a Rosenberger compatible interface for the automotive Ethernet port. The converter enables full-duplex physical layer conversion between a standard 100/1000BASE-TX Ethernet network and a 100/1000BASE-T1 (BroadR-Reach) automotive Ethernet network, making it ideal for modern vehicle development, testing, and diagnostics.
Key Features
- High-Performance Conversion: Enables full-duplex physical layer conversion between one 100/1000BASE-T1 automotive Ethernet port (Rosenberger interface) and one standard 100/1000BASE-TX Ethernet port.
- Dual-Speed Support: Supports both 100 Mbps and 1000 Mbps (Gigabit) data rates on both interfaces with auto-negotiation.
- OPEN Alliance Compliant: The automotive Ethernet interface meets the OPEN Alliance BroadR-Reach specification (100/1000BASE-T1).
- Rosenberger Interface: The automotive Ethernet port uses a connector compatible with Rosenberger specifications.
- Robust Industrial Design: Operates reliably within a wide temperature range of -40°C to 85°C.
- Flexible Mode Configuration: Supports Master/Slave mode selection via an adaptive function or a physical DIP switch. Configuration takes effect immediately.
- Built-in Noise Immunity: The automotive Ethernet port includes a built-in 100/1000BASE-T1 filter compliant with OPEN Alliance standards.
- Compact and Portable: Features a small form factor for easy integration into test setups or vehicles.
- Dual Power Options: Can be powered via a USB Type-C interface or a wide-range DC power supply. Both can be connected simultaneously.
- Clear Status Indication: Equipped with LED indicators for link and communication status.
Technical Specifications
- Model: VBNET-1GH
- Brand: ZLG (Guangzhou Zhiyuan Electronics)
- Series: VBNET-1GX
- Automotive Ethernet Interface: 1 port, 100/1000BASE-T1, OPEN Alliance BroadR-Reach compliant, Rosenberger compatible connector
- Standard Ethernet Interface: 1 port, 100/1000BASE-TX, RJ45 connector
- Data Rate: 100 Mbps / 1000 Mbps
- Conversion: Full-duplex physical layer conversion
- Master/Slave Mode: Configurable via DIP switch or adaptive
- Operating Temperature: -40°C to +85°C
- Power Supply: Wide-range DC input or USB Type-C
- Housing: Industrial-grade
Application Scenarios
Ideal for a wide range of automotive development and testing applications:
- R&D Testing: Prototype validation and network debugging.
- After-sales & Diagnostics: Vehicle network troubleshooting and analysis.
- ECU Production Line: ECU programming and functional testing.
- Subsystem Testing: Testing individual vehicle modules (e.g., infotainment, ADAS).
- Vehicle-level Integration: Connecting test PCs to the vehicle's Ethernet backbone for system-level validation and flashing.

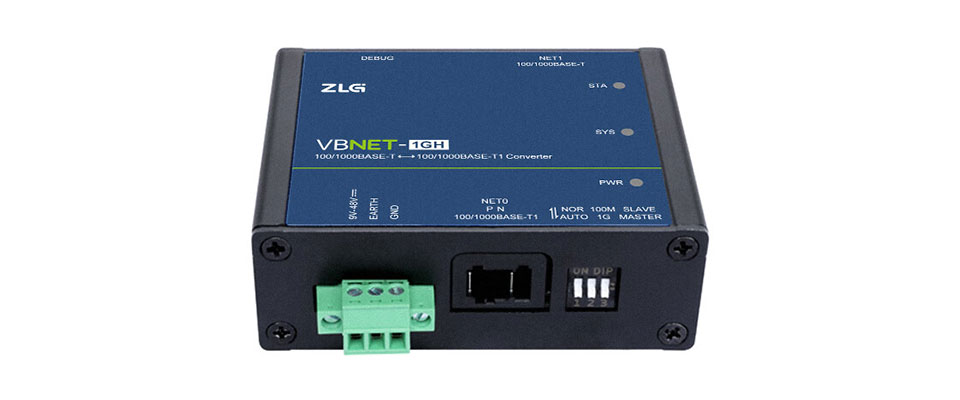

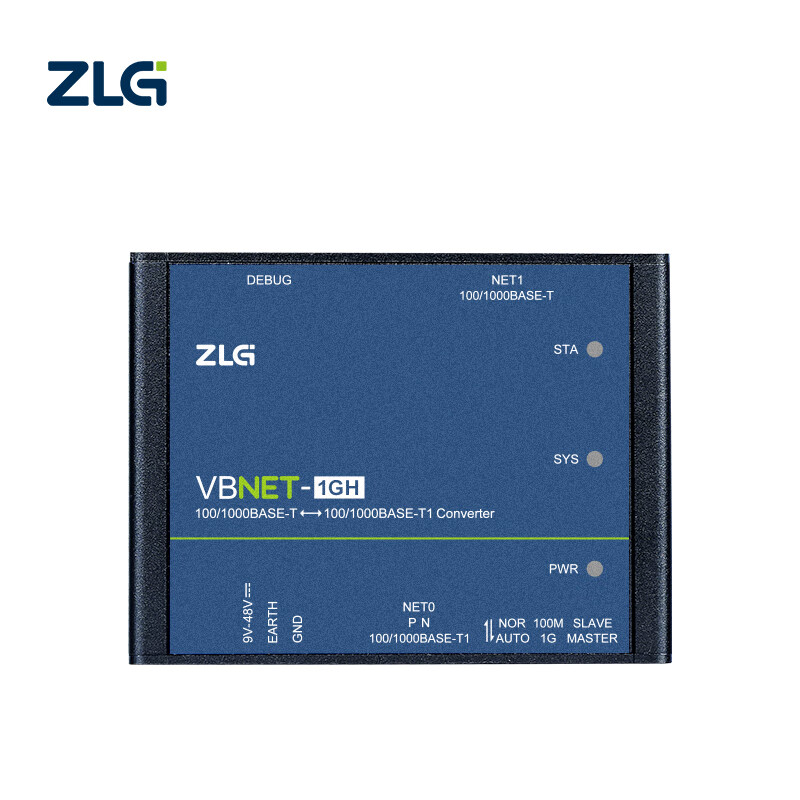

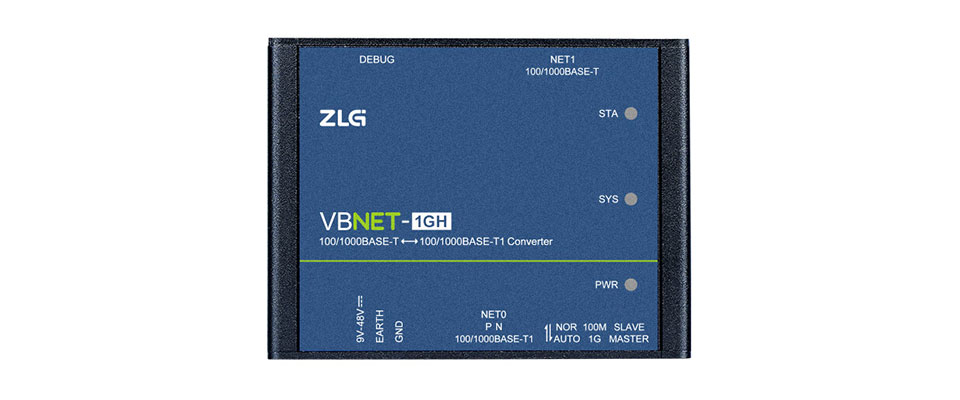

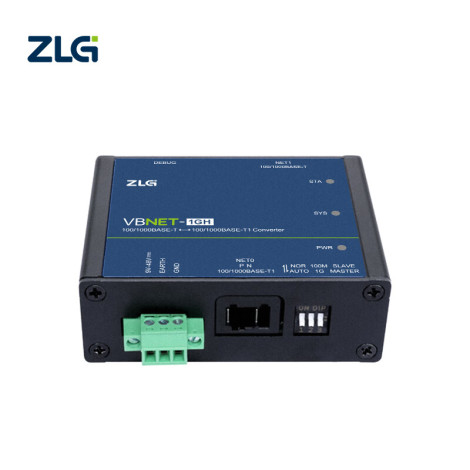

Pictures of VBNET-1GH
