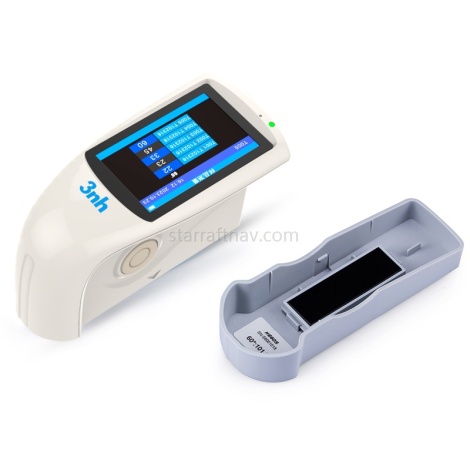

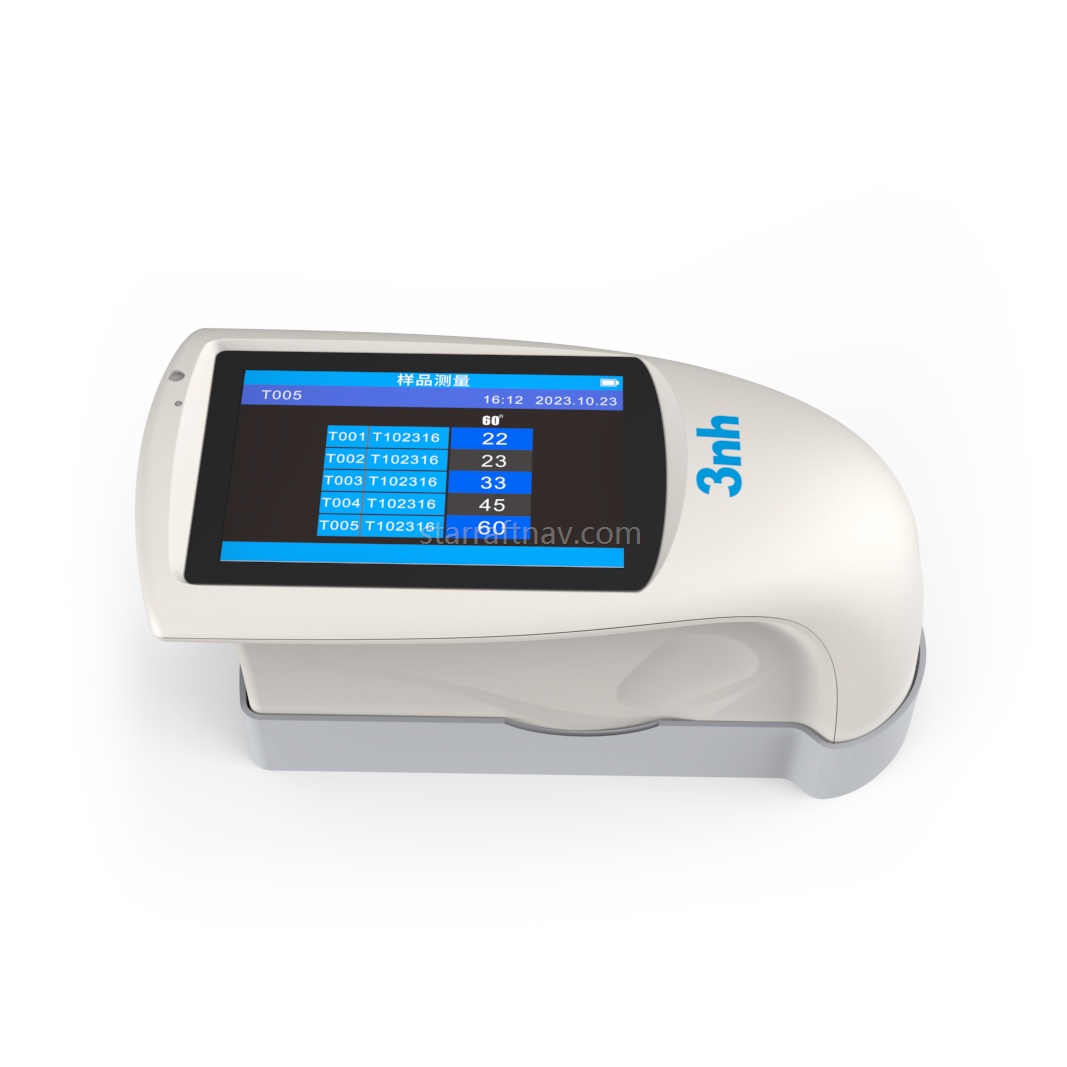

3nh HG60S低成本光泽仪60度油漆塑料表面光泽仪精密数字光泽仪
$
166.24
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Products Description
Introduction:

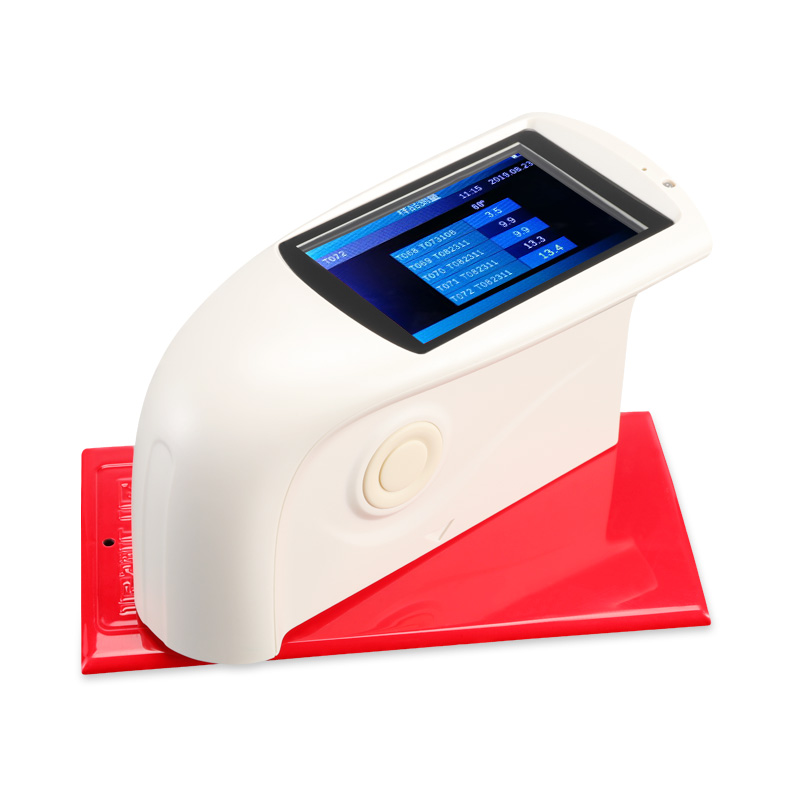

HG60S gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with
international standards of ASTM D523, ASTM D2457.
HG60S gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
international standards of ASTM D523, ASTM D2457.
HG60S gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
Product Paramenters
Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. Meet requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813,ASTM523, GB/T9754;
2. Meet requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813,ASTM523, GB/T9754;
Model: | HG60S |
Measuring Angle | 60° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
Measuring Area (mm) | 9x15 |
Measuring Range | 0~200GU |
Division Value | 1GU |
Measurement Range Repeatability Reproducibility | 0-200GU ±1GU ± 1GU |
Measurement Standard | Confirm with JJG696 second class glossmeter working requirement |
Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
Errors | ±1.5 , ± 1.5% |
Measuring Time | 0.5s |
Dimension | L*W*H : 160mm*75mm*90mm |
Weight | 350g |
Language | Chinese/English |
Battery | 3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours) |
Display | TFT 3.5 inch |
Interface | USB/RS-232 |
Storage | Basic mode: 1000 |
Software | / |
Operation Temperature | 0~40℃（32~104°F） |
Storage Temperature | -20~50℃（-4~122°F） |
Humidity | <85% relative humidity, no condensation |

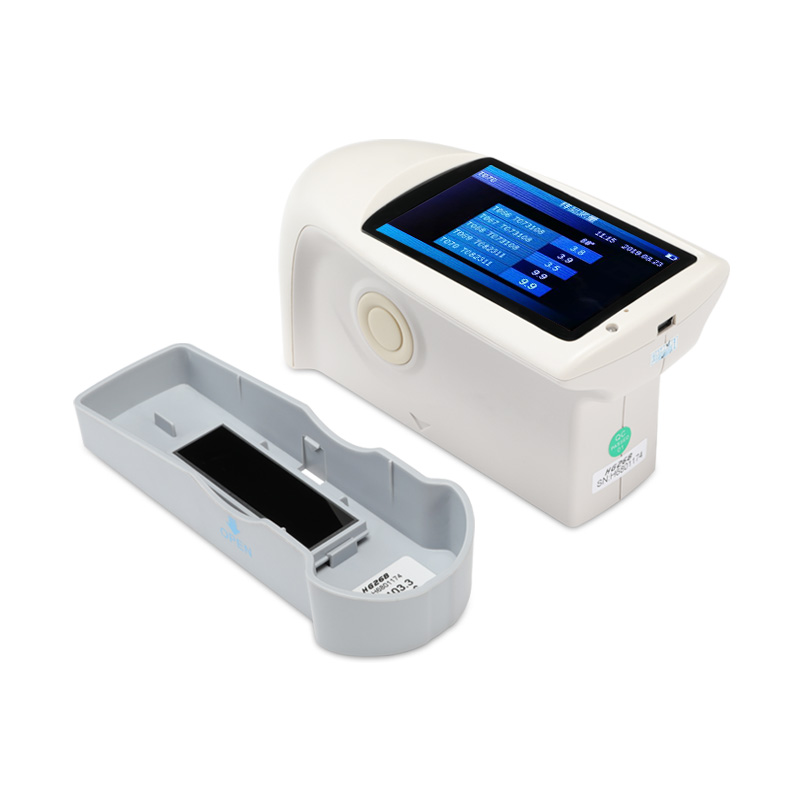

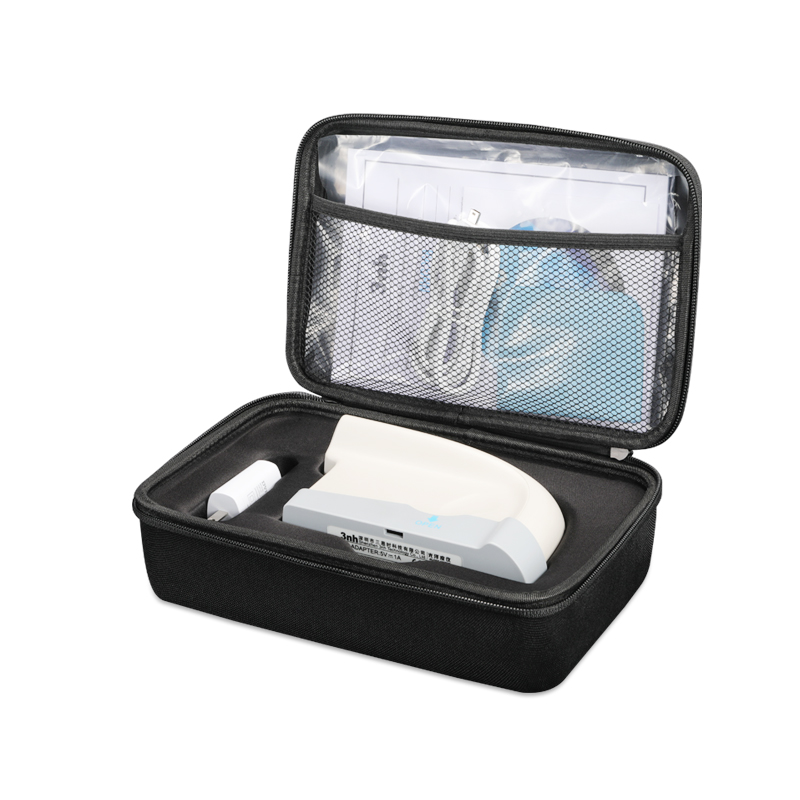

Standard Accessories | Power Adapter, USB cable, User Manual, Calibration Plate |
Optional Accessories | Miniature Printer |
Note | The specifications are subject to change without notice. |
